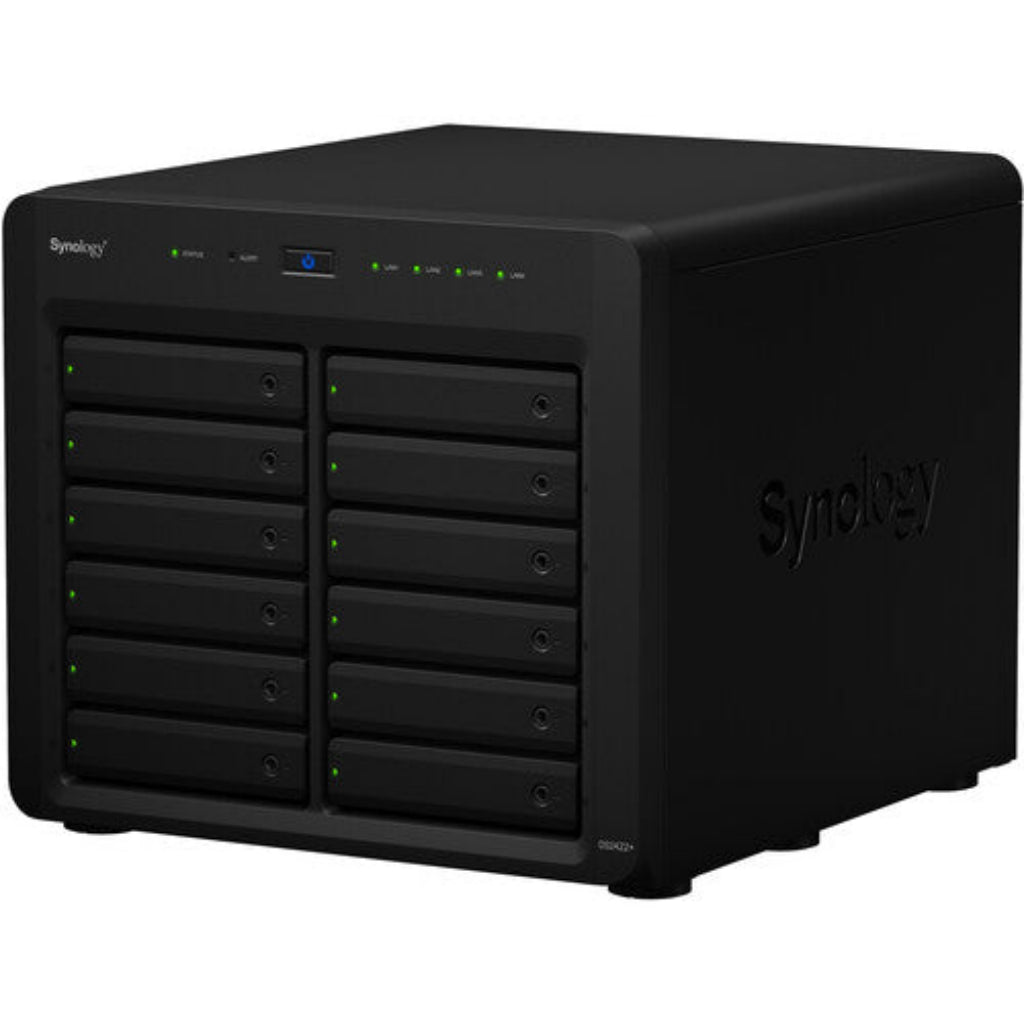

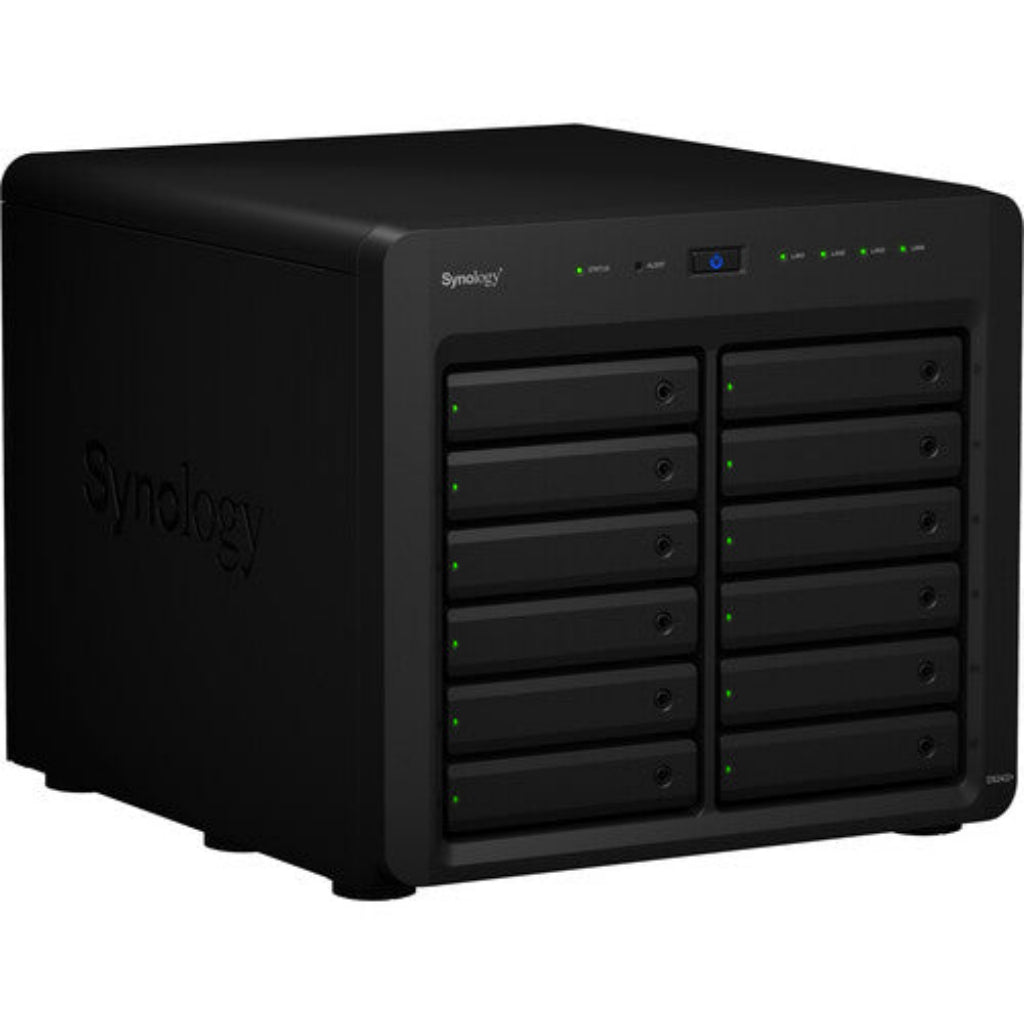

Synology DiskStation DS2422+ 12 Bay Network Attached Storage Enclosure
Synology DiskStation DS2422+ 12 Bay Network Attached Storage Enclosure
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping
- 7-Days Easy Returns
- Brand Warranty
Product Description:
High Performance and Scalability: The DS2422+ is powered by an AMD Ryzen Quad-core 2.2 GHz CPU and supports up to 32GB of DDR4 ECC RAM. It offers impressive sequential read/write speeds of up to 2,200/1,383 MB/s, making it ideal for handling large data sets and demanding applications.
Flexible Storage Options: With 12 drive bays, the DS2422+ supports 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs. It can be expanded to 24 bays using the DX1222 expansion unit, providing ample storage capacity for growing businesses.
Advanced Data Protection: The NAS includes robust data protection features such as RAID configurations, snapshot replication, and built-in data integrity checks. These features ensure your data is safe and can be quickly restored in case of hardware failure or data corruption.

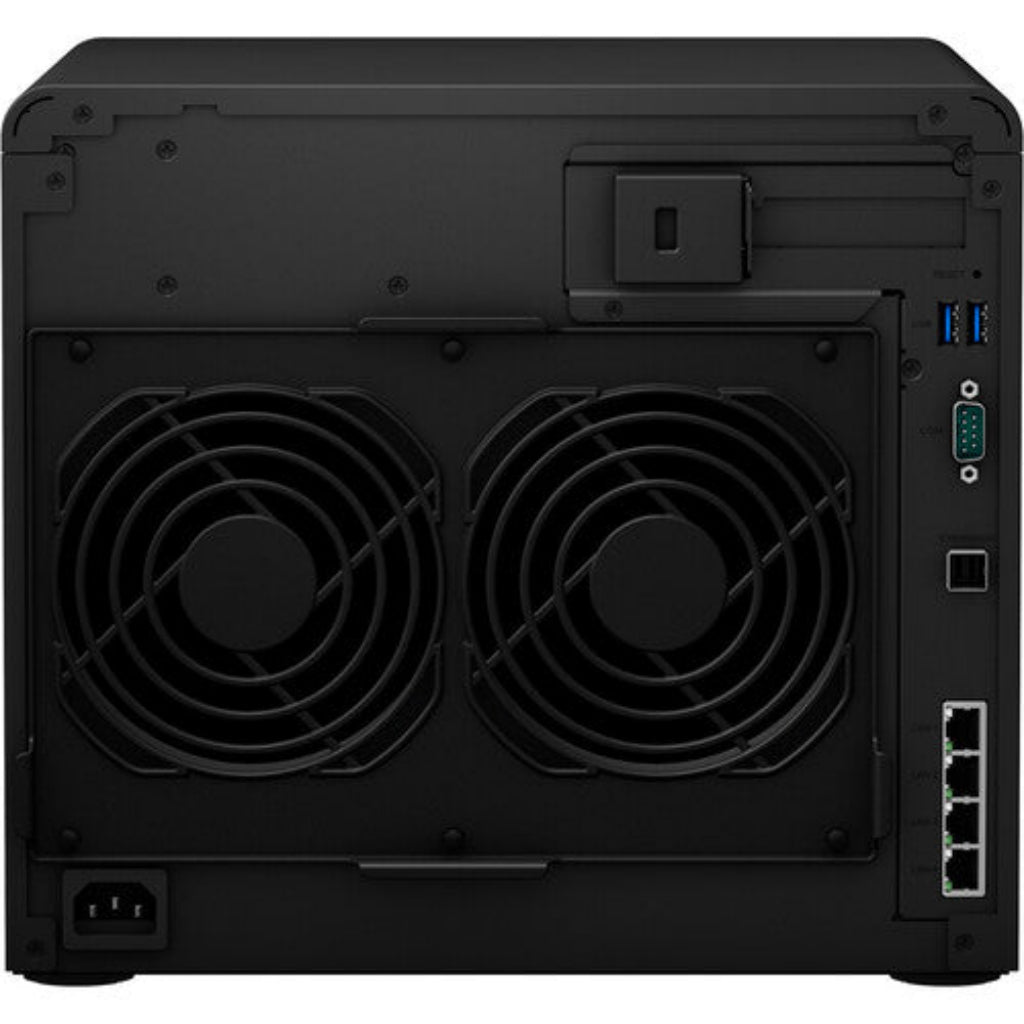

Comprehensive Connectivity: The DS2422+ offers four 1GbE LAN ports with Link Aggregation and Failover support, two USB 3.2 Gen 1 ports, and an expansion port for adding 10/25GbE networking or NVMe SSD cache. This ensures high-speed data transfer and flexible connectivity options.
User-Friendly Management: Powered by Synology's DiskStation Manager (DSM) operating system, the DS2422+ provides an intuitive interface for managing storage, file sharing, and backup tasks. It also supports a wide range of applications for business productivity, including virtualization, surveillance, and file syncing.
Model | Synology DiskStation DS2422+ |
CPU | |
CPU Model | AMD Ryzen V1500B |
CPU Architecture | 64-bit |
CPU Core | 4 |
CPU Frequency | 2.2 GHz |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 4 GB DDR4 ECC SODIMM |
Memory Module Pre-installed | 4 GB (4 GB x 1) |
Total Memory Slots | 2 |
Memory Expandable up to | 32 GB (16 GB x 2) |
Storage | |
Drive Bays | 12 |
Maximum Drive Bays with Expansion Unit | 24 (DX1222 x 1) |
Compatible Drive Type | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
Hot Swappable Drive | Yes |
External Ports | |
RJ-45 1GbE LAN Port | 4 |
USB 3.2 Gen 1 Port | 2 |
Expansion Port | 1 |
Expansion Port Type | Mini-SAS HD |
File System | |
Internal Drives | Btrfs EXT4 |
External Drives | Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT |
File Protocol | SMB AFP NFS FTP WebDAV Rsync |
Others | |
System Fan | 120 mm x 120 mm x 2 pcs |
Fan Speed Mode | Full-Speed Mode Cool Mode Quiet Mode |
Noise Level | 25 dB(A) |
PCIe Expansion | 1 x Gen3 x8 slot (x4 link) |
Power Supply Unit / Adapter | 550 watts |
Power Consumption | 73.11 watts (Access) 32.12 watts (HDD Hibernation) |
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
Certification | FCC CE BSMI VCCI RCM UKCA EAC CCC KC |
Miscellaneous | |
Dimensions(Height x Width x Depth) | 18.5 x 17.25 x 16.4 |
Net Weight | 12.56kg |
Warranty | 3 Year Brand Warranty |
Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1 |
