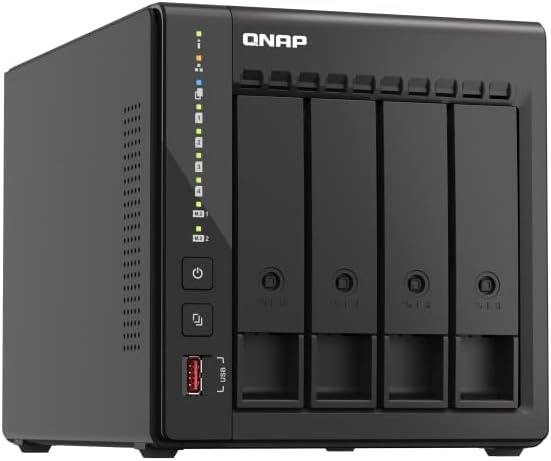

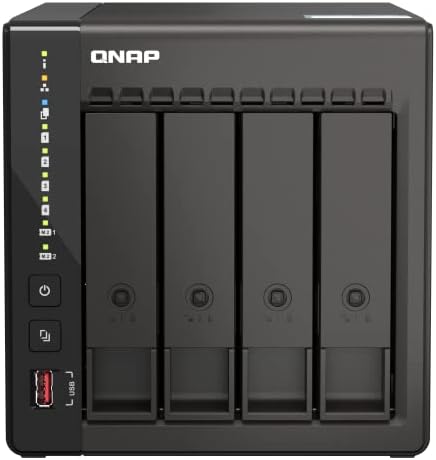

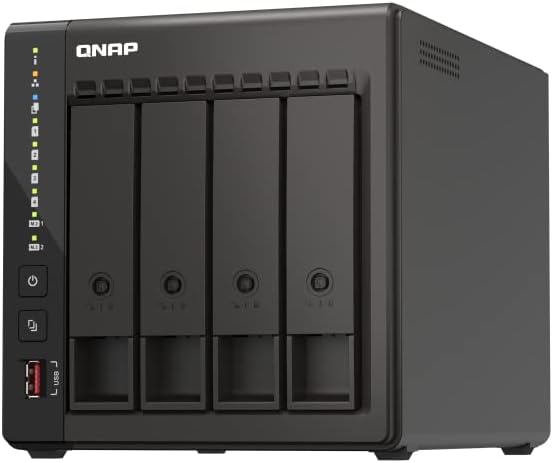

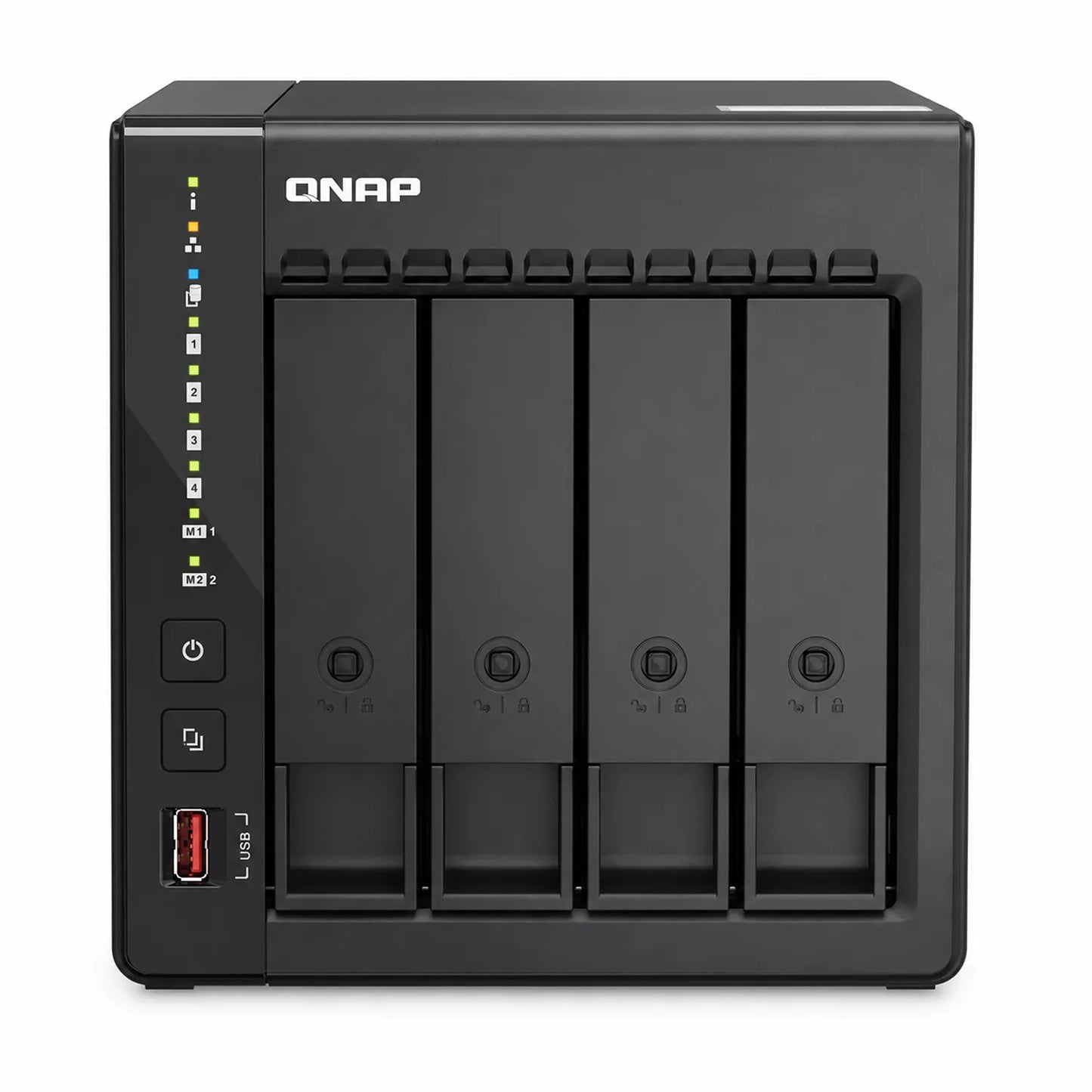

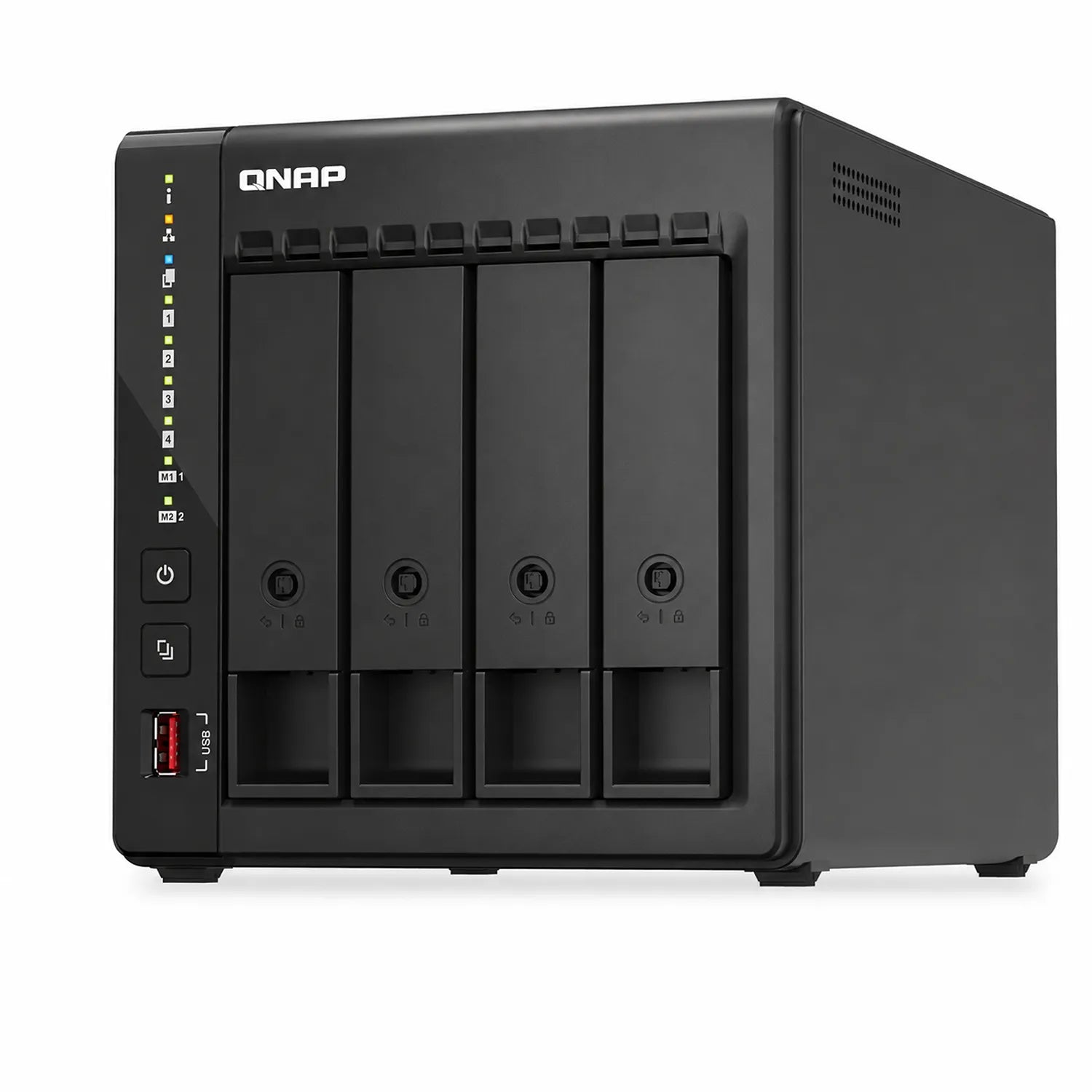

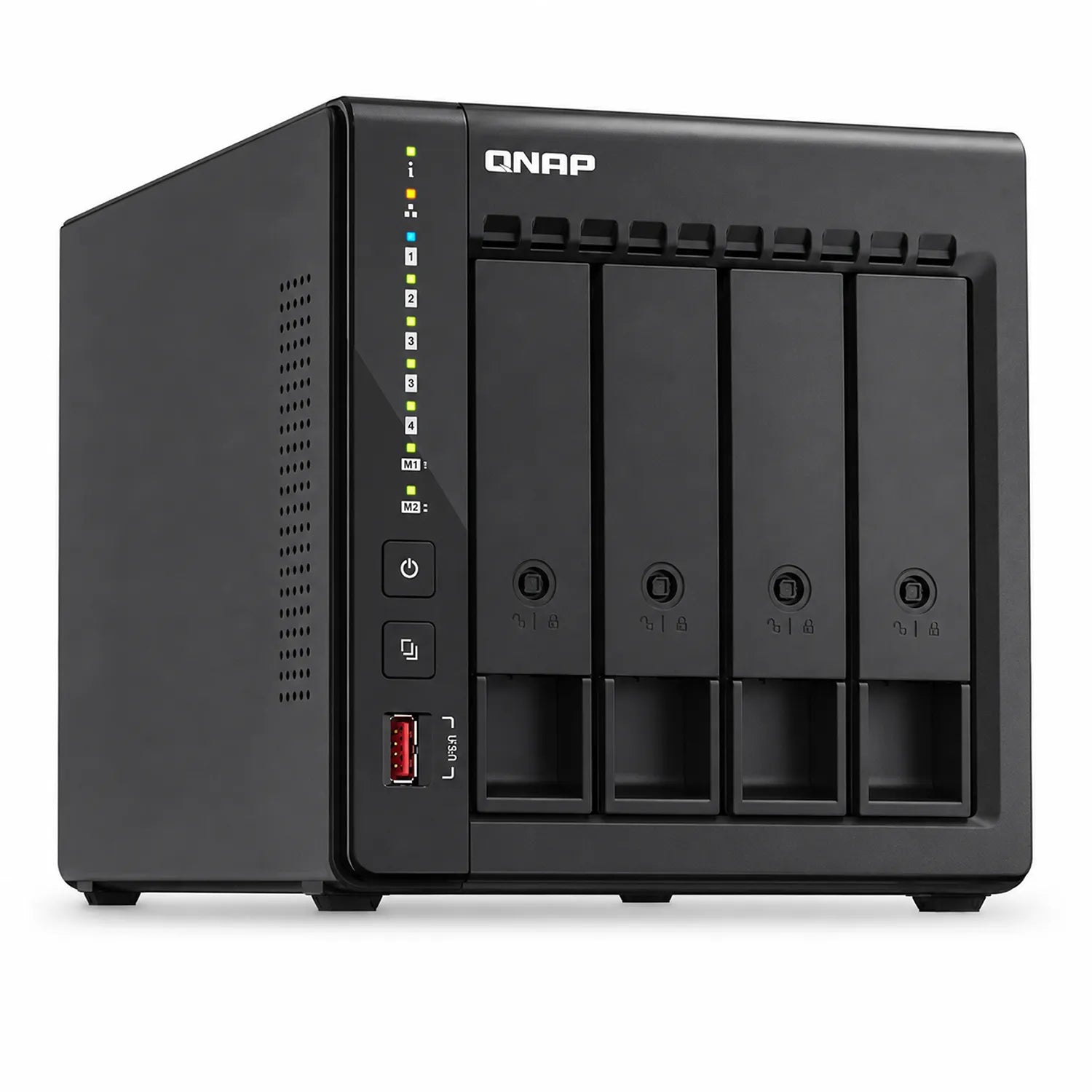

QNAP TS-453E-8G Quad Core 4 Bay Desktop Network Attached Storage Enclosure - Black

QNAP TS-453E-8G Quad Core 4 Bay Desktop Network Attached Storage Enclosure - Black

Brand: QNAP
Regular price Rs. 71,499.00
Sale price 25% off Rs. 71,499.00 Sale Sold out Regular price Rs. 94,999.00
Taxes included. Free Shipping.

Product Description:

The TS-453E features 2.5GbE connectivity, 8GB RAM, and M.2 slots for NVMe SSD caching to deliver high performance for applications such as surveillance systems, virtual machines, file servers or backup servers. Dual HDMI™ outputs also provide direct multimedia playback and robust surveillance monitoring. QNAP will provide long-term availability and support for the TS-453E, providing a great choice for businesses requiring matching NAS models deployed in multiple locations.

Dual 2.5GbE ports
2.5 times faster network speed with existing CAT5e cables; supports port trunking to deliver up to 5Gbps.

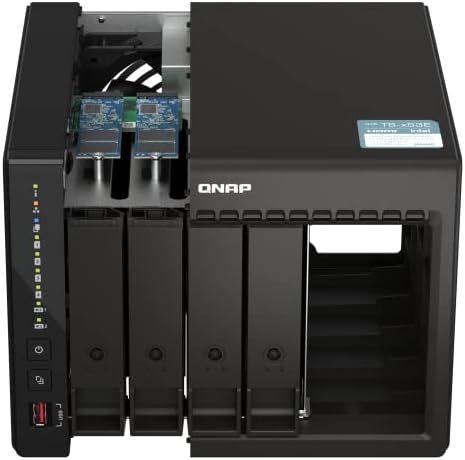

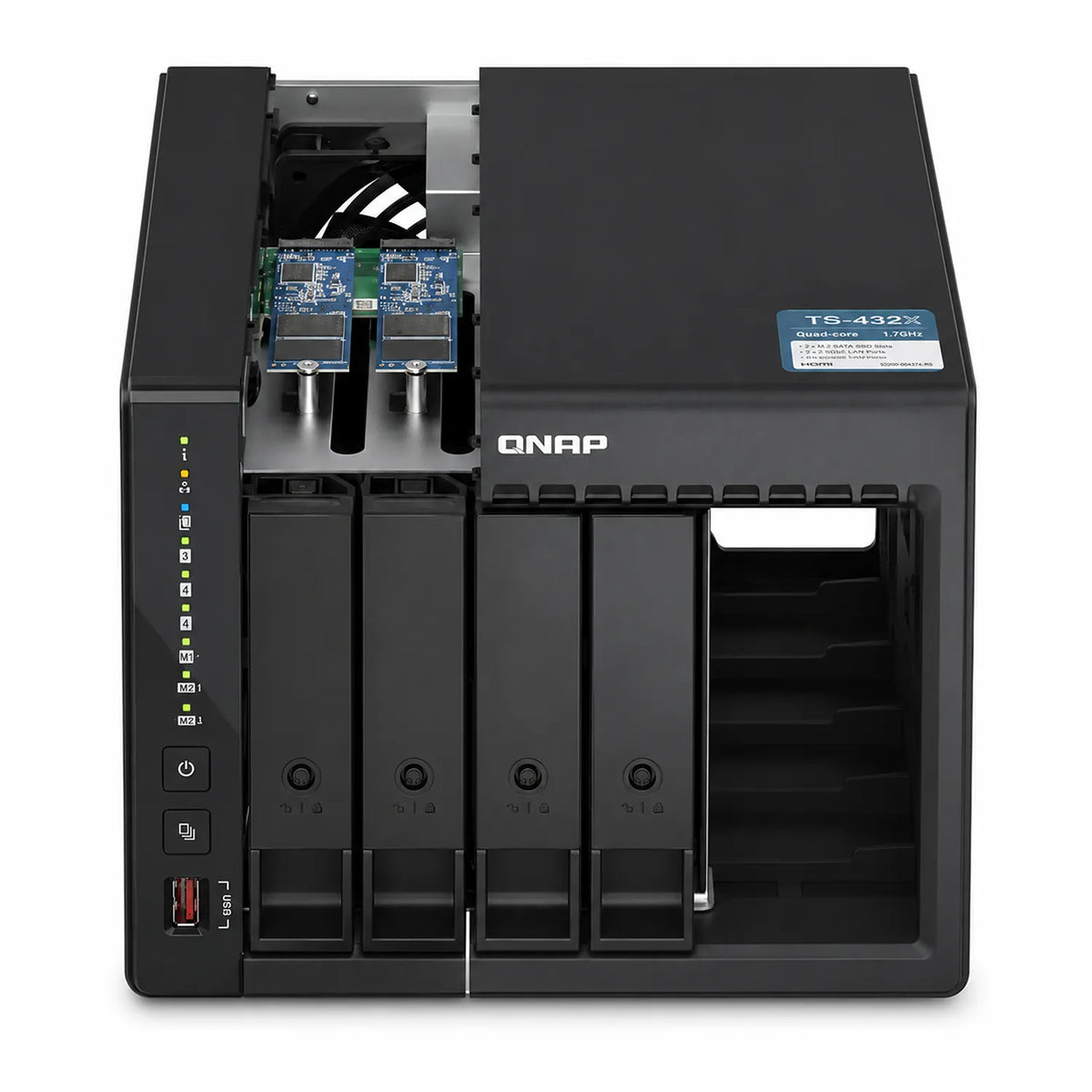

Dual M.2 2280 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately) or Edge TPU.

8GB RAM onboard
System performance and multitasking is optimized with 8GB RAM.

Long-term model
The TS-453E will be available and supported by QNAP for an extended period, up to 2029.

Dual HDMI™ output
The dual-screen extension can be used for surveillance or 4K high-resolution video playback.

Expand storage capacity
Supports USB expansion enclosures (see the compatibility list).

Long-term availability
The TS-453E is powered by an Intel® Celeron® J6412 processor and will be available and supported for an extended period. This long-term availability makes the TS-453E an ideal choice for MSP, SI, and other IT-related businesses requiring matching NAS models for long-term projects.

24/7 surveillance solution for stores and branch offices
The TS-453E is a one-stop surveillance solution for centrally recording/managing multiple cameras and surveillance servers based in your offices, stores, and other working spaces.

Record/monitor your environment
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-453E and enjoy simplified camera management, storage space allocation, camera live viewing and playback.

Centrally manage up to 32 surveillance servers
If your business requires simultaneously managing multiple recording servers, then install QVR Center on the TS-453E. With QVR Center you can manage up to 32 surveillance servers and 10,000+ cameras with an easy-to-use interface.

Model QNAP TS-453E-8G
CPU
CPU Model Intel Celeron J6412 4-core/4-thread processor, burst up to 2.6 GHz
CPU Architecture 64-bit
CPU Core 4
CPU Frequency 2.6 GHz
Hardware Encryption Engine Yes(AES-NI)
Memory
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory Capacity 16 GB (2 x 8GB)
Memory Slot     2 x SODIMM DDR4
Flash Memory     4GB (Dual boot OS protection)
Storage
Drive Bays 4 x 3.5-inch SATA 6Gb/s
Compatible Drive Type 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x2
Hot Swappable Drive Yes

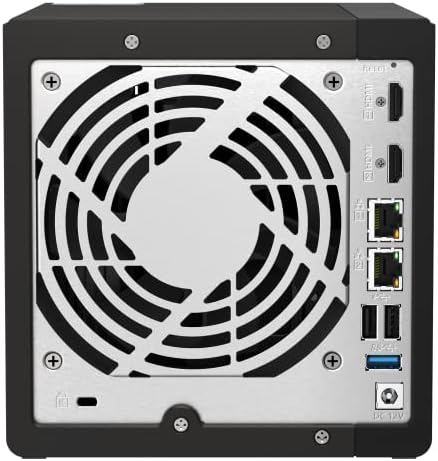

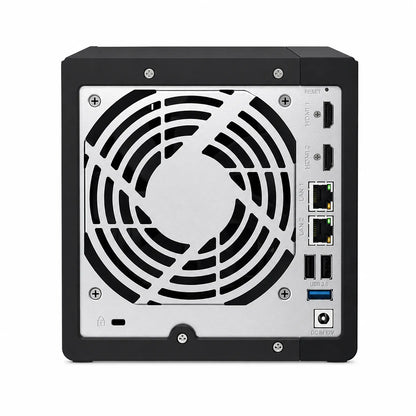

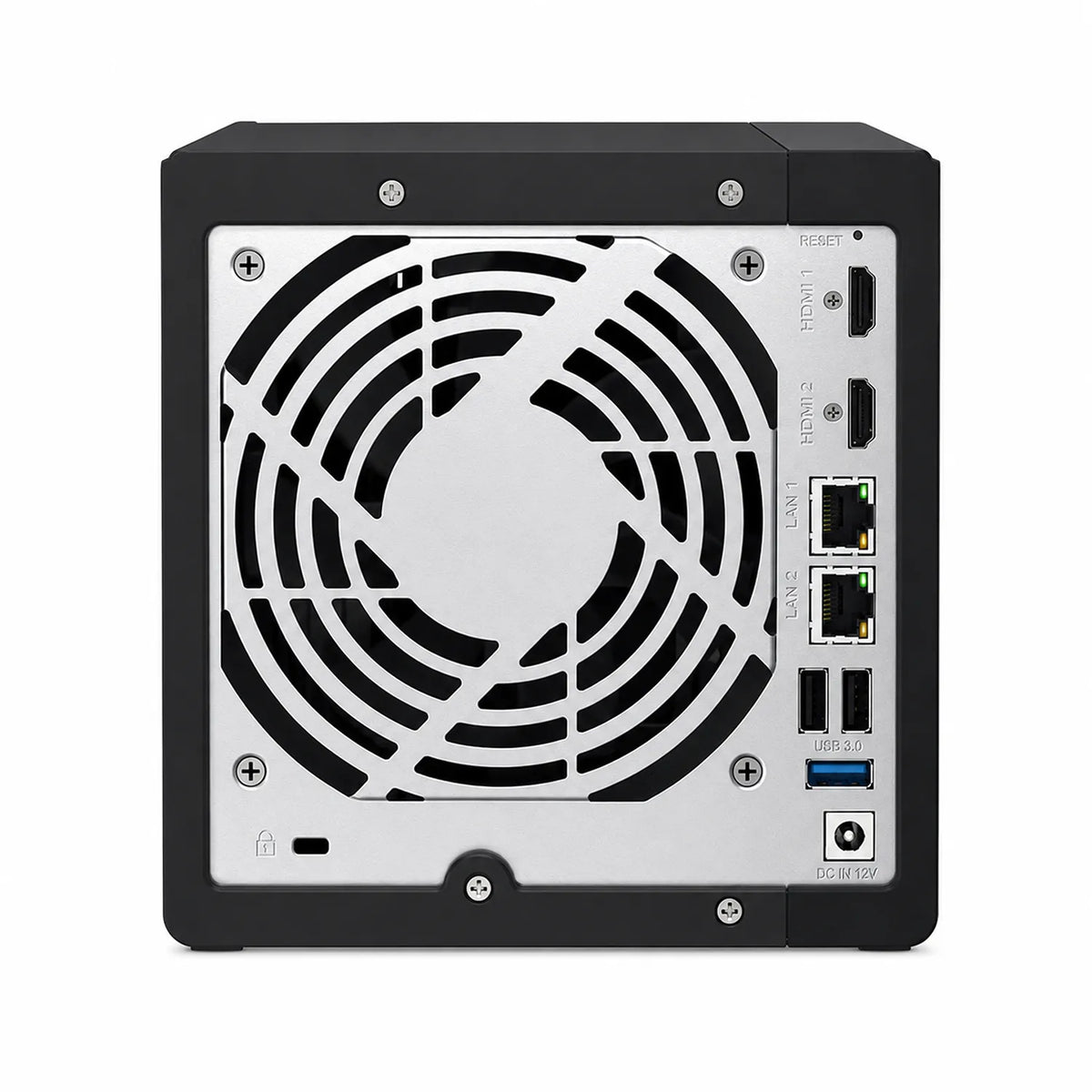

External Ports
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
USB 2.0 port 2
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
HDMI Output     2 x HDMI 1.4b ( up to 3840 x 2160 @30Hz )
File System
Supported Client OS Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers     Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
LUN feature     LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
RAID Type 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
Others
System Fan 1 x 120mm, 12VDC
Noise Level 22 dB(A)
Power Supply Unit / Adapter 90W adapter, 100-240V
System Warning Buzzer
Power Consumption
35.79 W (Operating Mode)
28.974 W (HDD Hibernation)
AC Input Power Voltage 100V to 240V AC
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Miscellaneous

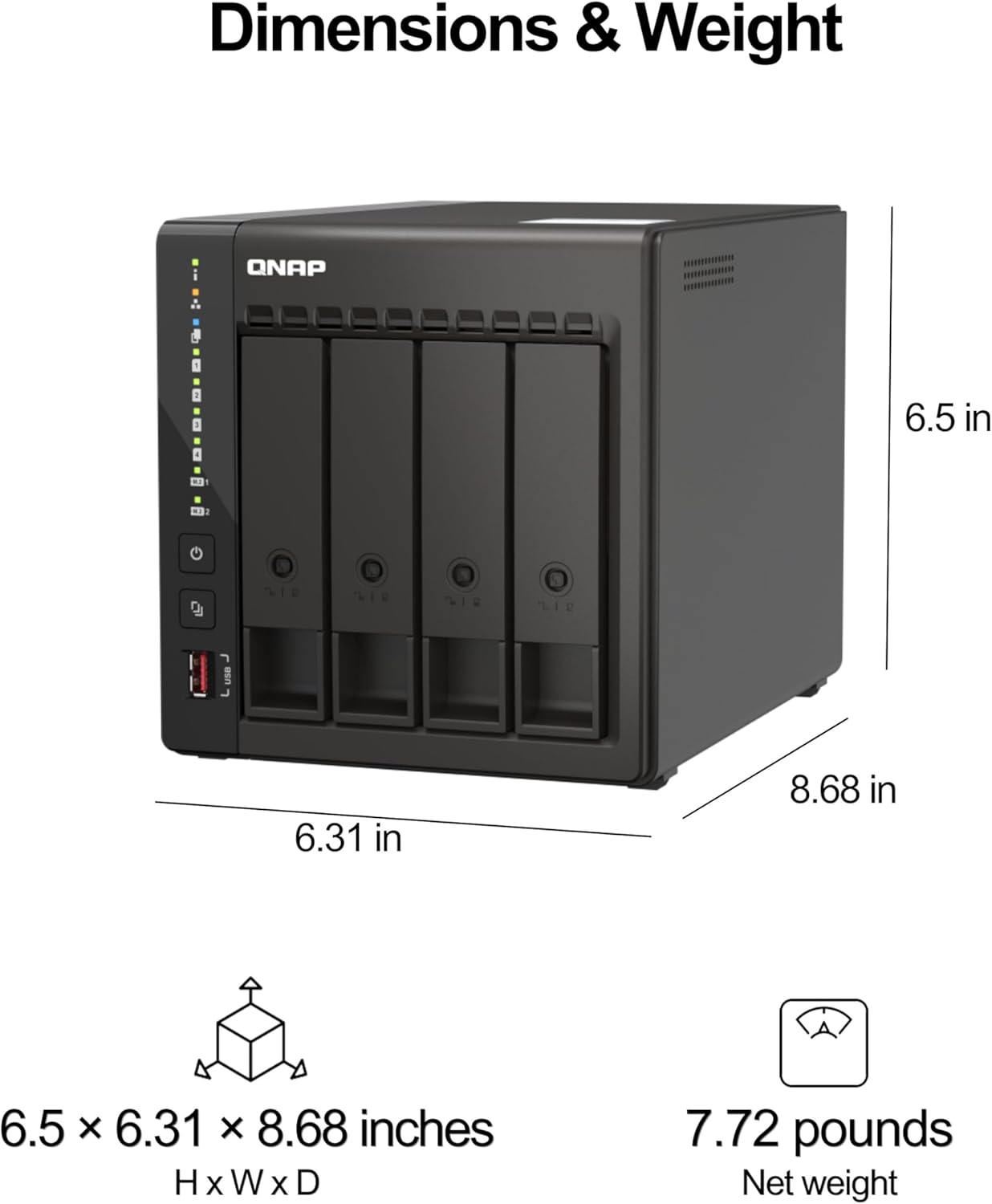

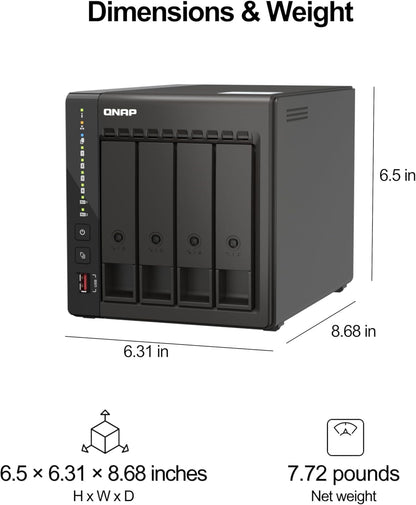

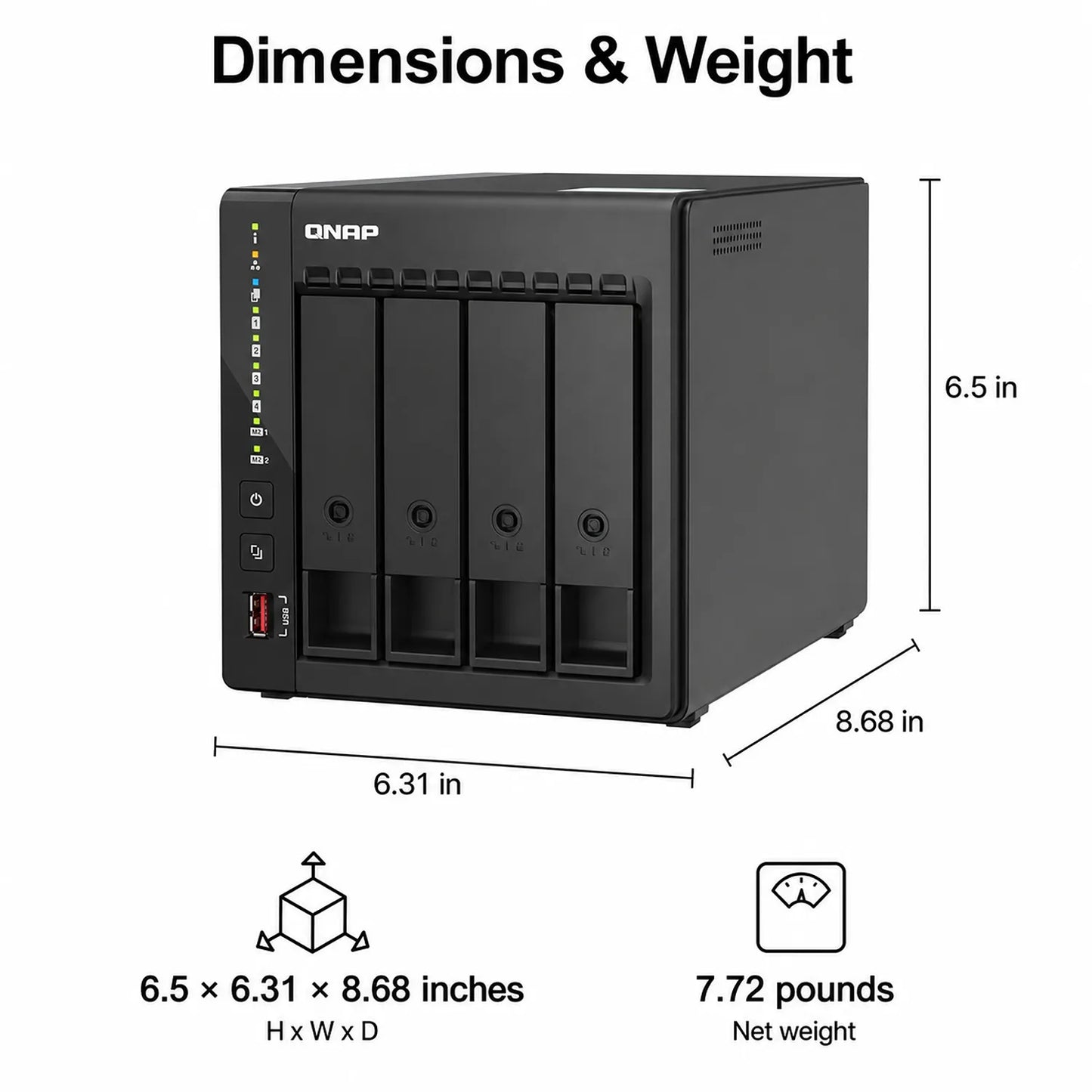

Dimensions(Height x Width x Depth) 165 × 160.2 × 220.5 mm
Net Weight 3.5kg
Warranty 3 Year Brand Warranty
Package Contents
TS-453E
Ethernet cable x 1
Power cord x 1
AC Adapter
Flat head screw (for M.2 SSD) x 2
Flat head screw (for 3.5" HDD) x 16
Flat head screw (for 2.5" HDD) x 12
Quick installation guide (QIG)
Drive tray keys x 2
