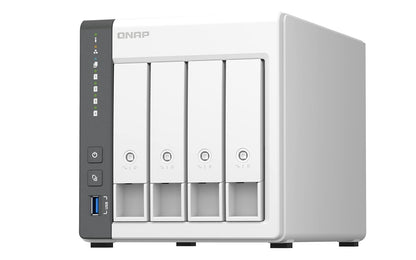

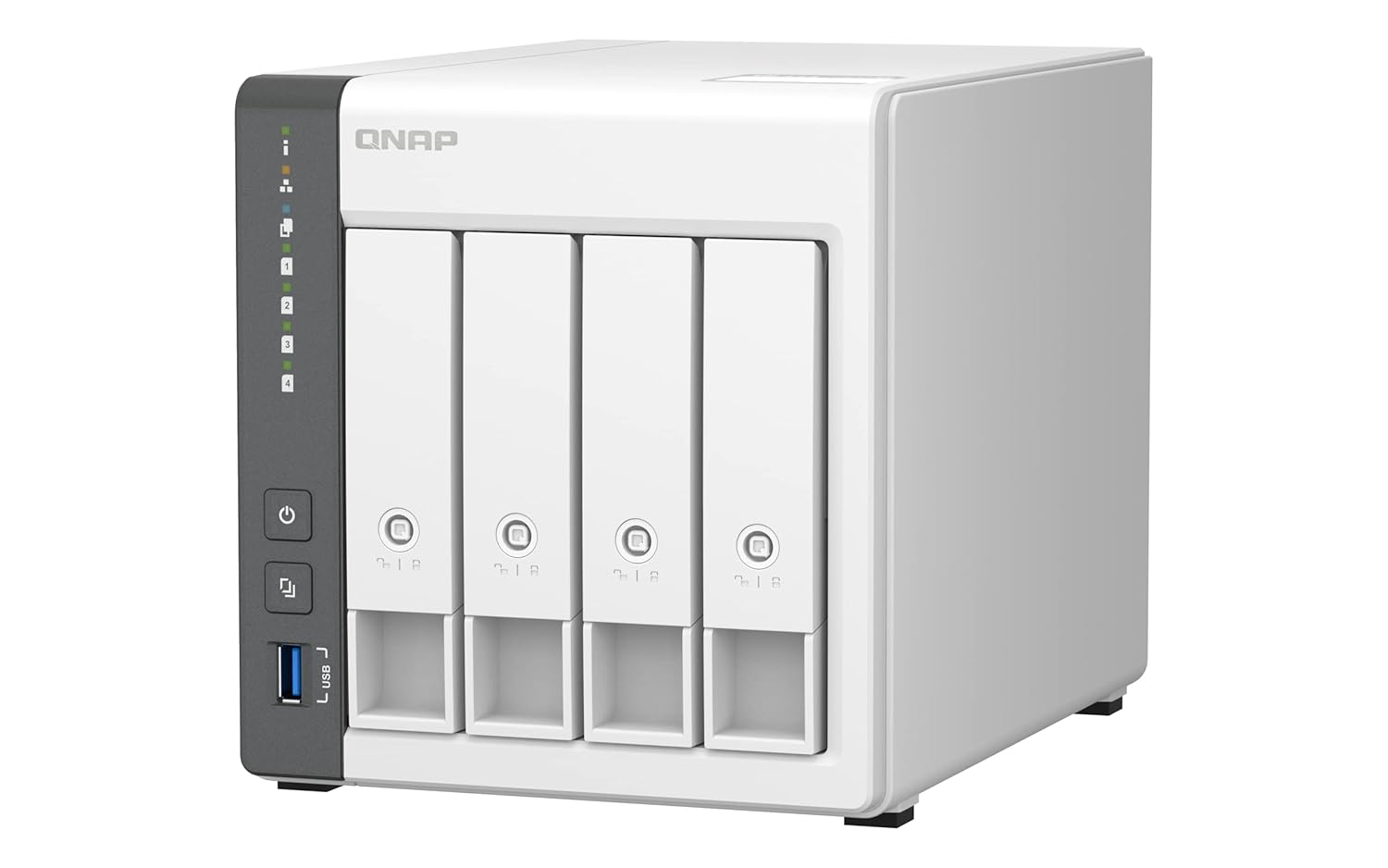

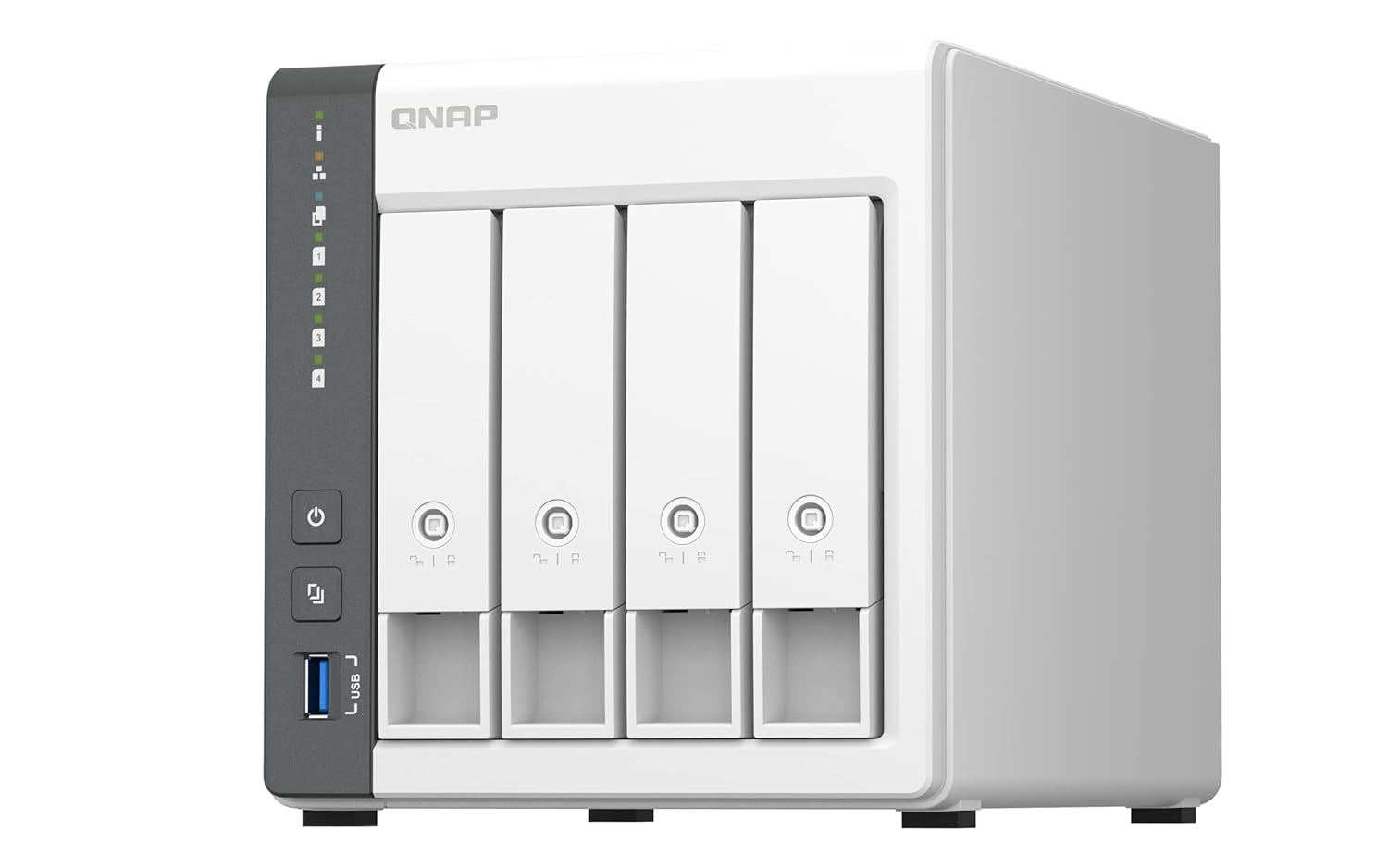

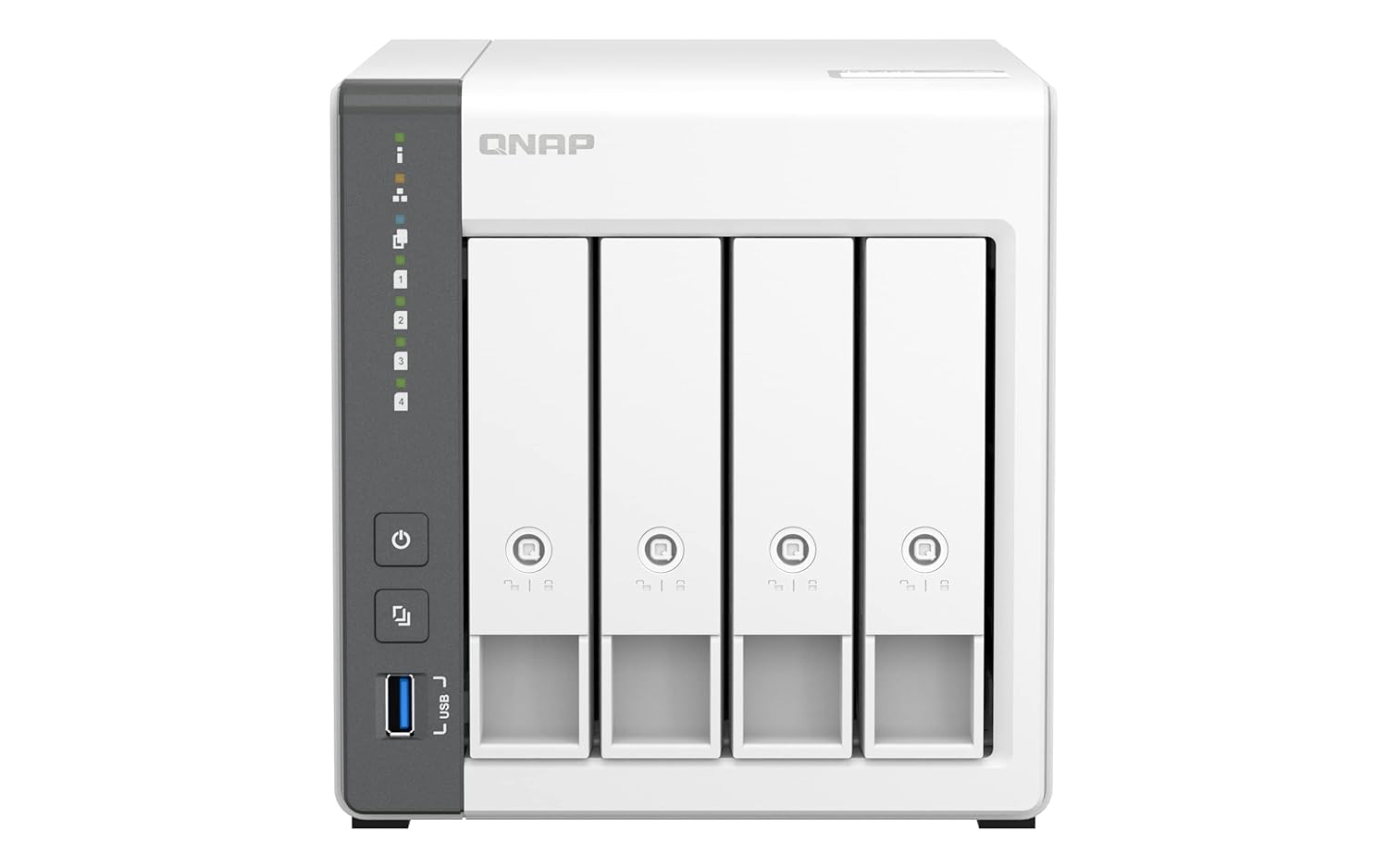

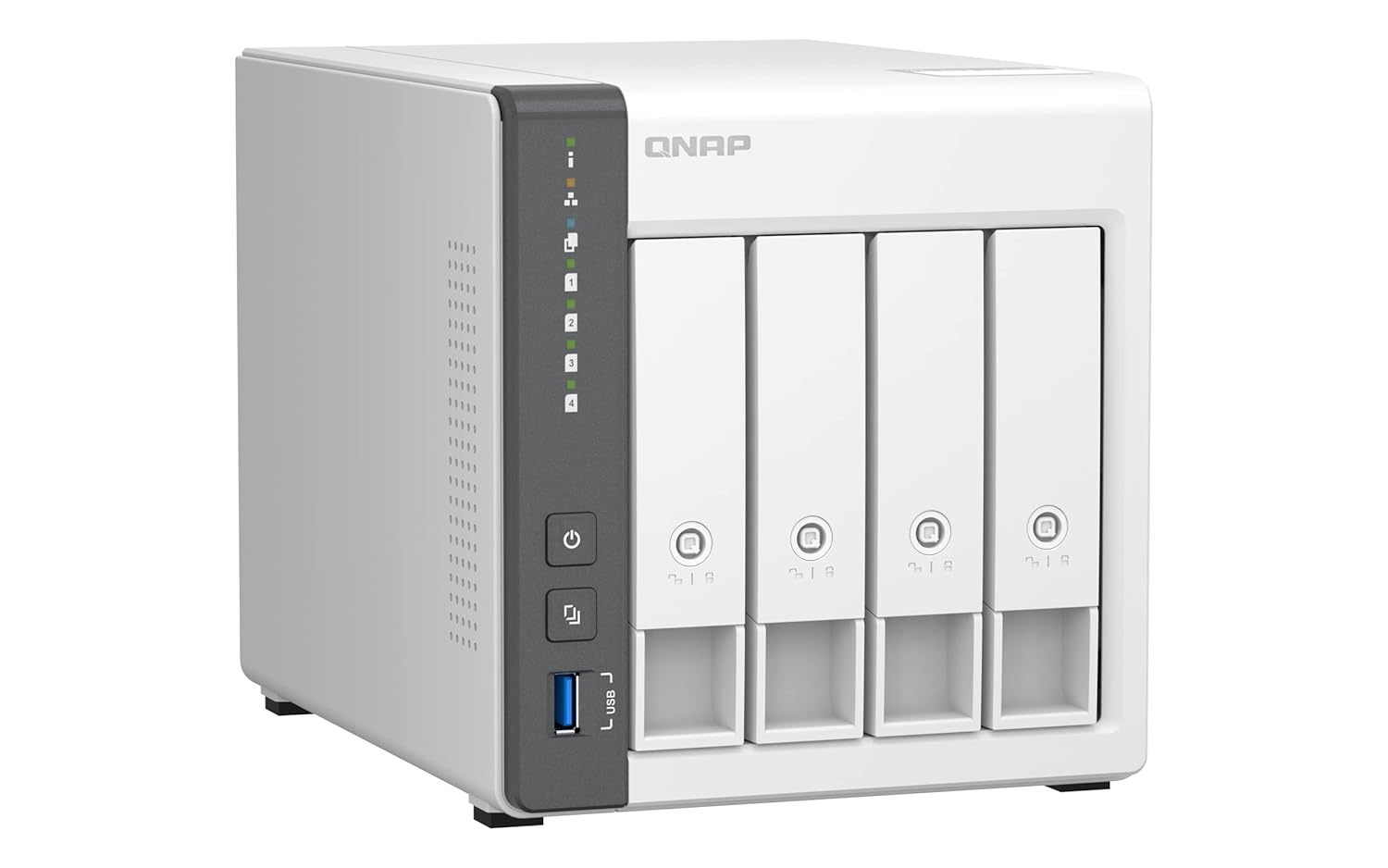

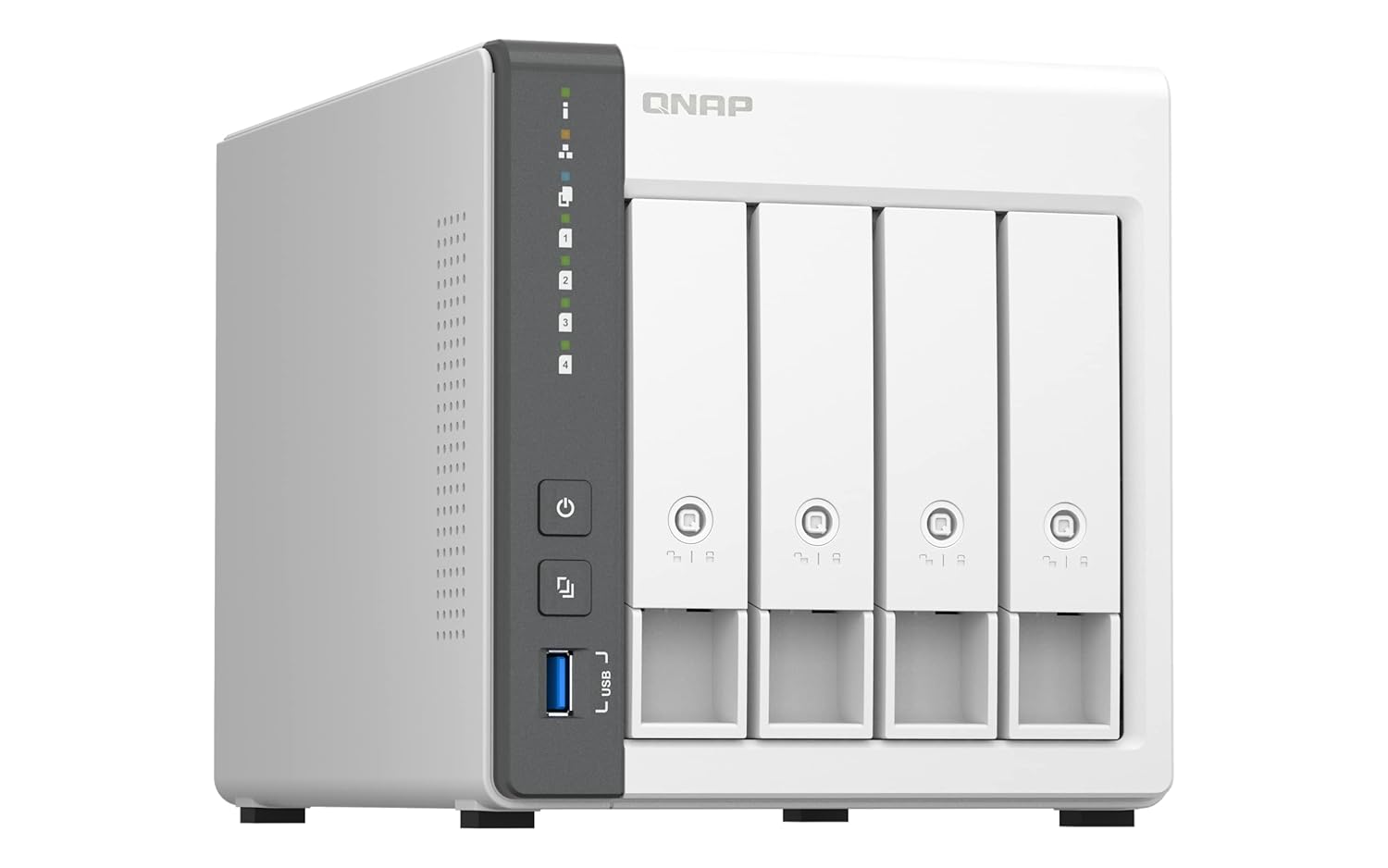

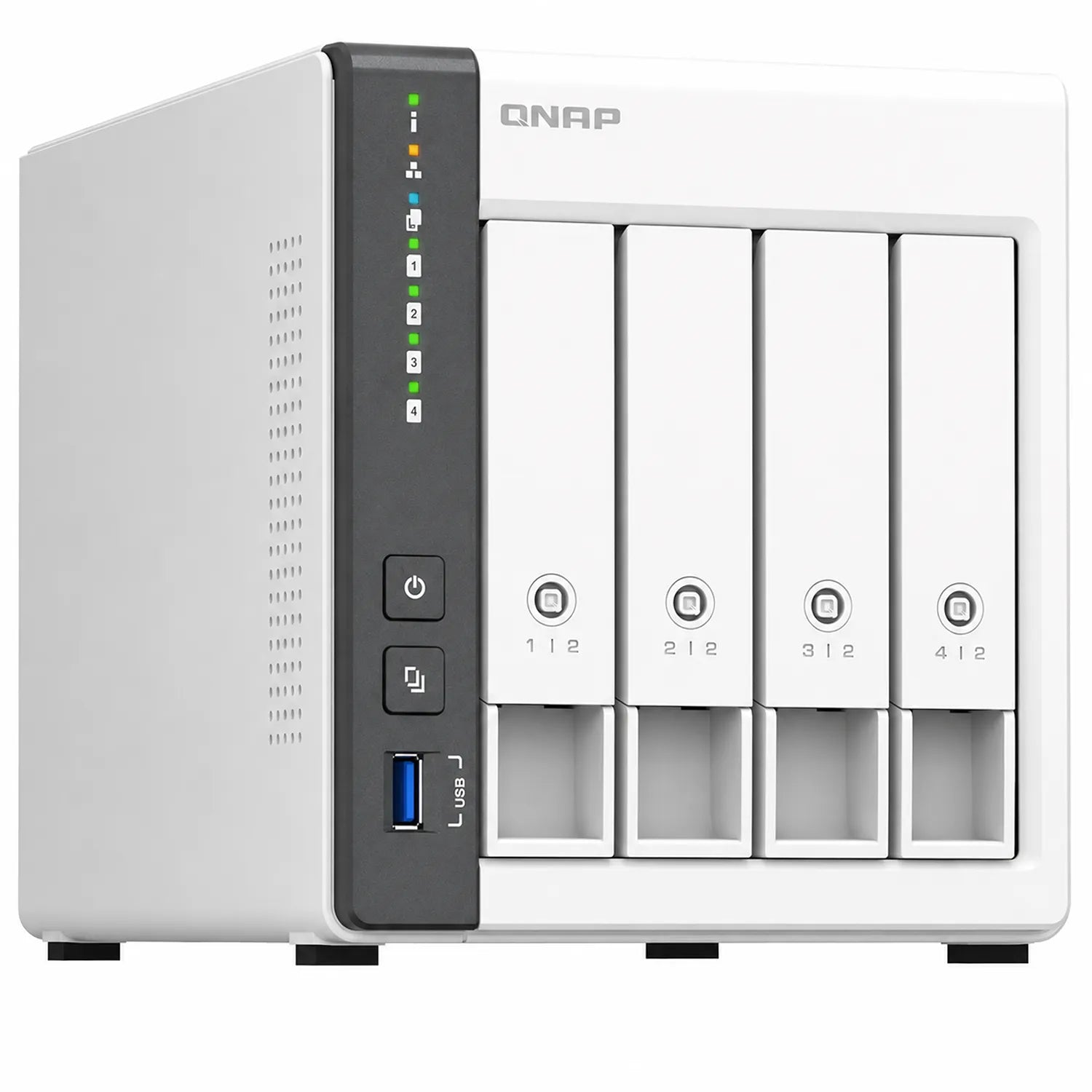

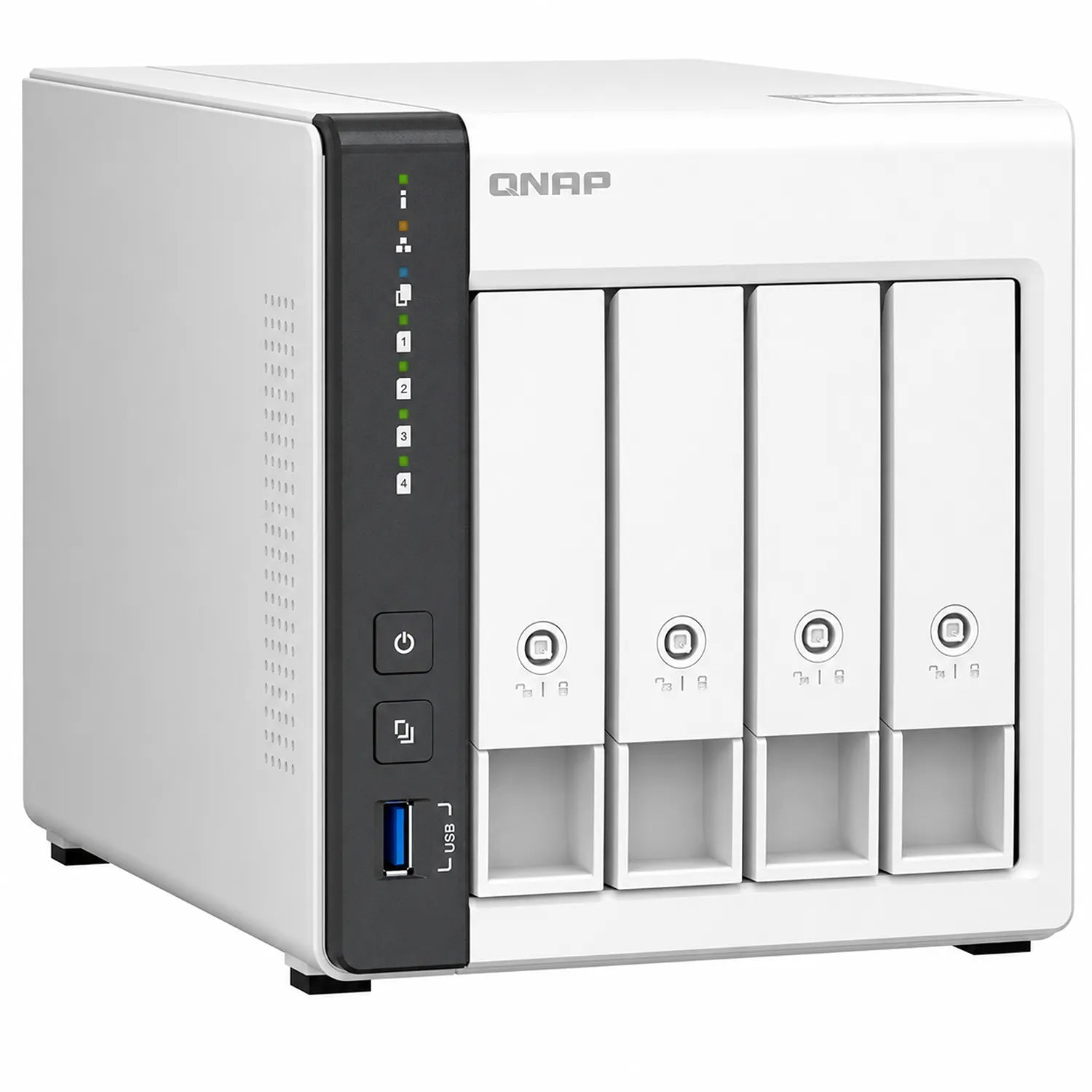

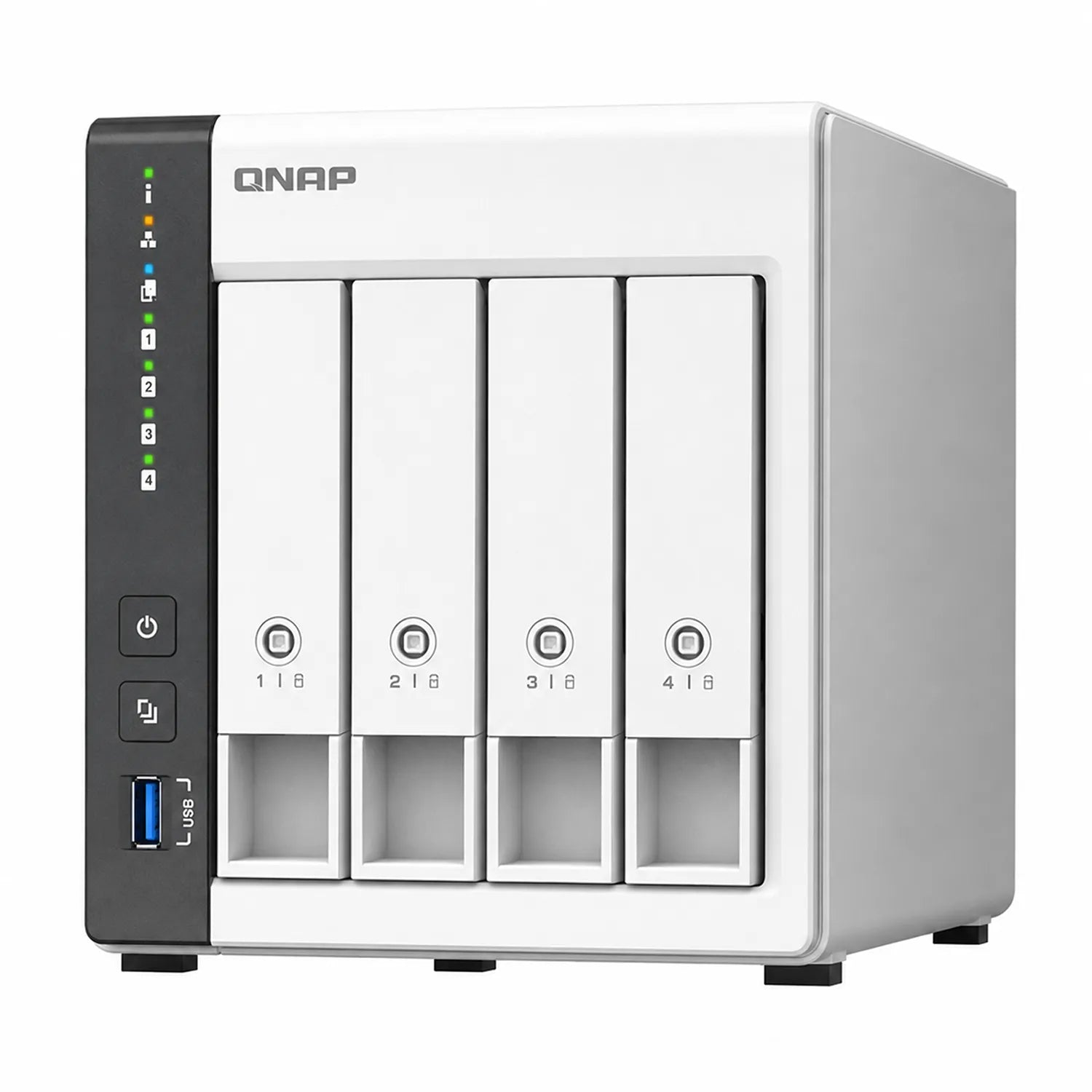

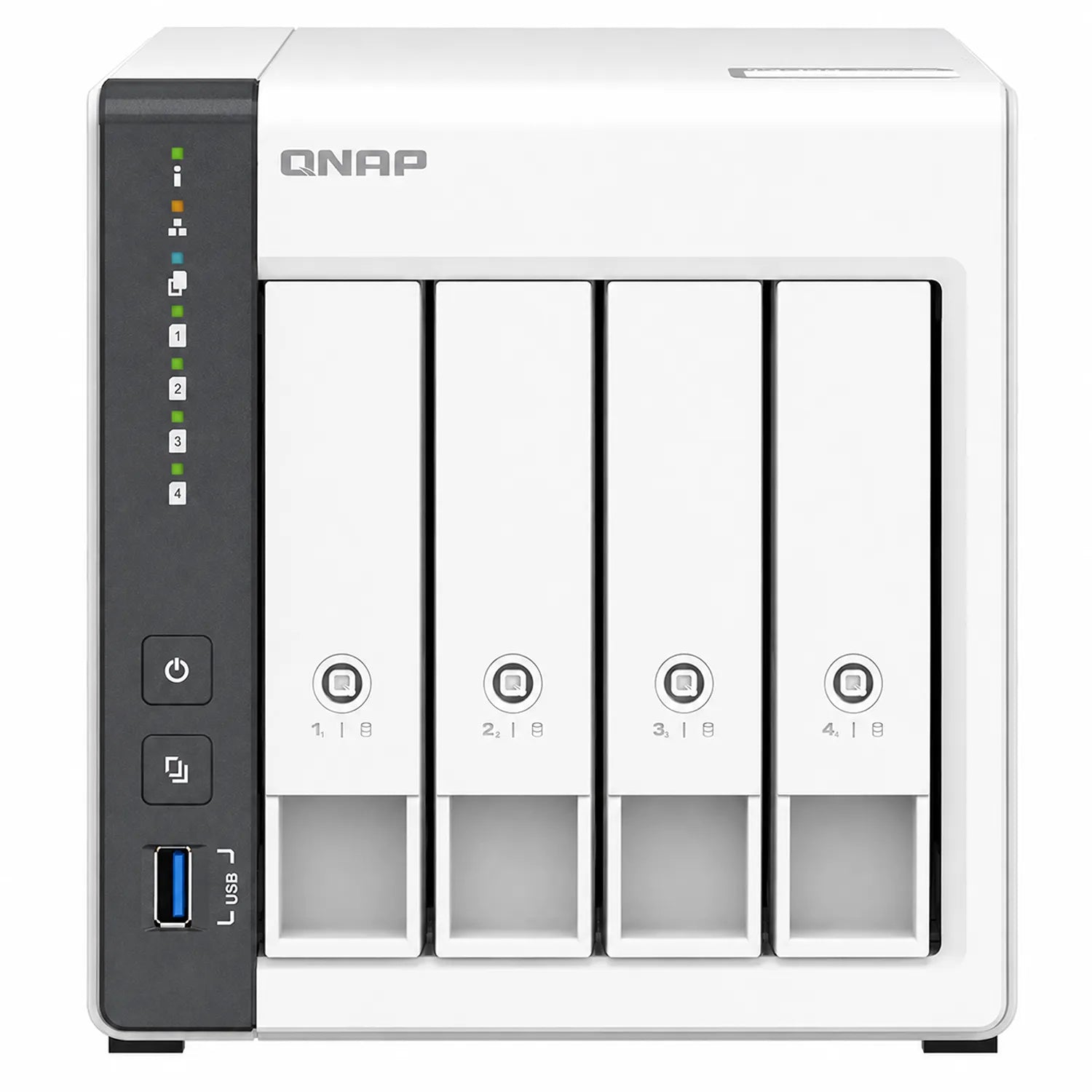

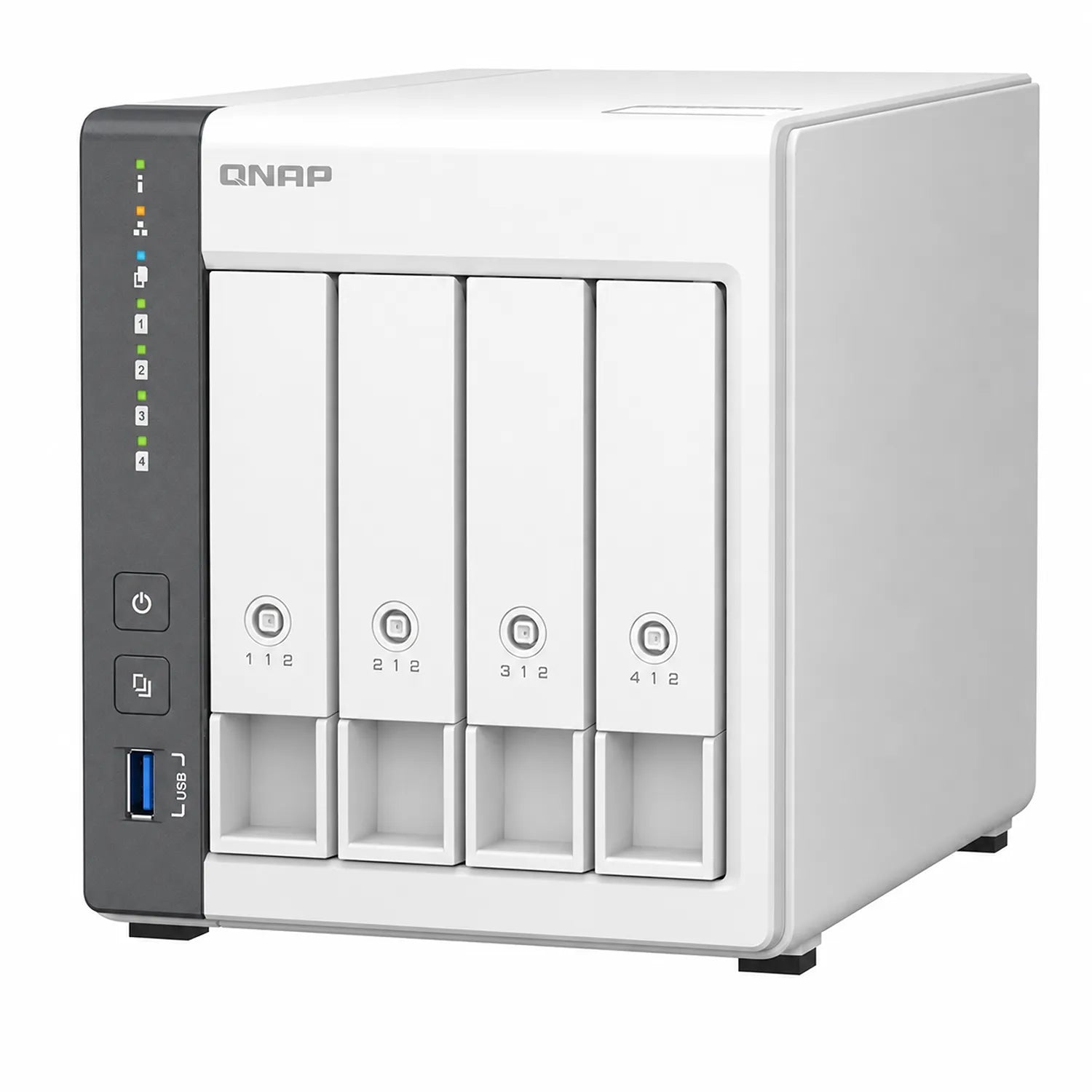

QNAP TS-433 Quad Core 4 Bay Network Attached Storage Enclosure - White
QNAP TS-433 Quad Core 4 Bay Network Attached Storage Enclosure - White
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-433. Designed with a 2.5GbE port to enhance collaboration and increase remote work productivity, the TS-433 also features rich multimedia applications and provides a complete home entertainment portal.
Centralized multimedia management
Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.
AI-powered image recognition
With a built-in NPU (Neural network Processing Unit) processor, the TS-433 boosts performance for high-speed face and object recognition.
Home entertainment center
Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.
Secure remote access
myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.
Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.
Comprehensive security management
Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.
Minimalist design
The compact and slim TS-433 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
QTS 5, Fast, smooth, and easy-to-use!
The TS-433 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.
An easy-to-use, all-in-one backup solution
The TS-433 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.
Model | QNAP TS-433 |
CPU | |
CPU Model | ARM 4-core Cortex-A55 2.0GHz processor |
CPU Architecture | 64-bit |
CPU Core | 4 |
CPU Frequency | 2.0 GHz |
Hardware Encryption Engine | Yes(AES-NI) |
Memory | |
System Memory | 4 GB on board (non-expandable) |
Maximum Memory Capacity | 4 GB on board (non-expandable) |
Storage | |
Drive Bays | 4 |
Compatible Drive Type |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot Swappable Drive | Yes |

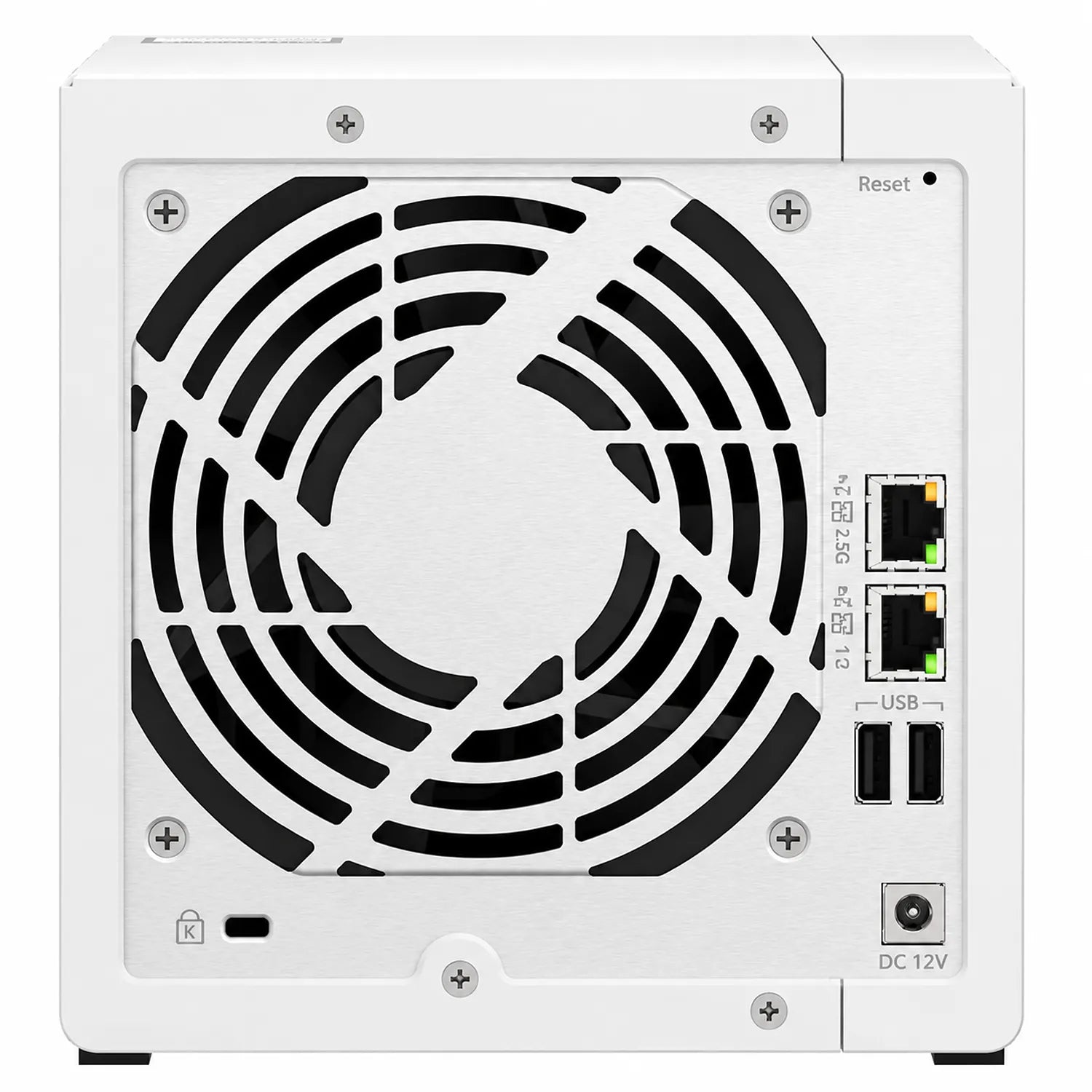

External Ports | |
USB 3.2 Gen 1 Port | 1 |
USB 2.0 port | 2 |
RJ-45 1GbE LAN Port | 1 |
File System | |
Supported Client OS | Apple Mac OS 10.10 or later Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux IBM AIX 7, Solaris 10 or later UNIX Microsoft Windows 7, 8, 10 and 11 |
Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
|
LUN feature |
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
|
RAID Type |
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10 2-bay: JBOD, Single, RAID 0, 1 |
Others | |

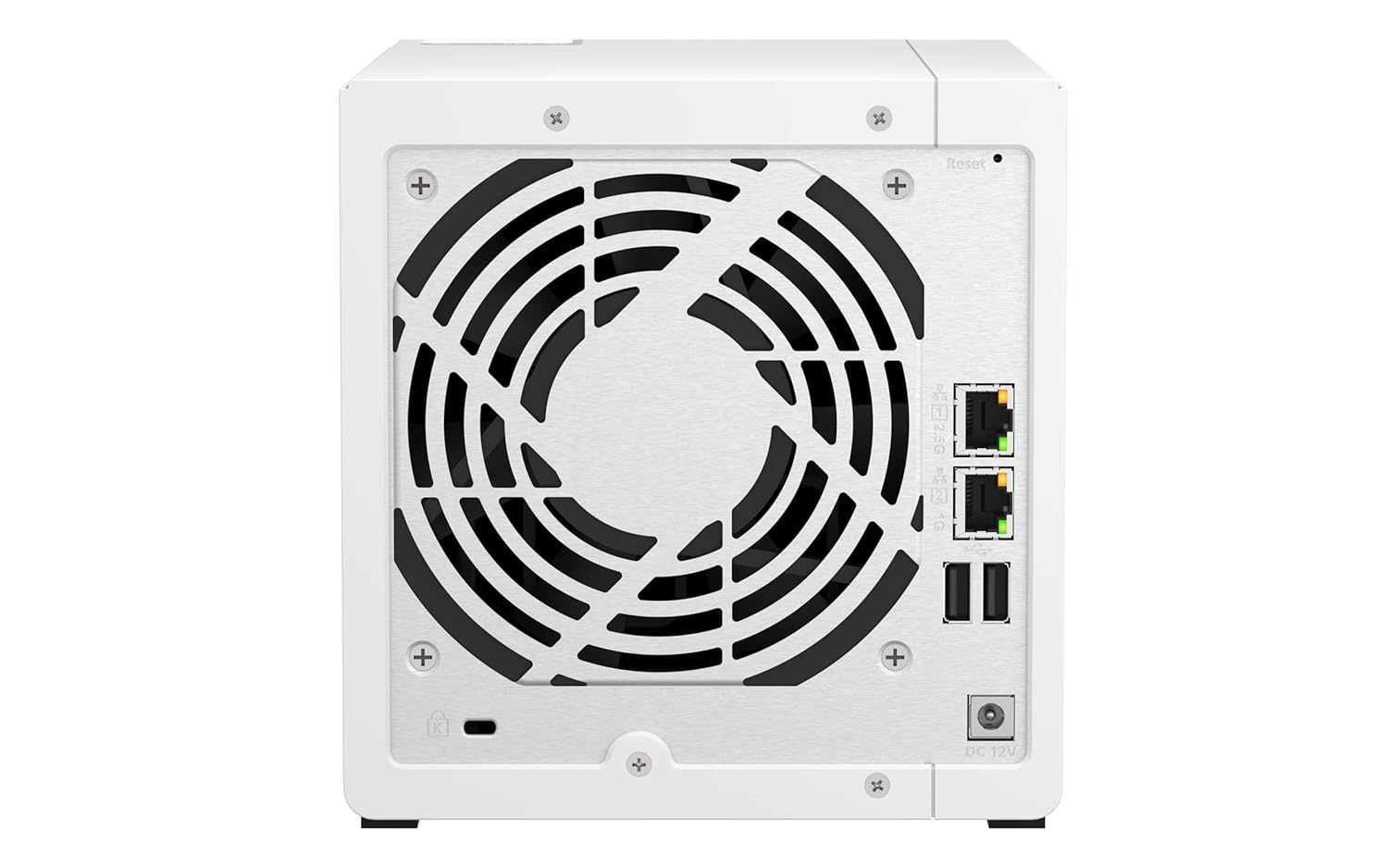

System Fan | 1 x 120mm |
Fan Speed Mode |
Full-Speed Mode
Cool Mode
Quiet Mode
|
Noise Level | 22 dB(A) |
Power Supply Unit / Adapter | Minimum 65W adapter (12VDC) |
System Warning | Buzzer |
Power Consumption |
22.54 W (Operating Mode)
8.45 W (HDD Hibernation)
|
AC Input Power Voltage | 100V to 240V AC |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Certification | FCC CE BSMI VCCI RCM UKCA CCC KC |
Miscellaneous | |

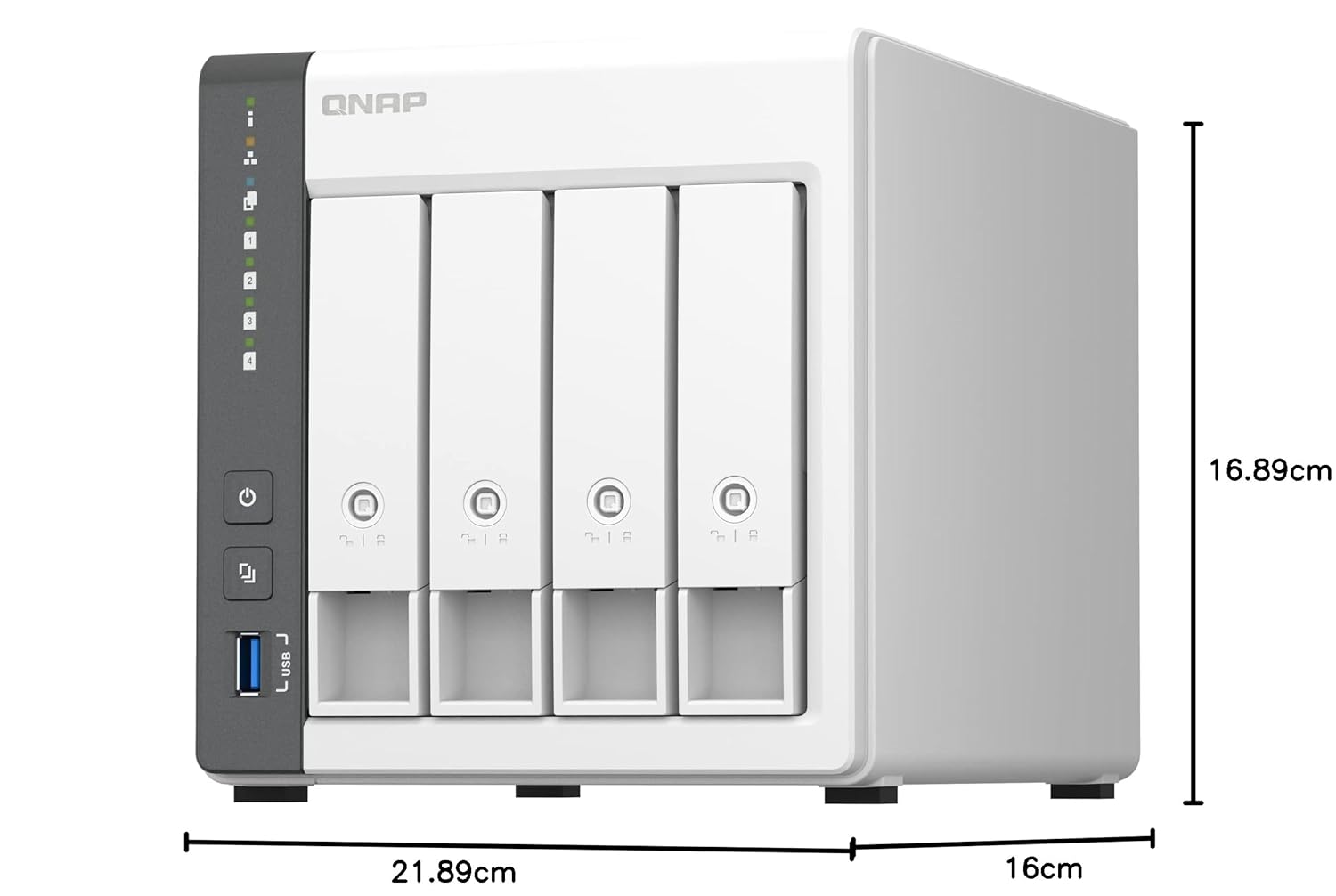

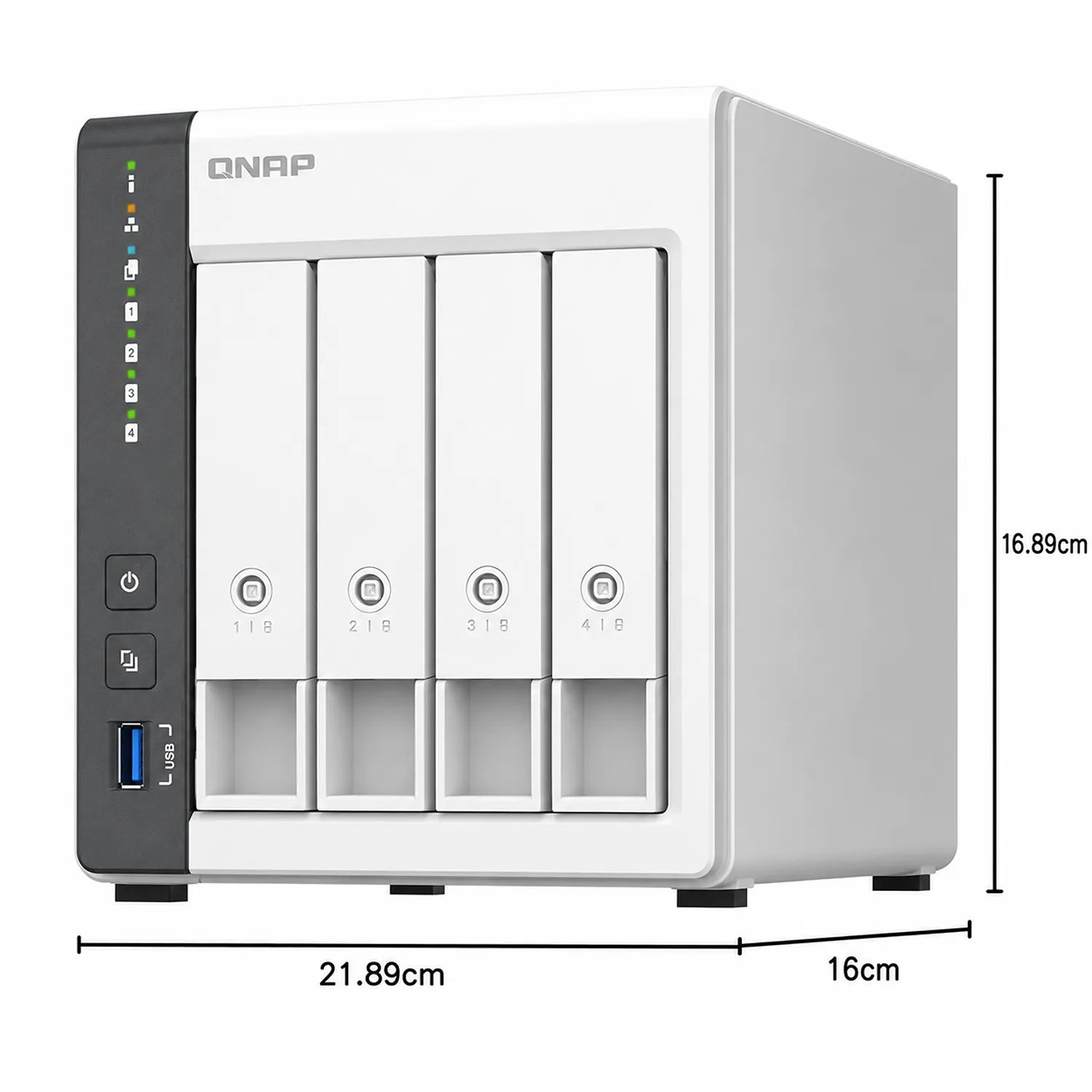

Dimensions(Height x Width x Depth) | 165 × 160.2 × 220.5 mm |
Net Weight | 2.07kg |
Warranty | 1 Year Brand Warranty |
Package Contents | TS-433 Ethernet Cable x 1 AC Adapter Power Cord Flat head screw (for 3.5" HDD) x16 Flat head screw (for 2.5" HDD) x12 Drive tray keys x 2 Quick Installation Guide (QIG) |
