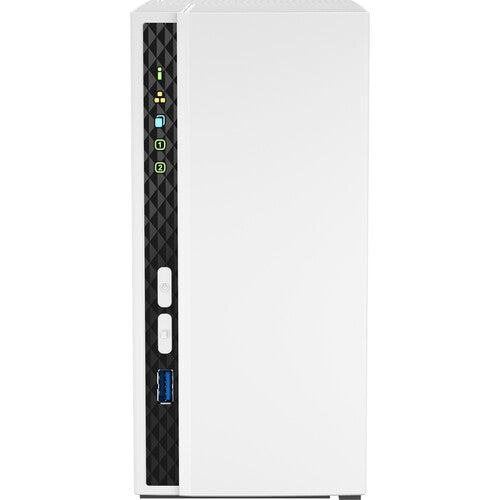

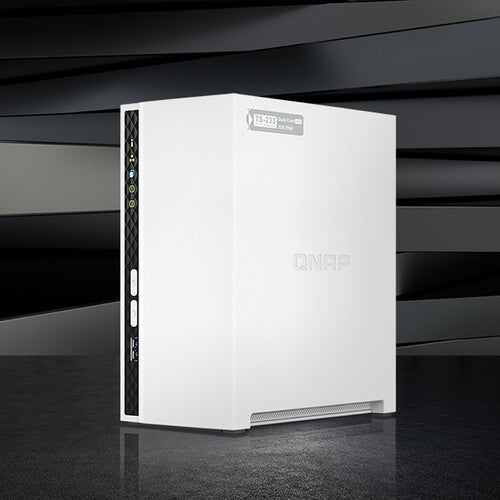

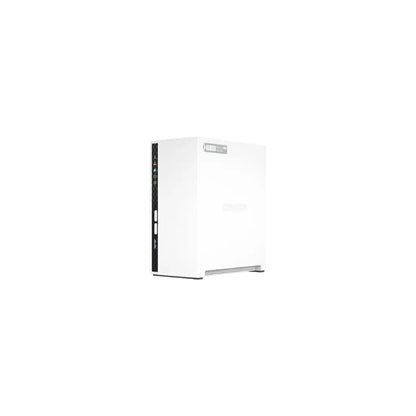

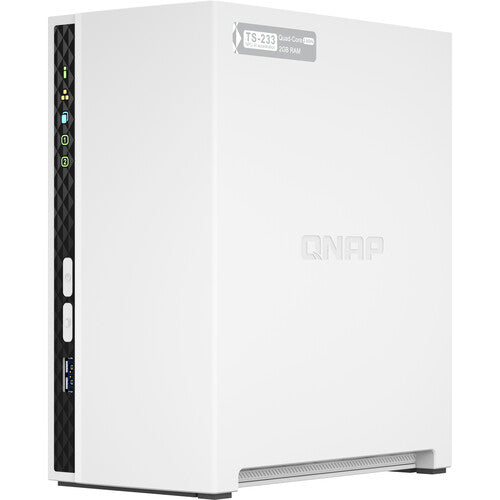

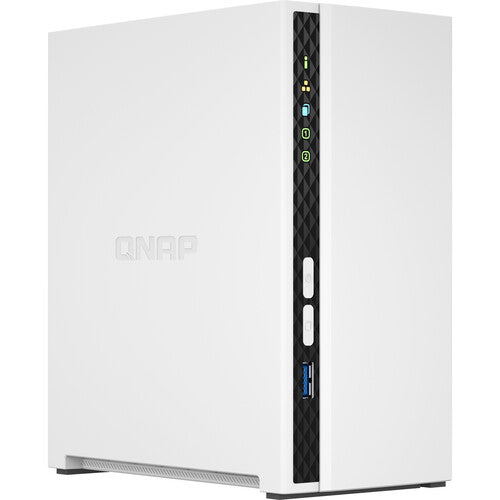

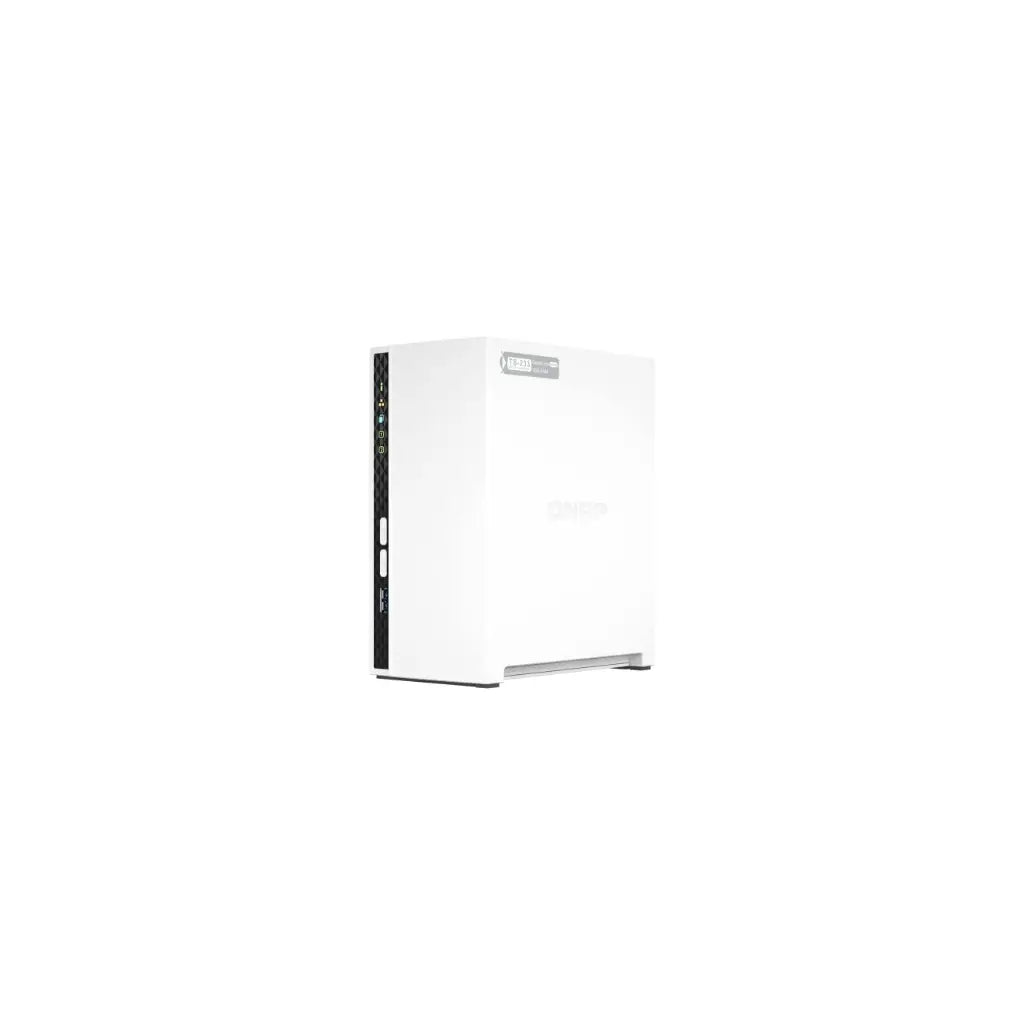

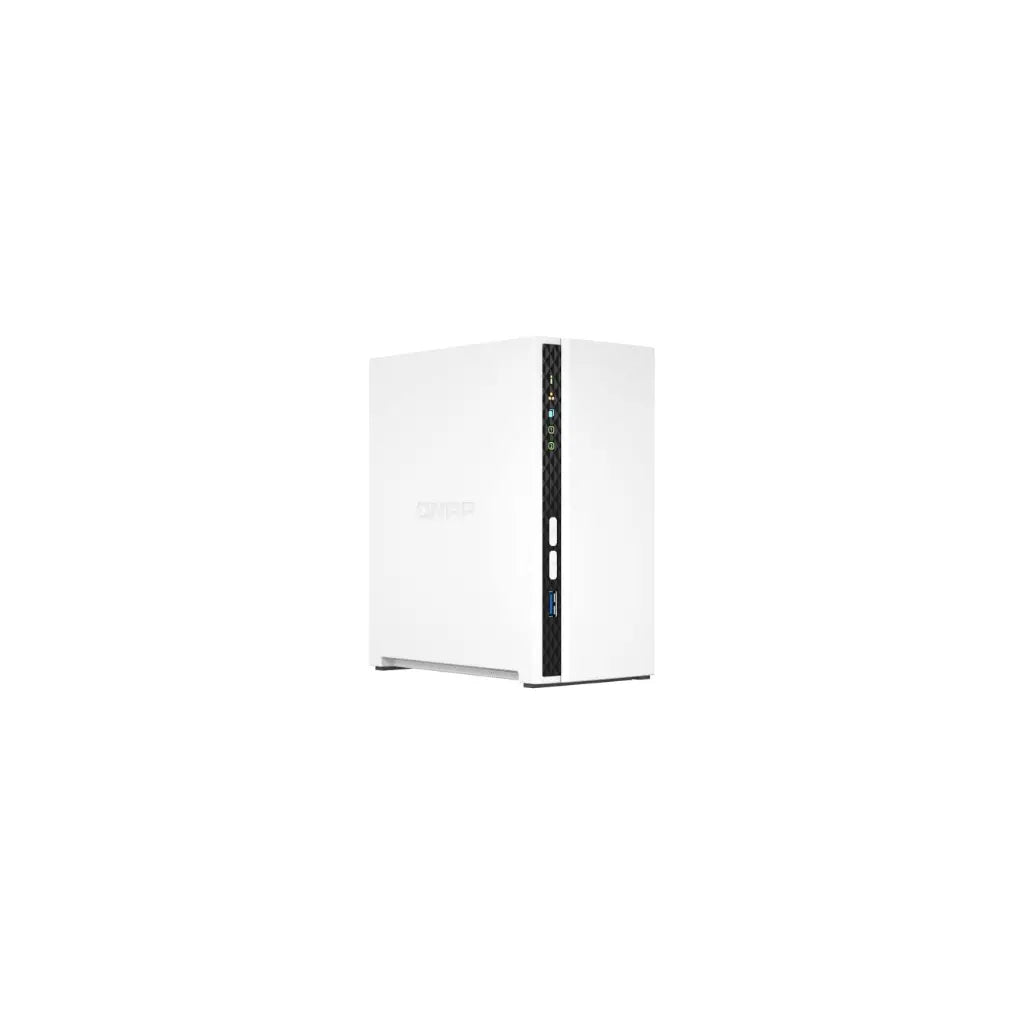

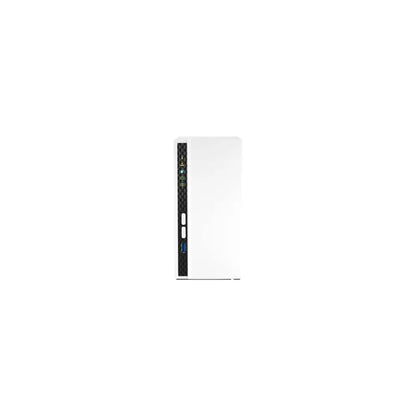

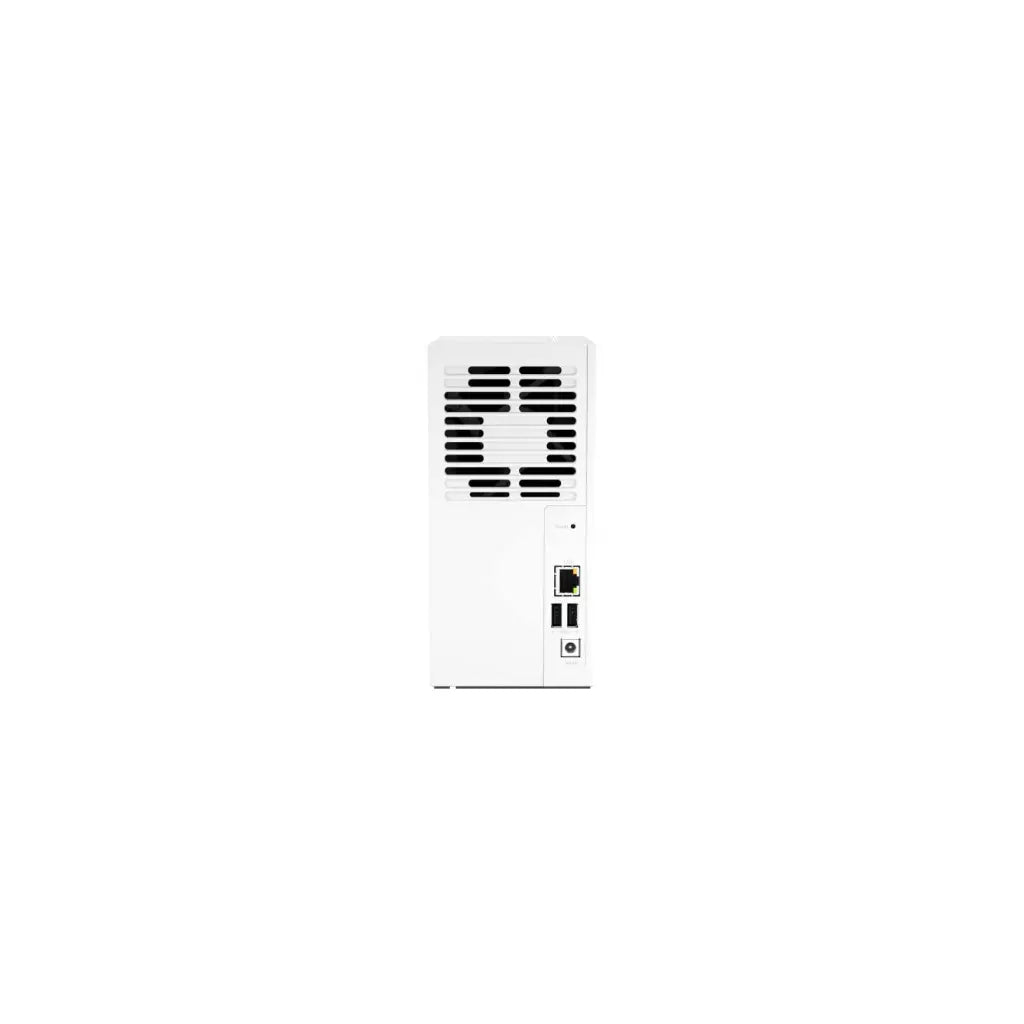

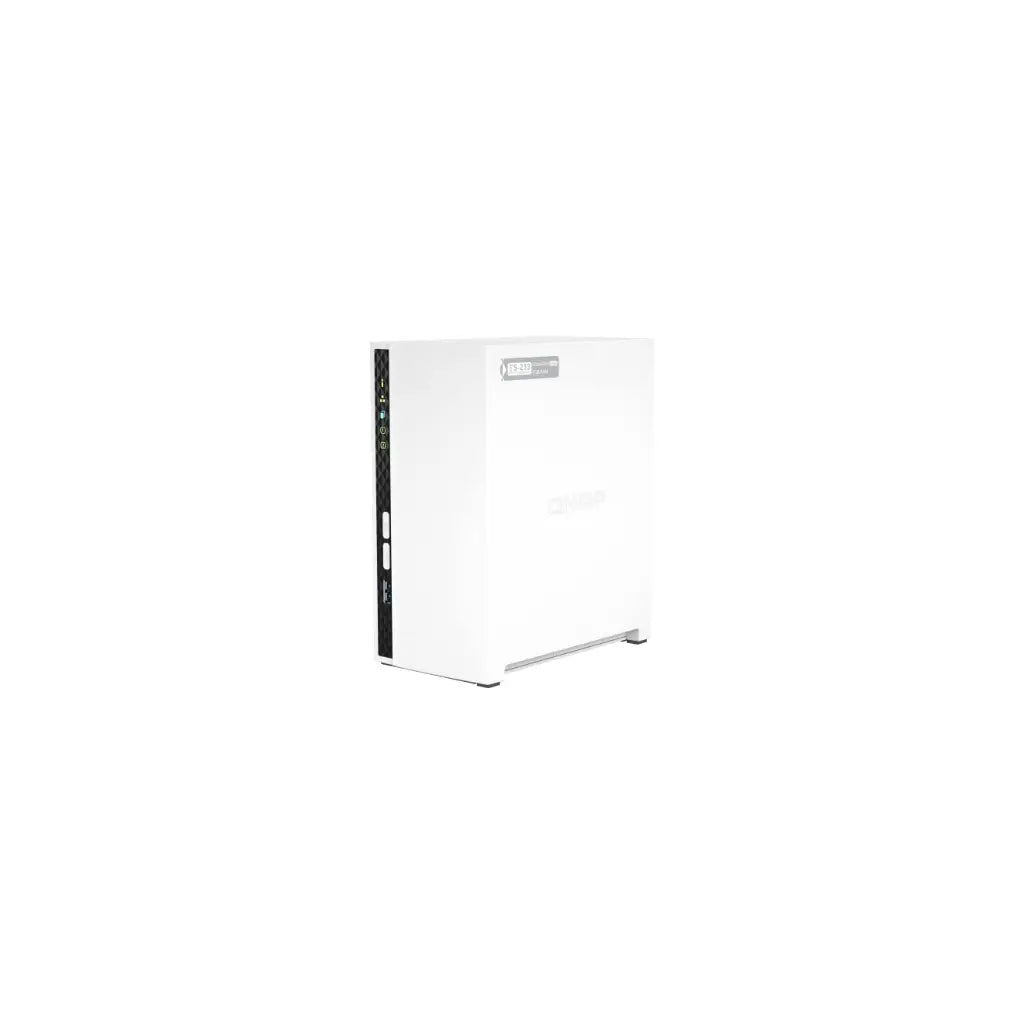

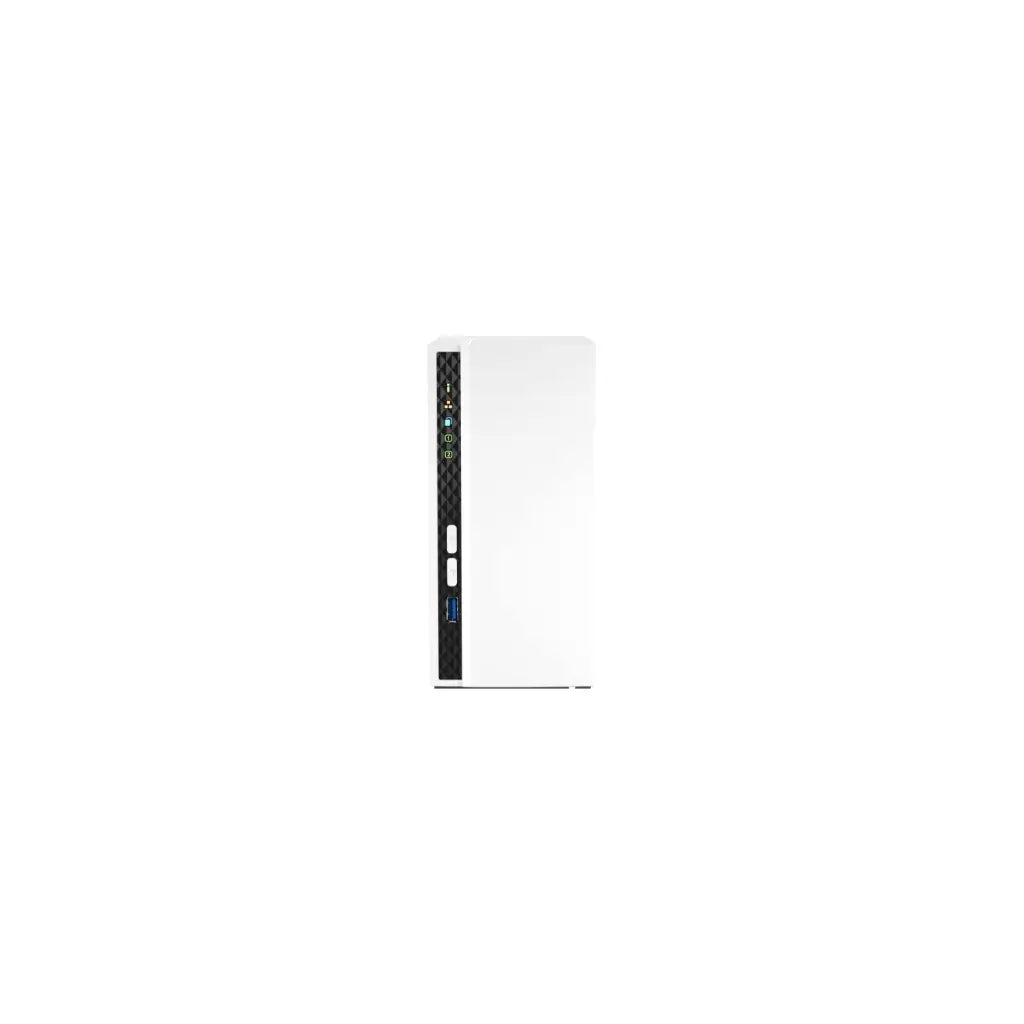

QNAP TS-233 Quad Core 2 Bay Desktop Network Attached Storage Enclosure - White

QNAP TS-233 Quad Core 2 Bay Desktop Network Attached Storage Enclosure - White

Brand: QNAP
Regular price Rs. 20,699.00
Sale price 29% off Rs. 20,699.00 Sale Sold out Regular price Rs. 28,999.00
Taxes included. Free Shipping.

Product Description:

Run your own personal cloud storage and enjoy easy file access, sharing, and syncing with the TS-233. Designed for beginners and home NAS users, the TS-233 not only simplifies data storage and collaboration but also features rich multimedia applications as a complete home entertainment portal.

Centralized multimedia management
Centrally store photos, music, and videos; easily browse, organize, and share multimedia files.

AI-powered image recognition
With a built-in NPU (Neural network Processing Unit) processor, the TS-233 boosts performance for high-speed face and object recognition.

Home entertainment center
Supports ARM NEON technology that accelerates video processing for a greater entertainment experience.

Secure remote access
myQNAPcloud allows you to easily access, manage, and share NAS files via the Internet.

Snapshot protection against Ransomware
Protect your files and data from accidental deletion and malware attacks by using advanced snapshot protection.

Comprehensive security management
Serves as a secure private cloud and supports user account protection, IP blocking, 2-step verification, encryption access, and more.

Minimalist design
The compact and slim TS-233 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.

Effective cooling fan for heat flow
The TS-233 is small in size and remains high-performance, cool, and quiet with an effective cooling fan.

64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 2 GB RAM, one Gigabit LAN port, and supports two SATA 6Gb/s hard drives, the TS-233 provides dependable read/write performance for running various home and business NAS applications. The TS-233 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.

QTS 5, Fast, smooth, and easy-to-use!
The TS-233 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.

Model QNAP TS-233
CPU
CPU Model ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture 64-bit
CPU Core 4
CPU Frequency 2.0 GHz
Hardware Encryption Engine Yes(AES-NI)
Memory
System Memory 2 GB on board (non-expandable)
Maximum Memory Capacity 2 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
Storage
Drive Bays 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Compatible Drive Type 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot Swappable Drive Yes

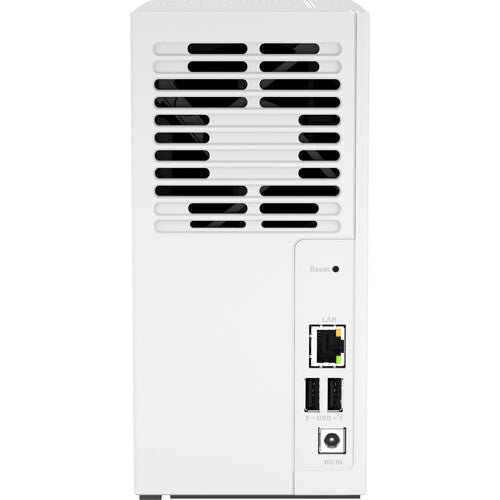

External Ports
USB 3.2 Gen 1 Port 1
USB 2.0 port 2
RJ-45 1GbE LAN Port 1
File System
Supported Client OS
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
LUN feature     LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
RAID Type
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
Others
System Fan 1 x 80mm, 12VDC
Fan Speed Mode
Full-Speed Mode
Cool Mode
Quiet Mode
Noise Level 22 dB(A)
Power Supply Unit / Adapter Minimum 48W adapter (12VDC)
System Warning Buzzer
Power Consumption
10.81 W (Operating Mode)
3.43 W (HDD Hibernation)
AC Input Power Voltage 100V to 240V AC
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Remote Access PPTP
L2TP/IPsec
OpenVPN
QBelt (QNAP proprietary)
LED Indicators     System Status
LAN
USB
HDD1~2
Miscellaneous

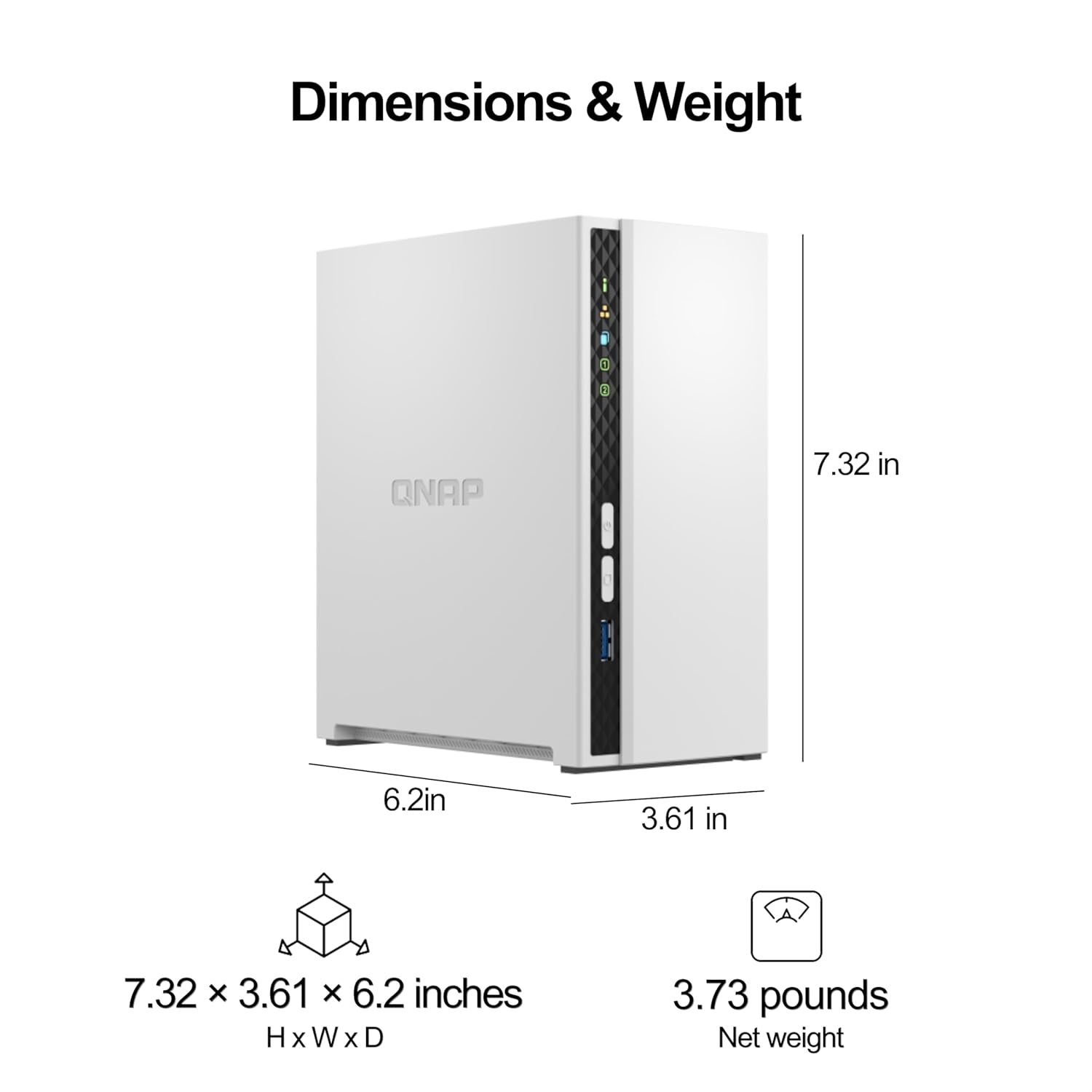

Dimensions(Height x Width x Depth) 186 × 91.7 × 157.6 mm
Net Weight 1.69kg
Warranty 1 Year Brand Warranty
Package Contents TS-233
Ethernet Cable x 1
AC Adapter
Power Cord
Flat head screw (for 3.5" HDD) x8
Flat head screw (for 2.5" HDD) x6
Quick Installation Guide (QIG)
