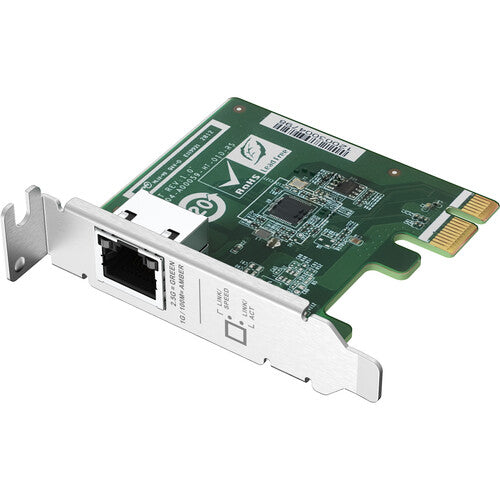

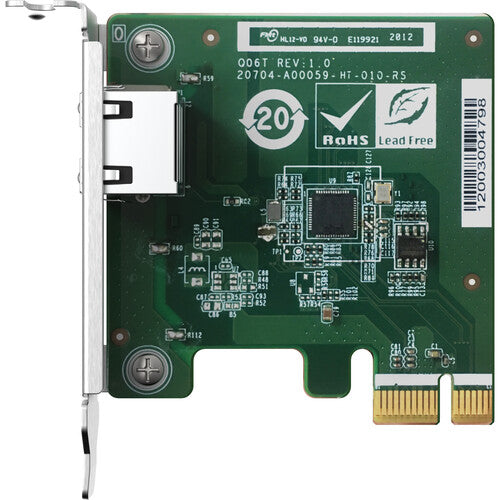

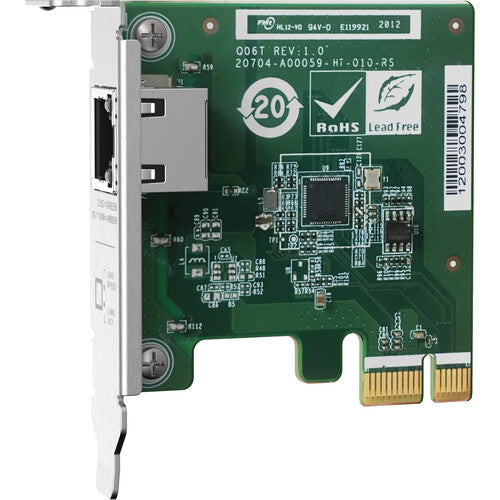

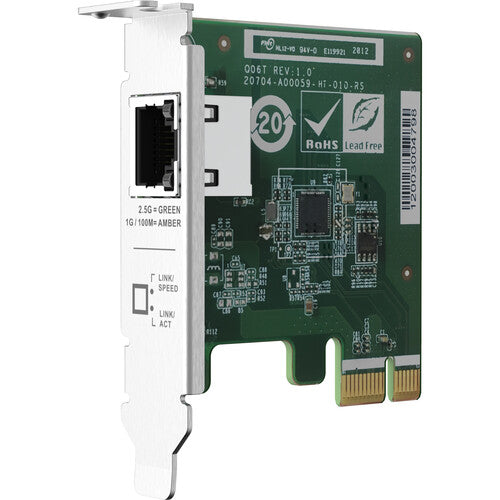

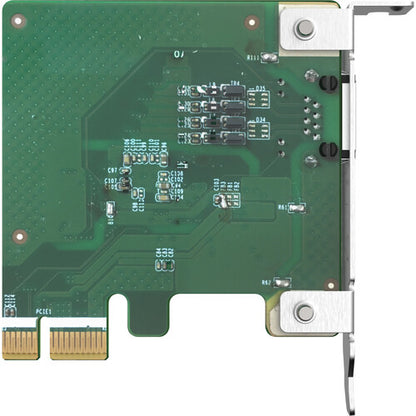

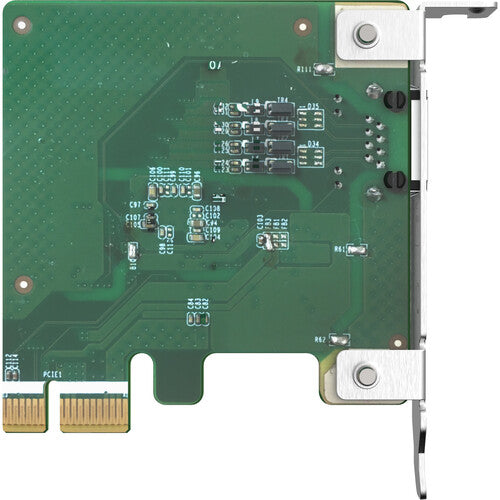

QNAP QXG-2G1T-I225 Single Port 2.5GbE PCIe Network Expansion Card
QNAP QXG-2G1T-I225 Single Port 2.5GbE PCIe Network Expansion Card
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
Enhanced Network Speed: This card offers a single 2.5GbE port, providing faster data transfer rates compared to traditional Gigabit Ethernet. It's perfect for tasks that require high bandwidth, such as large file transfers and streaming high-definition media.
Broad System Compatibility: It supports a wide range of operating systems, including Windows 10, Windows Server 2019, and various Linux distributions. This ensures it can be integrated into diverse computing environments with ease.
Advanced Networking Capabilities: The card features support for PXE boot, Wake-on-LAN (WoL), and 9k jumbo frames. These features enhance network management, allowing for remote booting and improved data packet handling.

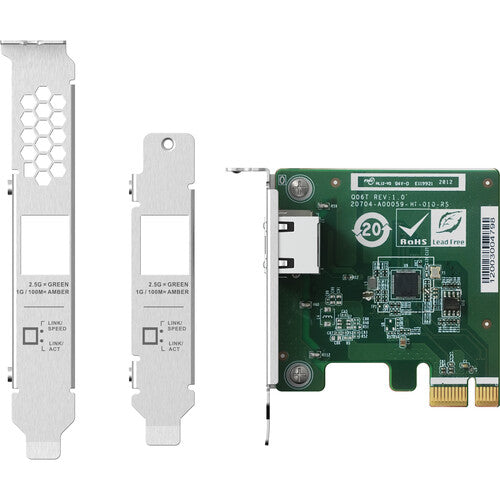

Flexible Installation Options: Designed with a low-profile bracket pre-installed, it also includes additional full-height and specialized brackets. This flexibility allows it to fit into different system configurations, including QNAP NAS devices.
Reliable Performance: Powered by the Intel I225-LM Ethernet controller, the card ensures stable and efficient network performance. It supports multiple transmission rates, ranging from 10Mbps to 2.5Gbps, catering to various network demands.
| Model | QXG-2G1T-I225 |
| Controller | Intel Ethernet Controller I225-LM |
| Number of Ports | 1 x NBASE-T (RJ45) |
| Connector | NBASE-T (RJ45) |
| PCIe and Lanes | PCIe Gen2 x1 |
| Transmission Rates | 2.5Gbps/1Gbps/100Mbps/10Mbps |
| IEEE Standards | IEEE 802.3 IEEE 802.1Qbu IEEE 802.3br IEEE 802.1Qbv IEEE 802.1AS-REV IEEE 802.1p,Q IEEE 802.1Qav EEE 802.3az |
| Bracket | Full-height and specialized for QNAP NAS |
| Supported Function |
PXE
Wake-On-LAN (WoL 9k jumbo frame 802.1AS-rev/1588 802.1Qav/802.1Qbv Time Sensitive Networking (TSN) RSS+MSI-X Teaming & VLAN support Intel AMT |
| Supported NAS Operating Systems |
QTS/QuTS hero (recommend an upgrade to the latest version
Windows 10 (1809 or later
Linux Stable Kernel 4.20/5.x
Windows Server 2019
|
| Port and Cable | RJ-45; over CAT-5 class cable |
| Standard Warranty | 2 Years |
| Package Contents | 1 x Network card (Low-profile bracket pre-installed 1 x QIG 2 x Brackets (full-height and specialized for QNAP NAS) |
