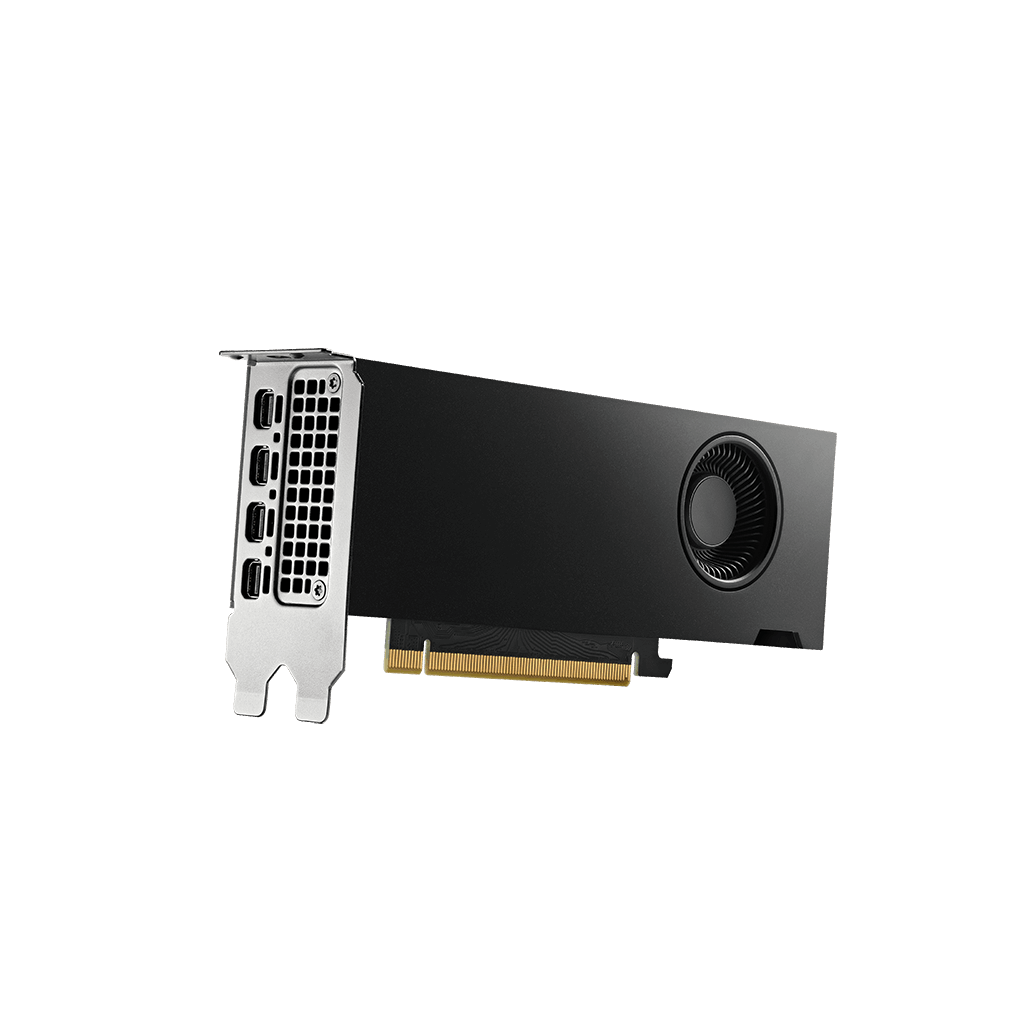

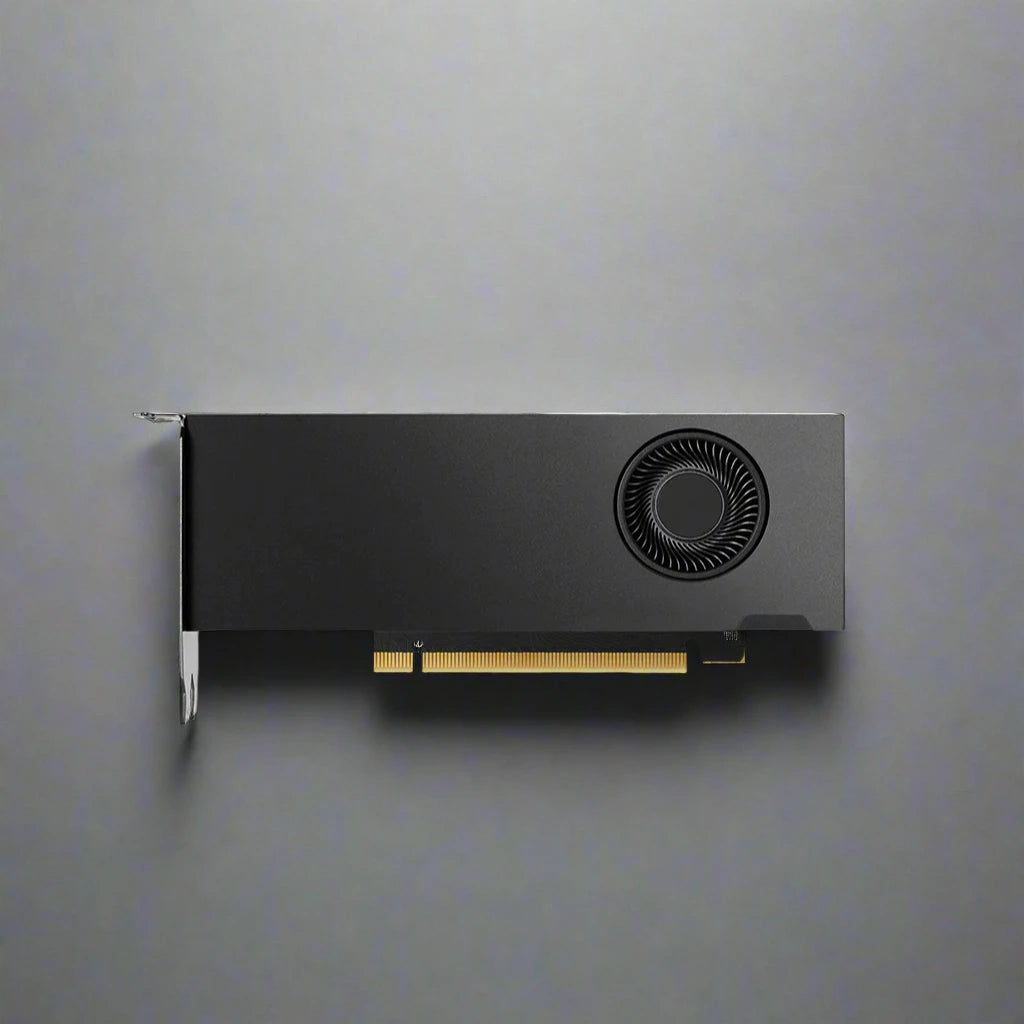

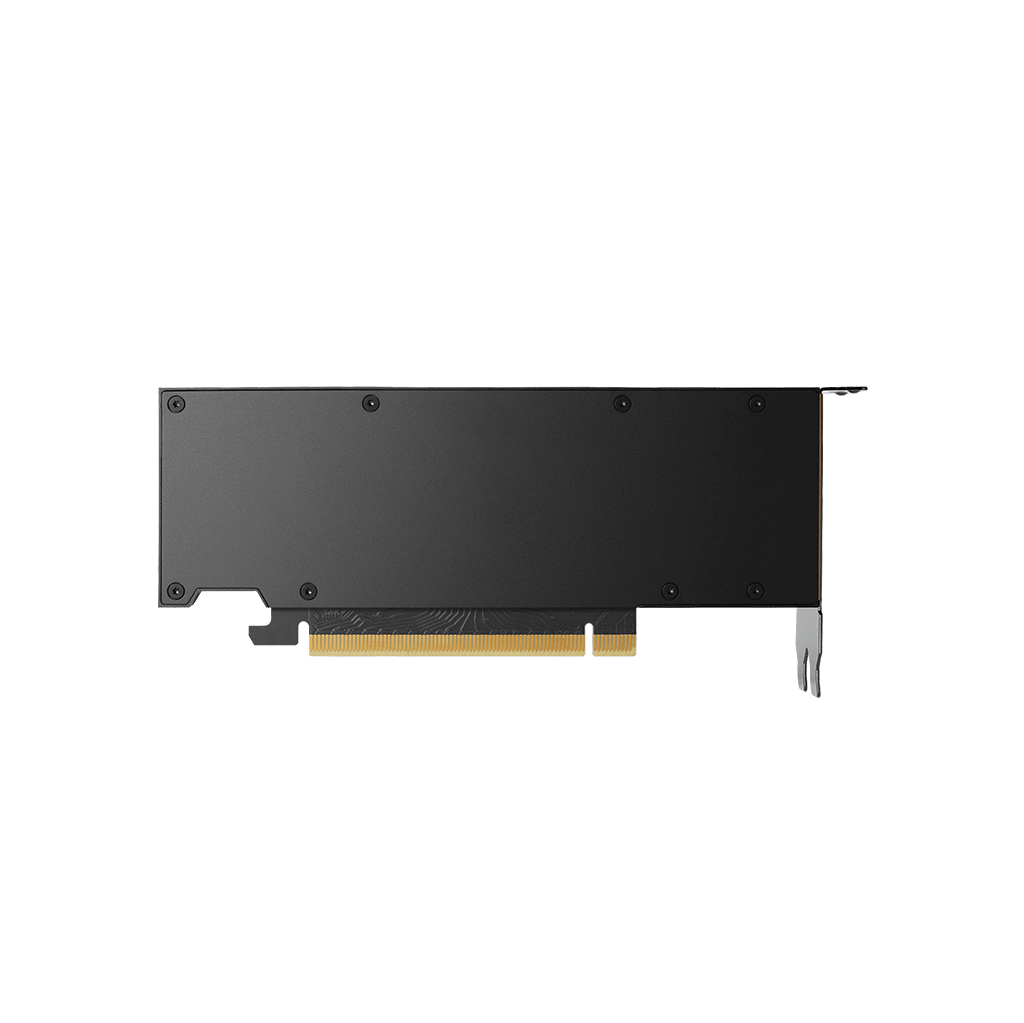

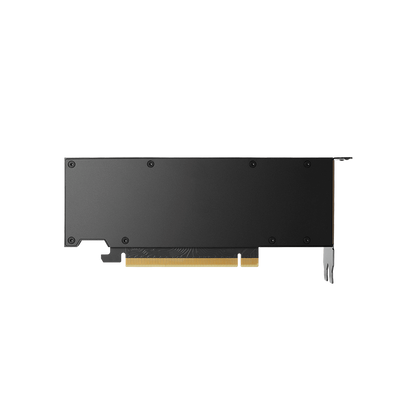

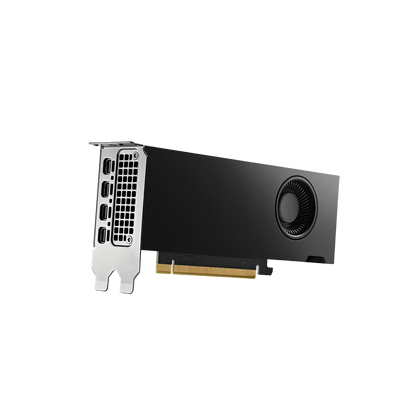

PNY NVIDIA RTX 4000 SFF Ada Generation 20GB 160 Bit Graphics Card
PNY NVIDIA RTX 4000 SFF Ada Generation 20GB 160 Bit Graphics Card
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping
- 7-Days Easy Returns
- Brand Warranty
Product Description:
Compact Design: The RTX 4000 SFF Ada Generation is designed for small form factor workstations, offering high-performance real-time ray tracing, AI-accelerated compute, and professional graphics rendering in a compact, dual-slot, low-profile design.
NVIDIA Ada Lovelace Architecture: Built on the revolutionary NVIDIA Ada Lovelace GPU architecture, the RTX 4000 SFF Ada provides more cores, higher clocks, and a larger L2 cache for enhanced performance in ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0.
20GB GDDR6 Memory: The graphics card features 20GB of ECC GDDR6 VRAM, providing ample memory for handling large datasets and demanding applications such as rendering, data science, and simulation.
Advanced Connectivity: Equipped with four Mini DisplayPort 1.4a outputs, the RTX 4000 SFF Ada supports multiple high-resolution displays, making it ideal for multi-monitor setups and immersive visual experiences.
Energy Efficient: With a total board power consumption of just 70W, the RTX 4000 SFF Ada is designed to be energy-efficient while maintaining high performance, making it suitable for use in environments where power efficiency is a priority.
PNY Part Number | VCNRTX4000ADALP-PB |
Architecture | NVIDIA Ada Lovelace Architecture |
Process Size | 4nm NVIDIA Custom Process | TSMC |
Die Size | 294.5 mm2 |
Transistors | 35.8 Billion |
CUDA Cores | 6144 |
Tensor Cores | 192 | Gen 4 |
RT Cores | 48 | Gen 3 |
FP32 Performance | 19.2 TFLOPS |
Tensor Performance | 306.8 TFLOPS |
RT Core Performance | 44.3 TFLOPS |
GPU Memory | 20 GB GDDR6 ECC |
Memory Interface | 160-bit |
Memory Bandwidth | 320 GB/s |

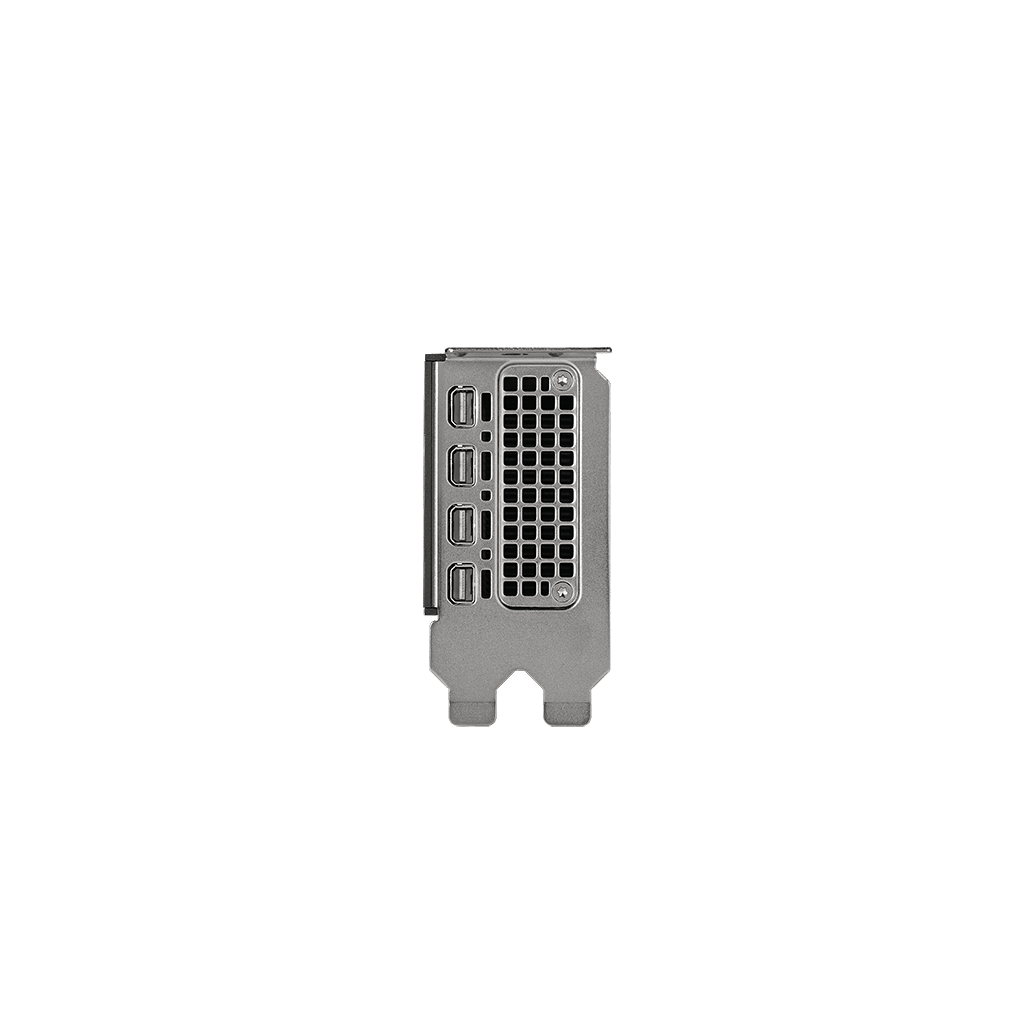

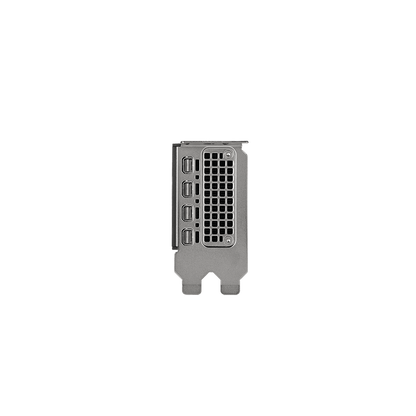

Display Connectors | mDP 1.4a (4) |
Form Factor | 2.7” H x 6.6” L | Dual Slot |
Thermal Solution | Active Fansink |
AR/MR/VR/XR Capable | Yes |
NVIDIA 3D Vision and 3D Vision Pro | Support via Optional 3-pin mini-DIN |
Frame Lock | Compatible with NVIDIA Quadro Sync II |
Maximum Power Consumption | 70W | No Auxiliary Power Required |
NVENC | NVDEC | 2x | 2x | Includes AV1 Encode and Decode |
Warranty | 3 Years |
