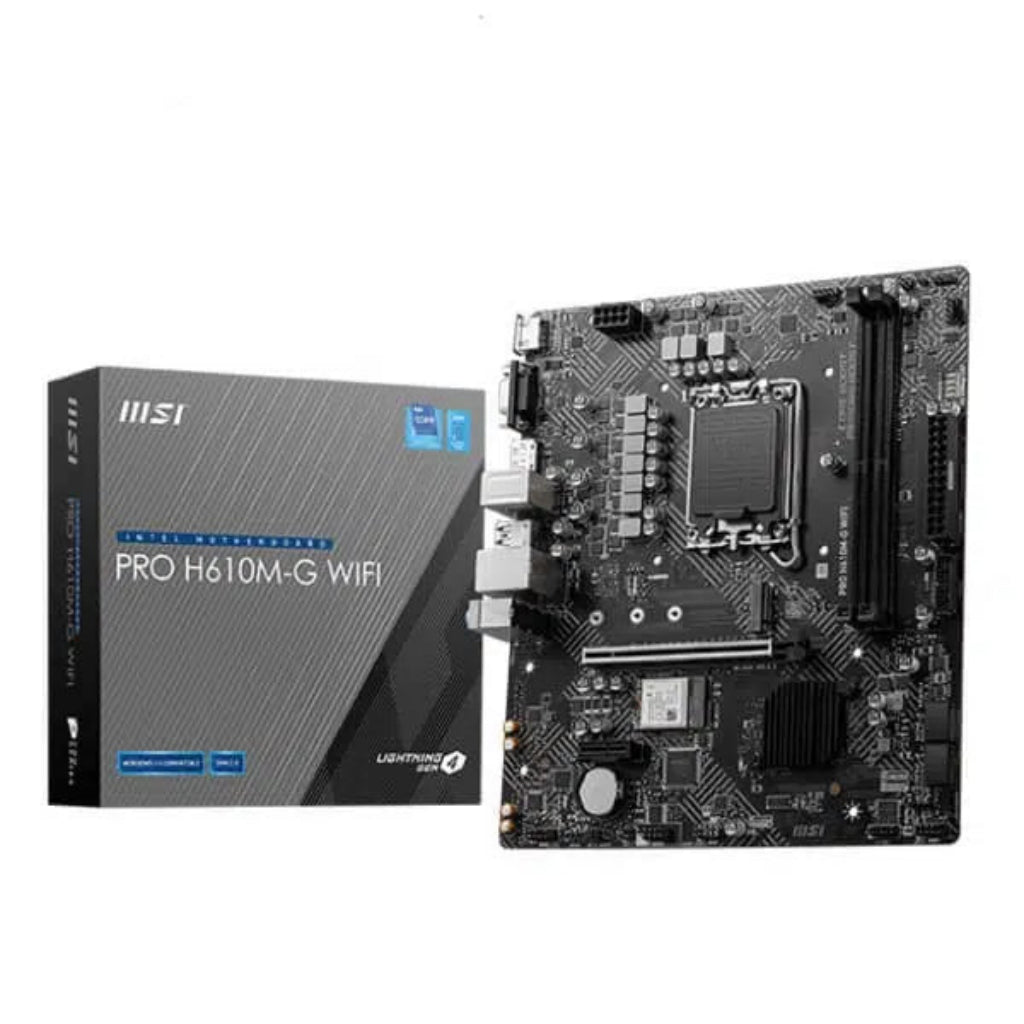

MSI PRO H610M-G WiFi DDR5 Intel H610 LGA 1700 Micro-ATX Motherboard with PCIe 4.0 and M.2 Slot
MSI PRO H610M-G WiFi DDR5 Intel H610 LGA 1700 Micro-ATX Motherboard with PCIe 4.0 and M.2 Slot
Couldn't load pickup availability
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
Supports 12th/13th/14th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 5600(MAX) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
DDR5 Memory
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660.
Fast Future Ready Storage
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
Lightning Gen 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of unidirectional transfer bandwidth that has doubled compared to its previous generation.
Intel LAN
Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.
USB 3.2 GEN 1
USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.
Wi-Fi 6E Solution:
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
EZ Debug LED
Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again.
| Model | MSI PRO H610M-G-WiFi DDR5 Motherboard |
| CPU Support | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| CPU Socket | LGA 1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | Micro-ATX |
| Memory | 2 x DDR4 memory slots, supporting up to 64GB Supports 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Graphics Interface | 1x PCIe 4.0 x16 slot |
| Display Interface | 1x DisplayPort 1.4, supports a maximum resolution of 4K 60Hz 1x HDMI 2.1, supports a maximum resolution of 4K 60Hz VGA |
| Expansion Slots | 1x PCIe 3.0 x1 slot 1x M.2 slot with E-key for PCIe WiFi module only |
| Storage | 1x M.2 Gen3 x4 32Gbps slot 4x SATA 6Gbps ports |
| LAN | Intel I219-V 1G LAN |
| Audio | Realtek ALC892/ ALC897 Codec |
| BackPanel Ports | 1 x VGA 1 x HDMI 2.1 1 x DisplayPort 1.4 1 x LAN Port 1 x Keyboard / Mouse 4 x USB 2.0 2 x USB 3.1 / USB 3.2 Gen 1 Type-A 3 x Audio Jacks |
| Internal I/O Connectors | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 1 x USB 2.0 Header (Supports 2 USB Type-A Port) 1x 4-pin CPU fan connector 1 x 4-pin system fan connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector |
| LED Features | 4x EZ Debug LED |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Dimension | 23.6 cm x 20.2 cm |
| Warranty | 3 Years Brand Warranty |
| Package Contents | MSI PRO H610M-G DDR4 Micro-ATX Motherboard User Manual Installation Guide |
