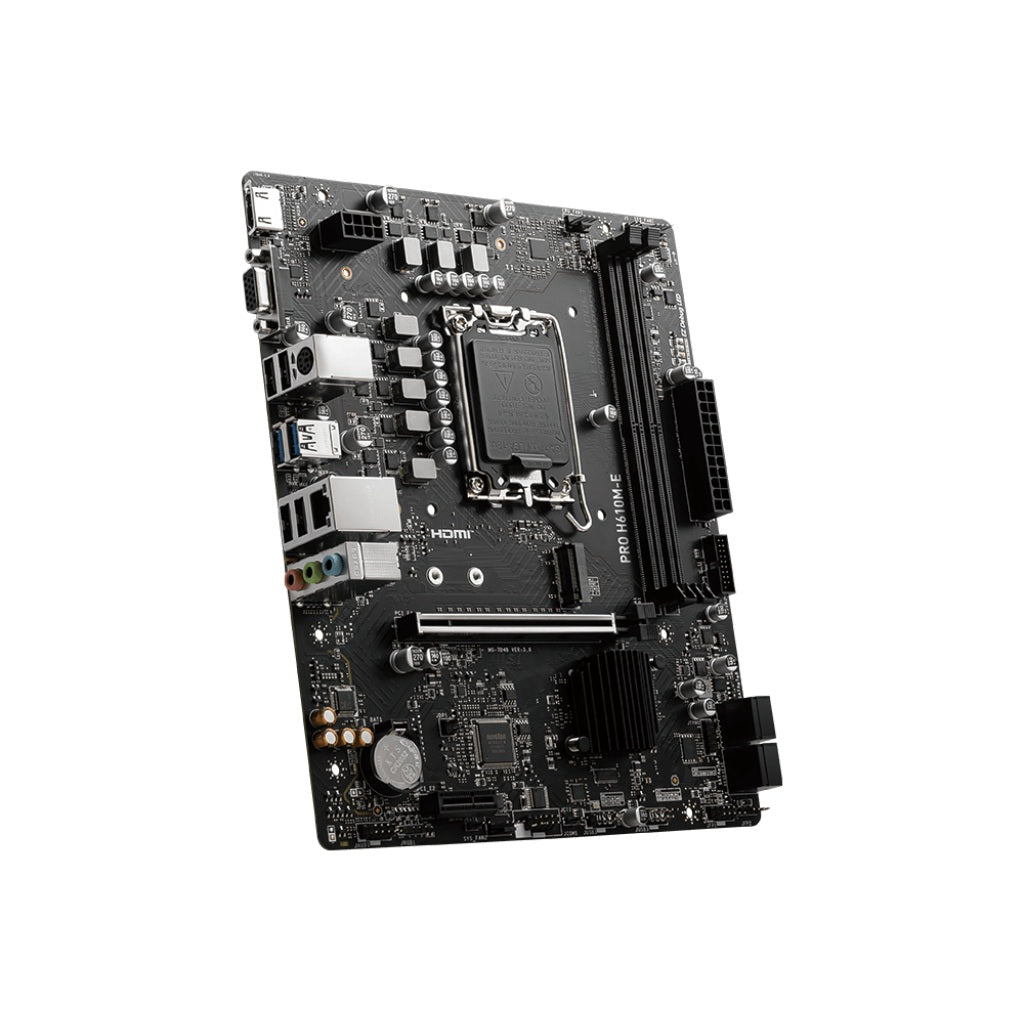

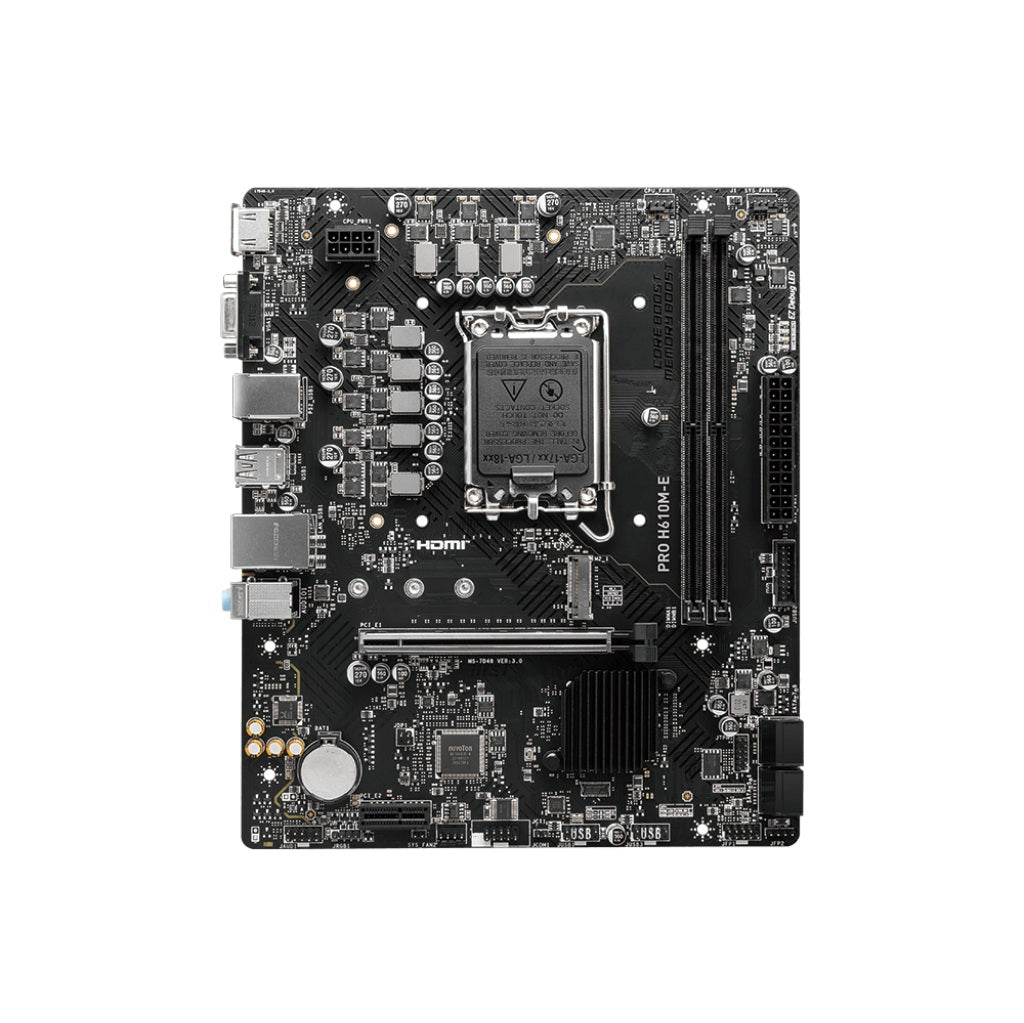

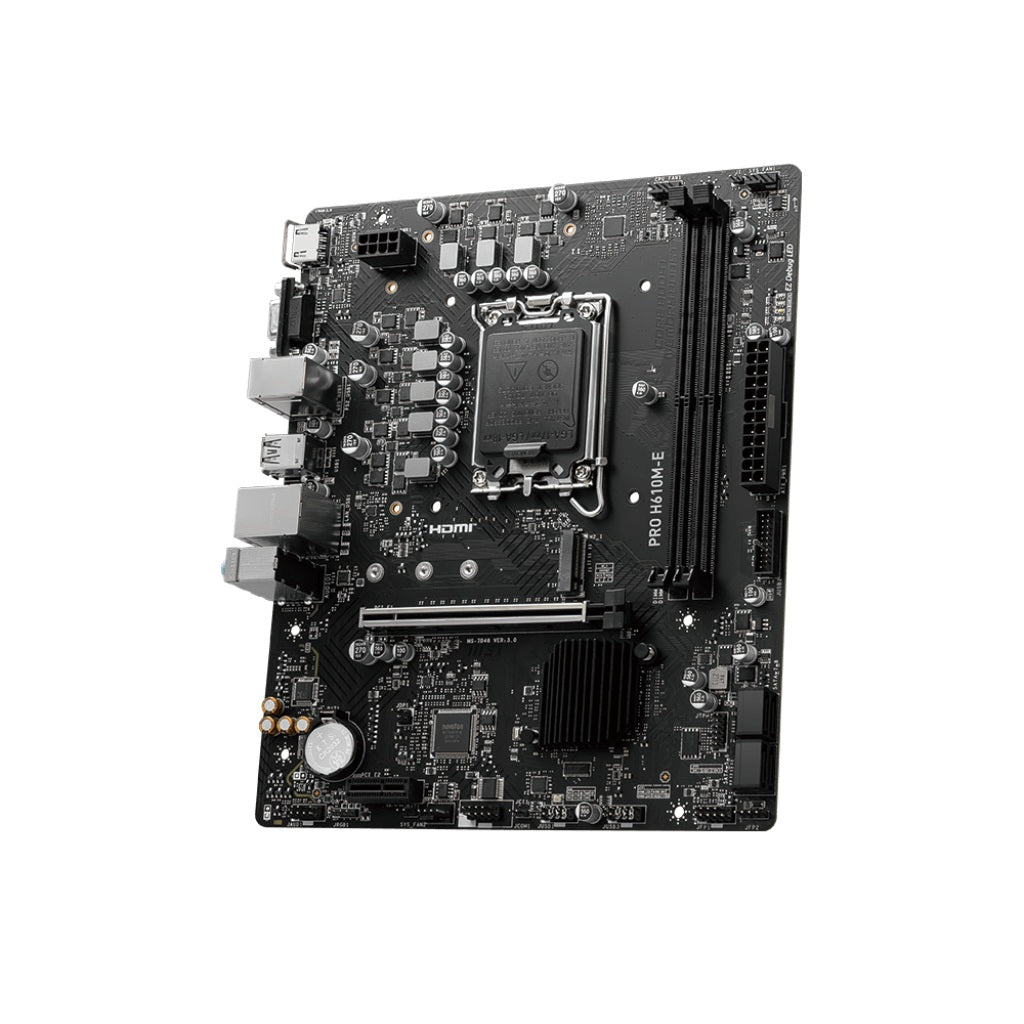

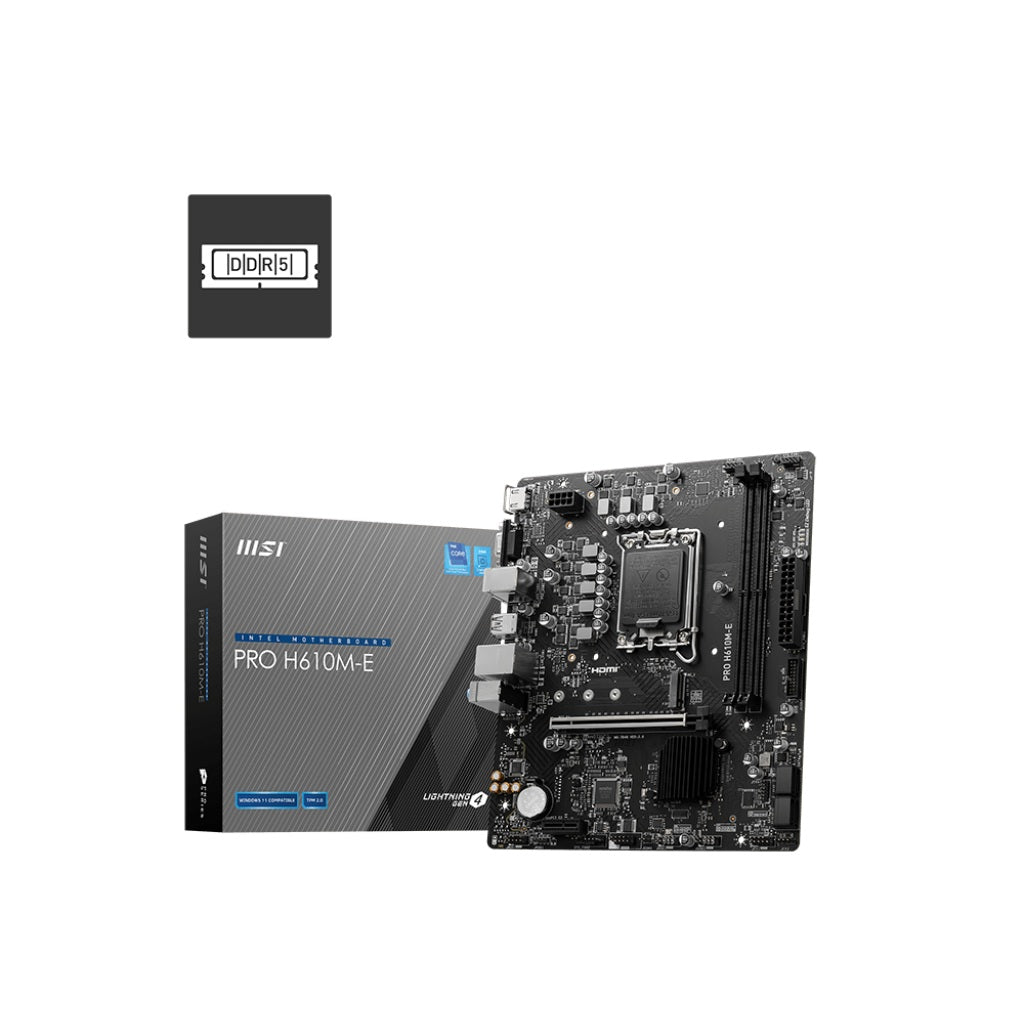

MSI PRO H610M-E DDR5 Intel H610 LGA 1700 Micro-ATX Motherboard

MSI PRO H610M-E DDR5 Intel H610 LGA 1700 Micro-ATX Motherboard

Brand: MSI
Rs. 7,149.00
41% off Rs. 7,149.00 Sale Sold out Rs. 11,999.00
Loading Offers...

Product Description:

Support for Latest Processors: Compatible with Intel 12th, 13th, and 14th Gen processors, including Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket

DDR5 Memory Support: Supports DDR5 memory with speeds up to 5600 MHz, providing faster data transfer rates and improved performance

PCIe 4.0: Equipped with PCIe 4.0 slots, offering up to 64GB/s bandwidth for maximum transfer speed and enhanced performance for graphics cards and other peripherals

.Core Boost Technology: Features a premium layout and digital power design to support more cores and deliver better performance, ensuring stable and efficient power delivery

Audio Boost: Provides studio-grade sound quality for an immersive audio experience, enhancing both gaming and multimedia activities

Model Name PRO H610M-E
Chipset INTEL H610
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 5600 MHz (by JEDEC & POR)
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
LED FEATURE 4x EZ Debug LED

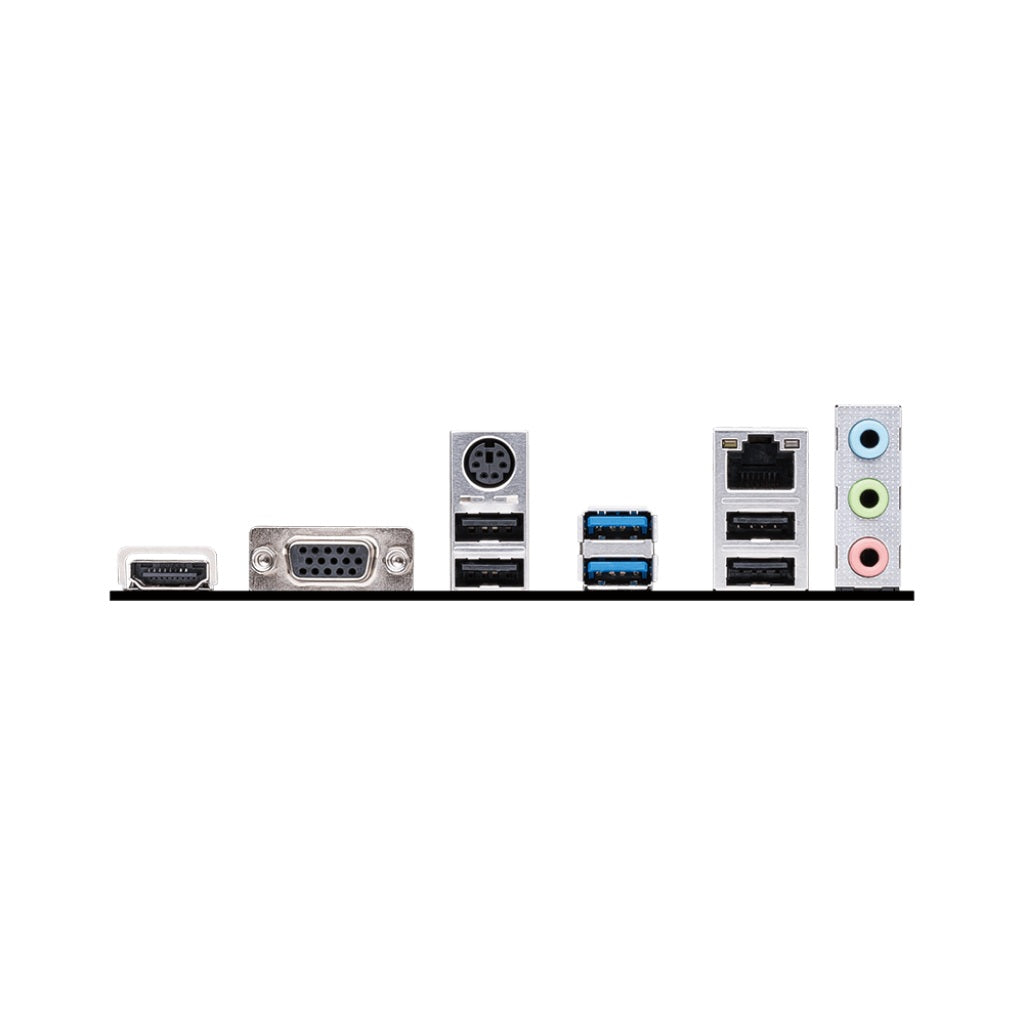

BACK PANEL PORTS HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio Connectors
USB 2.0
USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info mATX
200mmx236.16mm
Manufacturer Warranty 3 Years
