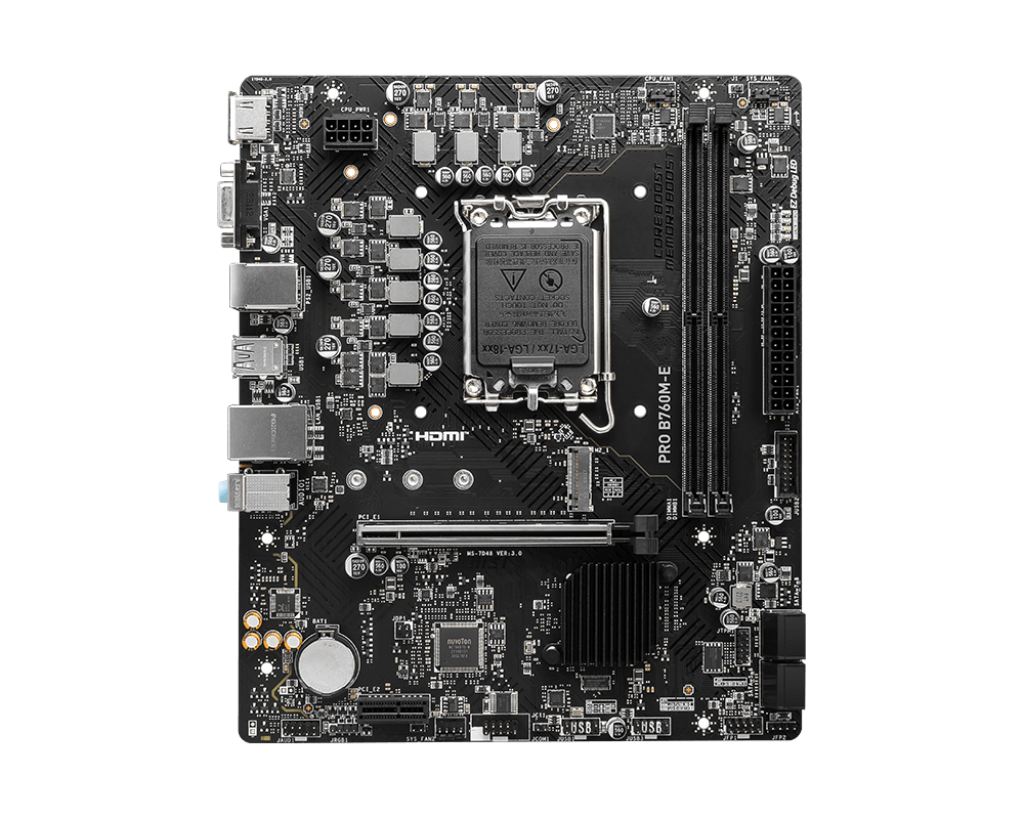

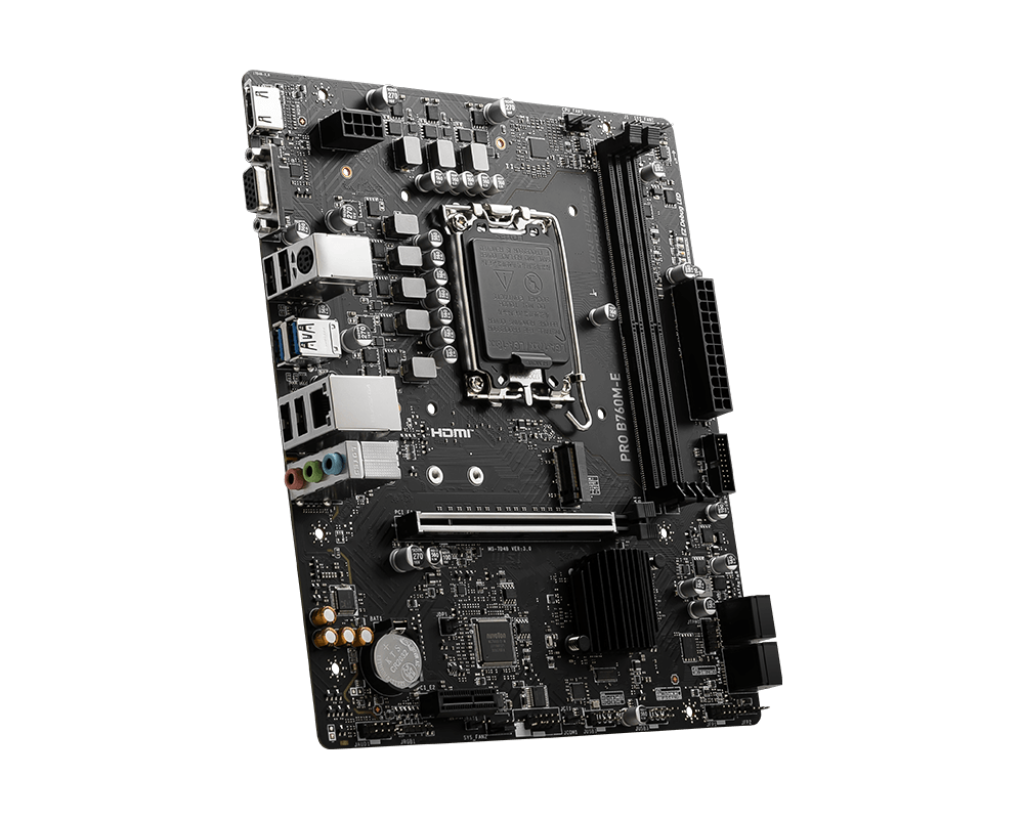

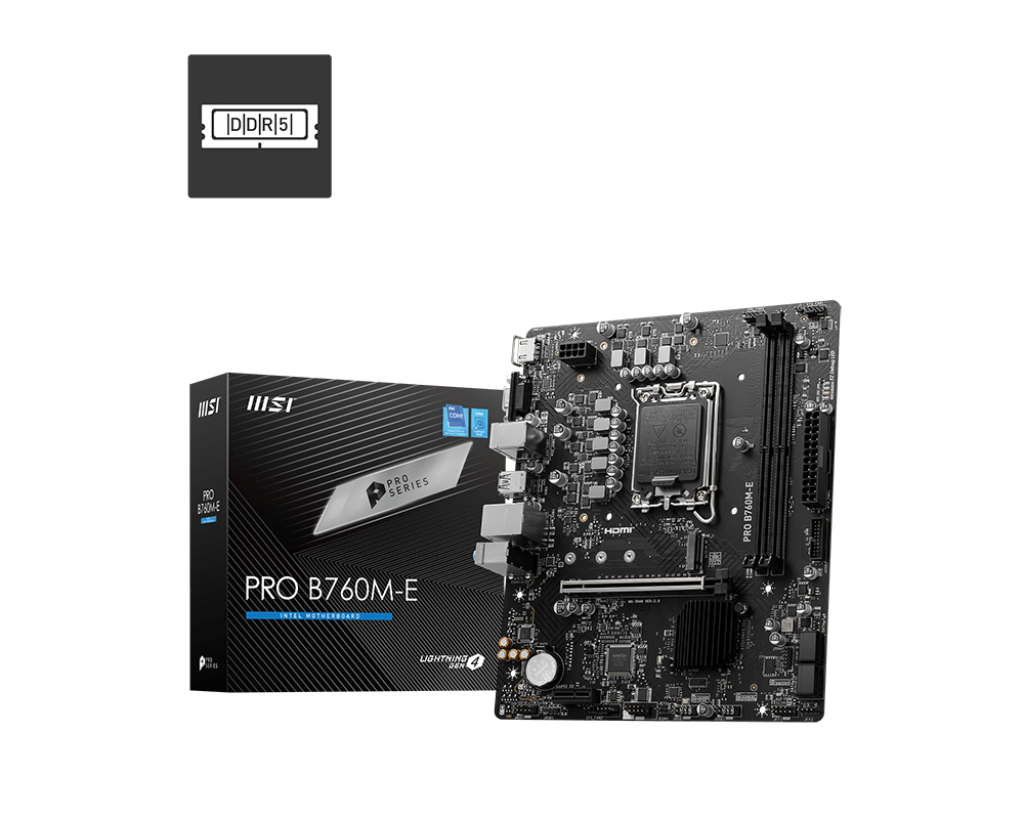

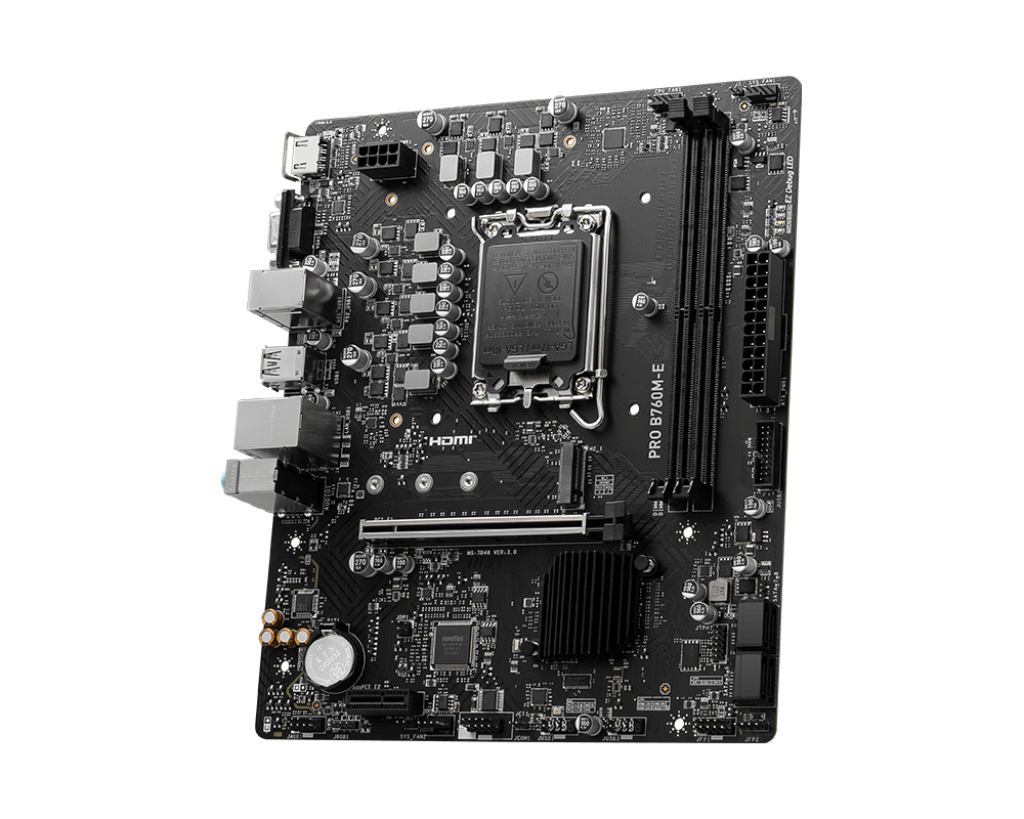

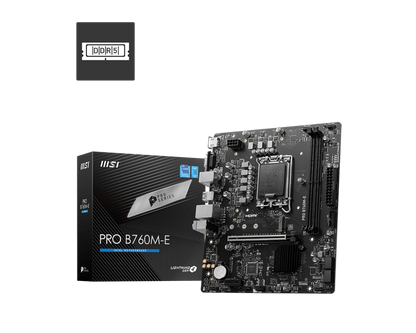

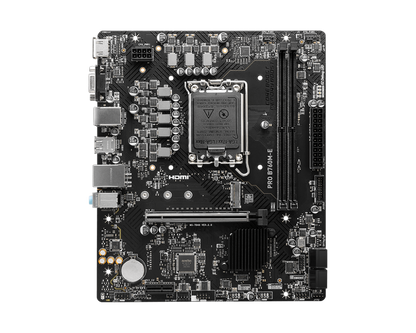

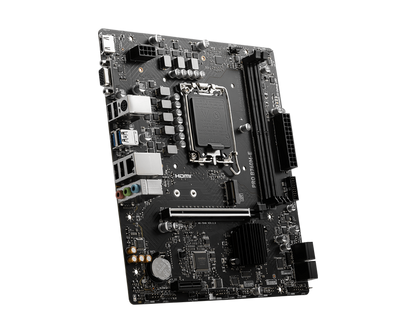

MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Socket Micro-ATX Motherboard

MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Socket Micro-ATX Motherboard

Brand: MSI
Rs. 9,880.00
42% off Rs. 9,880.00 Sale Sold out Rs. 16,999.00
Taxes included. Free Shipping.

Product Description:

    Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

    Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)

    Core Boost : With premium layout and digital power design to support more cores and provide better performance

    Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

    Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2

    AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

    Model MSI PRO B760M-E DDR5 Motherboard
    CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    CPU Socket LGA 1700
    Chipset Intel B760 Chipset
    Form Factor Micro-ATX
    Memory 2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6400+ MHz
    • 1DPC 2R Max speed up to 5600+ MHz

    Supports Intel XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Audio Realtek ALC897 Codec
    7.1-Channel High Definition Audio
    Storage 1x M.2
    M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    LAN Realtek RTL8111H Gigabit LAN
    ONBOARD GRAPHICS 1x HDMI
    Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
    1x VGA
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
    LAN 1x Realtek RTL8111H Gigabit LAN
    Slot 1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    INTERNAL IO 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports

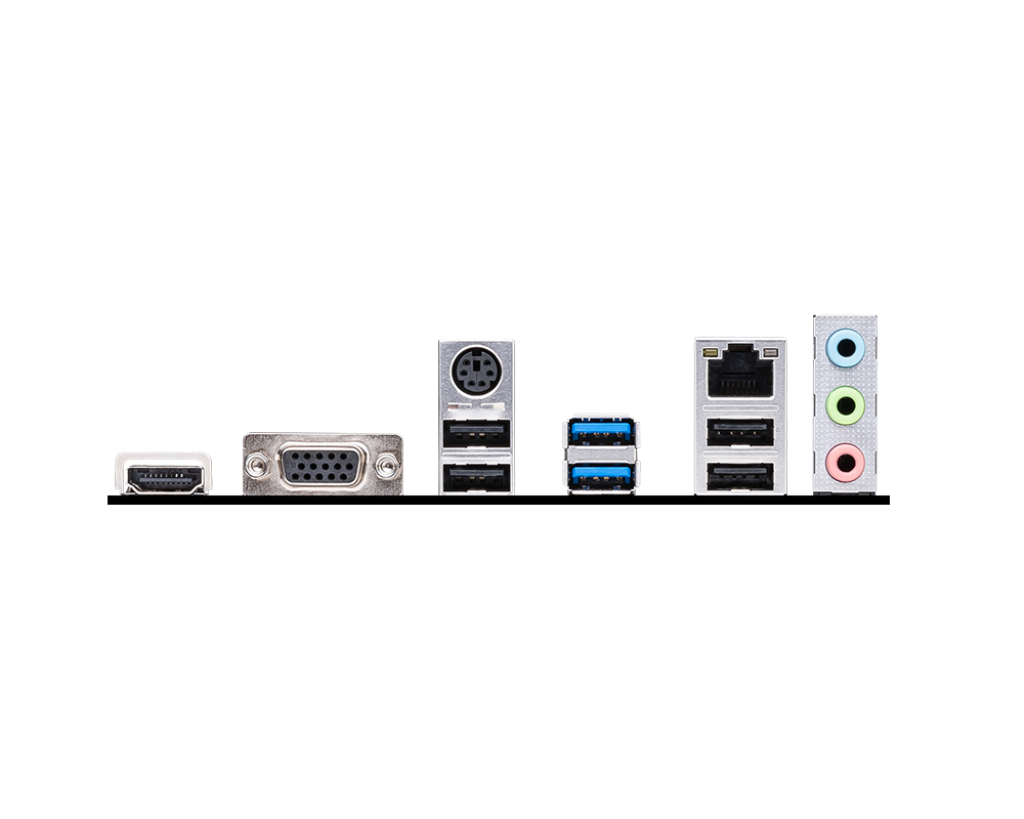

    BACK PANEL PORTS
    HDMI
    VGA
    Keyboard / Mouse
    USB 3.2 Gen 1 5Gbps (Type-A)
    LAN port
    Audio Connectors
    USB 2.0
    USB 2.0
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    Warranty 3 Years Brand Warranty
    Package Contents Motherboard
    European Regulatory Notice
    Quick Installation Guide
    M.2 Screw / Standoff Set
    SATA Cable
    I/O Shield
    View full details
