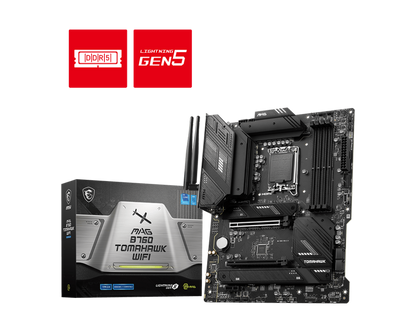

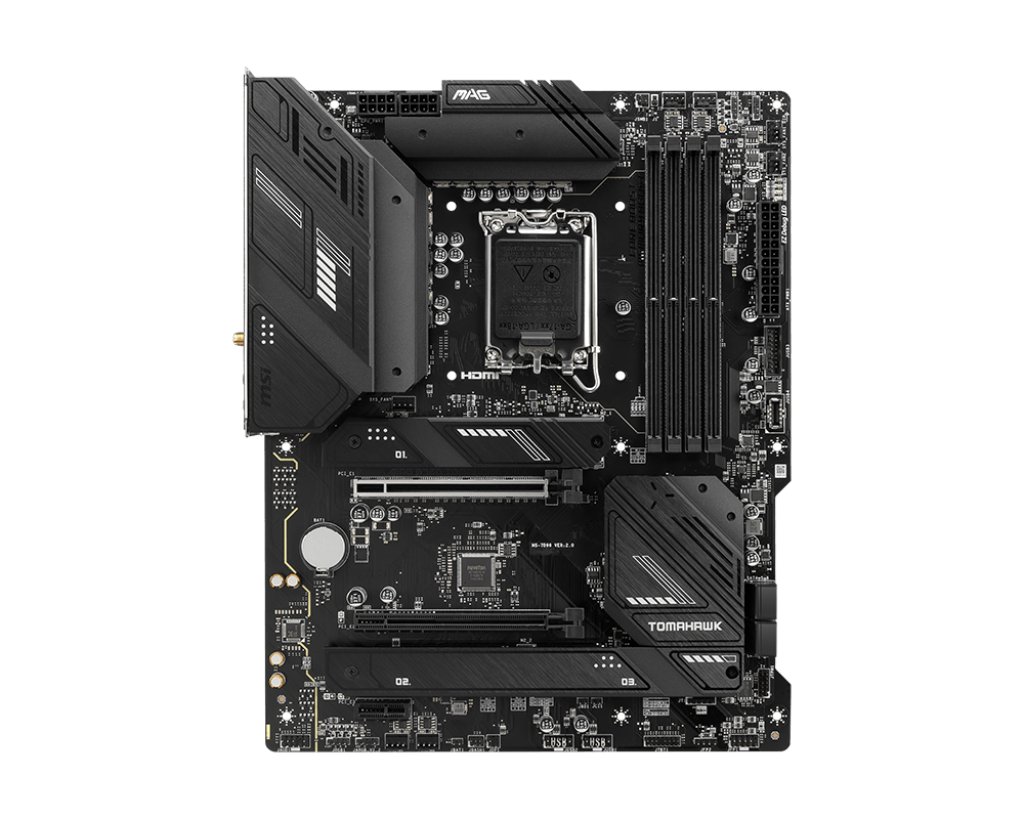

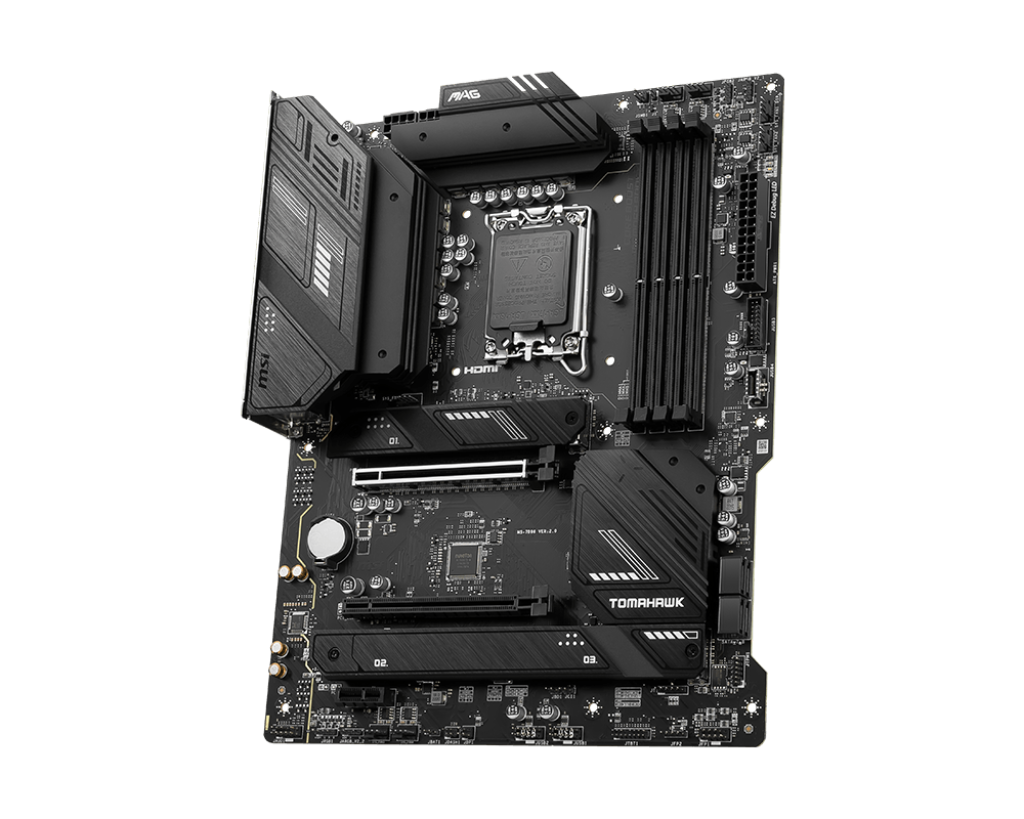

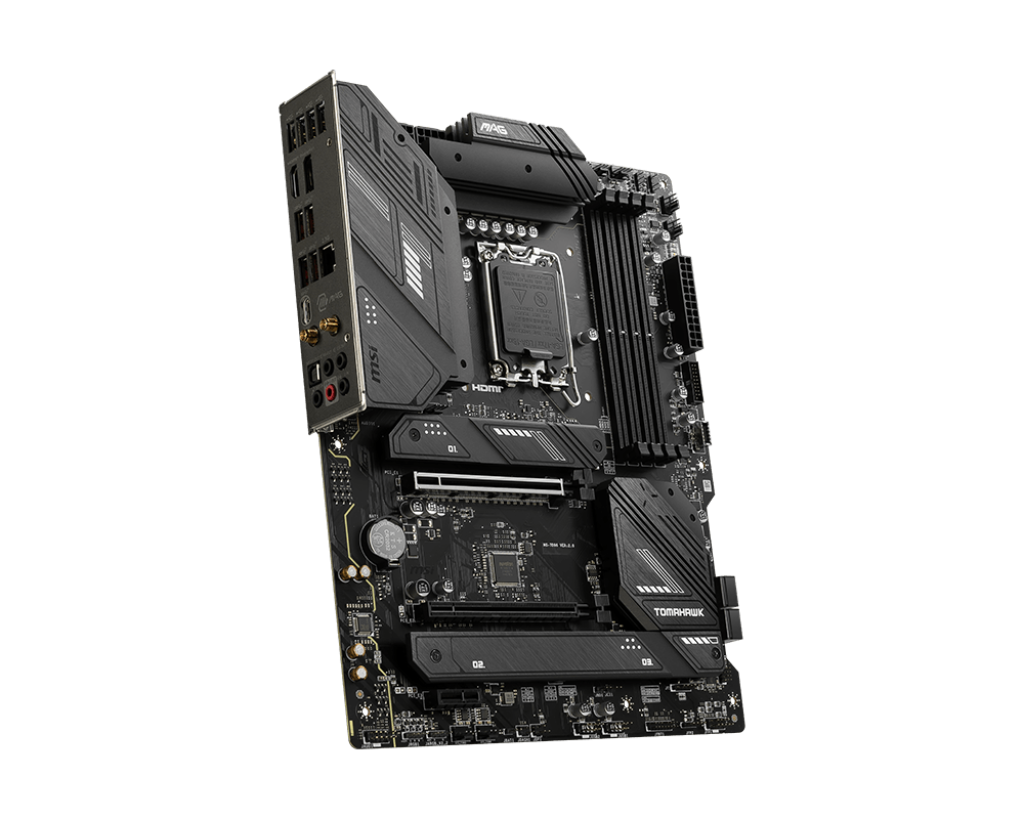

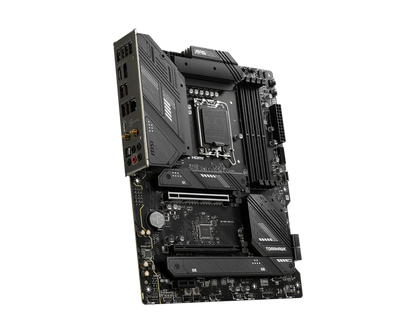

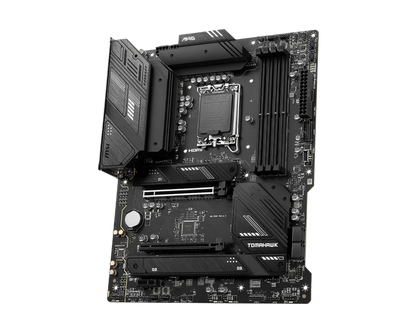

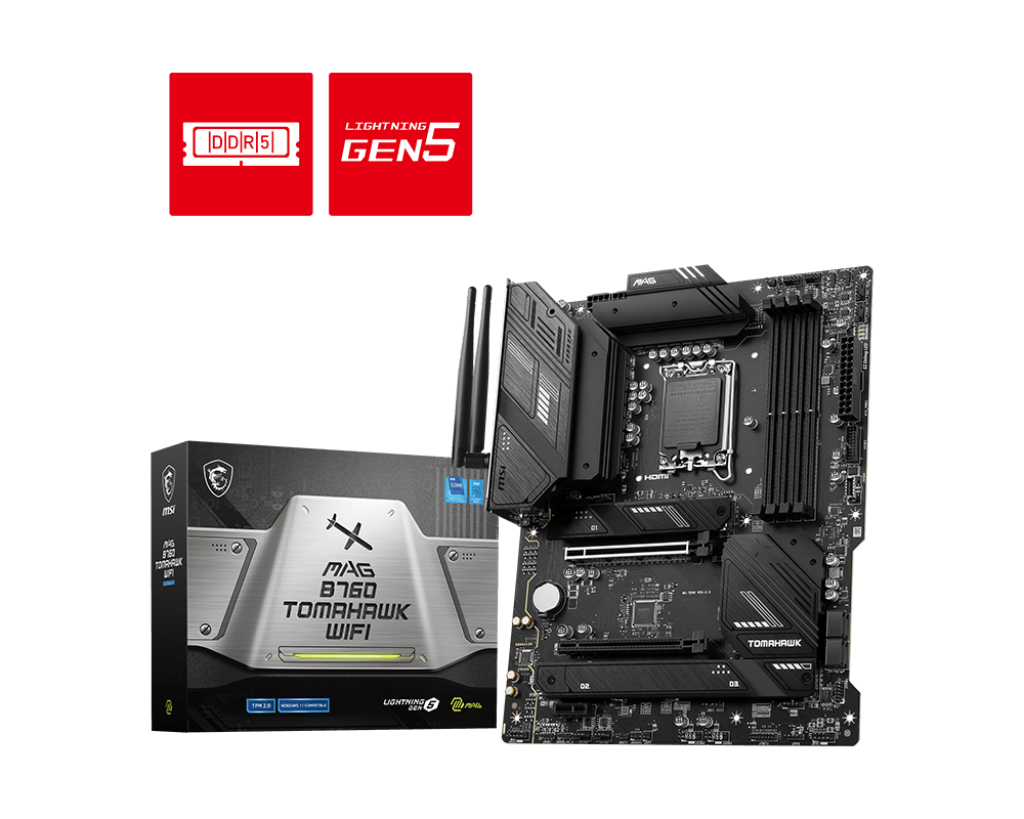

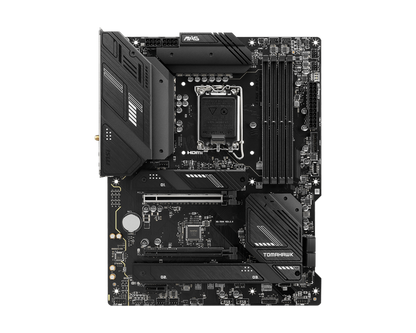

MSI MAG B760 TOMAHAWK WIFI DDR5 LGA 1700 Socket ATX Gaming Motherboard

MSI MAG B760 TOMAHAWK WIFI DDR5 LGA 1700 Socket ATX Gaming Motherboard

Brand: MSI
Rs. 23,199.00
44% off Rs. 23,199.00 Sale Sold out Rs. 40,999.00
Taxes included. Free Shipping.

Product Description:

    Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

    Supports DDR5 Memory, up to 7000+(OC) MHz

    Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

    Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

    Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

    AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

    High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

    Model MSI MAG B760 TOMAHAWK WIFI
    CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
    CPU Socket LGA1700
    Chipset Intel B760
    PCB INFO ATX
    243.84mmx304.8mm
    Memory 4x DDR5, Maximum Memory Capacity 256GB
    Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7000+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel Extreme Memory Profile
    Audio Realtek ALC897 Codec
    7.1-Channel High Performance Audio
    Supports S/PDIF output
    Storage 3x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    LAN Realtek 2.5Gbps LAN
    ONBOARD GRAPHICS 1x HDMI
    Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz
    1x DisplayPort
    Support DP 1.4, maximum resolution of 8K 60Hz
    Slot 2x PCI-E x16 slot
    Supports x16/x4
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 5Gbps Type A (Front)
    4x USB 10Gbps Type A (Rear)
    1x USB 10Gbps Type C (Front)
    1x USB 20Gbps Type C (Rear)
    INTERNAL IO 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    5x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x TBT connector (JTBT, supports RTD3)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 10Gbps Type C ports
    WIRELESS LAN & BLUETOOTH Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth 5.3, FIPS, FISMA

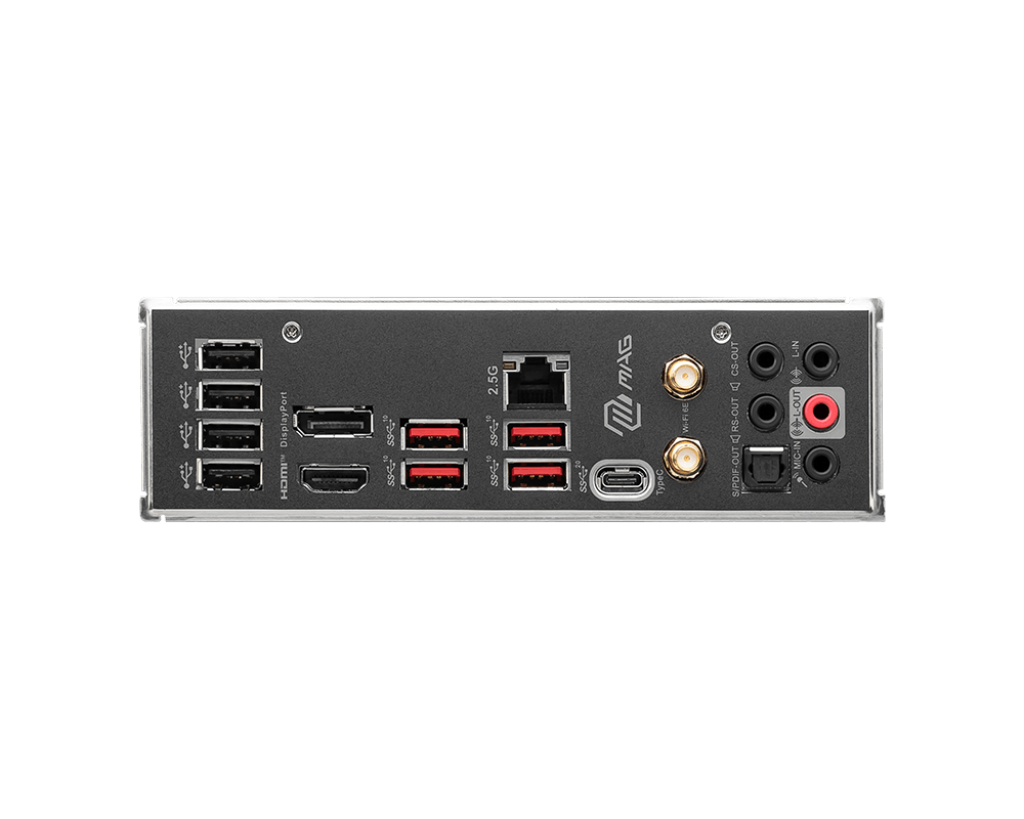

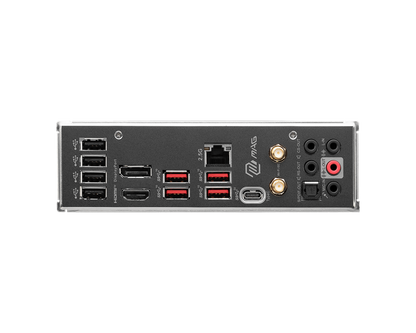

    BACK PANEL PORTS
    USB 2.0
    DisplayPort 1.4
    USB 3.2 Gen 2 10Gbps Type-A
    2.5G LAN Port
    Wi-Fi / Bluetooth Antenna
    HD Audio Connectors
    HDMI™ 2.1 Port
    USB 3.2 Gen 2x2 20Gbps Type-C
    Optical S/PDIF OUT
    OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit
    Warranty 3 Years Brand Warranty
    Package Contents Motherboard
    European Regulatory Notice
    Quick Installation Guide
    EZ M.2 Clip
    SATA Cable
    Wi-Fi Antenna
    Cable Stickers
