Product Description:
ATX 3.0 Compatible: This power supply unit can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
PCIe 5.0 Ready: With native 16 PIN (12VHPWR) PCIe connector, this power supply unit is ready for all high performing future graphics cards.
80 PLUS Gold Certification: The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
0% RPM Mode: The fan 0 RPM mode can stop the fan's operation when TDP is below 40% to let you enjoy gaming in silence.

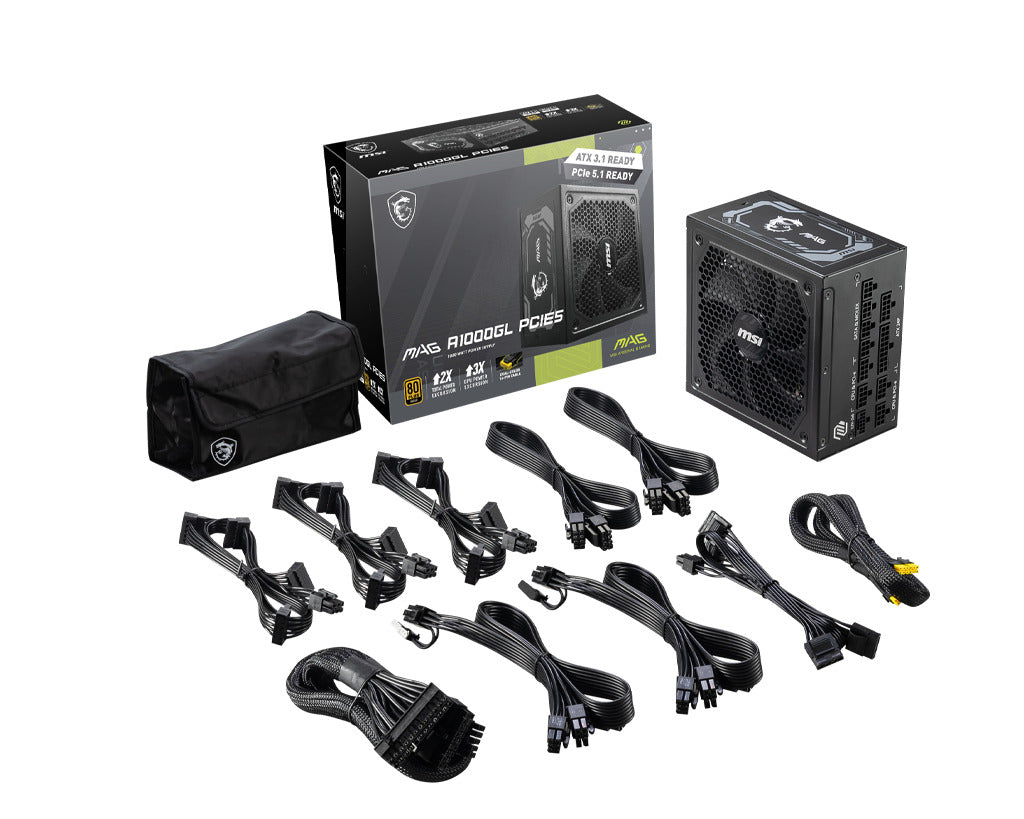

Fully Modular Design: Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build.
Model | MAG-A1000GL-PCIE5 |
Efficiency Rating |
80 PLUS Gold (up to 90%)
|
Modular |
Yes (fully modular)
|

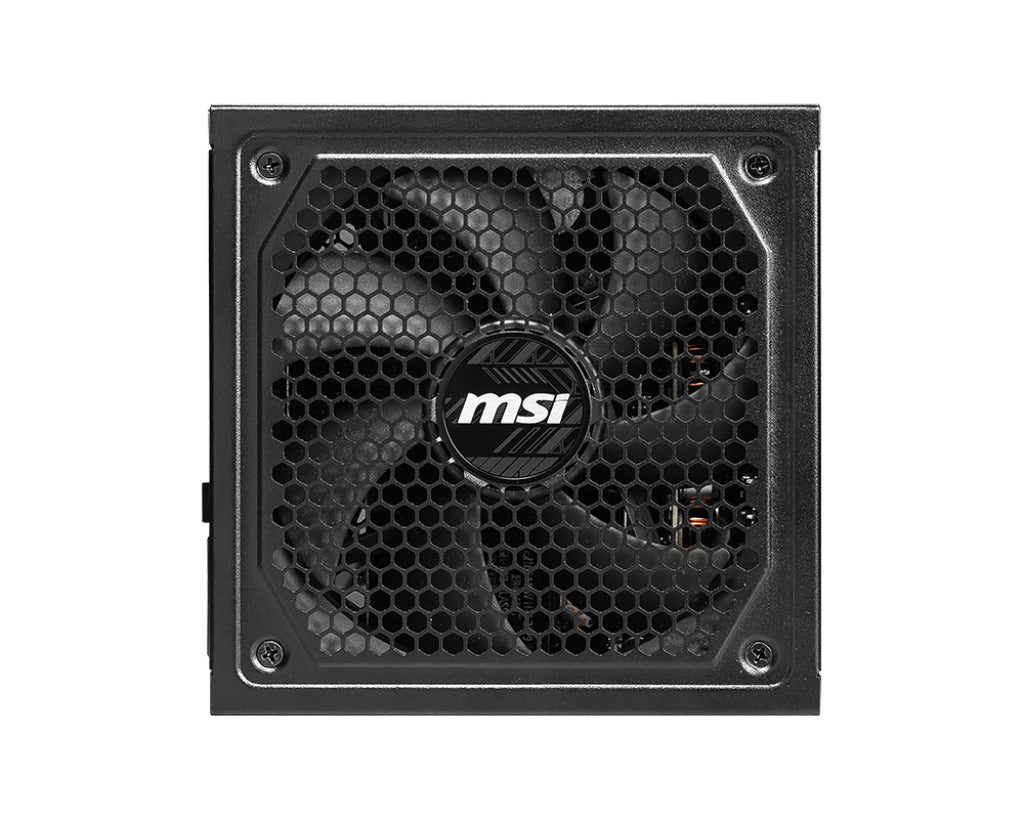

Fan Size |
135 mm
|
Fan Bearing |
Fluid Dynamic Bearing
|
Dimensions (DxWxH) |
150 x 150 x 86 mm
|
PFC Type |
Active PFC
|
Input Voltage Range |
100-240V~
|
Power Watt |
1000W
|
Power Excursion |
2000W (*up to 200% of the PSU's rated power for 100μs)
|
Input Frequency Range |
50-60Hz
|
Protection |
OCP / OVP / OPP / OTP / SCP / UVP
|

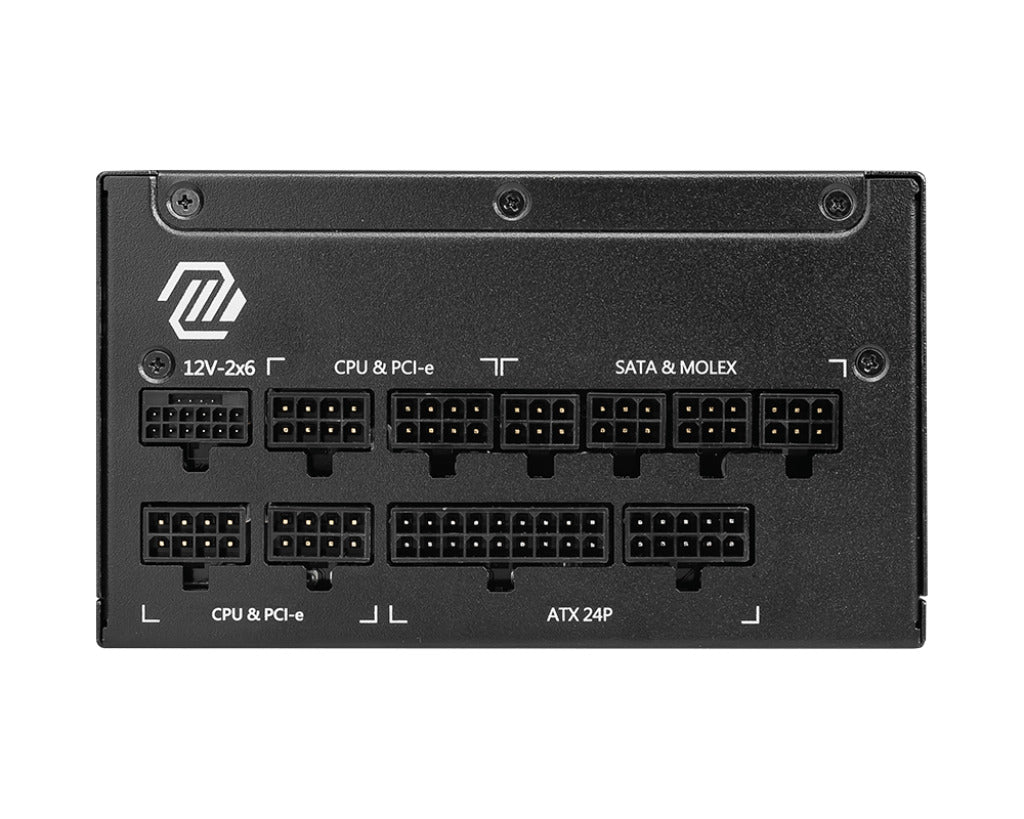

ATX (24 pin) |
1
|
EPS (4+4 pin) |
2
|
PCI-E 5.1 (16 pin) |
1 (600W)
|
PCI-E (6+2 pin) |
4
|
SATA (15 pin) |
12
|
PERIPHERAL (4 pin) |
4
|
FDD (4 pin) |
1
|
Warranty | 7 Years |
