Msi Cubi NUC 1M-233BIN Intel Core i7-150U 12th Gen Barebones Mini PC
Msi Cubi NUC 1M-233BIN Intel Core i7-150U 12th Gen Barebones Mini PC
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping
- 7-Days Easy Returns
- Brand Warranty
Product Description:
Compact and Efficient Design: The Cubi NUC 1M-233BIN is a mini PC with a small form factor, making it ideal for space-constrained environments while still delivering powerful performance.
12th Gen Intel Core i7 Processor: Equipped with the Intel Core i7-150U processor, this mini PC offers efficient performance for everyday computing tasks and multitasking.
Versatile Connectivity: The device supports WiFi 6E, Dual LAN, Thunderbolt 4, and USB 3.2 Gen 2 Type-C ports, providing a wide range of connectivity options for various peripherals and devices.
Upgradeable Components: The barebones design allows users to customize and upgrade components such as RAM and storage to meet their specific needs.
Energy Efficient: Designed to be energy-efficient, the Cubi NUC 1M-233BIN helps reduce power consumption while maintaining reliable performance.
OS | Windows 11 Home |
Windows 11 Pro | |
CPU | Intel® Core™ 7 processor 150U (12M Cache, 1.80 GHz up to 5.40 GHz) |
Chipset | Intel® SoC |
Graphics | Intel® Graphics |
I/O Ports | 1x Card Reader |
2x RJ45 | |
Cooler | Air |
Memory | DDR5 5200 MHz Max 64GB SO-DIMM 2 Slots |
Storage | 1x SATA connectors |
1x 2.5" Drive Bays | |
2x M.2 SSD (NVMe PCIe Gen4 x4) | |
Audio | Realtek ALC256 2.1 Channel HD Audio |
Communication | 2x Intel I226-V Intel Wireless AX211 + Bluetooth v5.3 |
Intel Wi-Fi 7 BE200 + Bluetooth 5.4 | |

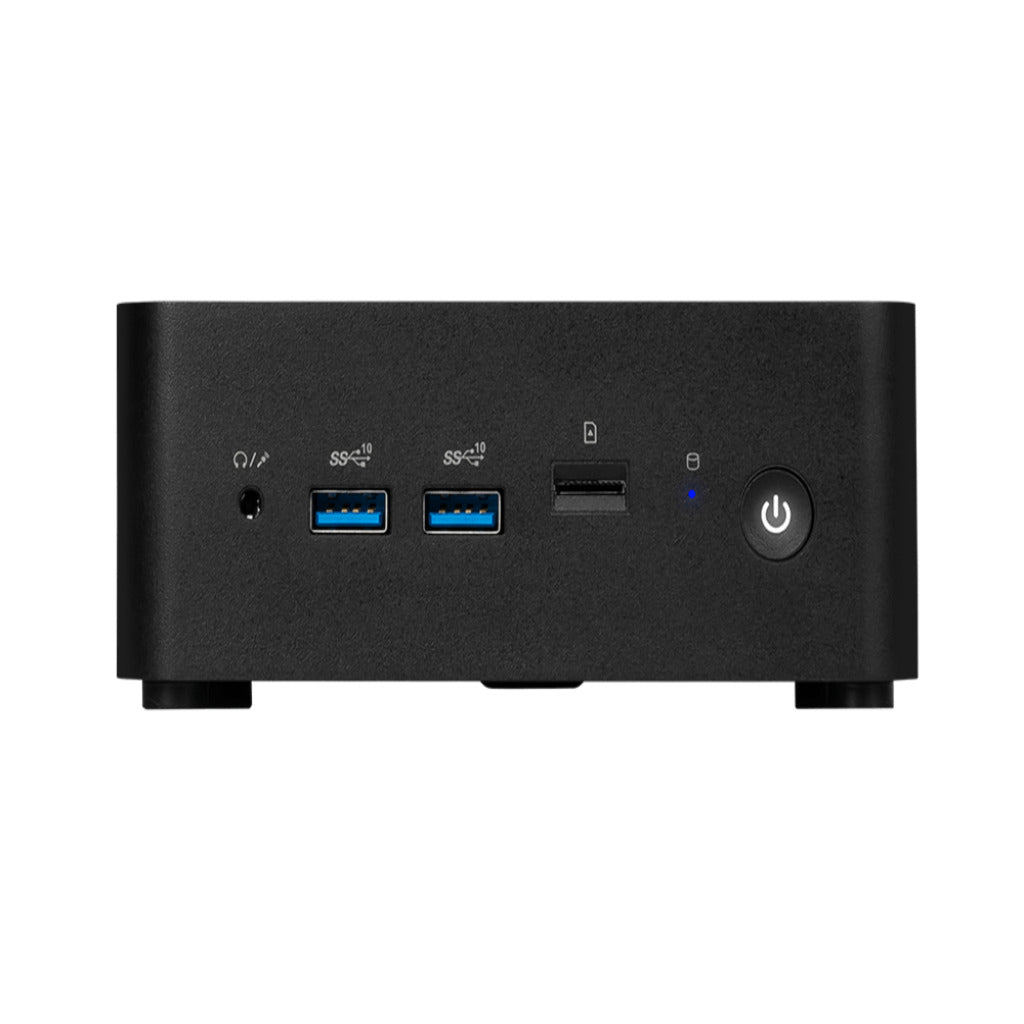

I/O Ports (Front) | 1x Mic-in/Headphone-out combo |
2x USB 3.2 Gen 2 (10G) Type A | |

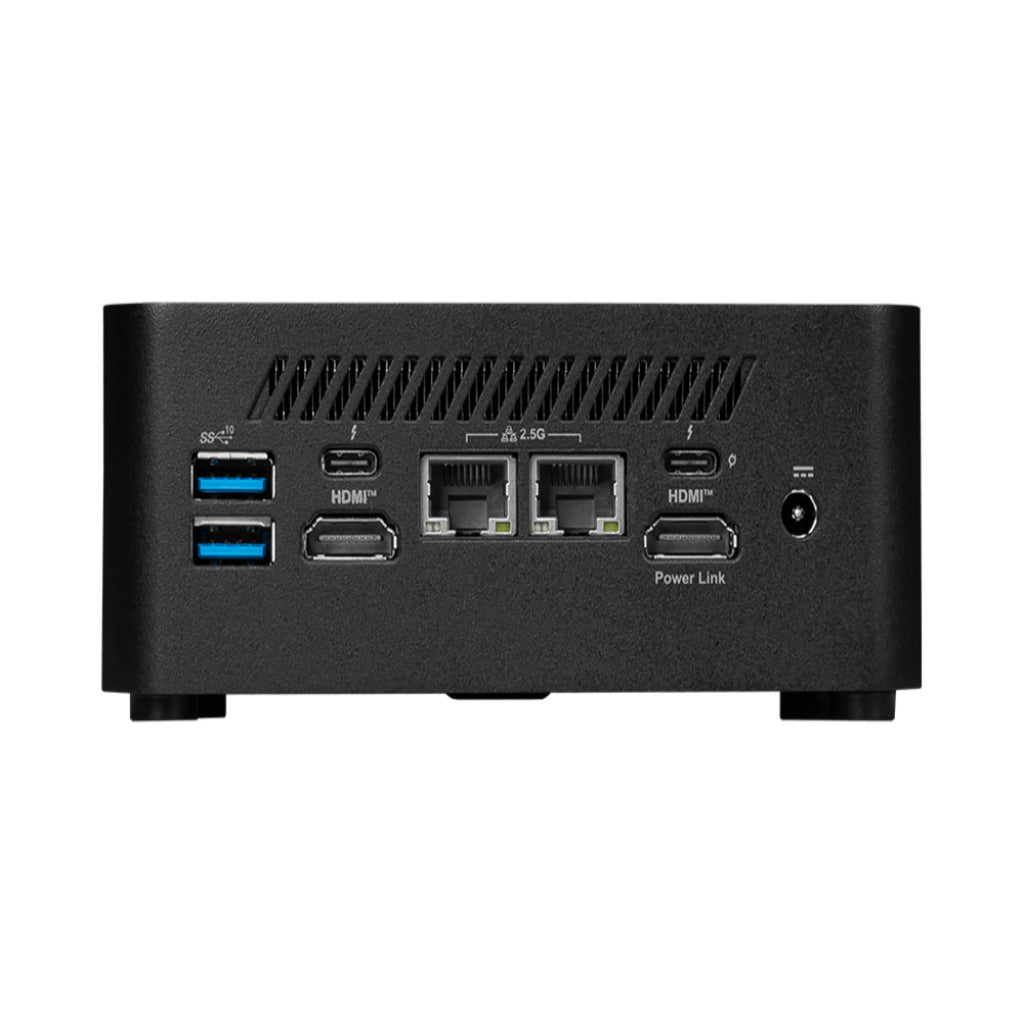

I/O Ports (Rear) | 2x (v2.1) HDMI out |
Kensington Lock 2x (Thunderbolt 4) Thunderbolt | |
Power Supply | 120W |
VESA | 100 x 100 mm |
Product Dimension (WxDxH) | 135.6 x 132.5 x 50.10 (mm) |
Size | 0.826 Liter |
Weight | 0.63 (Net kg) |
1.45 (Gross kg) | |
Noise Level | 28 db Idle mode |
38 db Full loading mode | |
Mechanical and Environmental | 0° C ~ 35° C ; -20° C ~ 60° C 0% ~ 85%;0% ~ 90% FCC(Class B) |
CB/CE | |
UL(CUL) | |
BSMI | |
VCCI | |
RCM(C-Tick) | |
Warranty | 36months |
