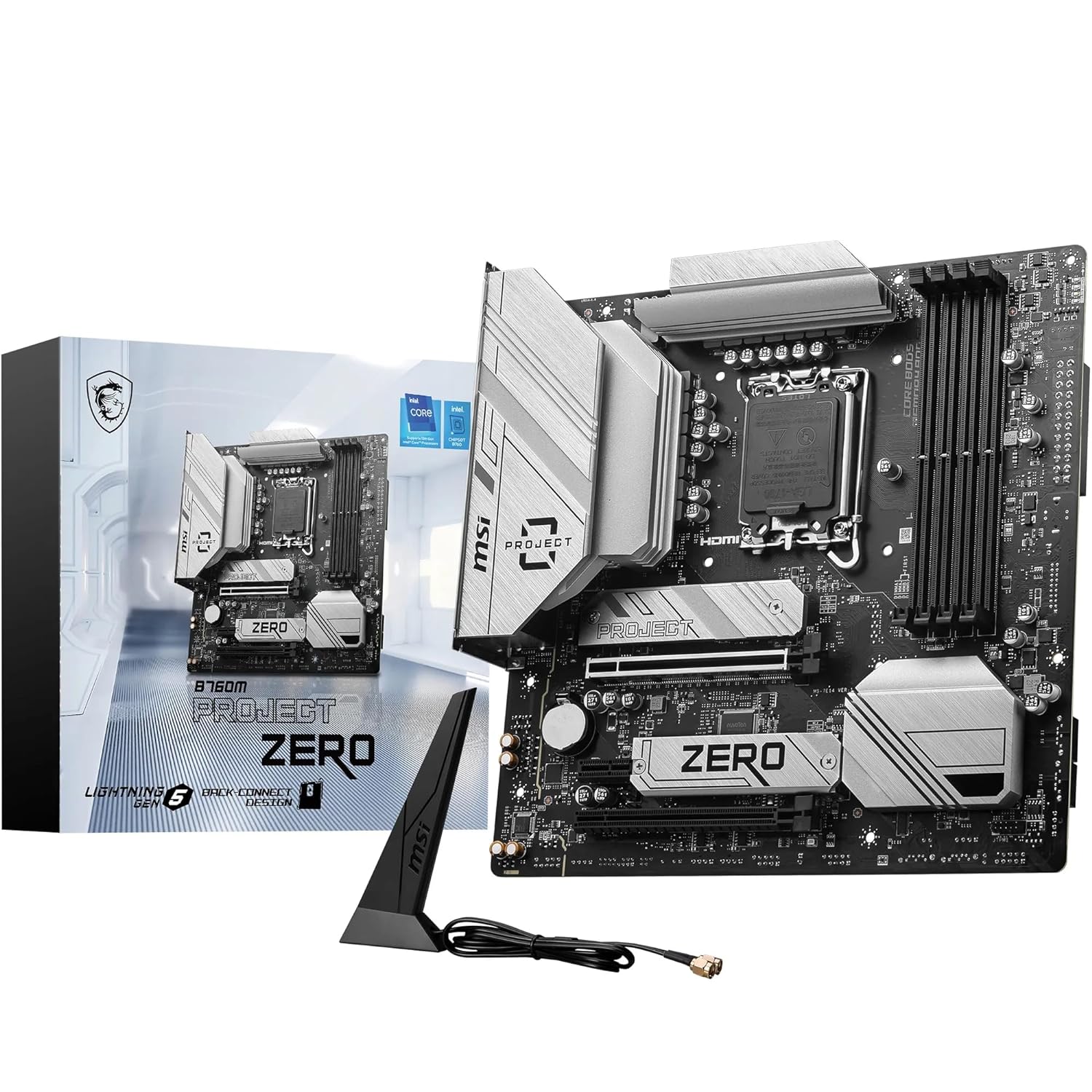

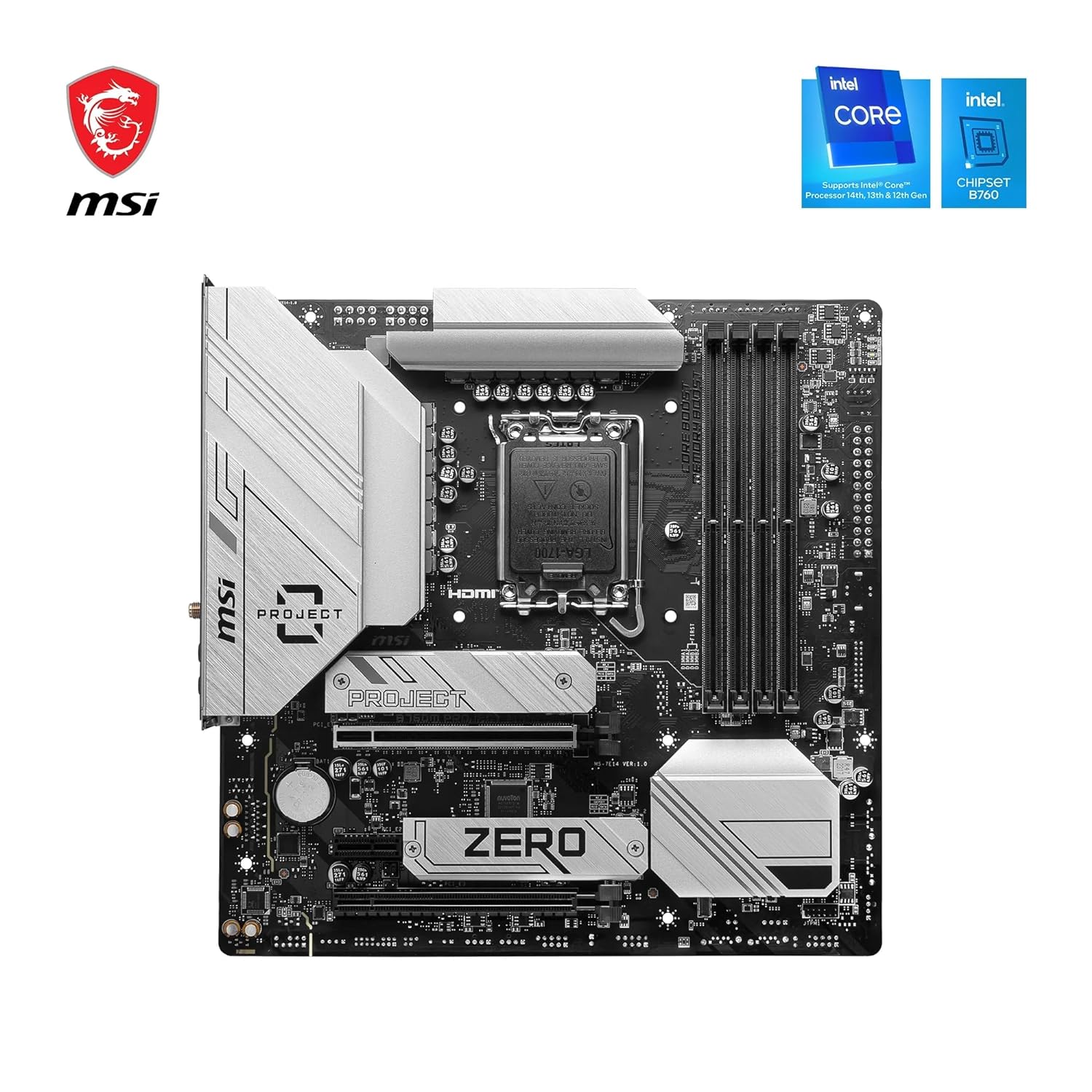

MSI B760M PROJECT ZERO Back-Connect LGA 1700 Wi-Fi DDR5 Micro-ATX Motherboard

Name: MSI B760M PROJECT ZERO Back-Connect LGA 1700 Wi-Fi DDR5 Micro-ATX Motherboard
Brand: MSI
Price: 24999.0 INR
Availability: InStock

Brand: MSI

Rs. 24,999.00

42% off Rs. 24,999.00 Sale Sold out ~~Rs. 42,599.00~~

Taxes included. Free Shipping.

Quantity

Deliver To

Free Shipping
7-Days Return
Original Warranty

Product Description:

Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket

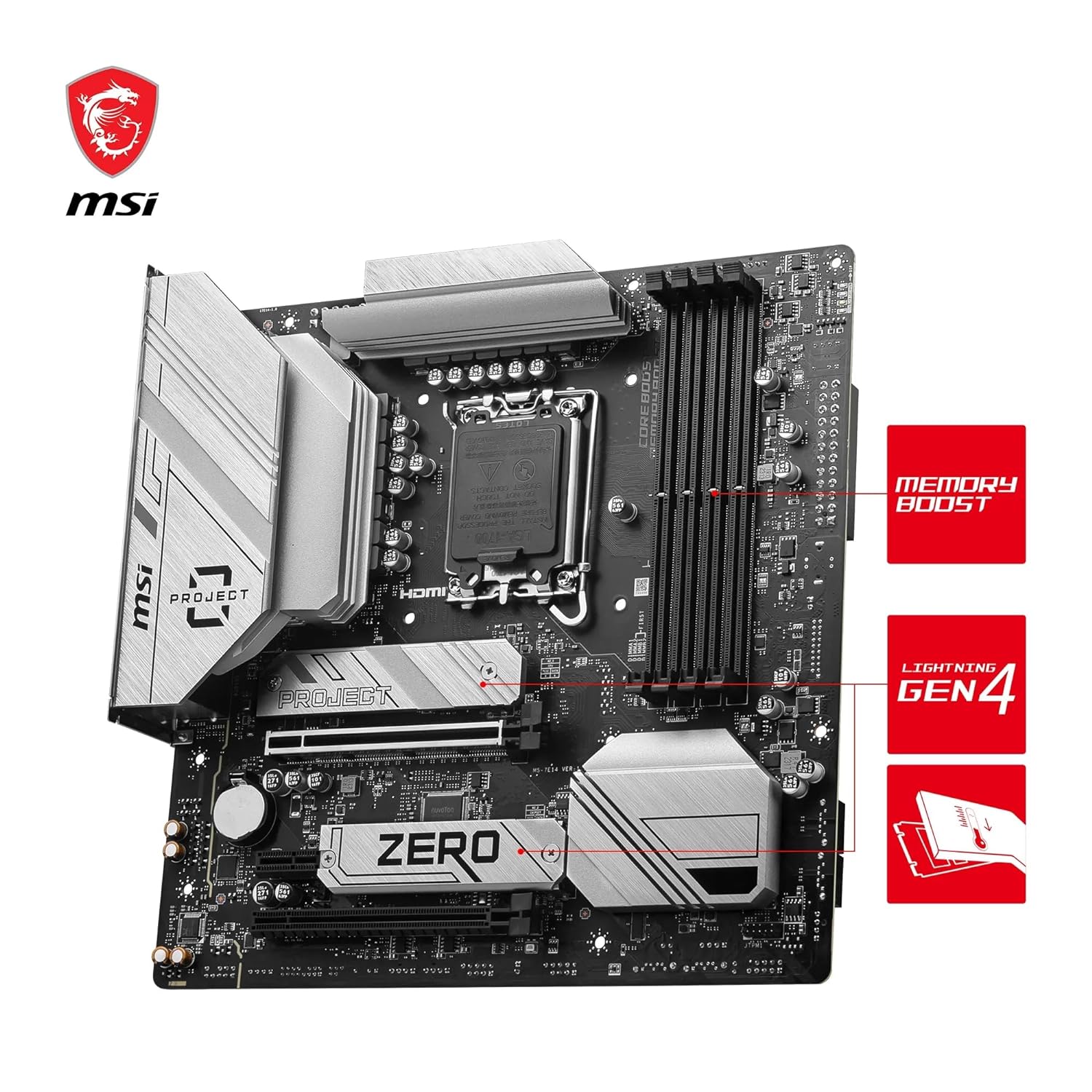

Supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

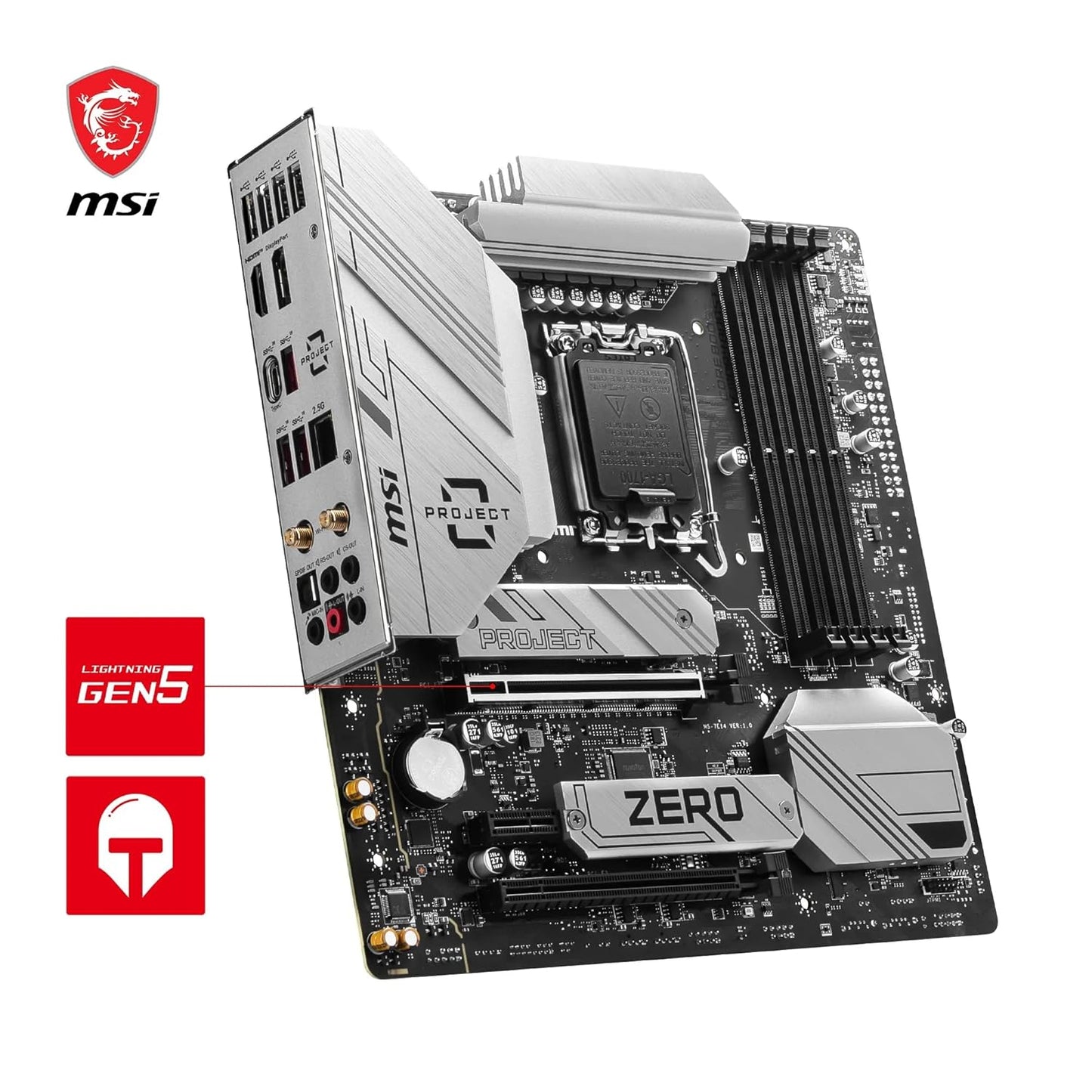

Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound

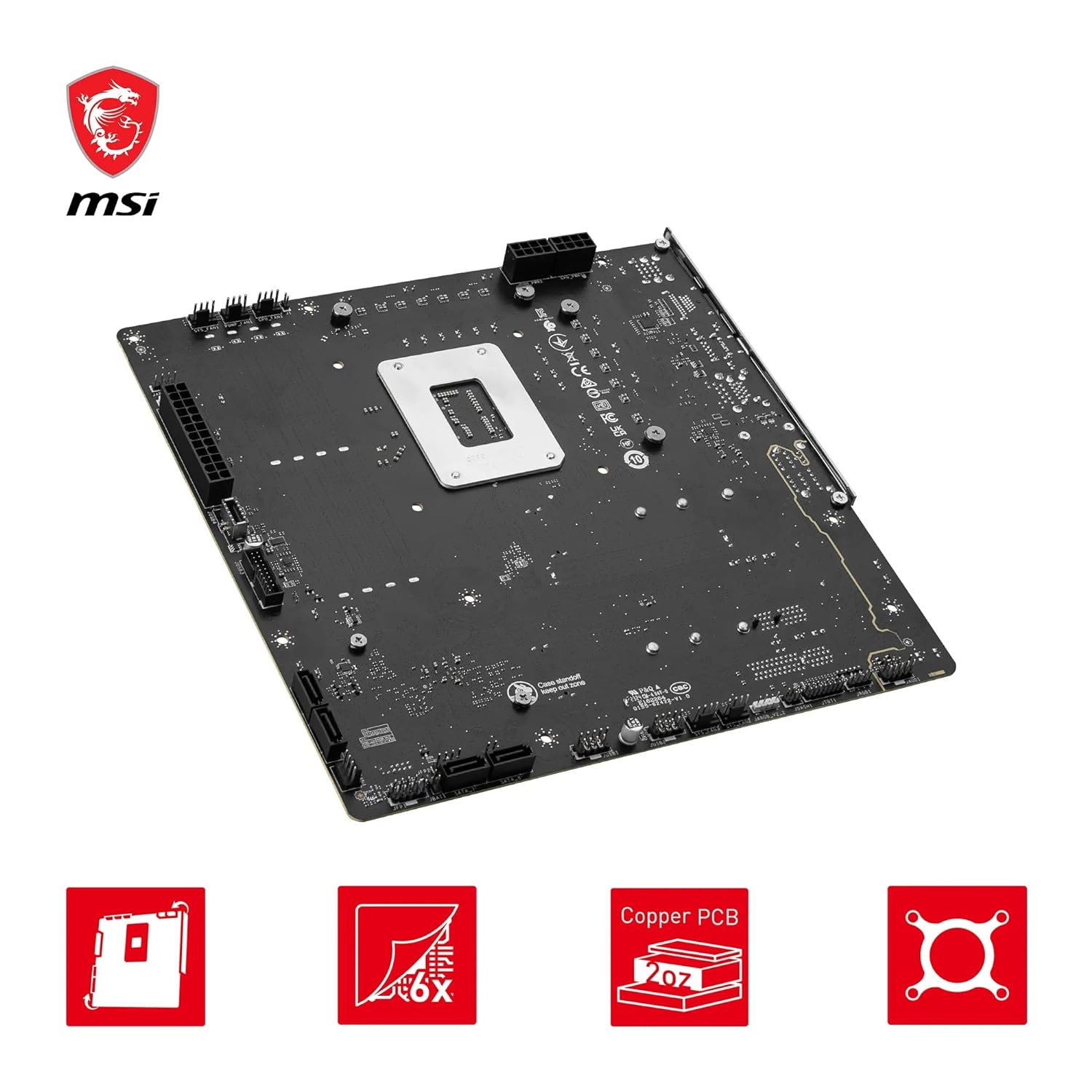

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material.

Model	B760M PROJECT ZERO
CPU Support	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket	LGA 1700
Chipset	INTEL B760
Form Factor	Micro ATX
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel^® Extreme Memory Profile
Expansion Slot	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3, FIPS, FISMA Supports Bluetooth^® 5.4**, MLO, 4KQAM
ONBOARD GRAPHICS	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Audio	Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output

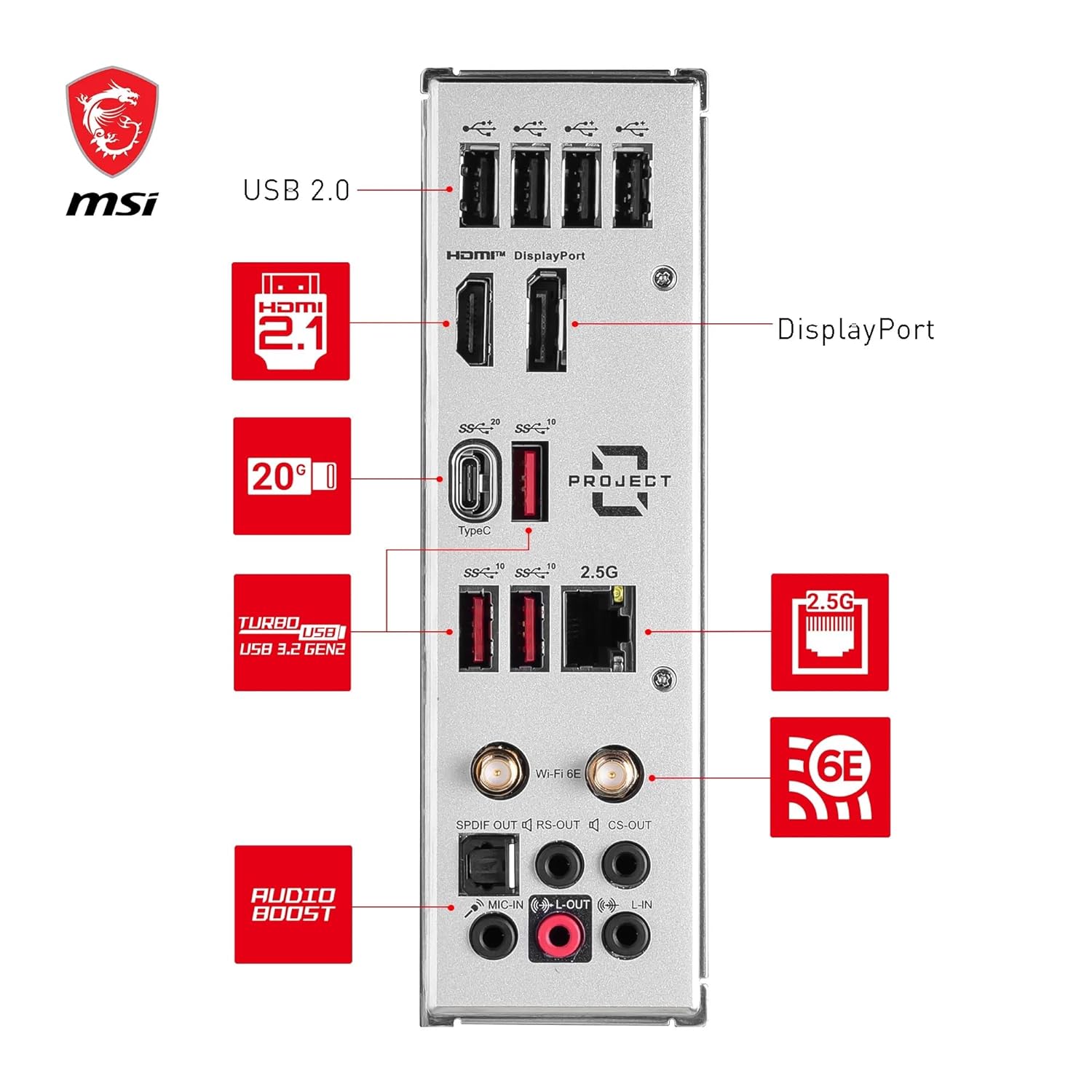

BackPanel Ports	USB 2.0 DisplayPort 1.4 USB 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 20Gbps Type-C Optical S/PDIF OUT
Internal I/O Connectors	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
PCB INFO	mATX 243.84mmx243.84mm
Operating System	Support for Windows 11 64-bit, Windows 10 64-bit
LED Feature	4x EZ Debug LED
Warranty	3 Year Manufacturer Warranty

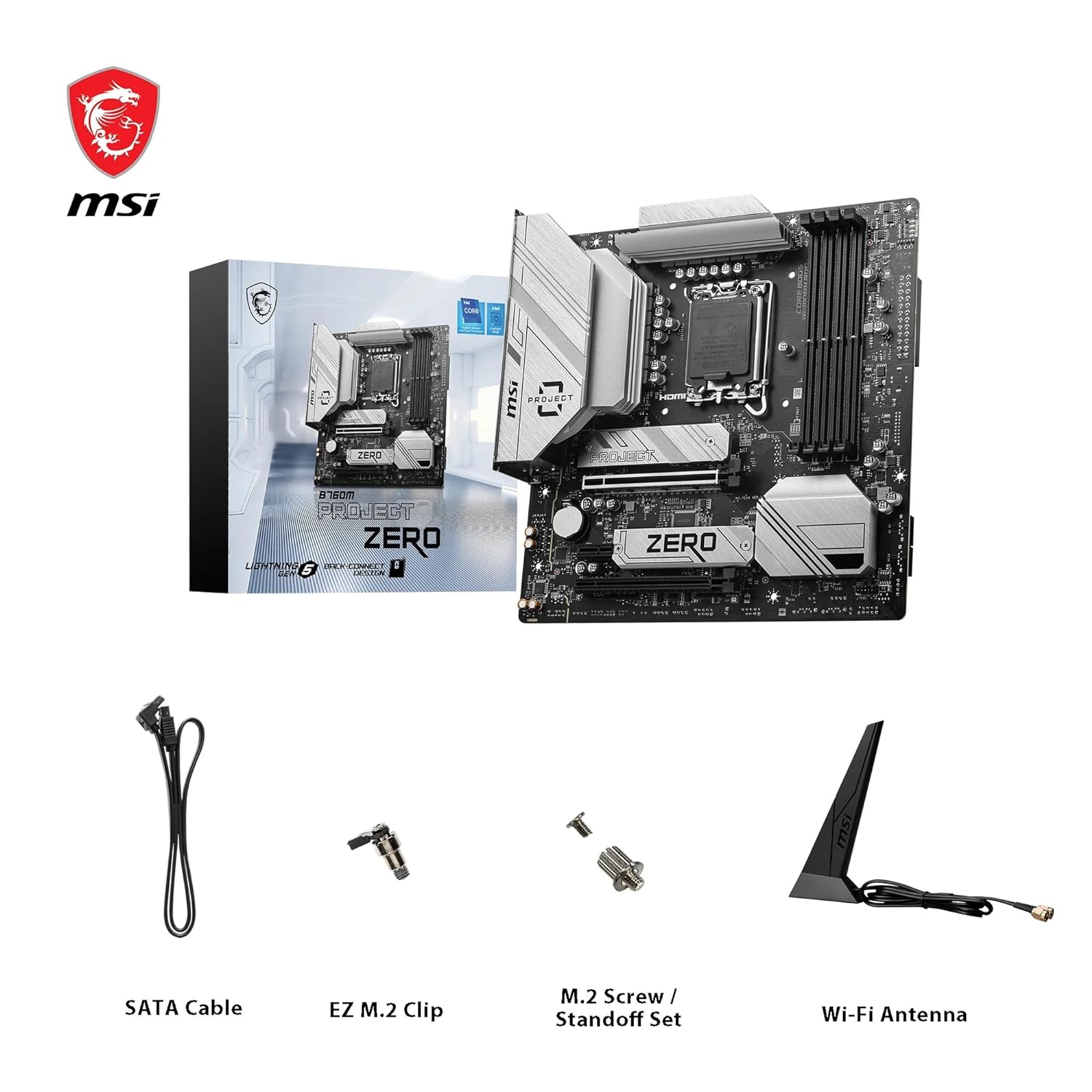

Package Contents	Motherboard Regulatory Notice Quick Installation Guide M.2 Screw / Standoff Sets SATS Cables Cable Sticker Wi-Fi Antenna EZ M.2 Clip Package
Dimensions	‎24.4 x 22 x 5 cm; 1 kg
