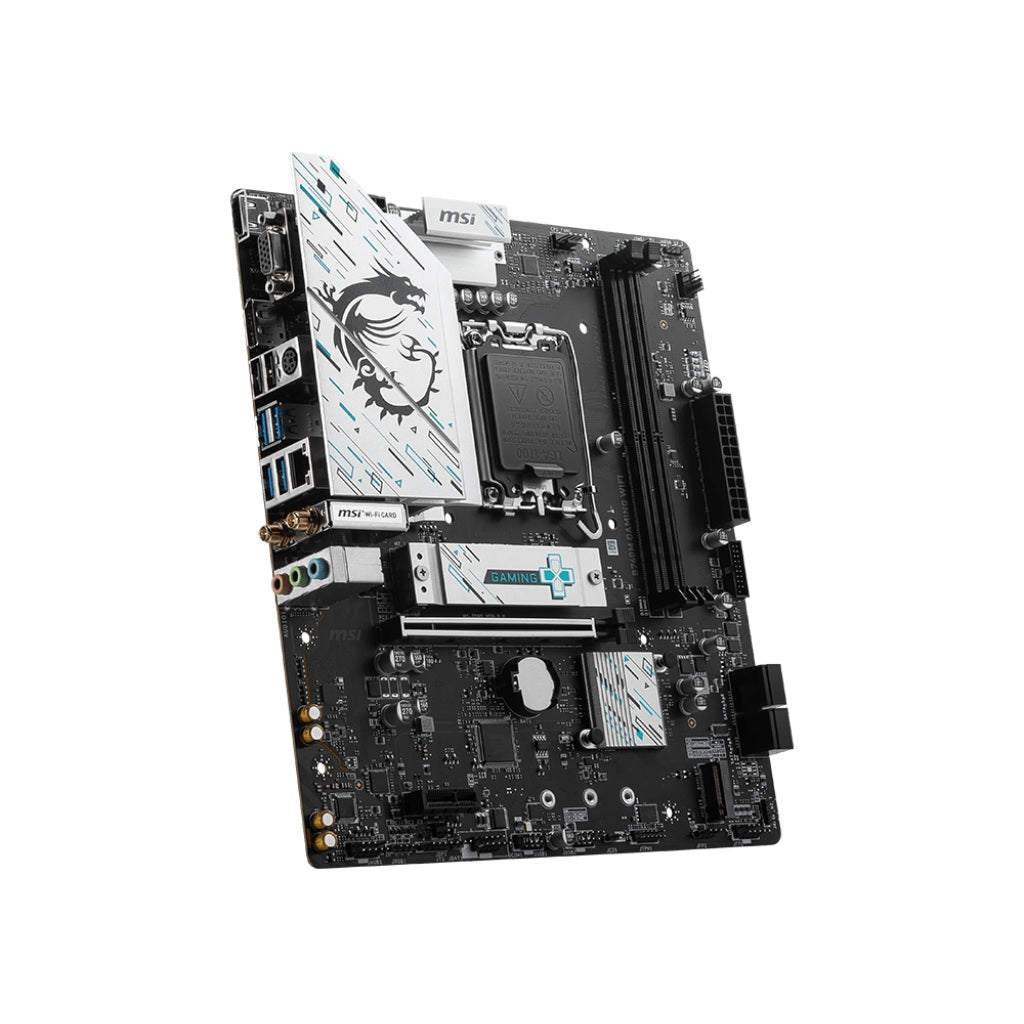

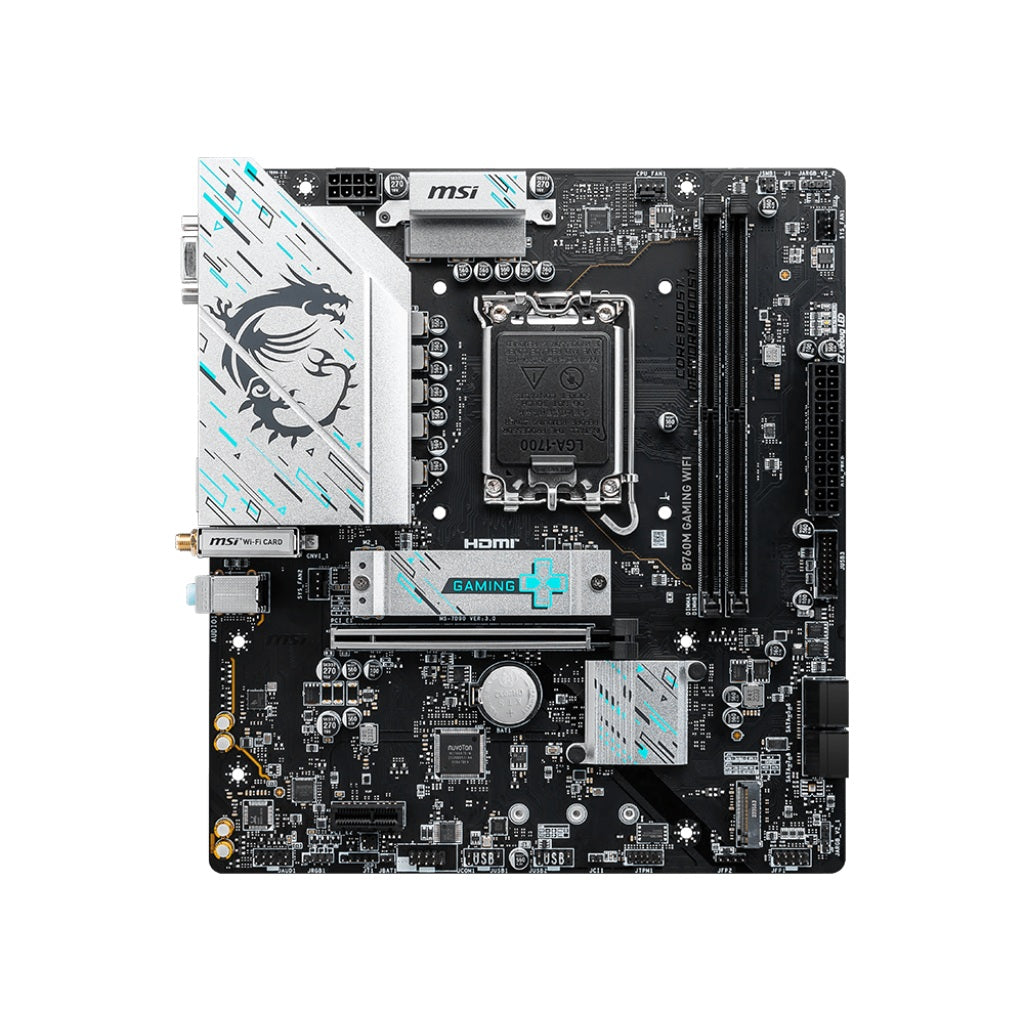

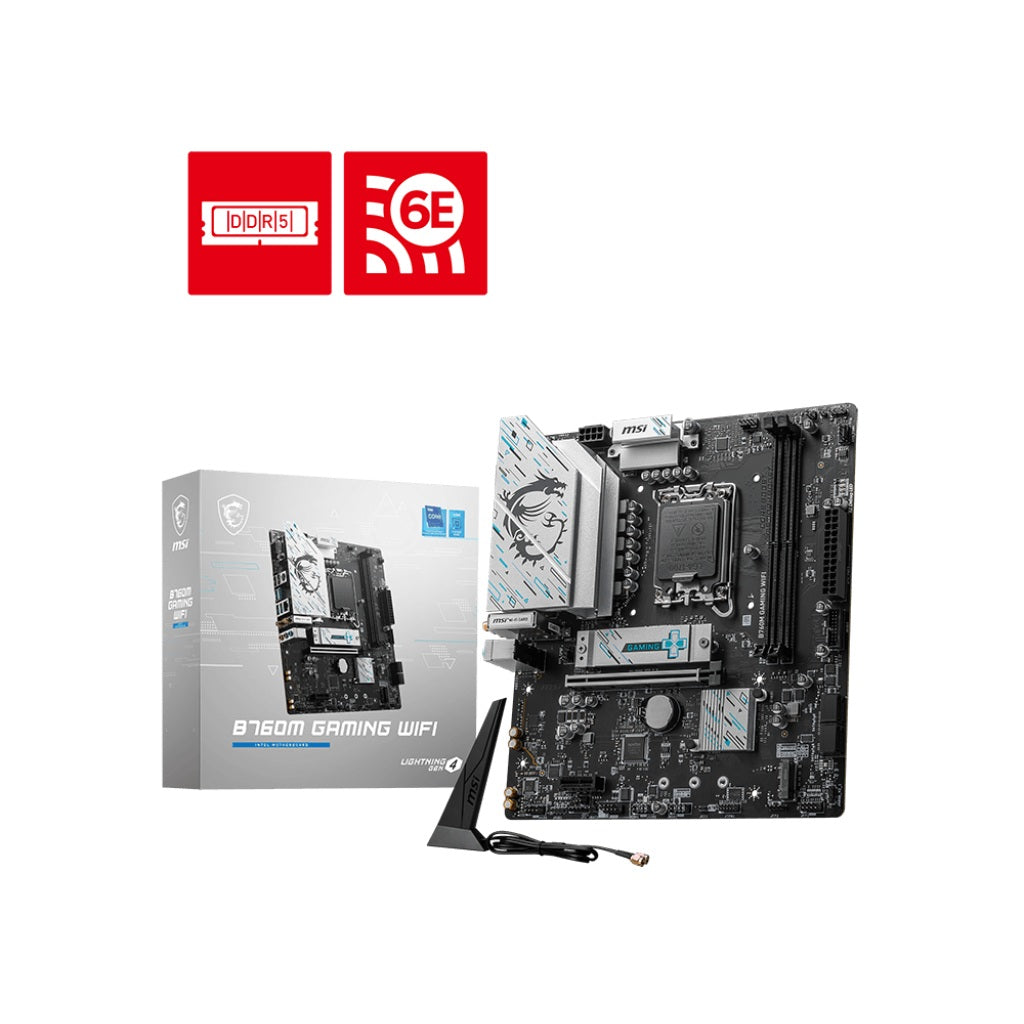

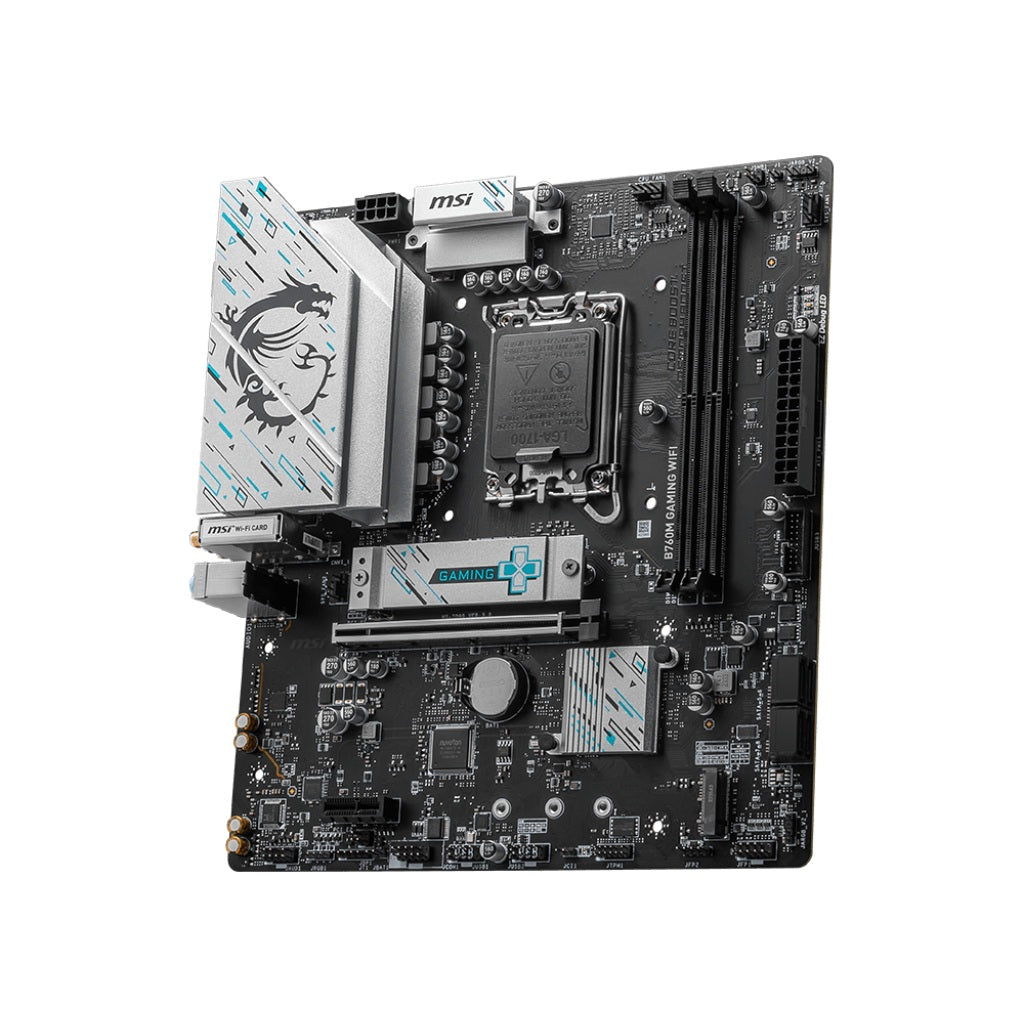

MSI B760M Gaming WIFI DDR5 LGA 1700 Socket Micro-ATX Gaming Motherboard

MSI B760M Gaming WIFI DDR5 LGA 1700 Socket Micro-ATX Gaming Motherboard

Brand: MSI
Rs. 12,360.00
42% off Rs. 12,360.00 Sale Sold out Rs. 20,999.00
Loading Offers...

Product Description:

    Support for Latest Processors: Compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors

    High-Speed Memory: Supports DDR5 memory with dual-channel architecture, capable of speeds up to 8000+ MHz (OC)

    Advanced Cooling Solutions: Features a VRM heatsink, M.2 Shield Frozr, and high-quality thermal pads to ensure stable performance and efficient heat dissipation

    Enhanced Connectivity: Equipped with Wi-Fi 6E for fast and reliable wireless connectivity, along with multiple USB ports and PCIe 4.0 slots for high-speed data transfer

    DIY-Friendly Design: Includes features like EZ Debug LED, PCIe Steel Armor, and an innovative EZ M.2 clip for easy installation and troubleshooting

    Model Name B760M GAMING WIFI
    Chipset INTEL B760
    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
    LGA 1700
    Memory 2x DDR5, Maximum Memory Capacity 128GB
    Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 8000+ MHz
    • 1DPC 2R Max speed up to 6400+ MHz

    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Onboard Graphics 1x HDMI™
    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    1x VGA
    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
    Slot 1x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
    PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
    Audio Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
    Storage 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    4x USB 5Gbps Type A (Rear)
    2x USB 5Gbps Type A (Front)
    LAN Realtek® RTL8125B 2.5Gbps LAN
    LED FEATURE 4x EZ Debug LED
    Internal IO 1x Power Connector(ATX_PWR)
    1x Power Connector(CPU_PWR)
    1x CPU Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth® 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    LED FEATURE 4x EZ Debug LED

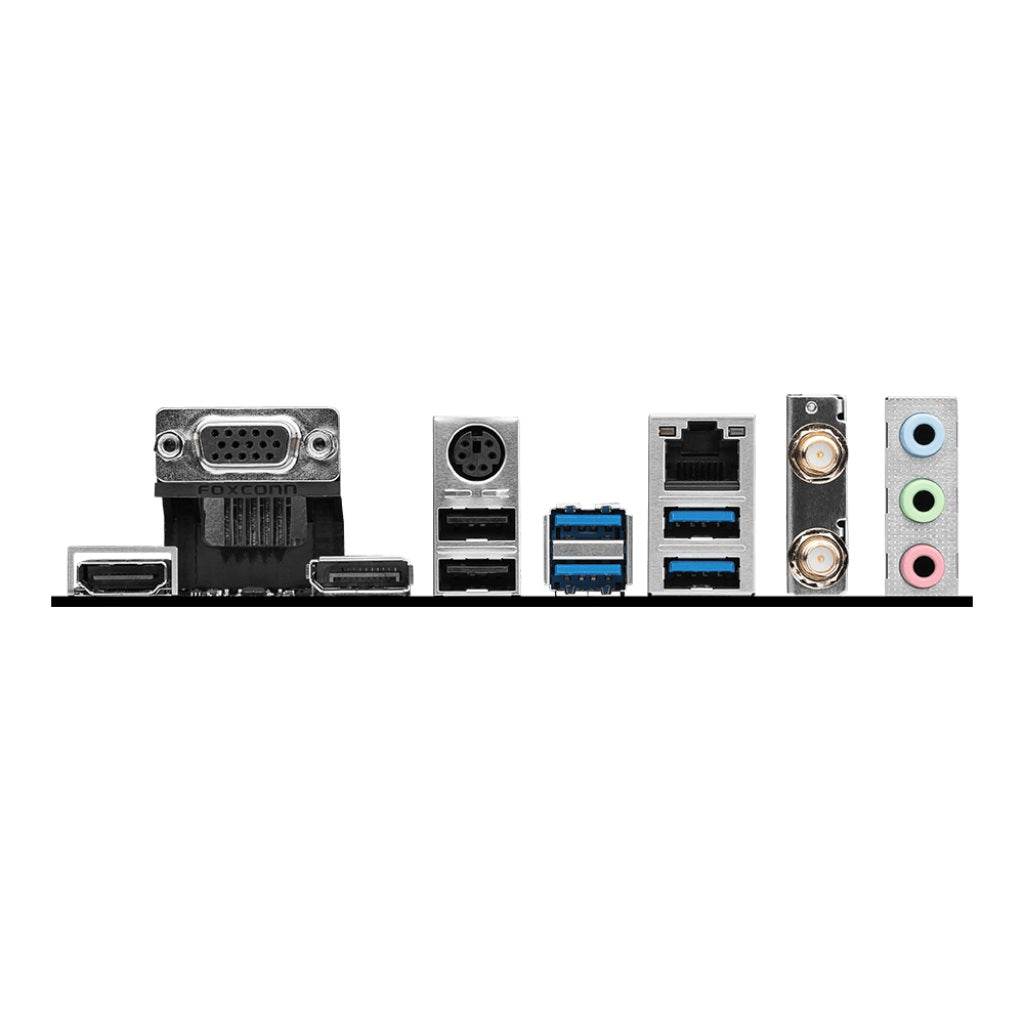

    BACK PANEL PORTS VGA
    Keyboard / Mouse
    2.5G LAN
    Wi-Fi / Bluetooth
    Audio Connectors
    HDMI™
    DisplayPort
    USB 2.0
    USB 3.2 Gen 1 5Gbps (Type-A)
    OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
    PCB Info mATX
    220mmx243.84mm
    Manufacturer Warranty 3 Years
