MSI B760M BOMBER WIFI LGA 1700 DDR4 Micro-ATX Motherboard

MSI B760M BOMBER WIFI LGA 1700 DDR4 Micro-ATX Motherboard

Brand: MSI
Rs. 10,199.00
77% off Rs. 10,199.00 Sale Sold out Rs. 42,599.00
Loading Offers...

Product Description:

Support for Latest Processors: Compatible with Intel 12th, 13th, and 14th Gen processors, including Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket

DDR4 Memory Support: Supports DDR4 memory with speeds up to 5333+ MHz (OC), providing reliable and efficient performance for various applications

PCIe 4.0: Equipped with PCIe 4.0 slots, offering high-speed data transfer and enhanced performance for graphics cards and other peripherals

Integrated Wi-Fi 6E and Bluetooth 5.3: Features built-in Wi-Fi 6E and Bluetooth 5.3 for fast and reliable wireless connectivity, ensuring seamless internet and peripheral connections

Enhanced Cooling Solutions: Includes extended heatsinks, M.2 Shield Frozr, and multiple fan headers to maintain optimal temperatures and ensure stable performance under heavy loads
Model B760M BOMBER WIFI
CPU Support Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset INTEL B760
Form Factor Micro ATX
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4800+ MHz
• 1DPC 2R Max speed up to 4600+ MHz

Supports Dual-Channel mode
Supports Dnon-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Storage 2x M.2 (Qty)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
WIRELESS LAN & BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
Supports Bluetooth® 5.4**, MLO, 4KQAM
ONBOARD GRAPHICS 1x HDMI
Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x D-Sub
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio

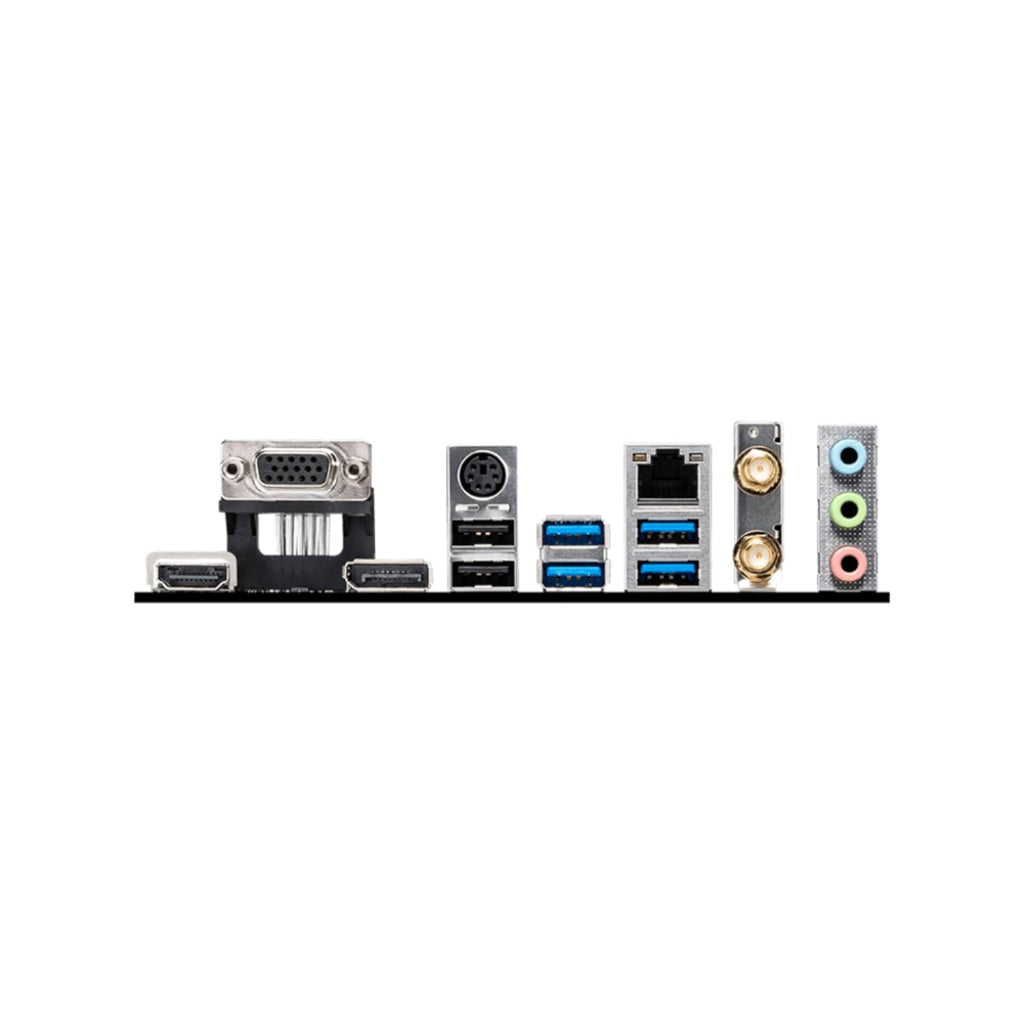

BackPanel Ports HDMI
VGA
DisplayPort
Keyboard / Mouse
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
Internal I/O Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
PCB INFO mATX
220mmx243.84mm
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
LED Feature 4x EZ Debug LED
Warranty 3 Year Manufacturer Warranty
Package Contents Motherboard
Regulatory Notice
Quick Installation Guide
2 x M.2 Screw / Standoff Sets
SATS Cables
Wi-Fi Antenna
I/O Shield
Dimensions ‎24.4 x 22 x 5 cm; 1 kg
