MSI B650M Bomber DDR5 WIFI AMD AM5 m-ATX Motherboard

Name: MSI B650M Bomber DDR5 WIFI AMD AM5 m-ATX Motherboard
Brand: MSI
Price: 10699.0 INR
Availability: InStock

Brand: MSI

Rs. 10,699.00

69% off Rs. 10,699.00 Sale Sold out ~~Rs. 33,999.00~~

Deliver To

Quantity

Loading Offers...

Product Description:

Processor Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

Memory: Supports DDR5 memory, with dual-channel DDR5 7800+ MHz (OC) for high-speed performance

Enhanced Power Design: Features a 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, and Core Boost technology for stable power delivery

Connectivity: Equipped with PCIe 4.0 slot, Lightning Gen4 M.2, and USB 3.2 Gen 2 for fast data transfer and connectivity

Cooling Solutions: Includes an extended heatsink, M.2 Shield Frozr, and high-quality thermal pads to ensure efficient heat dissipation and maintain performance under heavy loads.

Model Name	B650M Bomber WIFI
Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Multi-GPU	AMD MULTI-GPU Support
RAID	Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
LAN	Realtek® 8125BG 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
LED FEATURE	4x EZ Debug LED

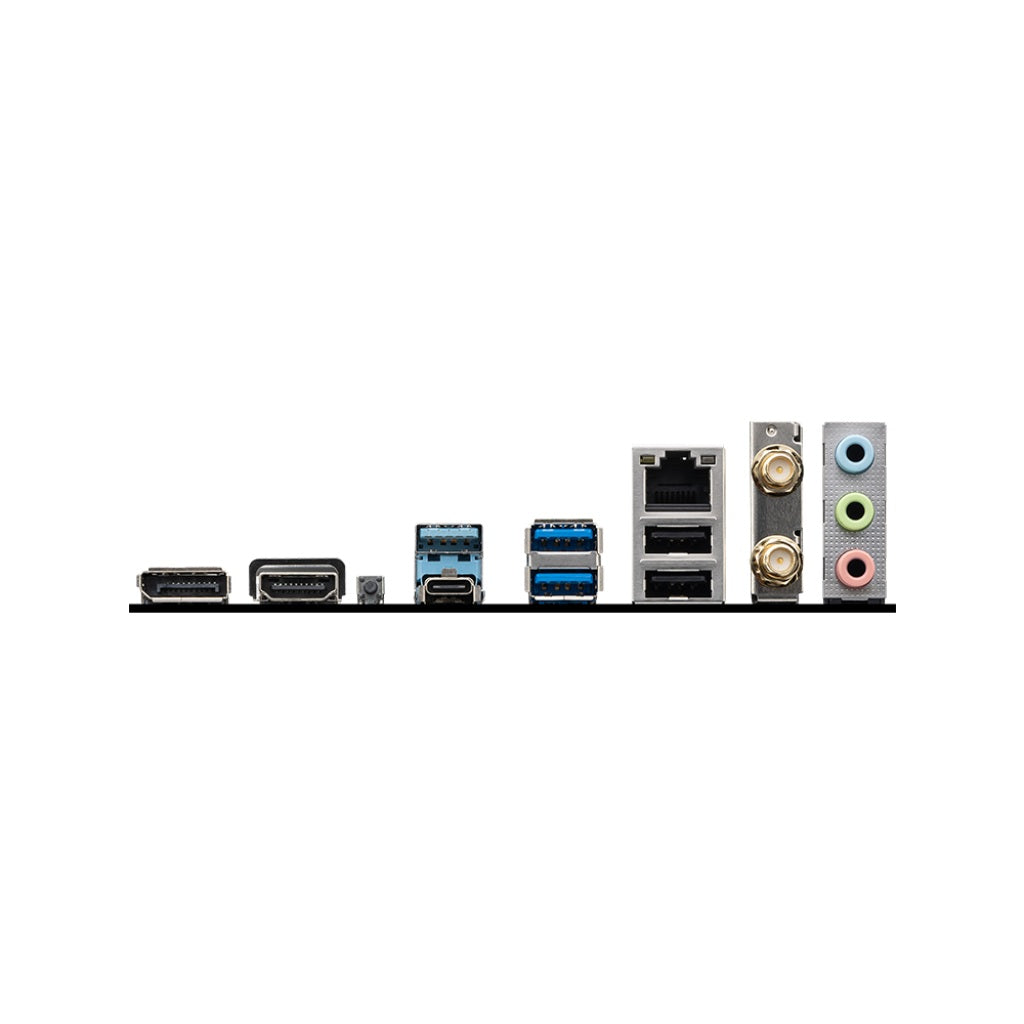

BACK PANEL PORTS	DisplayPort HDMI™ Flash BIOS Button USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 5Gbps Type-C USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 226mmx243.84mm
Manufacturer Warranty	3 Years
