Product Description:

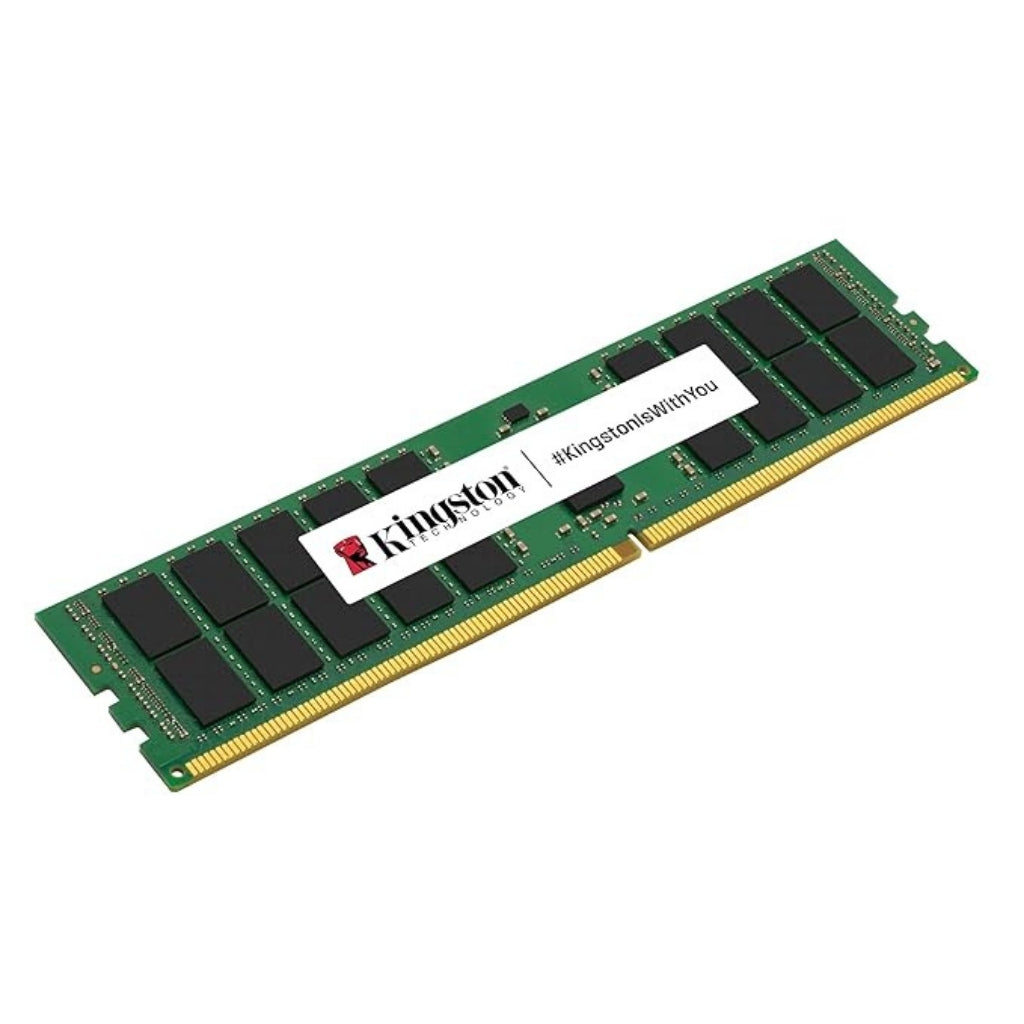

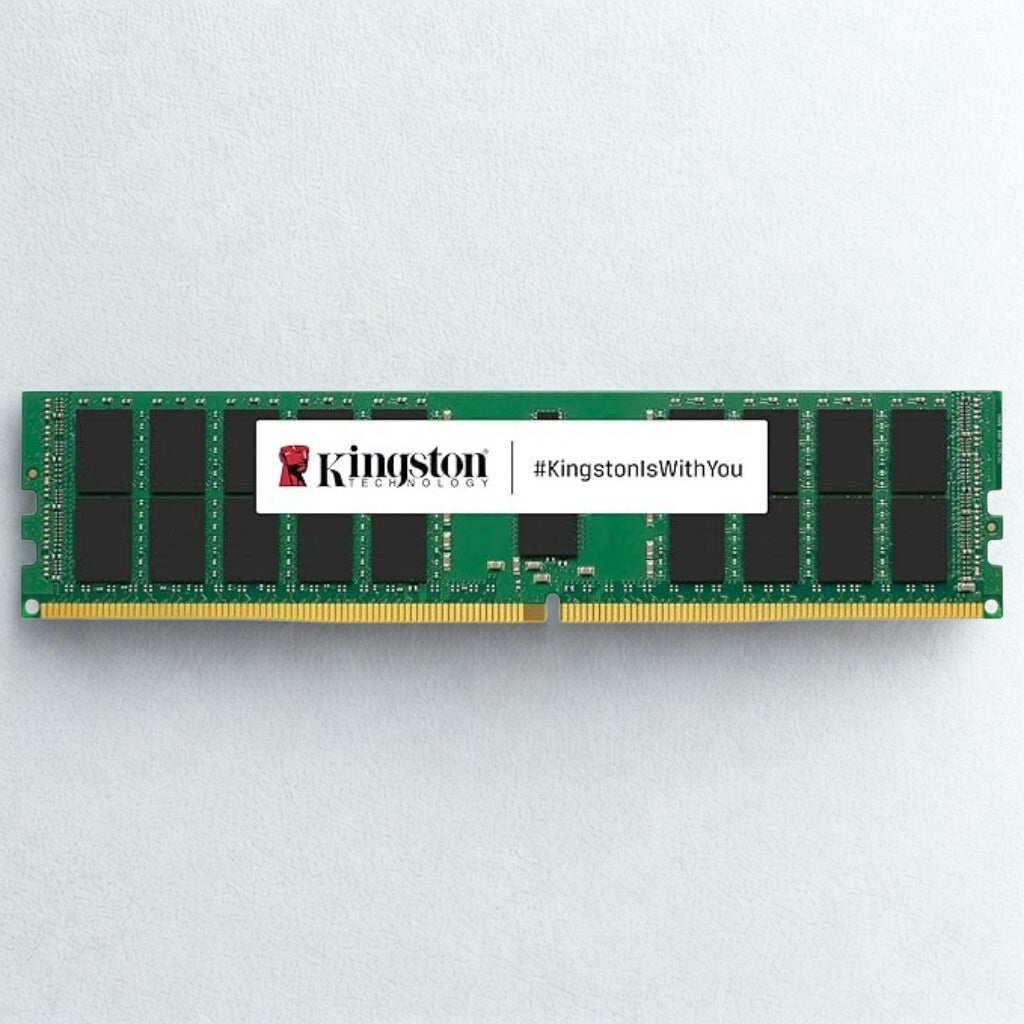

The Kingston KSM56E46BD8KM-32HA is a 32GB DDR5 ECC Registered DIMM designed for enterprise-grade servers and workstations. With a blazing-fast 5600MHz speed and JEDEC-standard CL46 latency, it ensures high bandwidth and low latency performance. Built using Hynix A-Die DRAM and featuring on-die ECC, x72-bit architecture, and advanced reliability features like I3C/I2C sideband access and post-package repair, this module is ideal for mission-critical environments. It is RoHS compliant, halogen-free, and operates within a wide thermal range, making it a robust and future-ready memory solution.
📦 32GB DDR5 ECC Registered DIMM for High-Performance Servers: Engineered for enterprise-grade systems requiring speed, stability, and reliability.
⚡ Operates at 5600MHz with JEDEC-Standard CL46 Latency: Delivers ultra-fast data throughput and low-latency performance for demanding workloads.
🧠 Built with Hynix A-Die DRAM and On-Die ECC: Ensures robust data integrity and consistent performance under heavy server loads.
🔌 Supports I3C/I2C Sideband Access and Post-Package Repair: Enables intelligent system diagnostics and extended module durability.
Product Specifications:
| Specification | Details |
| Model Part Number | KSM56E46BD8KM-32HA |
| Capacity | 32GB |
| Organization | 4G x 72-bit |
| DRAM Type | DDR5 SDRAM |
| Speed | PC5-5600 |
| CAS Latency (CL) | CL46 |
| JEDEC Timing | 46-45-45 |
| Form Factor | 288-Pin DIMM |
| Rank | 2Rx8 |
| DRAM Manufacturer | Hynix (A-Die) |
| DRAM Components | Twenty 2G x 8-bit FBGA components |
| Voltage | VDD = 1.1V, VDDQ = 1.1V, VPP = 1.8V, VDDSPD = 1.8–2.0V |
| Row Cycle Time (tRCmin) | 48 ns |
| Refresh Command Time (tRFCmin) | 295 ns |
| Row Active Time (tRASmin) | 32 ns |
| Row Precharge Time (tRPmin) | 16 ns |
| ECC Support | Yes (On-Die ECC and x72 ECC with 2 independent I/O subchannels) |
| Banks | 32 internal banks |
| Repair Features | Hard/Soft Post Package Repair |
| Sideband Access | I3C/I2C |
| PCB Height | 1.23” (31.25 mm) |
| Contact Material | Gold fingers |
| Operating Temperature | 0°C to +95°C |
| Storage Temperature | -55°C to +100°C |
| Compliance | RoHS Compliant, Halogen-Free |
| UL Rating | 94 V - 0 |
| Country of Origin | China |
| Warranty | Lifetime Warranty |
