Kingston Premier 64GB DDR5 RAM 4800MHz 288 Pin ECC Server Workstation NAS Memory
Kingston Premier 64GB DDR5 RAM 4800MHz 288 Pin ECC Server Workstation NAS Memory
Couldn't load pickup availability
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
🧠 64GB DDR5 ECC Registered DIMM for enterprise-grade servers
🚀 High-speed 4800MT/s performance with JEDEC CL40 latency
🧬 Built with 40x 4Gx4-bit Micron D-die FBGA components
🛡️ On-die ECC and x80-bit architecture for advanced error correction
🔗 Supports I3C/I2C sideband access and post-package repair
🌱 RoHS compliant, halogen-free, and thermally rated up to 95°C

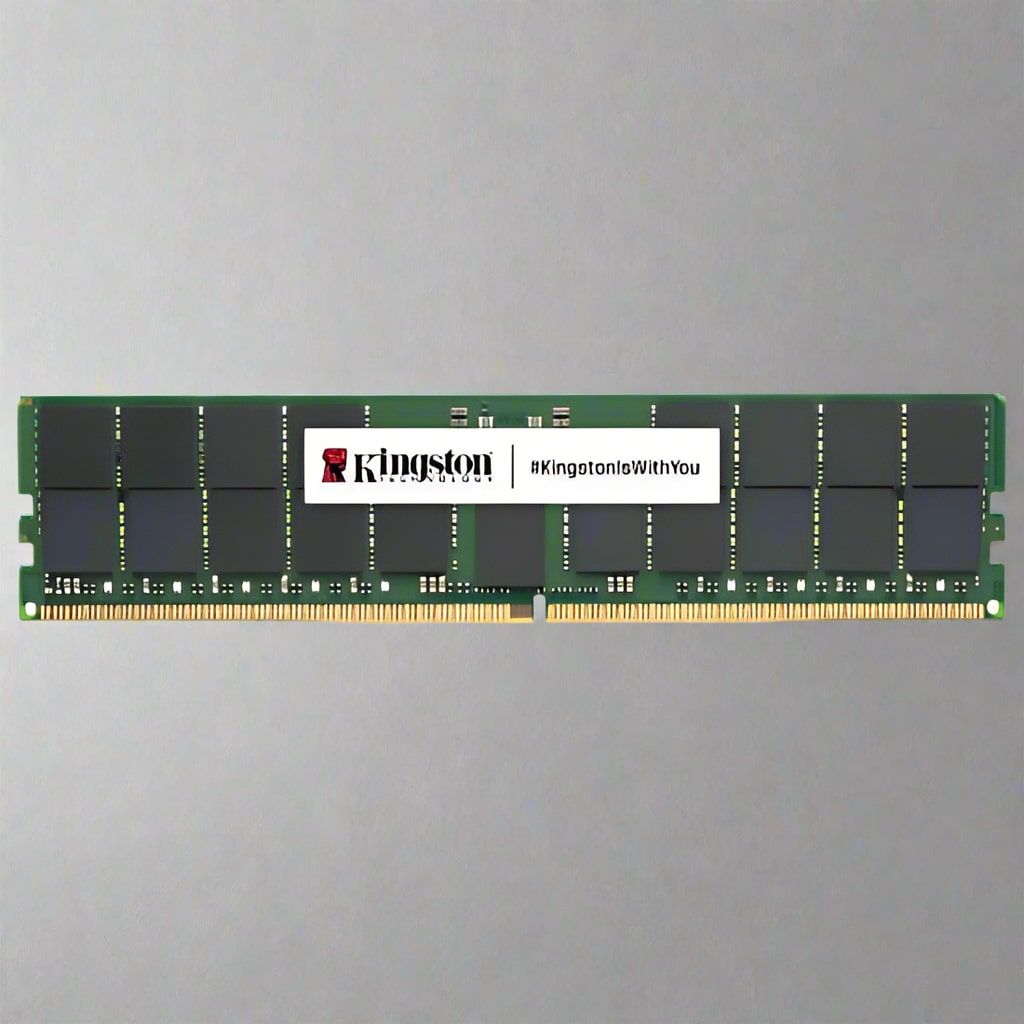

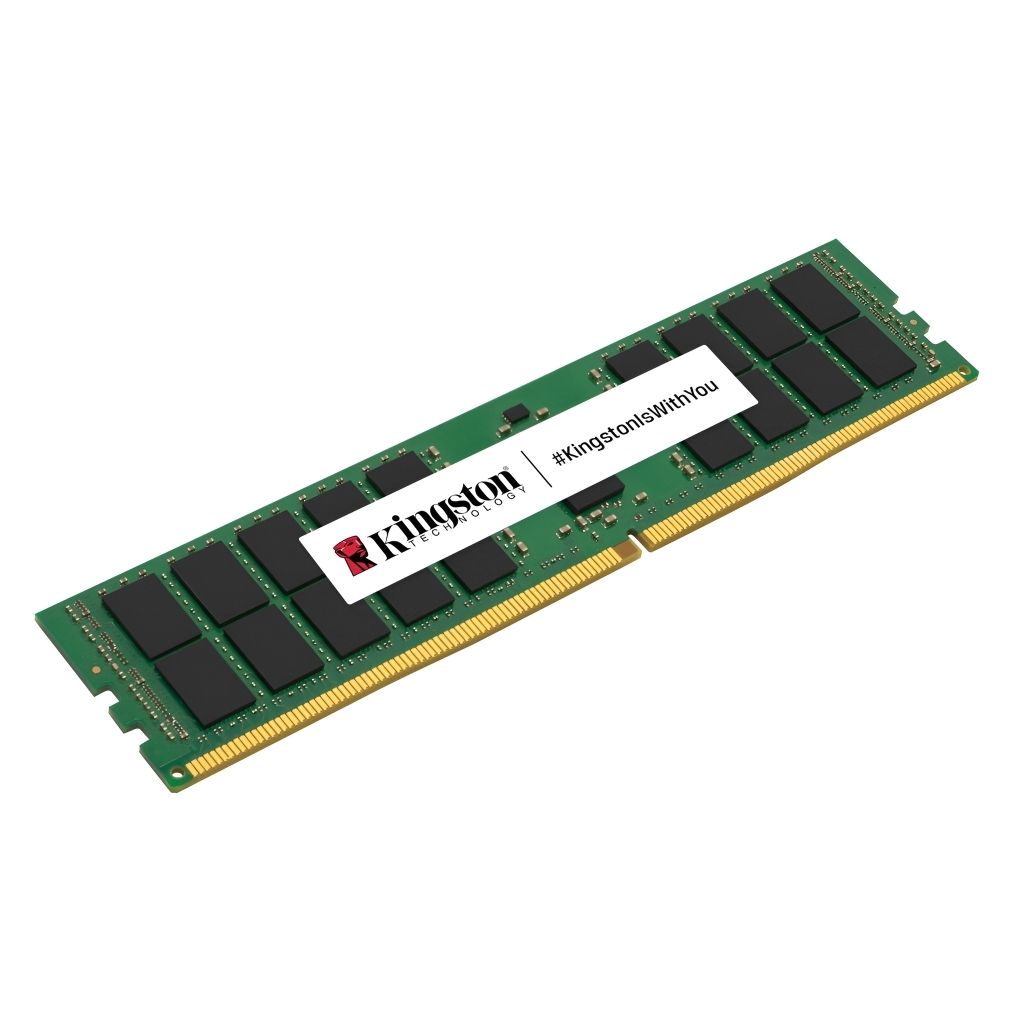

The Kingston KSM48R40BD4-64MD is a high-performance 64GB DDR5 ECC Registered DIMM designed for enterprise servers and data centers. Built with Micron D-die DRAM, this module delivers exceptional reliability, speed, and efficiency. With JEDEC-standard 4800MT/s speed and on-die ECC, it ensures data integrity and system stability for mission-critical workloads.
Product Specification:
| Specification | Details |
| Model | KSM48R40BD4-64MD |
| Capacity | 64GB |
| Memory Type | DDR5 SDRAM |
| Speed | 4800MT/s (PC5-38400) |
| CAS Latency | CL40 (40-39-39) |
| Form Factor | 288-pin Registered DIMM |
| ECC | Yes (x80-bit, On-Die ECC) |
| Buffered/Registered | Registered (RDIMM) |
| Rank | 2Rx4 |
| Voltage | 1.1V (VDD, VDDQ), 1.8V (VPP) |
| DRAM | Micron D-die |
| Operating Temperature | 0°C to 95°C |
| Storage Temperature | -55°C to 100°C |
| Compliance | JEDEC, RoHS, Halogen-Free |
| PCB Height | 1.23” (31.25mm) |
| Country Of Origin | Taiwan |
| Warranty | Lifetime |
