Product Description:
🧠 32GB DDR5 ECC Registered DIMM for enterprise-grade servers
🚀 JEDEC-standard 5600MT/s speed with CL46 latency (46-45-45)
🧬 Built with 20x 4Gx4-bit Micron D-die FBGA components
🛡️ On-die ECC with x80-bit architecture for advanced error correction
🔗 Supports I3C/I2C sideband access and post-package repair
🌱 RoHS compliant, halogen-free, and thermally rated up to 95°C

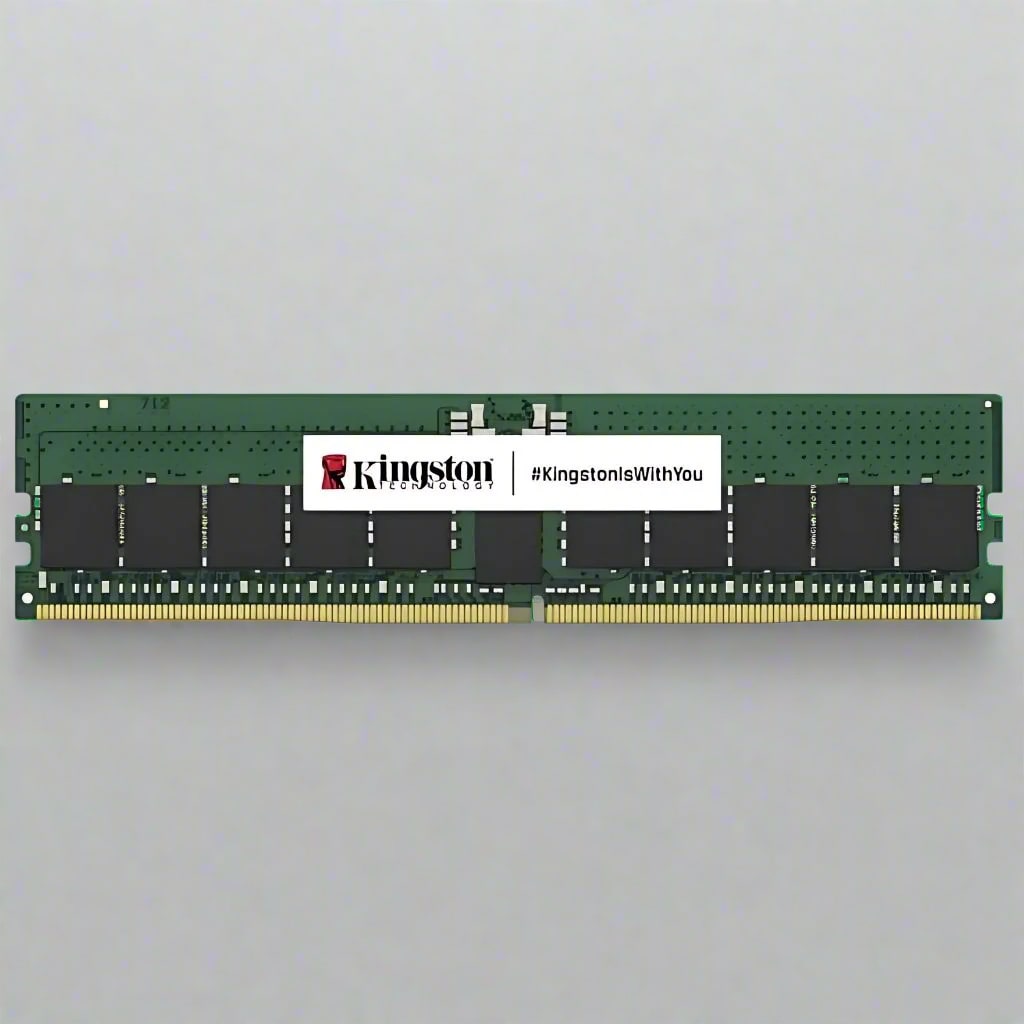

The Kingston KSM56R46BS4PMI-32MDI is a high-performance 32GB DDR5 ECC Registered DIMM designed for enterprise servers and mission-critical systems. Built with Micron D-die DRAM, this module delivers blazing-fast 5600MT/s speed, JEDEC-standard CL46 latency, and robust ECC for data integrity. Ideal for data centers and high-load environments.
Product Specification:
| Specification | Details |
| Model | KSM56R46BS4PMI-32MDI |
| Capacity | 32GB |
| Memory Type | DDR5 SDRAM |
| Speed | 5600MT/s (PC5-44800) |
| CAS Latency | CL46 (46-45-45) |
| Form Factor | 288-pin Registered DIMM |
| ECC | Yes (x80-bit, On-Die ECC) |
| Buffered/Registered | Registered (RDIMM) |
| Rank | 1Rx4 |
| Voltage | 1.1V (VDD, VDDQ), 1.8V (VPP) |
| DRAM | Micron D-die |
| RCD | IDT/Renesas |
| PMIC | MPS |
| SPD Hub | Montage |
| Operating Temperature | 0°C to 95°C |
| Storage Temperature | -55°C to 100°C |
| Compliance | JEDEC, RoHS, Halogen-Free |
| PCB Height | 1.23” (31.25mm) |
| HSN Code | 8473.30.99 |
| Country of Origin | China |
| Warranty | Lifetime |
