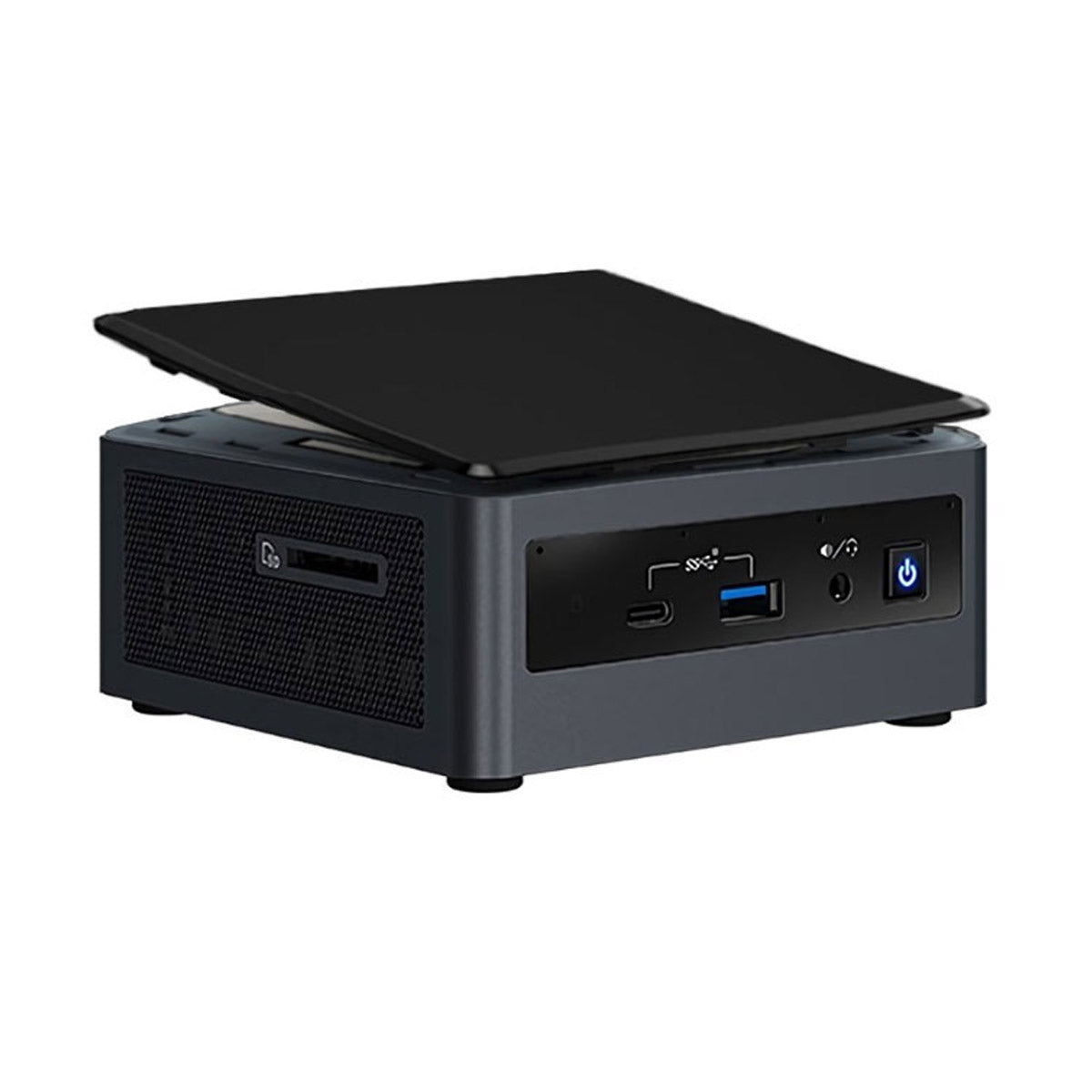

Intel NUC Kit NUC10i5FNH with Core i5-10210U Processor Integrated Graphics Thunderbolt 3 and USB-C
Intel NUC Kit NUC10i5FNH with Core i5-10210U Processor Integrated Graphics Thunderbolt 3 and USB-C
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
- Leveraging Intel's most advanced 14nm process technology and optimizations, the NUC10i5FNH is equipped with 4 core 10th generation Intel Core i5 processor with base clock frequency of 1.6 GHz and can be pushed up to 4.20 GHz. The processor delivers a big jump in performance compared to all the previous gen.
- The Intel NUC10i5FNH NUC kit gives great visual immersion with integrated graphics processor, supporting 3 displays with HDMI and USB-C DisplayPort.
- Equipped with Thunderbolt 3 which supports up to 40 Gbps of data transfer, three USB 3.1 ports, two additional USB ports via 1x4 internal headers. It support triple displays with an HDMI 2.0b port and DisplayPort 1.2 via USB C so images or work can show across three screens without losing fidelity
- The system is designed to support Windows 10 64-bit and expandable memory of up to 64GB DDR4 RAM, making perfect for everyday computing tasks, delivering the performance they need. This NUC is designed for users who value fast responsiveness and comes with the cutting-edge processor architecture.
- Intel NUC is a mini PC with the power of a desktop, packing features for entertainment, gaming, and productivity in a 4x4 form factor. Enjoy immersive media experience and responsive interaction while consuming a small amount of power relative to a full-sized PC.
~section~
Massive power, Perfectly balanced
Create or consume limitless content with the power of the Intel NUC 10 Performance Kit. Small enough to fit in the palm of your hand, it features the performance of a 10th generation Intel Core i5 processor, Intel UHD graphics, and is ready to be customised with your choice of OS, memory and storage drive.
Power and Performance with Near Zero Footprint
With the performance and features of a desktop PC in a device that fits in the palm of your hand, the NUC can be positioned almost anywhere from behind a display to tucked discretely in an entertainment centre. With improved cooling, fan noise is minimal which means a quieter experience no matter where the Intel NUC is located.

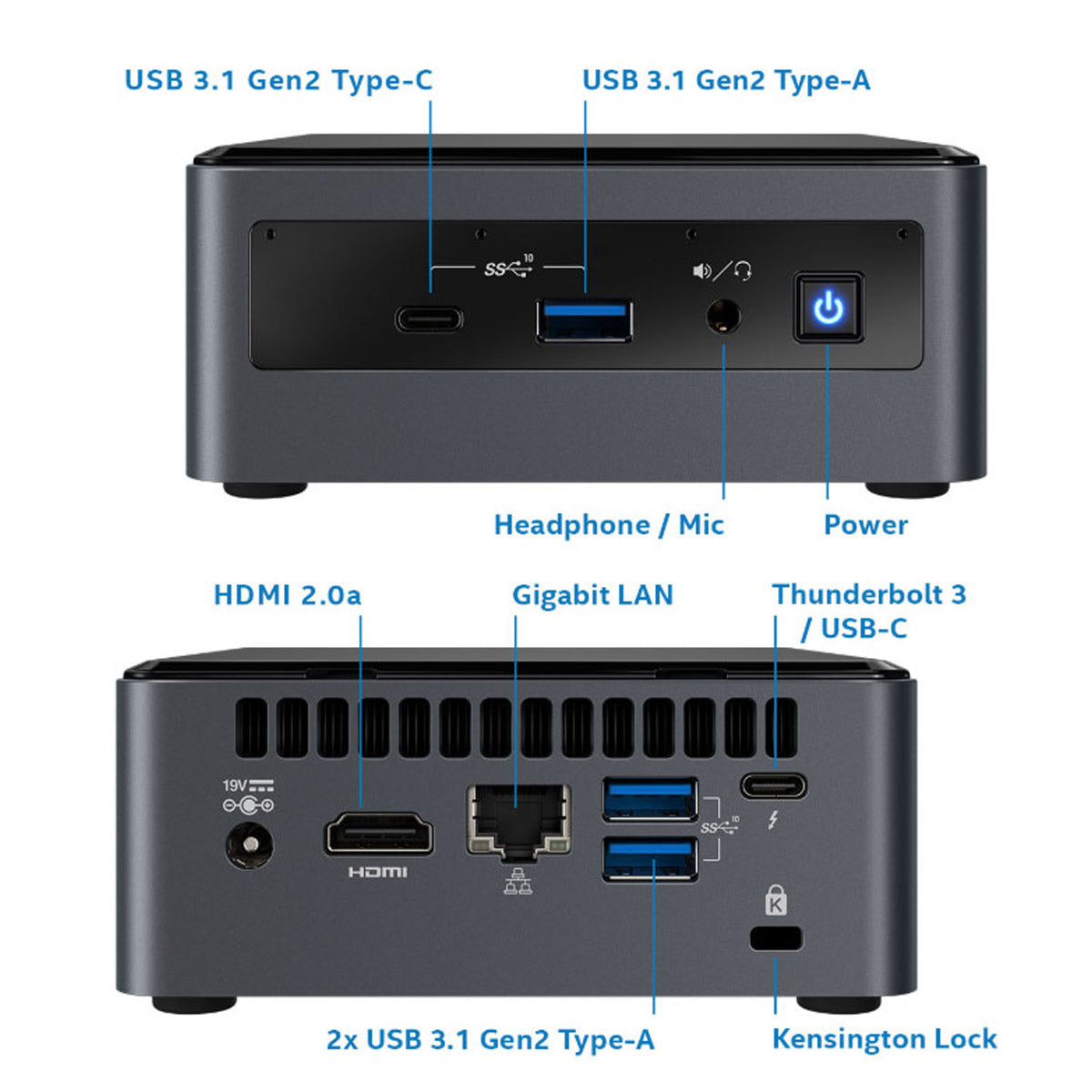

Flexible Connectivity
The NUC 10 Performance has the ports to connect every last peripheral and keep your data moving at top speed and with triple display support, you can multitask across multiple screens.
Everything You Need
Record and mix music, add animation effects to your video edits, or over-binge your favorite shows in stunning ultra high-def 4K.
Maximise Productivity
Included Thunderbolt 3 and four USB 3.1 ports to bolster productivity for moving big media files around and connecting to all your peripherals.
Power Your Home Theater
With a small total footprint and 10th Generation Core i5 processor, the Intel NUC 10 Performance Kit is the ideal multimedia driver for your lounge room.
Stay Productive
The Intel NUC 10 Performance enables you to complete your work tasks or drive your creative ambition with support for up to three 4K displays and support for Intel Optane memory.
Enjoy Casual Games
Compact enough to mount behind a TV/display or store in a TV unit, the Intel NUC 10 Performance is the perfect driver for understated casual gaming experiences.
~section~
Model | NUC10i5FNH |
Socket | Soldered-down BGA |
Board Form Factor | UCFF (4" x 4") |
Processor | Intel Core i5-10210U Processor (6M Cache, up to 4.20 GHz) |
Cores | 4 |
Threads | 8 |
Base Frequency | 1.60 GHz |
Boost Frequency | 4.20 GHz |
TDP | 25 W |
Supported Operating System | Windows 10, 64-bit |
Memory & Storage | |
Max Memory Support | 64GB |
Memory Type | DDR4-2666 1.2V SO-DIMM |
Max Memory Channels | 2 |
Processor Graphics | |
Grpahics | Integrated Graphics |
Graphics Output | HDMI 2.0b USB-C (DP1.2) |
Displays Supported | 3 |
Expansion Options | |
PCI Express Revision | Gen3 |
PCI Express Configuration | M.2 slot with PCIe X4 lanes |
Removable Memory Card Slot | SDXC with UHS-II support |
I/O Specifications | |
USB Ports | 7 |
USB Configuration | 2x front (Type-A and Type-C) and 3x rear USB 3.1 Gen 2 (2x Type-A, Type-C) 2x USB 2.0 via internal headers |
SATA Ports | 2 x SATA 6.0 Gb/s Ports |
RAID Configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
Audio | 7.1 Digital Surround 3.5mm front Headphone/Microphone Jack |
Integrated LAN | Intel Ethernet Connection I219-V |
Integrated Wireless | Intel Wi-Fi 6 AX201 |
Thunderbolt 3 Port | 1 |
Miscellaneous | |
Hardware Management Features | Noiseless Fan Zero Footprint |
Dimensions | 117 x 112 x 51mm |
Warranty | 3 Years of Brand Warranty |
