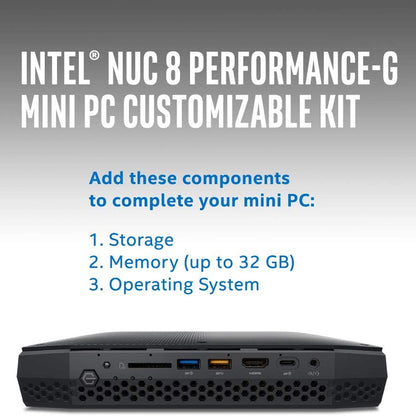

Intel Gaming NUC Kit NUC8i7HNK with Core i7 Processor 4GB Radeon GPU Thunderbolt 3 and 4K
Intel Gaming NUC Kit NUC8i7HNK with Core i7 Processor 4GB Radeon GPU Thunderbolt 3 and 4K
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
- Leveraging Intel's most advanced 14nm process technology and optimizations, the NUC8i7HNK is equipped with Quad-Core 8th Gen Intel Core i7 processor with base clock frequency of 2.70 GHz and can be pushed up to 4.50 GHz. The processor delivers a big jump in performance compared to the previous 7th gen.
- The Intel NUC8i7HNKÂ NUC kit gives great visual immersion with Radeon RX Vega M GL graphics. The 4GB GPU with dedicated high bandwidth memory delivers fantastic AAA gaming performance. Seven USB ports for connectivity to game controllers and additional peripherals, along with Mini DisplayPort and HDMI 2.0a for modern displays.
- Equipped with Two Thunderbolt 3 which supports up to 40 GBps of data transfer, four USB 3.1 ports, two additional USB ports via 1x4 internal headers. It support triple displays all in 4K Ultra HD with an HDMI 2.0a port and DisplayPort 1.2 via USB C so images or work can show across three screens without losing fidelity
- The system is designed to support Windows 10 64-bit and Windows Server 2016 with an expandable memory of up to 32GB DDR4 RAM and two M.2 slots to add SSDs, there is plenty of space for data and intensive workloads.

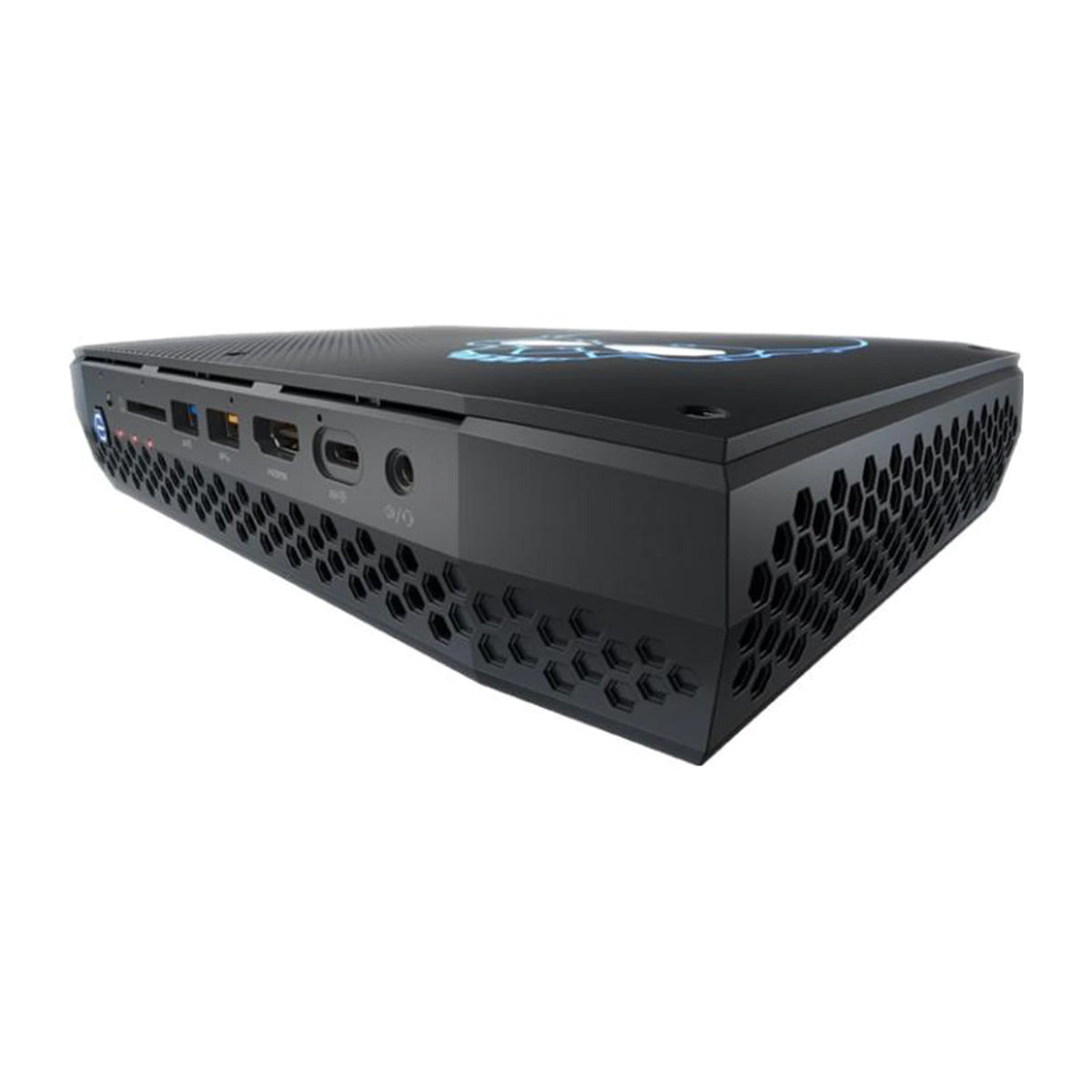

- At just 1.2 litres, the system packs all the performance of a desktop tower in a device that can sit in the palm of your hand. A redesigned motherboard and chassis give the Intel NUC8i7HNK kit all the performance you want in a tiny package.
~section~
Small Form Factor.Big Performance
Built with an 8th Gen Intel Core i7 processor and Radeon RX Vega M graphics with 4GB of dedicated high-bandwidth memory, you can wring every GHz of performance you need for 4K video editing, 3D rendering, shading and complex calculations.

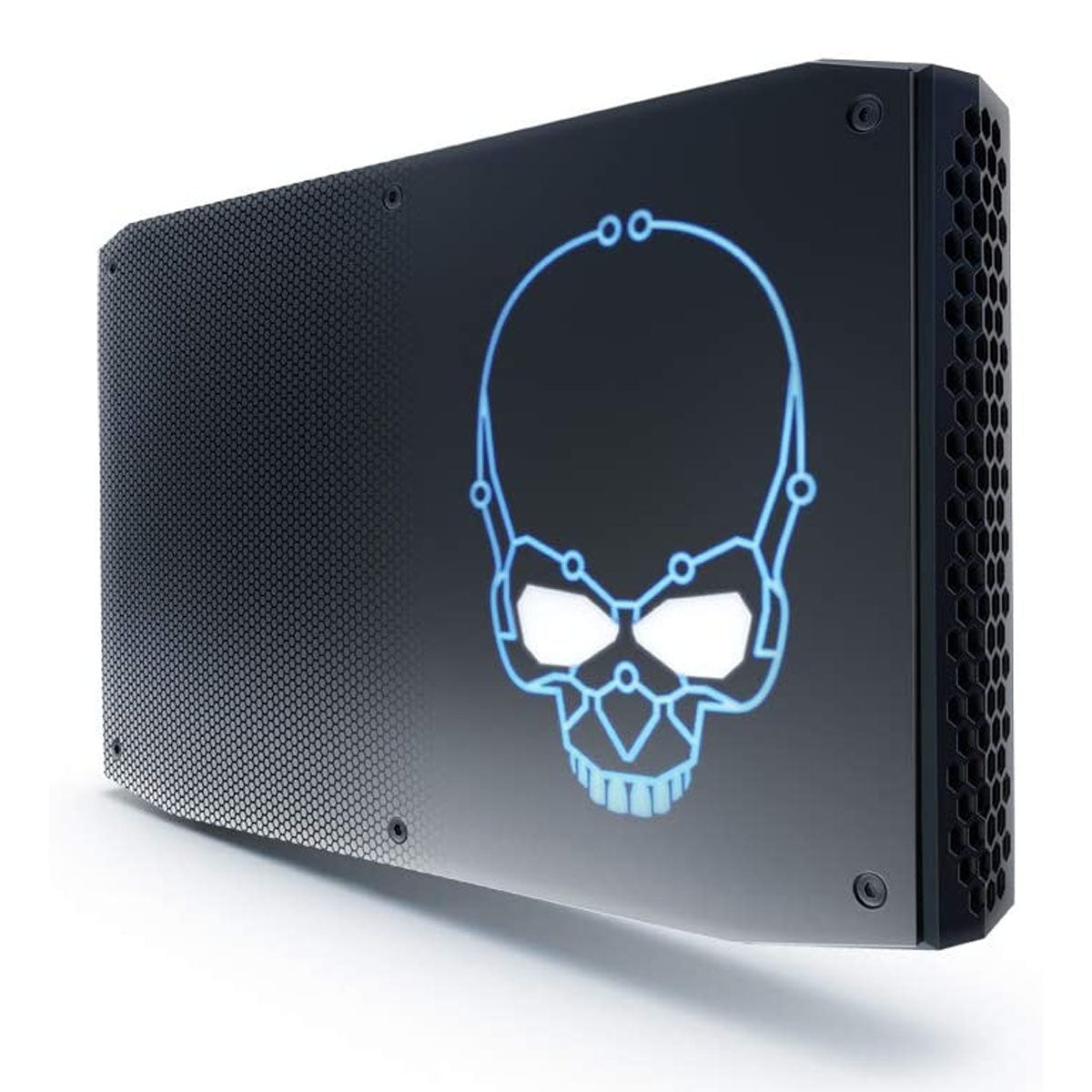

Customise your NUC uniquely in your way with RGB control. In-built RGB lighting is bound to the power button, skull and eyes independently - allowing you to mix and match colours to suit your setup and mood.
Game On
• Packs an 8th Generation Intel Core i7 Processor, optimised to give every GHz of performance.
• A Radeon RX Vega M graphics with 4GB of dedicated high bandwidth memory delivers fantastic AAA gaming performance.
• Seven USB ports for connectivity to game controllers and additional peripherals, along with Mini DisplayPort and HDMI 2.0a for modern displays.
Create

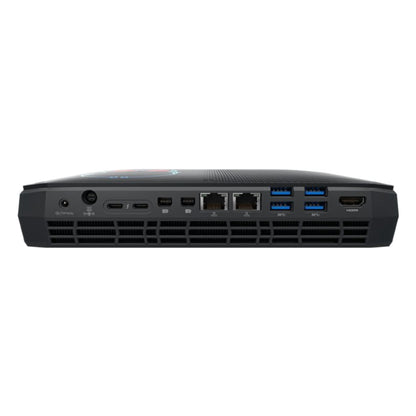

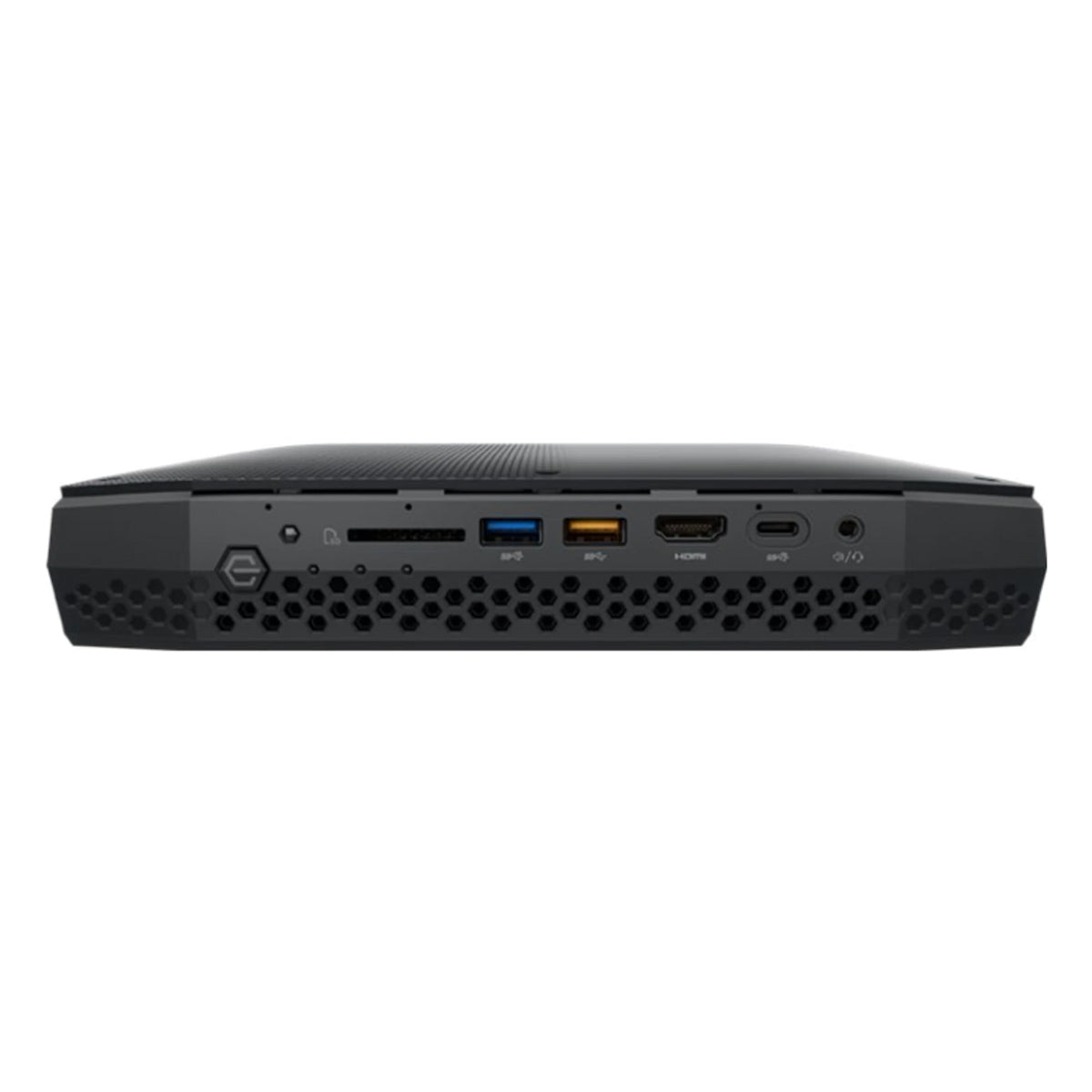

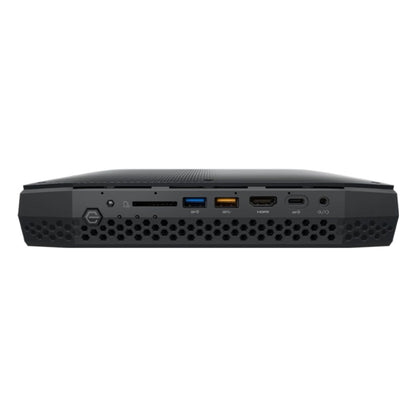

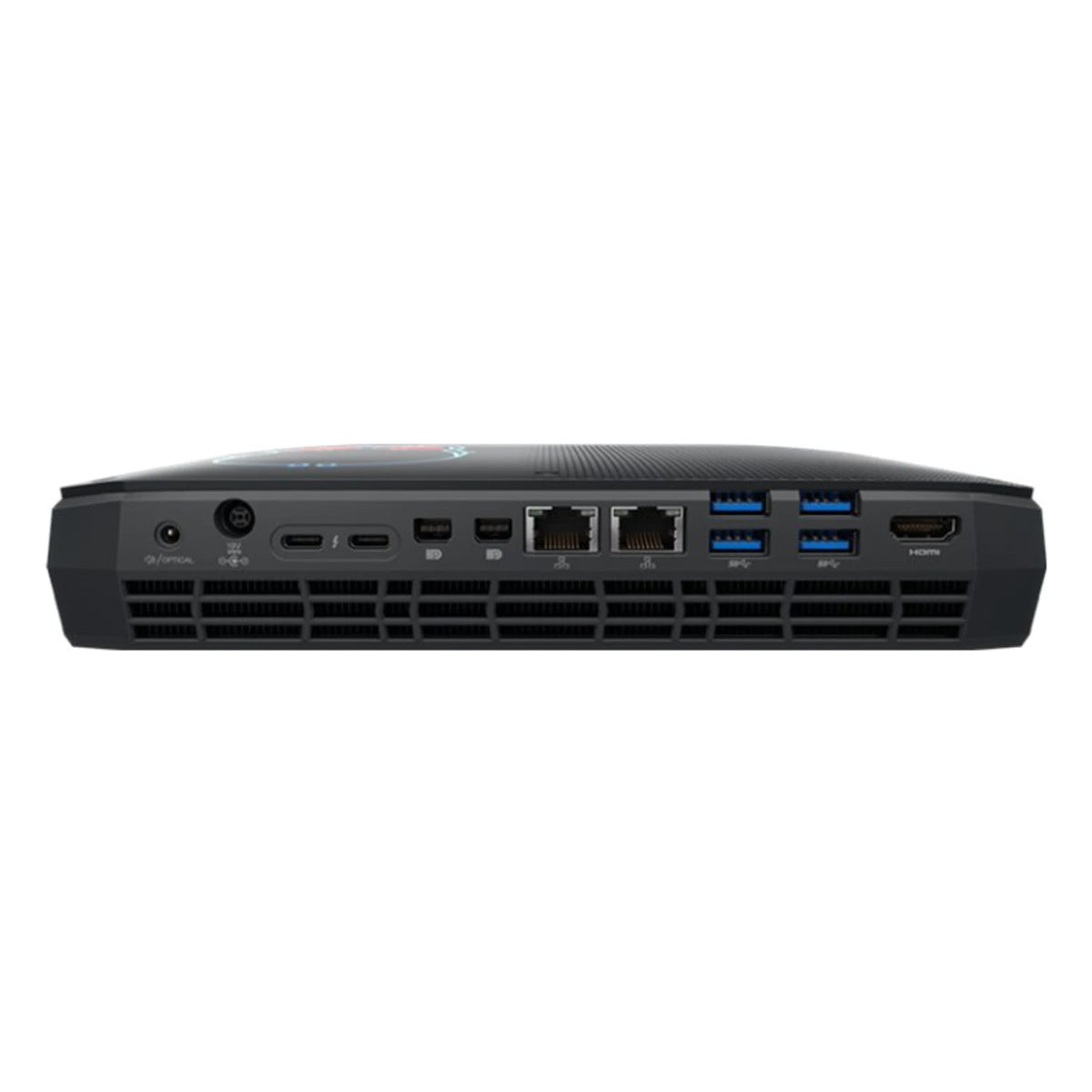

• Connect to everything with two HDMI ports, two Mini DisplayPort ports, two Thunderbolt 3 ports, six USB ports, and one USB-C port.
• With a tiny footprint and powerful performance, the Intel NUC lets you easily work from anywhere and take it with you.
• With room for up to 32 GB of DDR4 RAM and two M.2 slots to add SSDs, there is plenty of space for data and intensive workloads.
Portable
• One of the smallest and most powerful NUC packages available today means that you can set your kit out of sight in your office or living space for a clean look.
• At just 1.2 litres, the system packs all the performance of a desktop tower in a device that can sit in the palm of your hand.
• A redesigned motherboard and chassis give the kit all the performance you want in a tiny package.
~section~
Model | NUC8i7HNK |
Socket | Soldered-down BGA |
Board Form Factor | UCFF (5.5" x 8") |
Processor | Intel Core i7-8705G Processor |
Cores | 4 |
Threads | 8 |
Base Frequency | 3.10 GHz |
Boost Frequency | 4.10 GHz |
Cache | 8 MB |
TDP | 65 W |
Supported Operating System | Windows 10, 64-bit Windows Server 2016 |
Memory & Storage | |
Max Memory | 32 GB |
Memory Type | DDR4-2400 1.2V SO-DIMM |
Max Memory Channels | 2 |
Processor Graphics | |
Grpahics | Intel HD Graphics 630 |
Integerated Graphics | Yes |
Graphics Output | 2x Mini-DP 1.2 2x Thunderbolt 3 F+R HDMI 2.0a |
Displays Supported | 6 |
Discrete Graphics | Radeon RX Vega M GL graphics |
Expansion Options | |
PCI Express Revision | Gen3 |
PCI Express Configuration | Dual M.2 slots with PCIe X4 lanes |
Removable Memory Card Slot | SDXC with UHS-I support |
M.2 Card Slot (Wireless) | 2230 |
I/O Specifications | |
USB Ports | 13 |
USB Configuration | USB 3 in Front 2x USB 3.1 Gen 2 (Type A and C) Right Side 4x USB 3 2x Thunderbolt3 (USB3.1g2) 2x USB 2.0 and 2x USB 3 via internal headers |
SATA Ports | 2 x SATA 6.0 Gb/s Ports |
RAID Configuration | 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
Audio | 7.1 Digital Surround 3.5mm front Headphone/Microphone Jack TOSLINK |
Integrated LAN | Intel Ethernet Connection i219-LM and i210-AT |
Integrated Wireless | Intel Wireless-AC 8265 Bluetooth 4.2 |
Thunderbolt 3 Port | 2 |
Miscellaneous | |
Hardware Management Features | Fan Speed Control Voltage and Temperature Sensing ACPI-compliant Power Management Control |
Dimensions | 221 x 142 x 39mm |
Warranty | 3 Years of Brand Warranty |
