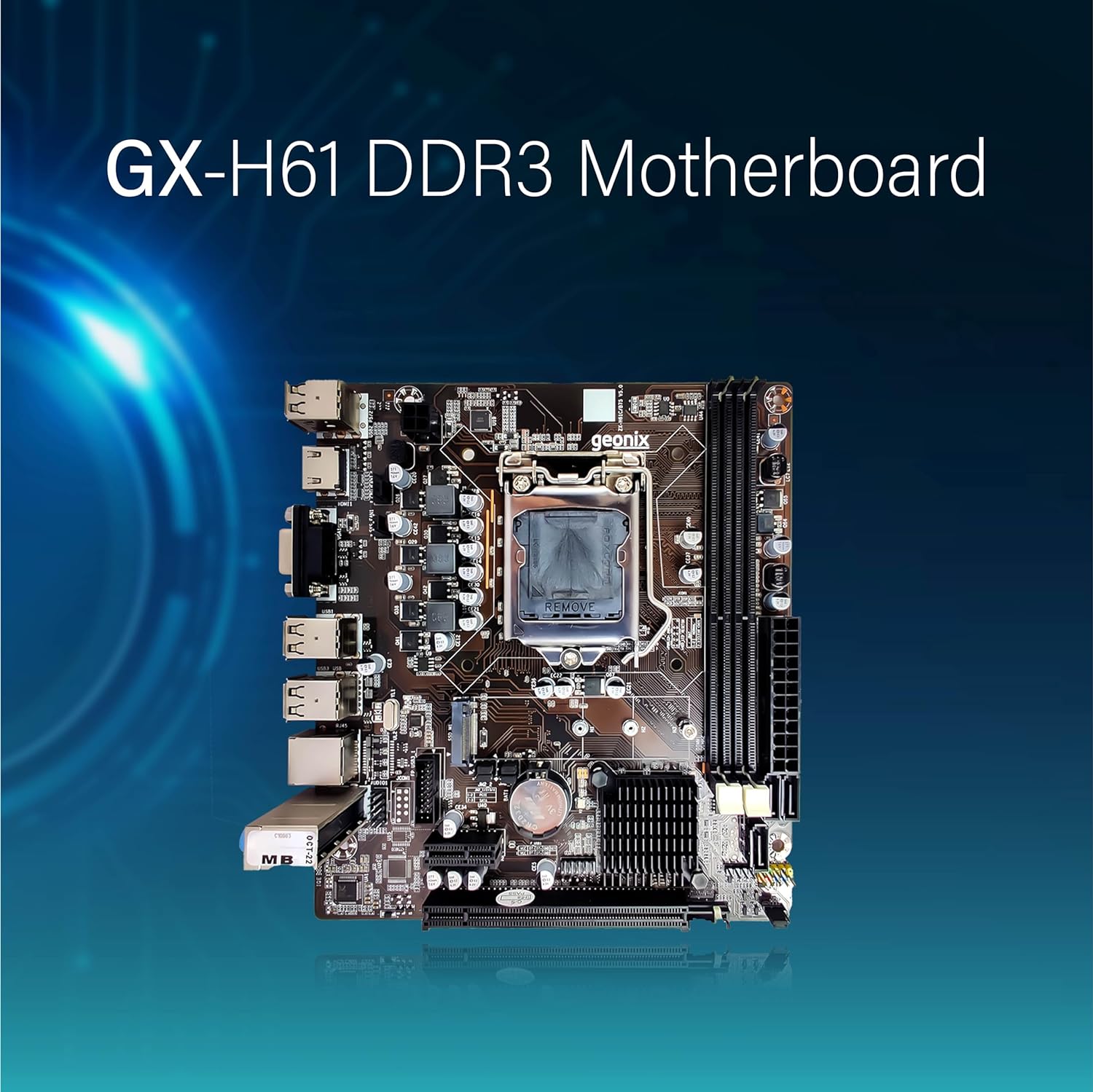

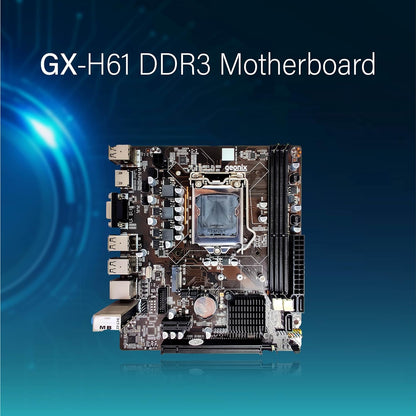

GEONIX Intel H61 Chipset LGA1155 Socket DDR3 Motherboard

GEONIX Intel H61 Chipset LGA1155 Socket DDR3 Motherboard

Brand: GEONIX
Rs. 1,399.00
77% off Rs. 1,399.00 Sale Sold out Rs. 5,999.00
Loading Offers...

Product Description:

    Enhanced Performance: Upgrade your PC with our H61 DDR3 motherboard, designed to deliver improved performance and reliability for your computing needs.

    DDR3 Memory Support- 1066/1333/1600 Mhz: This motherboard supports DDR3 memory modules, offering faster data transfer rates and improved overall system responsiveness.

    Wide Compatibility: With a Socket LGA 1155 | support 2nd and 3rd gen CPU | this motherboard is compatible with a range of Intel processors, providing flexibility for your CPU choices.

    Integrated Graphics Support: Enjoy smooth graphics performance with the integrated Intel HD Graphics, providing vibrant visuals and supporting HD video playback.

    Onboard Audio and LAN: Experience high-quality sound with the onboard audio chipset, and connect to your network seamlessly with the integrated LAN controller.

    Reliable Design: Built with quality components and strict manufacturing standards, this motherboard offers stability and durability for long-term usage.

    Easy Setup and Configuration: The H61 DDR3 motherboard features a user-friendly BIOS interface, making it easy to configure settings and optimize performance.

    Model GX-H61 D3
    CPU Support LGA 1155 socket
    Processor Support Intel 2nd and 3rd Generation Processor i3/i5/i7
    Memory Slot 2x240-pin DDR3 SDRAM slots
    Memory support Up to 16GB
    Memory Clock Speed ‎1600 MHz
    GPU Support 710 and 730 cards
    Memory Bandwidth DDR3 1066/1333/1600MHz
    Form Factor Mi
    I/O Interface
    • 1 x VGA Port
    • 1 x HDMI port
    • 6 x USB 2.0, Compatible with USB 1.1
    • 1 x 3-in-1 Audio port (Line in/Line out/Mic in)
    • 1 x RJ45 port
    • 1 x M.2 Slot

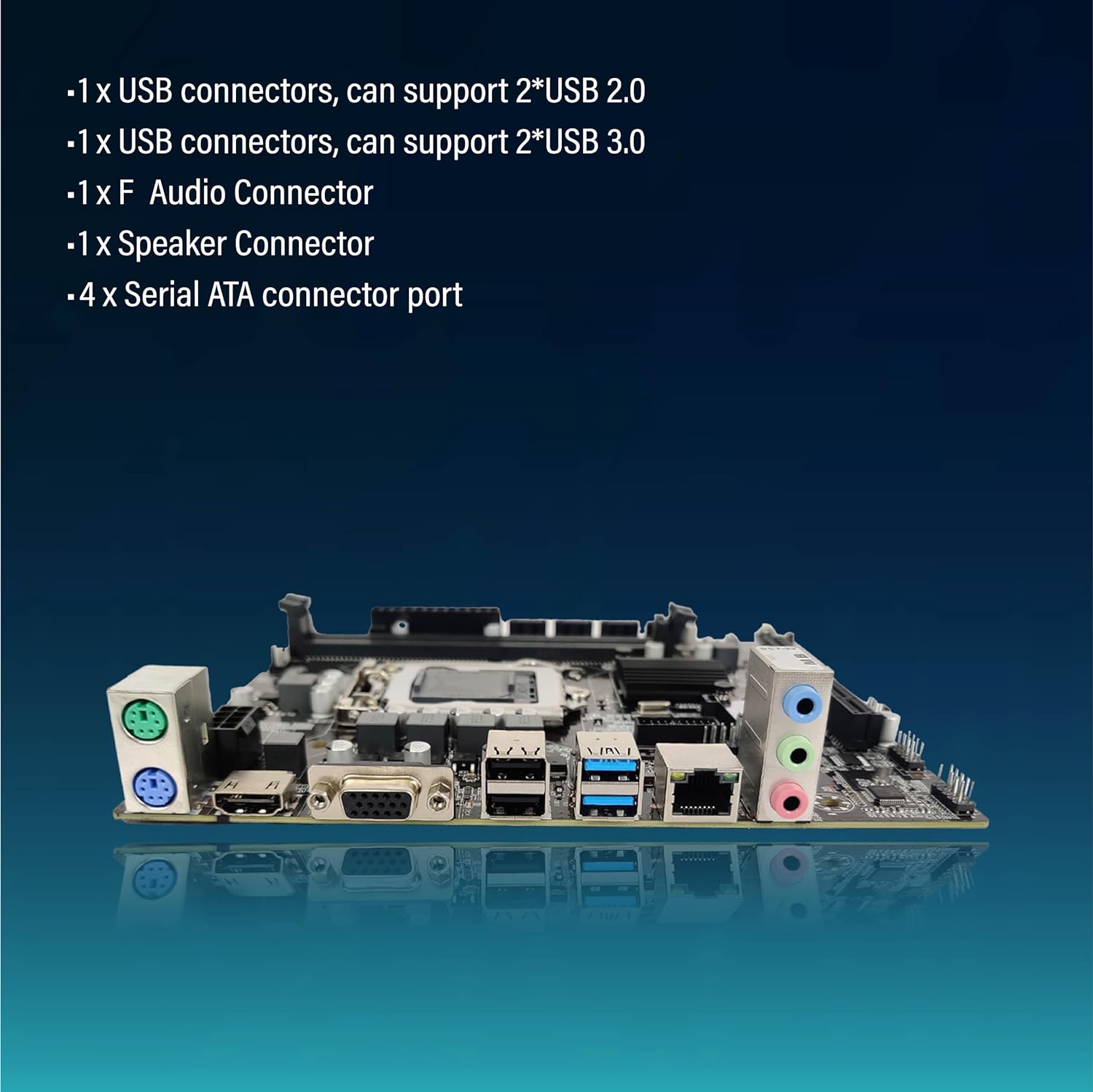

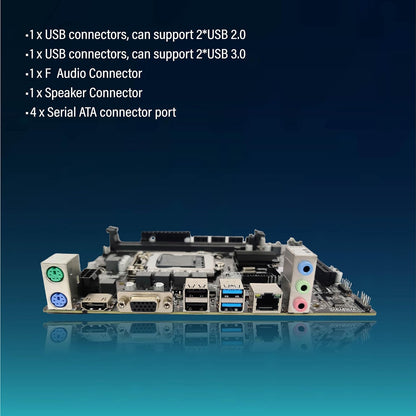

    Onboard Interface
    • 1 x 24-pin ATX power connector
    • 1 x 4 pin ATX 12V power connector
    • 1 x USB connectors, can support 2*USB 2.0
    • 1 x F _Audio connector
    • 1 x F _PANEL connector
    • 1 x SPEACKER connector
    • 2 x FAN connector
    • 4 x Serial ATA connectors
    Integrated Sound
    • With 6-channel HD audio codec onboard
    • Provide front audio interface; provides front stereo mic interface.
    LAN With 10/100Mbps LAN onboard
    Expansion slot 1 x PCI Express x 16 slot
    Dimensions ‎47 x 47 x 3.5 cm; 300 g
    Box Contents Motherboard
    Quick Start Guide
    Warranty 2 Years
    View full details

    Customer Reviews

    Based on 15 reviews
    73%
    (11)
    27%
    (4)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    PRAKASH KAPATA (Ahmedabad, Gujarat)
    All the best

    Thanks very much.

    A
    Arpit Saraswat (Mumbai, Maharashtra)
    Excellent low budget choice for older Intel procs

    The motherboard worked great out of the box.

    I'm using it for running a homelab server that's hosting storage and automation. For some reason the CPU fan is not able to control the speed as per load despite having a 4 pin connector. Everything else is great. The on-paper warranty is 3 years which is great.

    I hope it lasts a long time.

    W
    Wanny

    The motherboard is a perfect fix for my firewall project, until I understand that the LAN port is 100Mbps (not 1000Mbps).Both the description and answer from the seller on LAN is incorrect.

    s
    shree

    A Great quality product by Geonix all my computer works top and awesome speed after replacing with old motherboard thanks. It's aBeyond 5 star product

    P
    Pratap Singh Dawar

    Good product PC is very faster powerful motherboard
