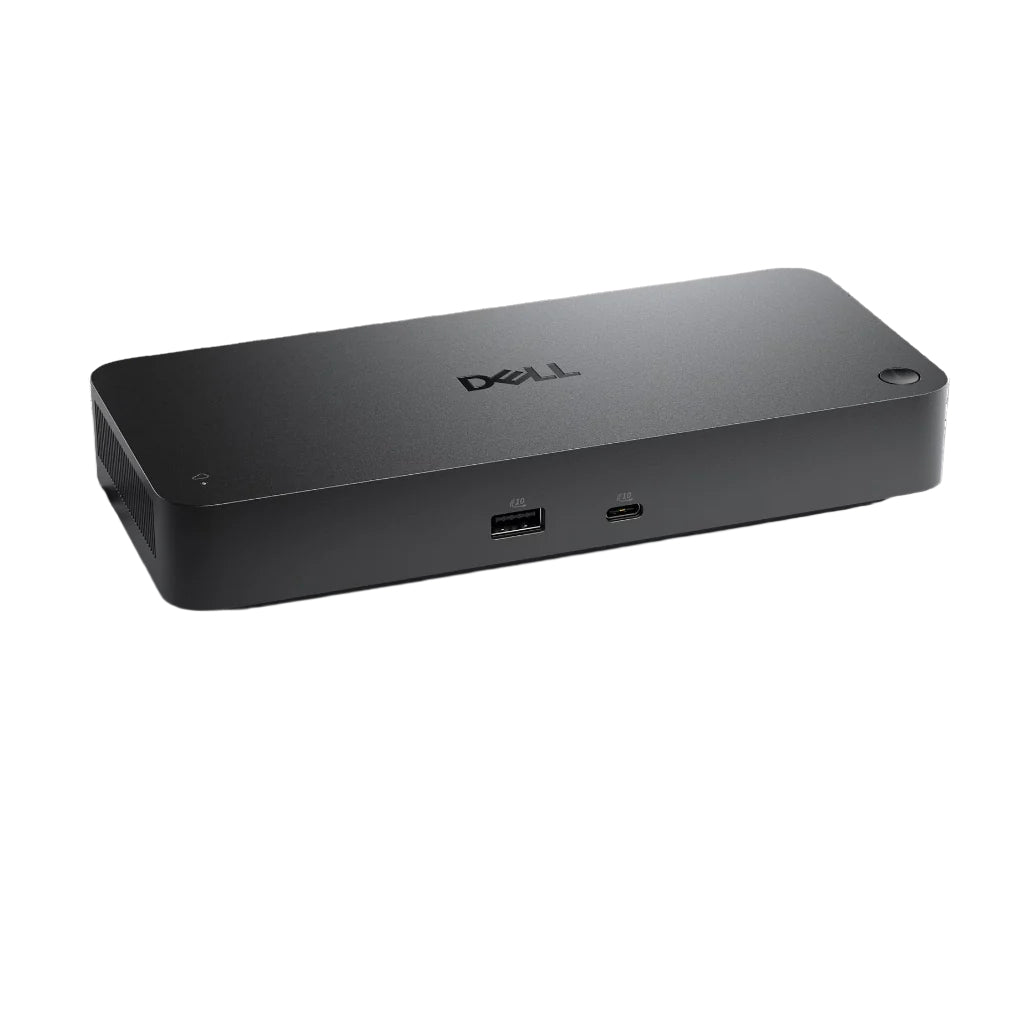

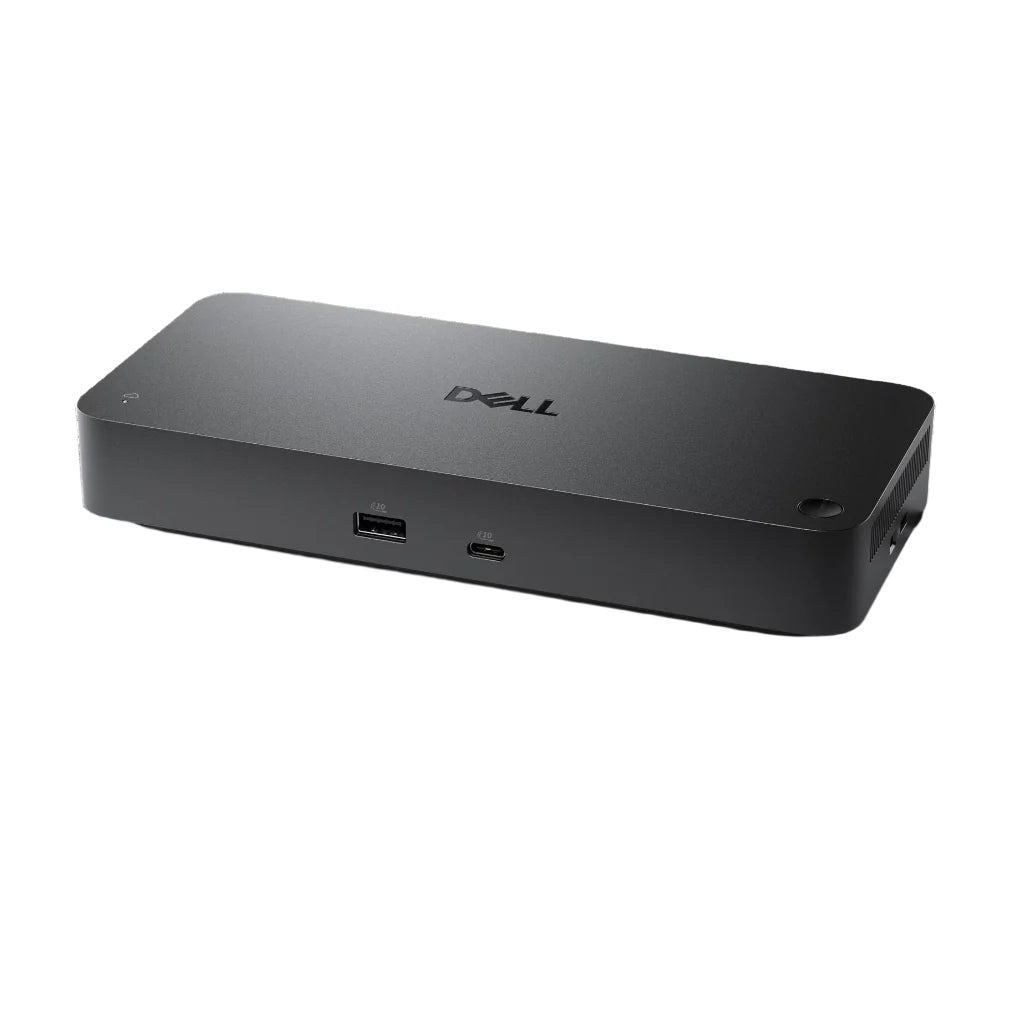

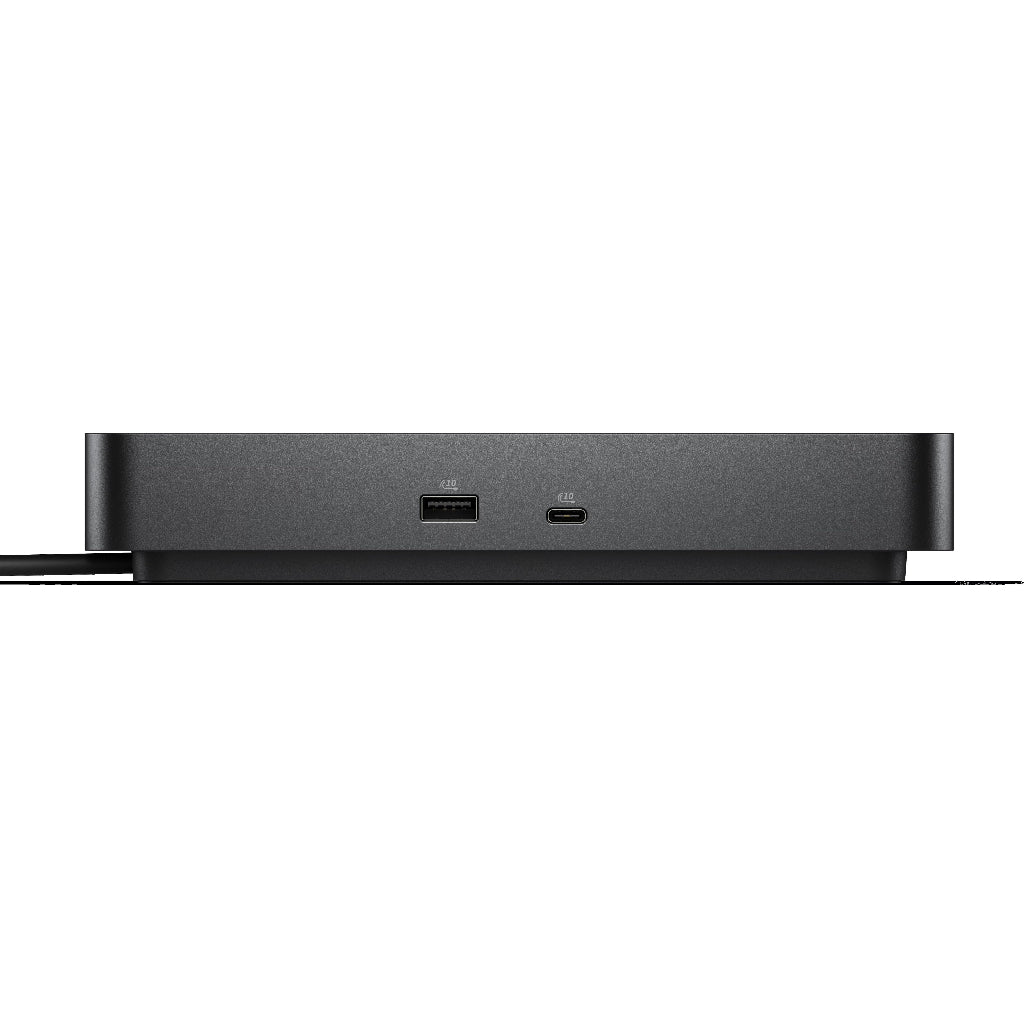

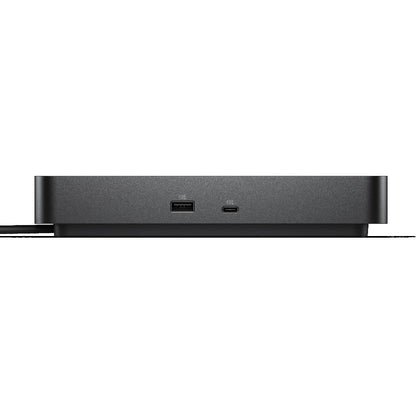

Dell SD25TB4 Pro Thunderbolt 4 Smart Docking Station

Dell SD25TB4 Pro Thunderbolt 4 Smart Docking Station

Brand: DELL
Regular price Rs. 30,999.00
Sale price 48% off Rs. 30,999.00 Sale Sold out Regular price Rs. 59,499.00

Product Description:

High Power Delivery: Provides up to 130W of power, ensuring your laptop and connected devices stay charged and ready

Multiple Display Support: Supports up to four 4K displays or one 8K display, making it ideal for multi-monitor setups

Extensive Connectivity: Includes a variety of ports such as Thunderbolt 4, USB-C, USB-A, HDMI 2.1, and DisplayPort 1.4, allowing you to connect multiple peripherals

Advanced Management Features: Offers remote management capabilities, including PXE Boot, MAC Address Pass-through, and Wake-on-LAN

Sustainable Design: Made with 65% post-consumer recycled content and 100% recycled packaging, contributing to environmental sustainability

Model SD25TB4
Dimensions 20.5cm x 9cm x 3.52cm
Video Resolution
DP1.4 without Display Stream Compression
Up to:
  • 4 x QHD (2560x1440) @ 60Hz
  • 3 x WQHD (3440 x 1440) @ 60Hz
  • 2 x 4K (3840x2160) @ 60Hz
  • 1 x 5K WUHD (5120 x 2160) @ 60Hz

DP1.4 / DP2.1 with Display Stream Compression
Up to:
  • 4 x 4K (3840x2160) @ 60Hz
  • 3 x 4K (3840x2160) @ 60Hz
  • 2 x 6K (6144 x 3456) @ 60Hz
  • 1 x 8K (7680 x 4320) @ 60Hz

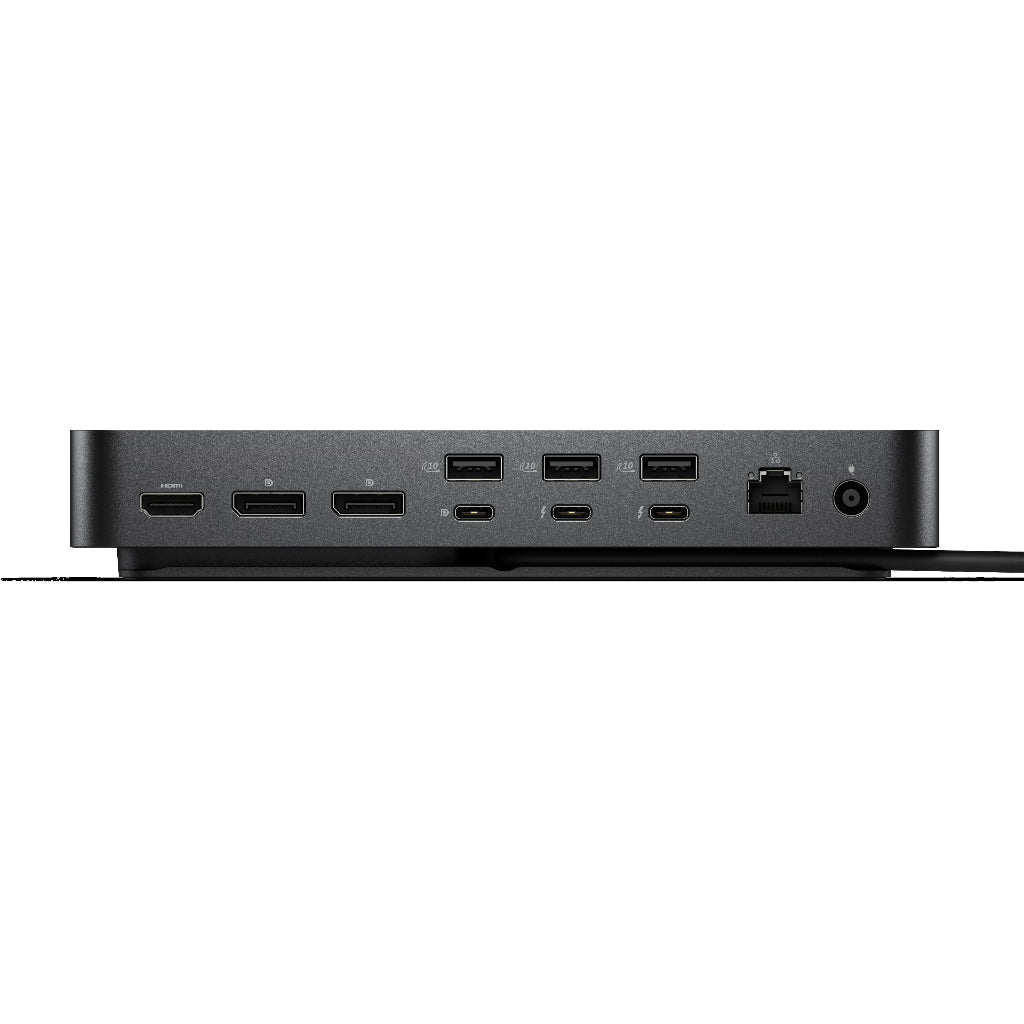

Interfaces Video interfaces
  • 2 x DP1.4
  • 1 x HDMI 2.1
  • 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
  • 2 x Thunderbolt 4
USB Ports (Data Only)
  • 4 x USB-A 3.2 Gen 2 (10 Gbps)
  • 1 x USB-C 3.2 Gen 2 (10 Gbps)

USB Ports (Power)
  • 4 x USB-A 3.2 Gen 2 (4.5W each)
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
  • 2 x Thunderbolt 4 (15W each)
  • All deliver power with or without PC

USB Power Delivery
  • 130W (Dell systems)
  • 96W (non-Dell systems)
Software
Operating System Supported
  • Windows 10
  • Windows 11
  • Ubuntu
  • Red Hat Enterprise Linux
  • ChromeOS
  • macOS
Package Contents
  • Docking Station
  • Power Adapter and Power Cord
  • Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
Technical Information

Host PC Management
  • Intel® AMT over Thunderbolt™ with select Intel® vPro® PCs
  • MAC address pass-through
  • PXE Boot
  • Dock Power Button Sync
  • Wake-On-LAN
  • WLAN to LAN switch
  • Kernel Direct Memory Access (DMA) protection
Dock Management Features
  • Remote firmware updates without a PC
  • Host-based firmware updates
  • Firmware update on disconnect
  • Port Disablement independent of PC
Weight 579 g
Warranty 3 Years of Brand Warranty
