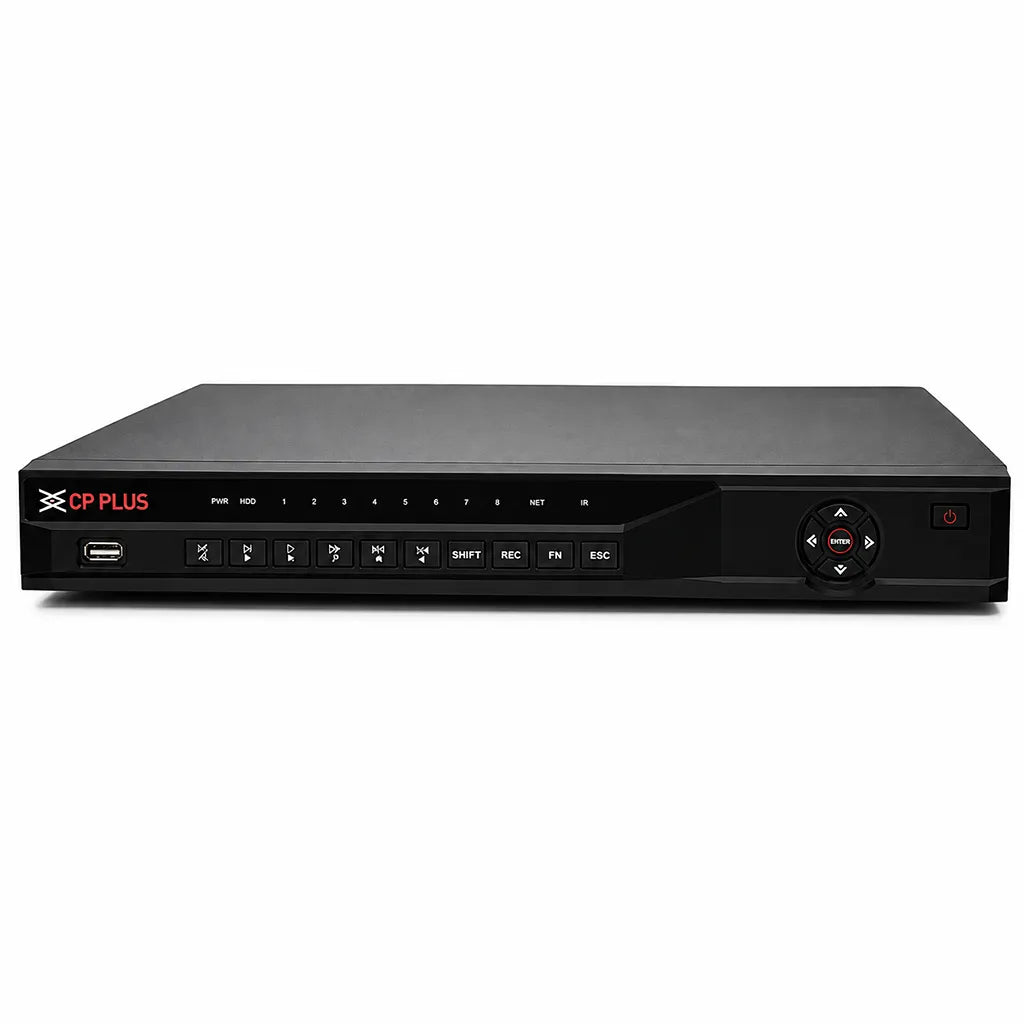

• CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder front view for IP CCTV surveillance systems -tpstech.in

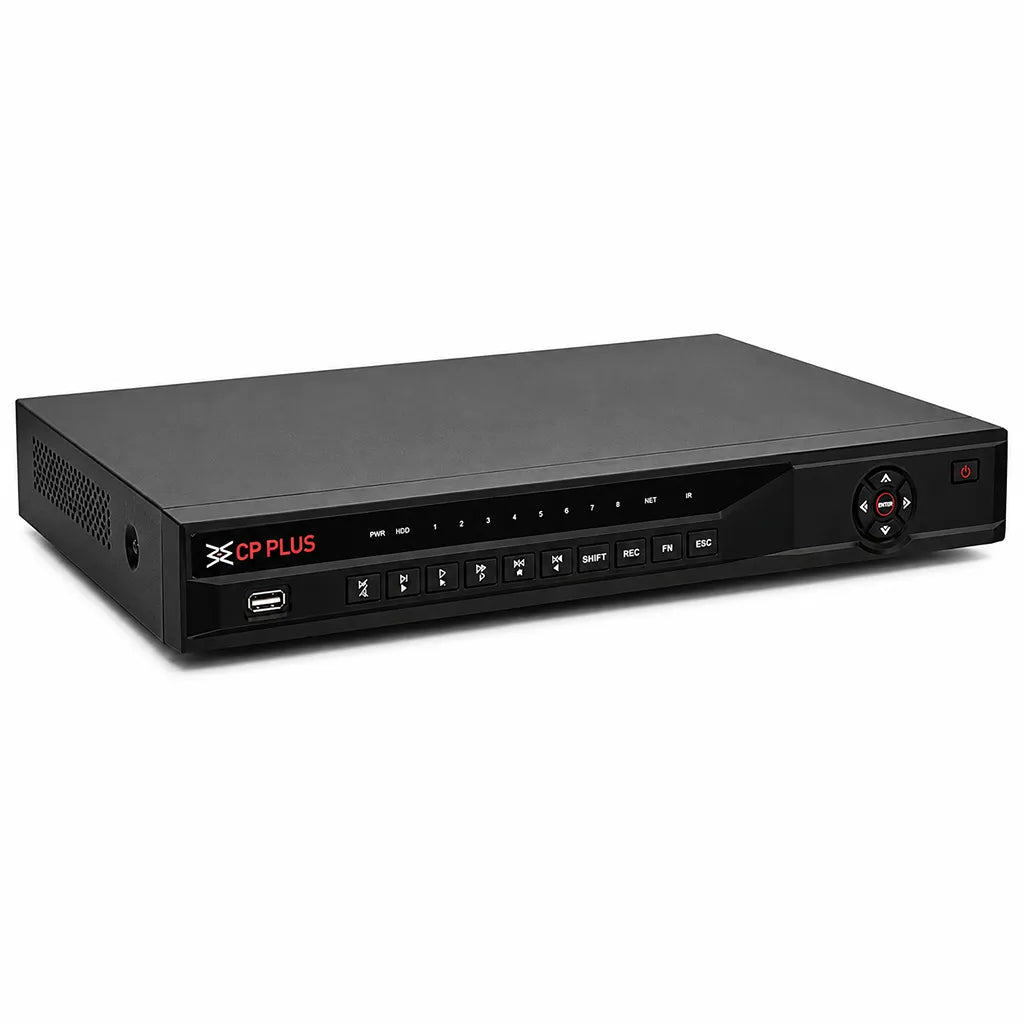

  • CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder left angle view with front USB port -tpstech.in

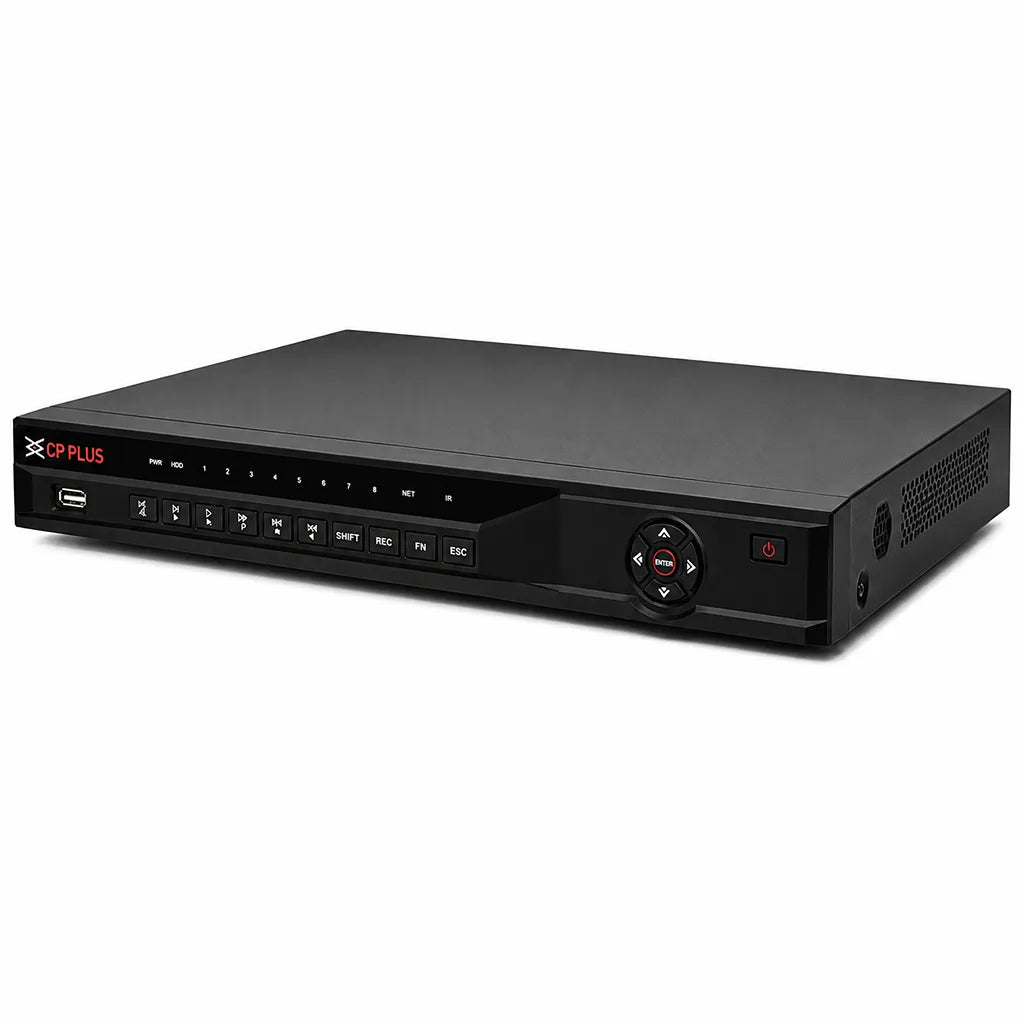

  • CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder right angle view for IP camera recording -tpstech.in

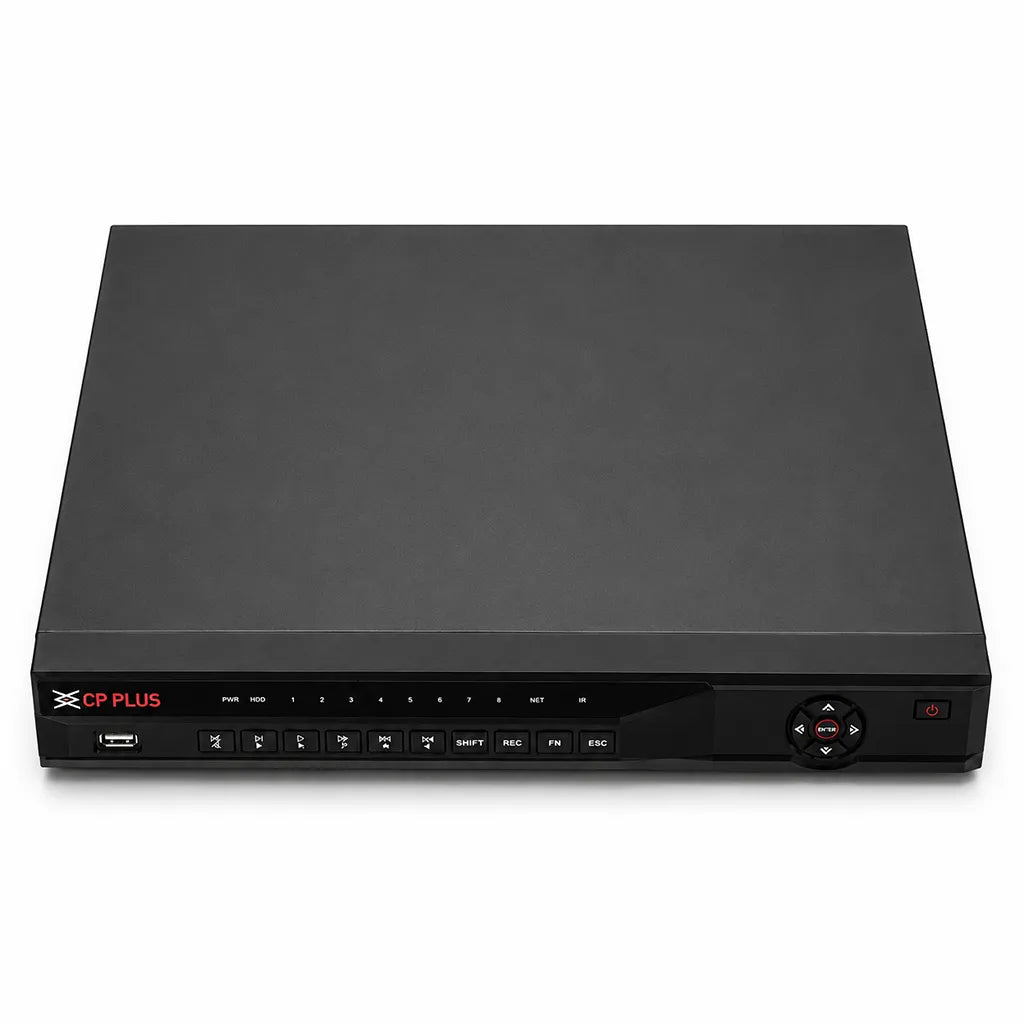

  • CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder top front view with control panel -tpstech.in

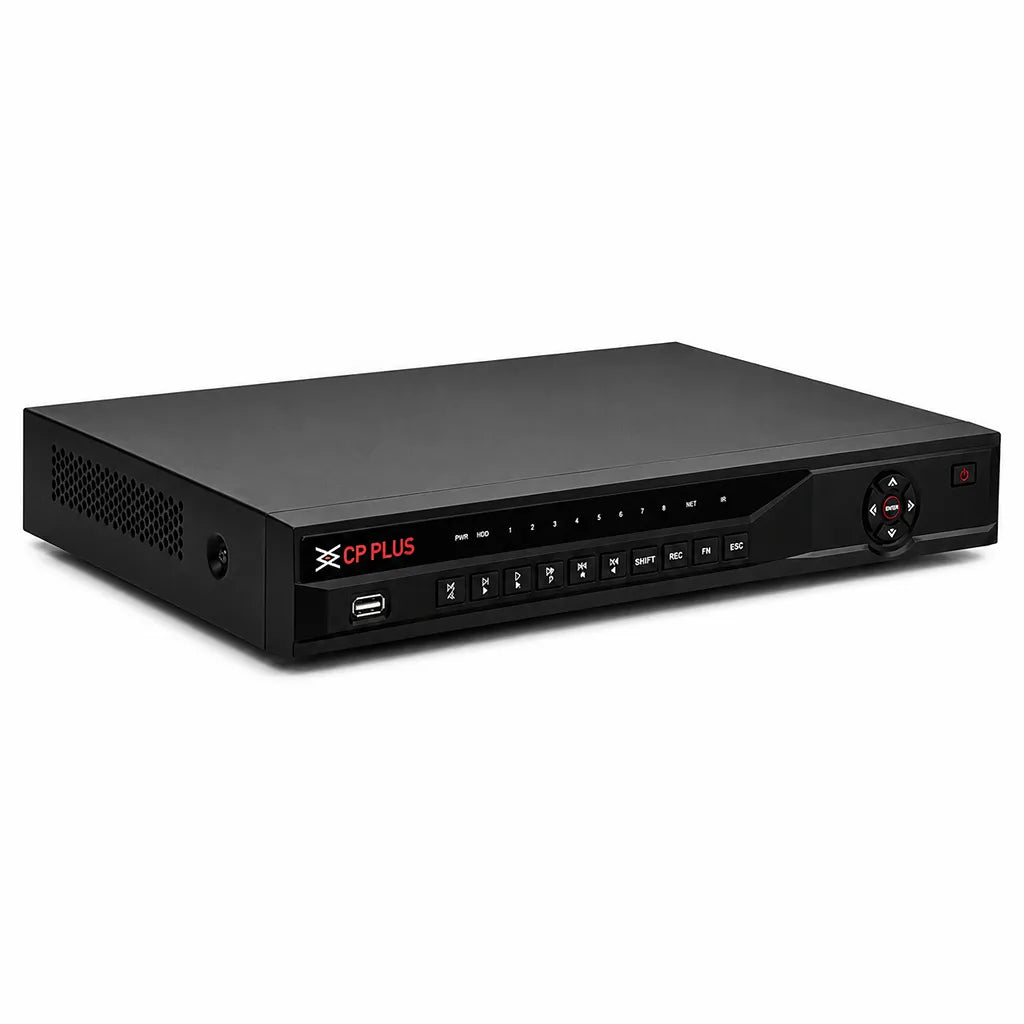

  • CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder left perspective view for CCTV security systems -tpstech.in

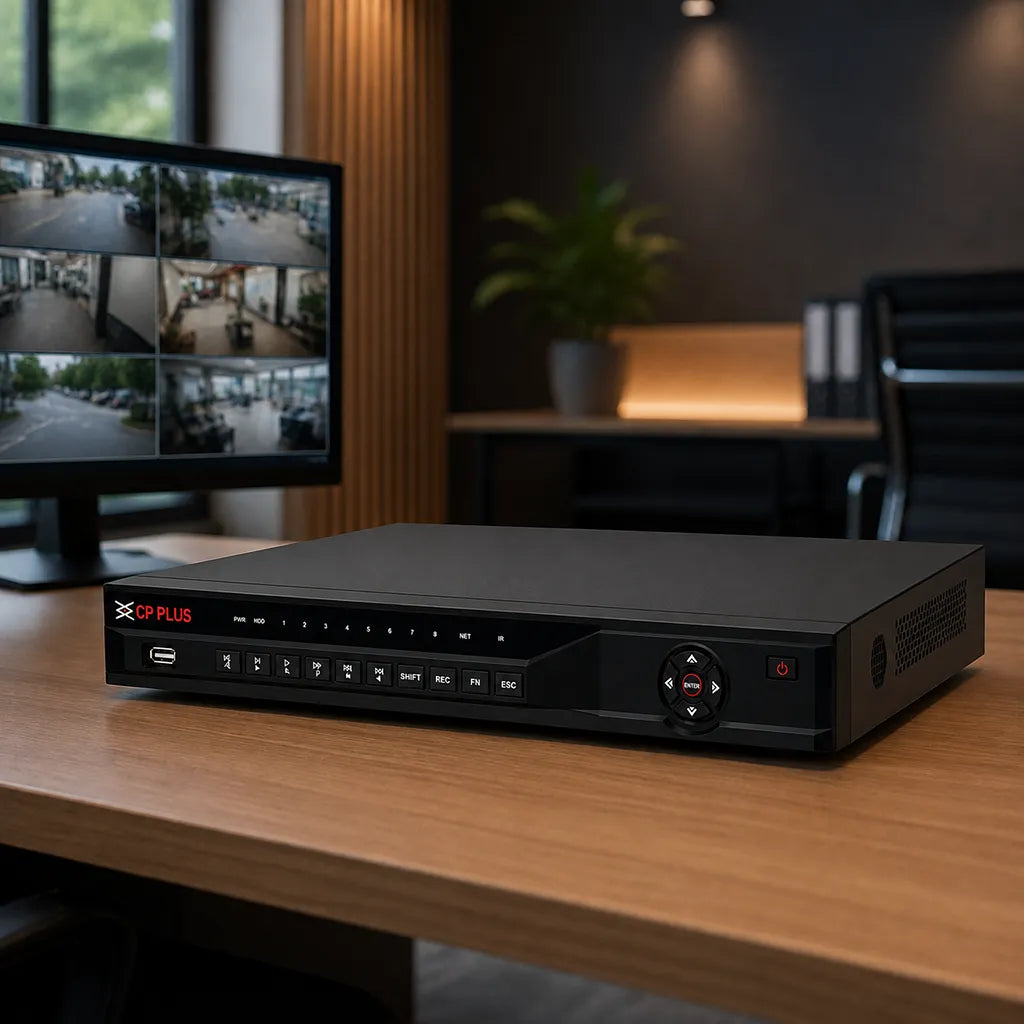

  • CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder installed in an office surveillance monitoring setup -tpstech.in
1 6

CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder

CP PLUS CP-UNR-4K2162-V2 16 Channel 4K Network Video Recorder

Brand: CP PLUS
Rs. 11,078.00
71% off Rs. 36,999.00 Rs. 11,078.00 Utsav Offer
Sale Sold out
  • 100% Genuine, Brand New & Sealed
  • Original Manufacturer Warranty
  • Trusted Since 2014 Ā· 15 Lakh+ Orders
Chat with us on WhatsAppReal people, quick replies
Chat with sales Get support

Product Description:

šŸ”¹ 16 Channel IP Camera Support Connect up to 16 IP cameras, making it suitable for small to medium-sized surveillance installations.

šŸ”¹ Supports Up to 8MP Recording & Playback Preview and play back recordings in resolutions up to 8MP for detailed video monitoring.

šŸ”¹ 320Mbps Total Throughput High bandwidth ensures smooth recording and live viewing from multiple connected cameras.

šŸ”¹ Dual SATA Storage Support Supports two SATA hard drives with up to 10TB capacity each, providing ample storage for continuous video recording.

šŸ”¹ Multi-Brand Camera Compatibility Works with ONVIF 2.4 compliant network cameras, making it easy to integrate with compatible IP surveillance systems.

The CP PLUS CP-UNR-4K2162-V2 16 Channel Network Video Recorder is designed for reliable IP surveillance with support for up to 16 network cameras and 8MP recording. Its 320Mbps throughput enables smooth video management, while dual SATA bays support up to 20TB total storage. HDMI and VGA outputs, ONVIF compatibility, and support for iCMOB, gCMOB, and KVMS Pro make it a practical solution for homes, offices, retail stores, and commercial security systems.


Product Specifications:

Specification Details
Brand CP PLUS
Model CP-UNR-4K2162-V2
Product Type 16 Channel Network Video Recorder (NVR)
Camera Input 16 IP Channels
Processor Dual-core Embedded Processor
Operating System Embedded Linux
Video Compression Instastream / H.265 / H.264+
Maximum Recording & Playback Resolution Up to 8MP
Maximum Decoding Capacity 1 Ɨ 8MP or 4 Ɨ 1080P
Incoming Bandwidth 320 Mbps
Video Output 1 Ɨ HDMI, 1 Ɨ VGA
Display Split 1 / 4 / 8 / 9 / 16
Recording Resolution 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1
Storage 2 Ɨ SATA III HDD, Up to 10TB Each
USB Ports 2 Ɨ USB 2.0 (1 Front, 1 Rear)
Network Interface 1 Ɨ RJ-45 (10/100/1000 Mbps)
Audio 1 Audio In, 1 Audio Out (RCA)
ONVIF Support ONVIF Version 2.4
Mobile Monitoring iCMOB, gCMOB
CMS Software KVMS Pro
Maximum User Accounts 128
Backup USB Device / Network
Power Supply DC 12V / 4A
Warranty 2 Year Manufacturer Warranty
Operating Temperature -10Ā°C to +55Ā°C
Dimensions 375 Ɨ 281.5 Ɨ 56 mm
Weight 1.6 kg (Without HDD)
