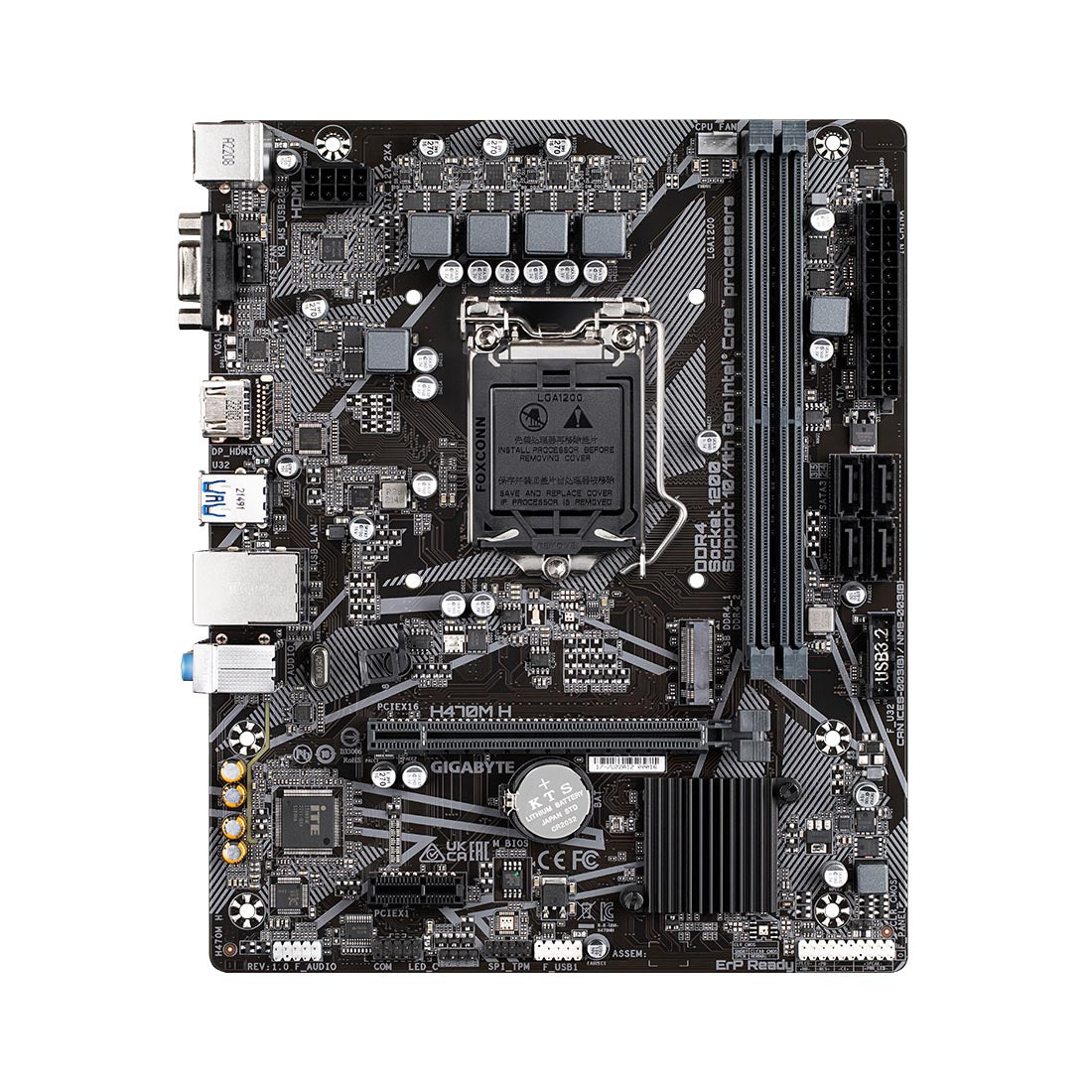

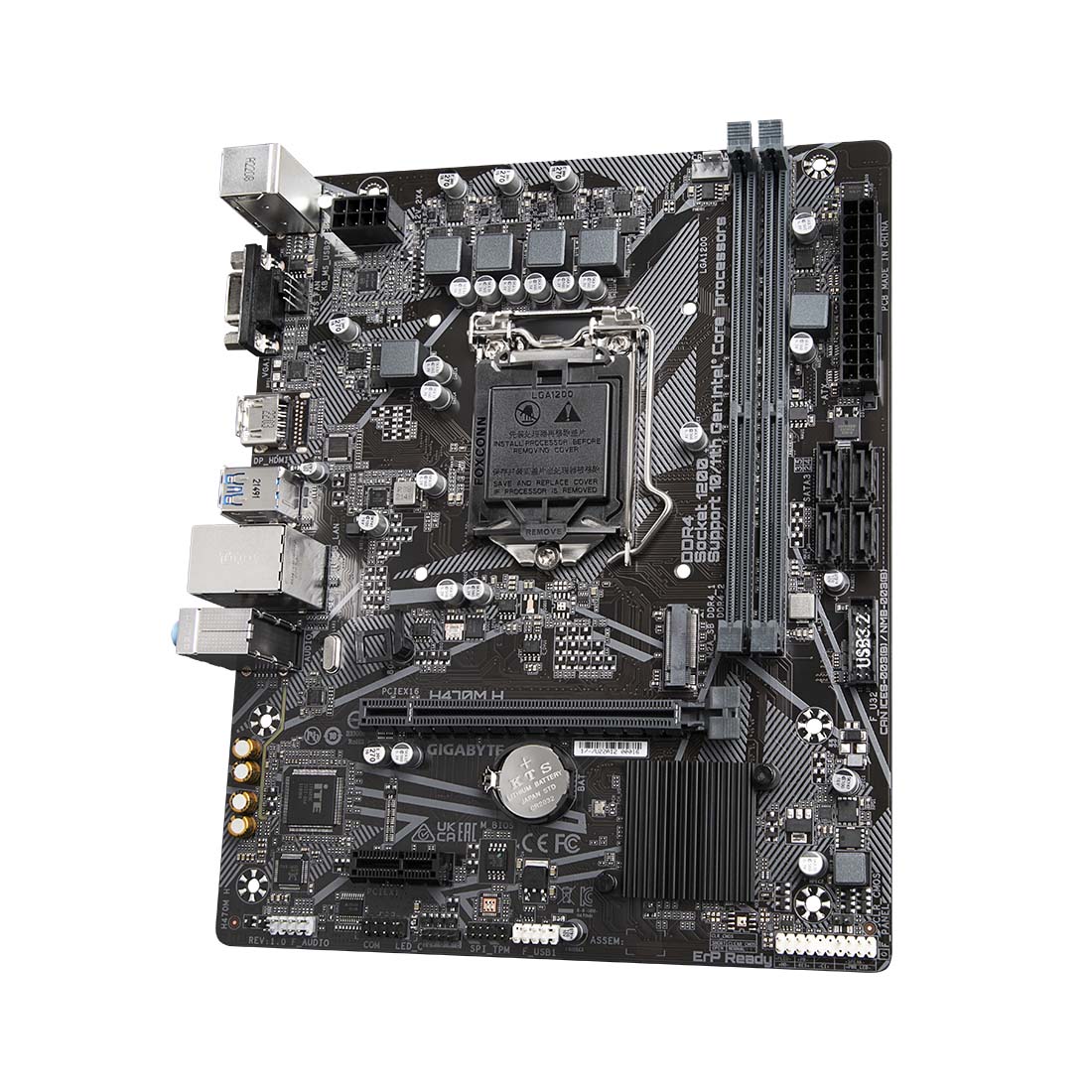

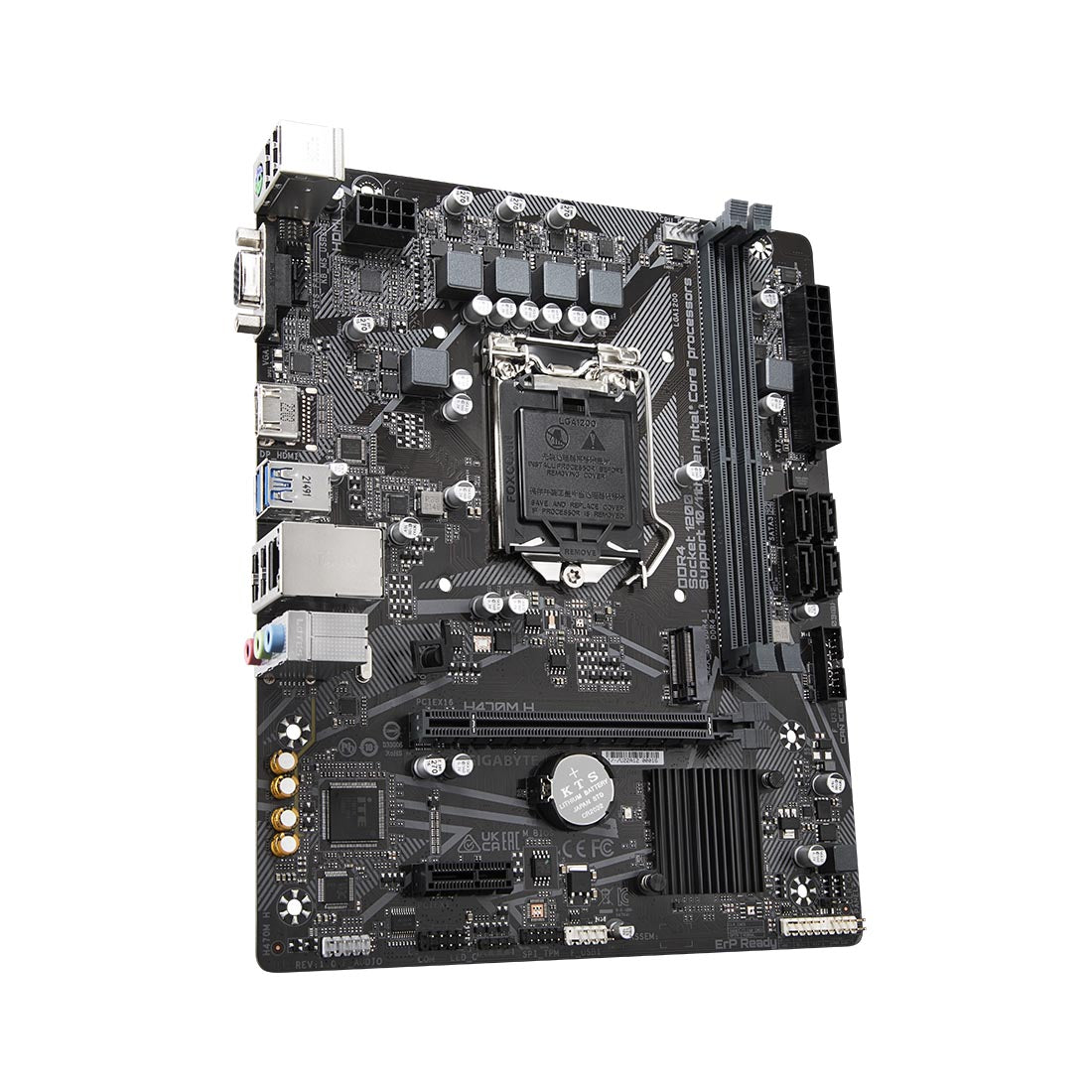

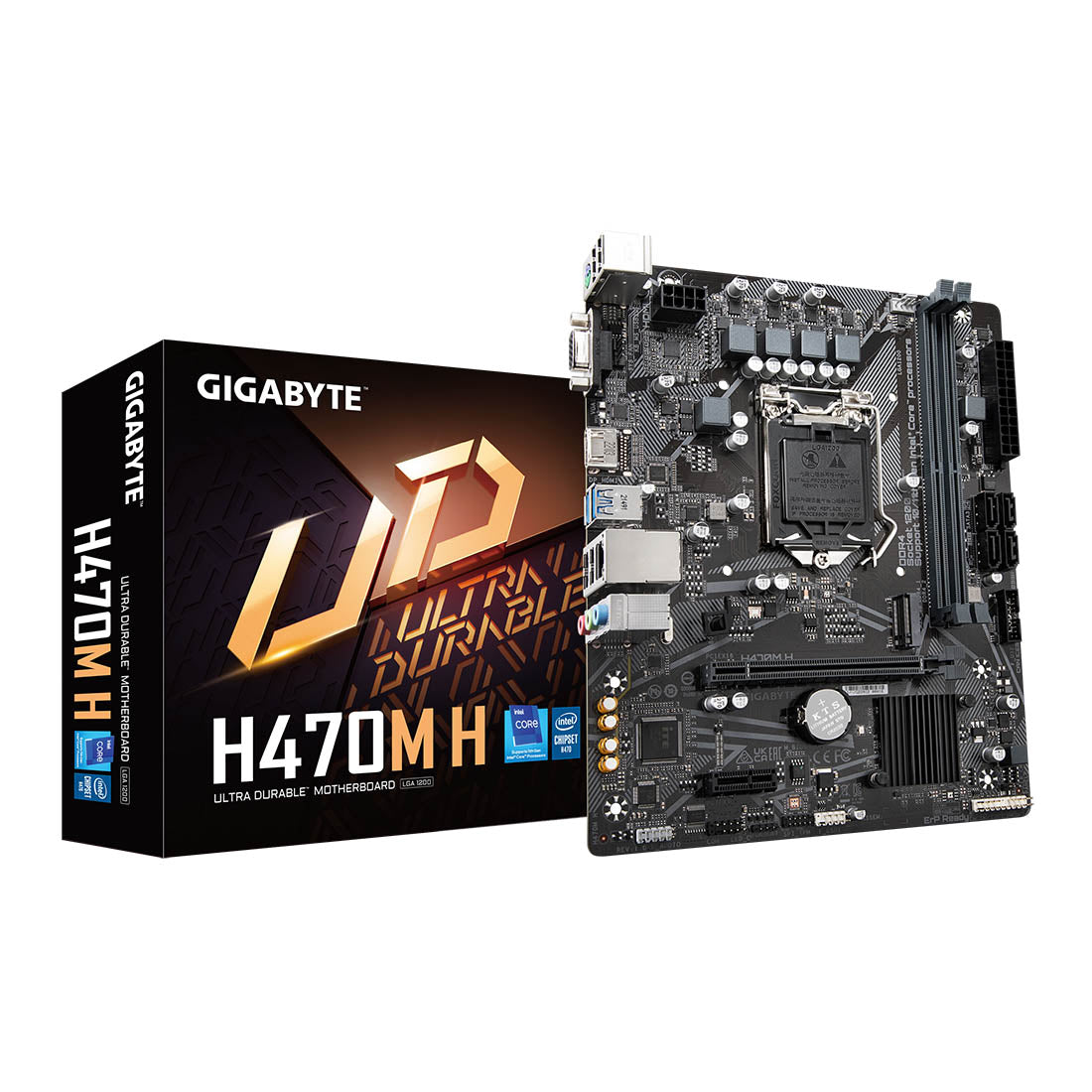

GIGABYTE H470M H Intel H470 LGA 1200 Micro-ATX Motherboard

GIGABYTE H470M H Intel H470 LGA 1200 Micro-ATX Motherboard

Brand: GIGABYTE
Rs. 6,299.00
59% off Rs. 6,299.00 Sale Sold out Rs. 15,200.00
Taxes included. Free Shipping.

Product Description:
  • GIGABYTE H470M H Micro-ATX DDR4 motherboard is designed to support latest Intel Socket LGA 1200 for 11th and 10th Gen, 12th Gen Intel Core processors and Pentium Gold and Celeron Processors.
  • The GIGABYTE H470 motherboard is PCIe 3.0 Ready supporting up to 64GB DDR4 3200MHz of memory and Intel Extreme Memory Profile (XMP). The DDR4 GIGABYTE motherboard support next gen PCIe 3.0 slots.
  • Enjoy extended connectivity with the next-gen technology of PCIe 3.0, Realtek Ethernet, USB 3.2 Gen 1 connector and more.

~section~

Model GIGABYTE H470M H Micro-ATX Motherboard
CPU Support Supports 11th & 10th Gen i9/i7/i5/i3 Intel Core Processors, Pentium Gold and Celeron Processors
CPU Socket LGA 1200
Chipset Intel H470 Chipset
Form Factor Micro-ATX
Memory 2x DDR4 memory slots, supporting up to 64GB
3200/3000/2933/2666/2400/2133 MHz
Supports Dual-Channel mode
Supports Intel Extreme Memory Profile (XMP)
Expansion Slot 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Onboard Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Storage 1 x M.2 connector
4 x SATA 6Gb/s connectors
USB 2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)
Audio Realtek Audio Codec

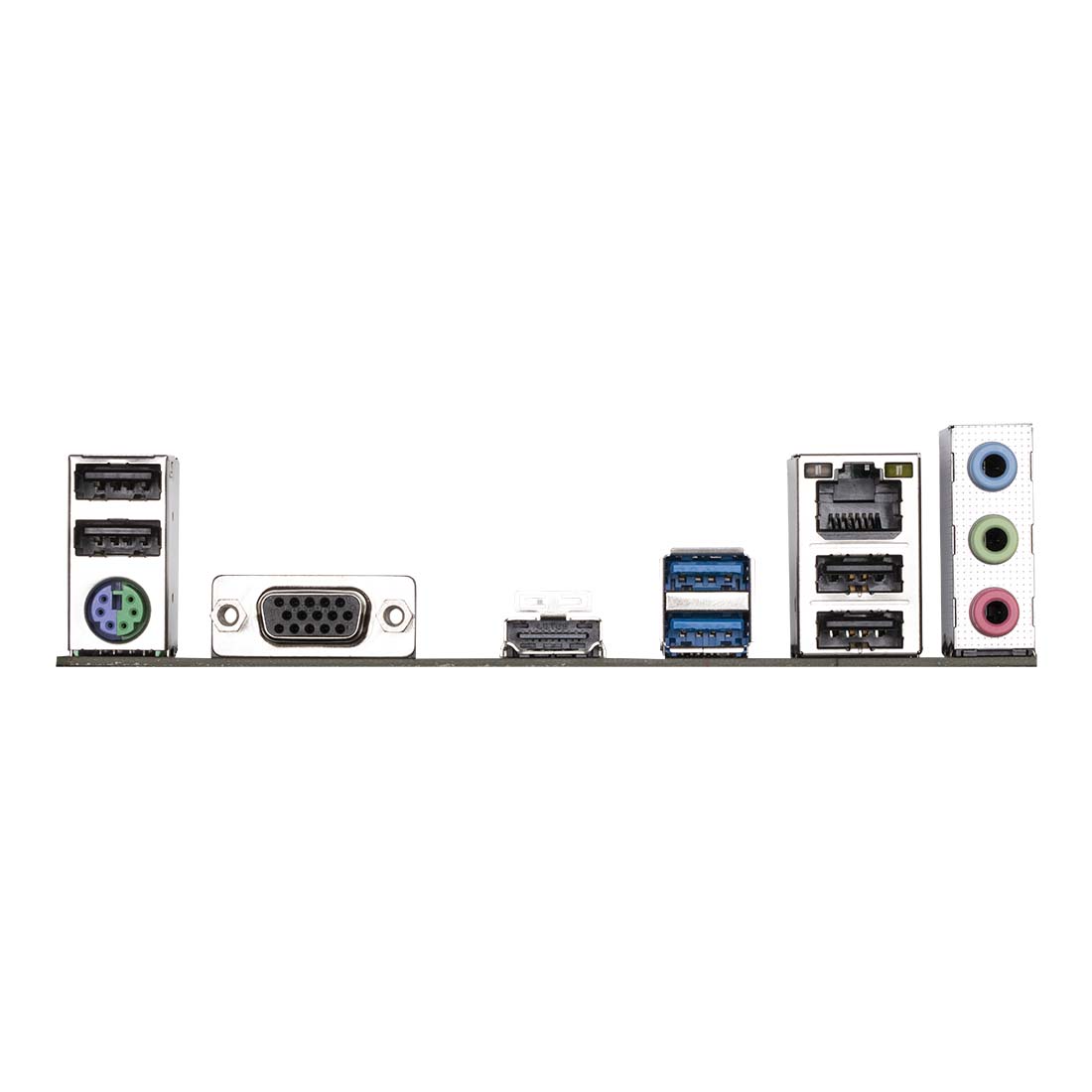

BackPanel Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
Dimension Micro-ATX
22.6cm x 18.5cm
Warranty 3 Years Brand Warranty
