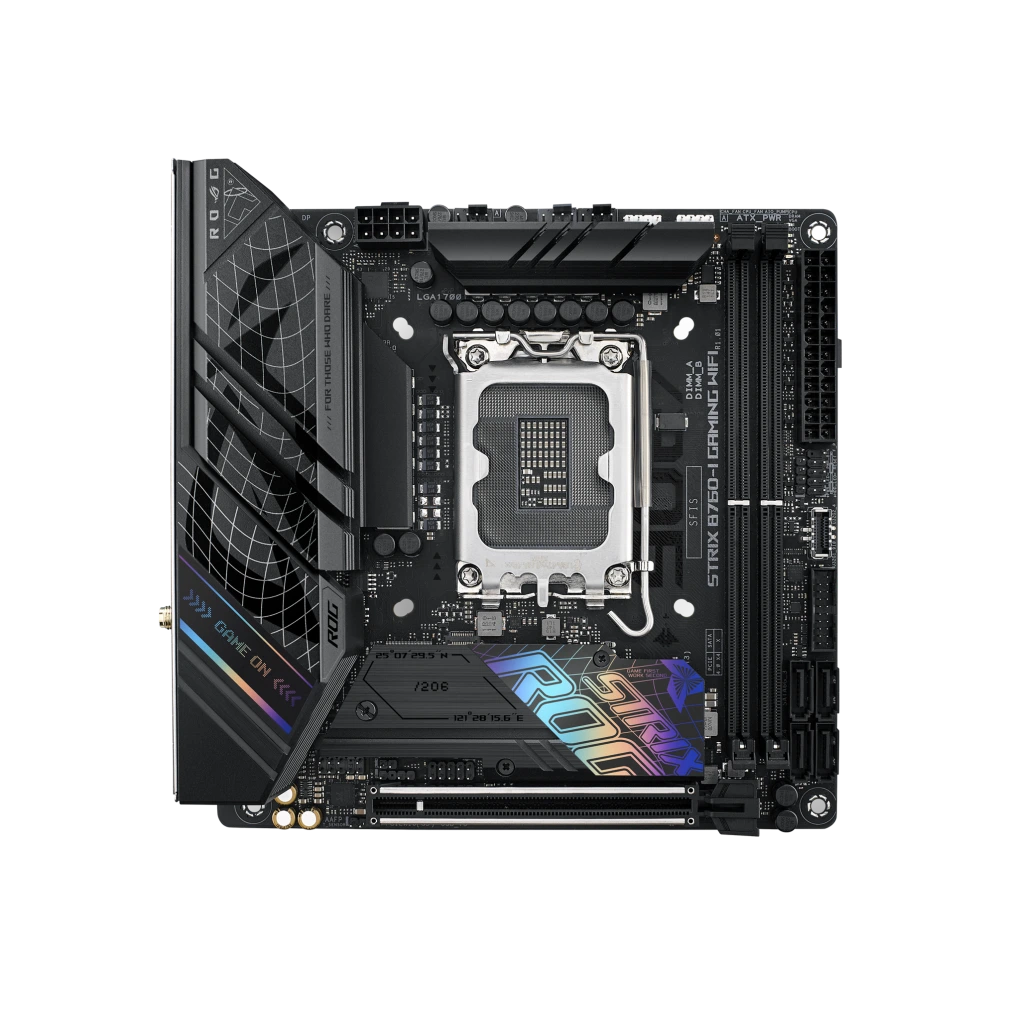

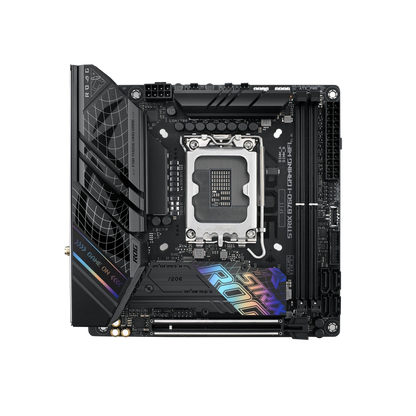

ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 Mini-ITX DDR5 Motherboard
ASUS ROG STRIX B760-I GAMING WIFI LGA 1700 Mini-ITX DDR5 Motherboard
Brand: ASUS
Regular price
Rs. 24,999.00
Regular price
17% off
Rs. 29,999.00
Sale price
Rs. 24,999.00
No reviews
Quantity
Couldn't load pickup availability
Loading Offers...
+ Offers
Couldn't load pickup availability
- Free Shipping (optional Express Shipping)
- Comes with 7-Days Returns Policy
- Original Brand Warranty
Product Description:
Compact Mini-ITX Form Factor: Ideal for small form factor builds, providing powerful performance in a compact size.
Intel B760 Chipset: Supports the latest Intel processors, ensuring high performance and compatibility.
Wi-Fi 6E Connectivity: Offers fast and reliable wireless networking with the latest Wi-Fi 6E technology.
PCIe 5.0 Support: Provides next-gen connectivity for graphics cards and storage devices, ensuring future-proofing.
Aura Sync RGB Lighting: Customizable RGB lighting that can be synchronized with other Aura Sync-compatible devices for a personalized look.
| Model | ASUS ROG STRIX B760-I GAMING WIFI |
| Part Number | 90MB1D10-M0EAY0 |
| CPU Socket | Intel B760 Chipset |
| CPU Support |
IntelĀ® Socket LGA1700 for IntelĀ® Coreā¢ 14th & 13th Gen Processors, IntelĀ® Coreā¢ 12th Gen, PentiumĀ® Gold and CeleronĀ® Processors Supports IntelĀ® Turbo Boost Technology 2.0 and IntelĀ® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** IntelĀ® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Socket LGA 1700 |
| Memory |
2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports IntelĀ® Extreme Memory Profile (XMP) OptiMem II |
| On-Board Graphics support |
Ā 1 x DisplayPort**1 x HDMIĀ®*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slot |
IntelĀ®Ā 14th & 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot |
| Ethernet |
1 x IntelĀ® 2.5Gb Ethernet ASUS LANGuard |
| Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* IntelĀ®Ā 14th & 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) IntelĀ® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio |
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| USB Ports |
Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-CĀ®) 4 x USB 3.2 Gen 1 ports Ā (3 x Type-A +1 x USB Type-CĀ®) 3 x USB 2.0 ports Ā (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-CĀ®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |

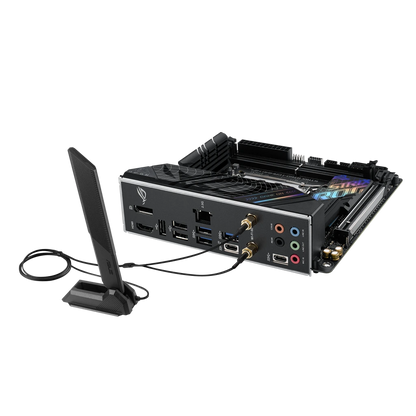

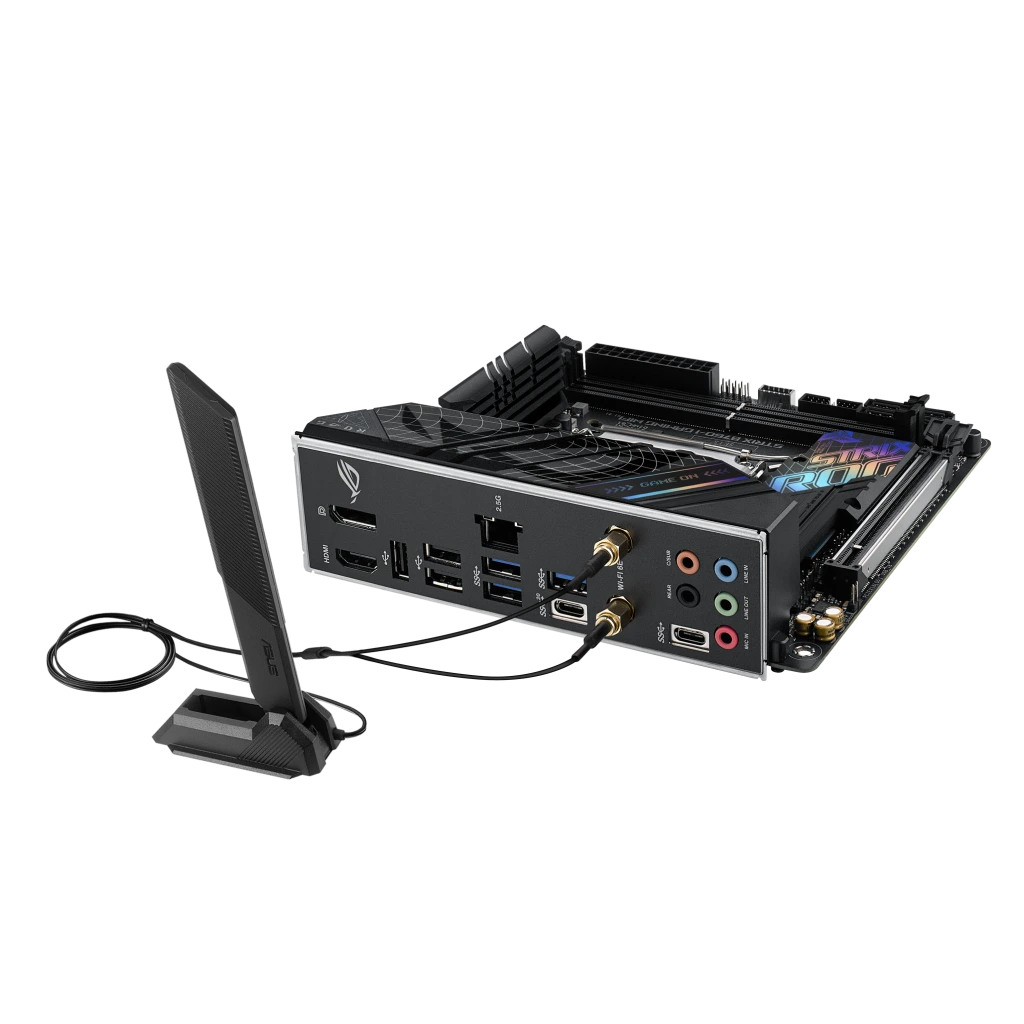

| Back Panel I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-CĀ®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-CĀ®) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMIĀ® port 1 x DisplayPort 1 x Wi-Fi Module 1 x IntelĀ® 2.5Gb Ethernet 5 x Audio jacks |
| Internal I/O ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-CĀ®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Accessories |
Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual |
Wireless & Bluetooth |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* BluetoothĀ® v5.3 * WiFi 6E 6GHz regulatory may vary between countries. |
| Dimensions |
Ā Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 3 Years of Brand Warranty |
