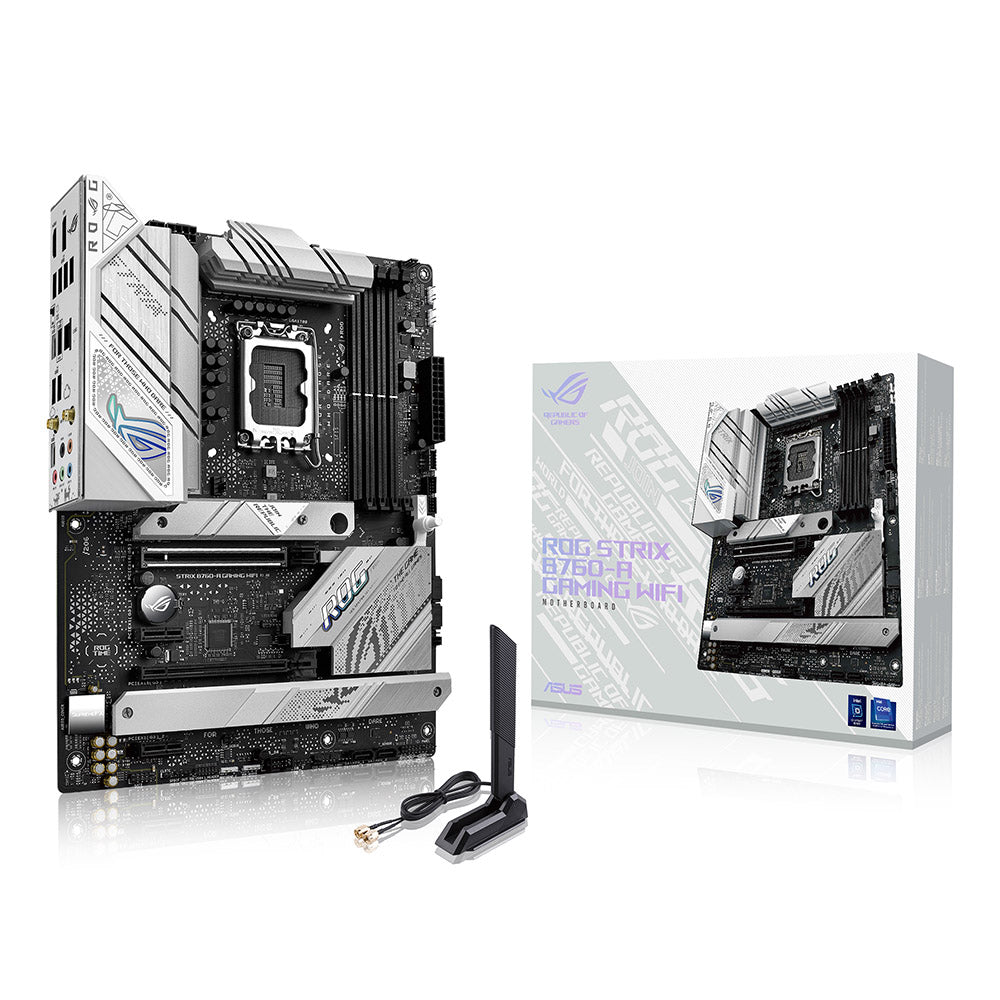

ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX Motherboard

ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX Motherboard

Brand: ASUS
Rs. 25,499.00
37% off Rs. 25,499.00 Sale Sold out Rs. 40,000.00
Taxes included. Free Shipping.

Product Description:
  • ASUS ROG STRIX B760-A WIFI gaming motherboard is designed to support latest Intel LGA 1700 socket for Intel 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors.
  • The ASUS B760 motherboard is PCIe 4.0 storage Ready supporting up to 128GB DDR5 7800+MHz of memory and Turbo Boost Max Technology 3.0 to push your gaming experience to its peak. The board support PCIe 5.0 video-cards making it future proof.
  • Enjoy extended connectivity on ASUS B650 motherboard with the next-gen technology of WIFI6E, PCIe 5.0, Intel 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Three M.2 slots.

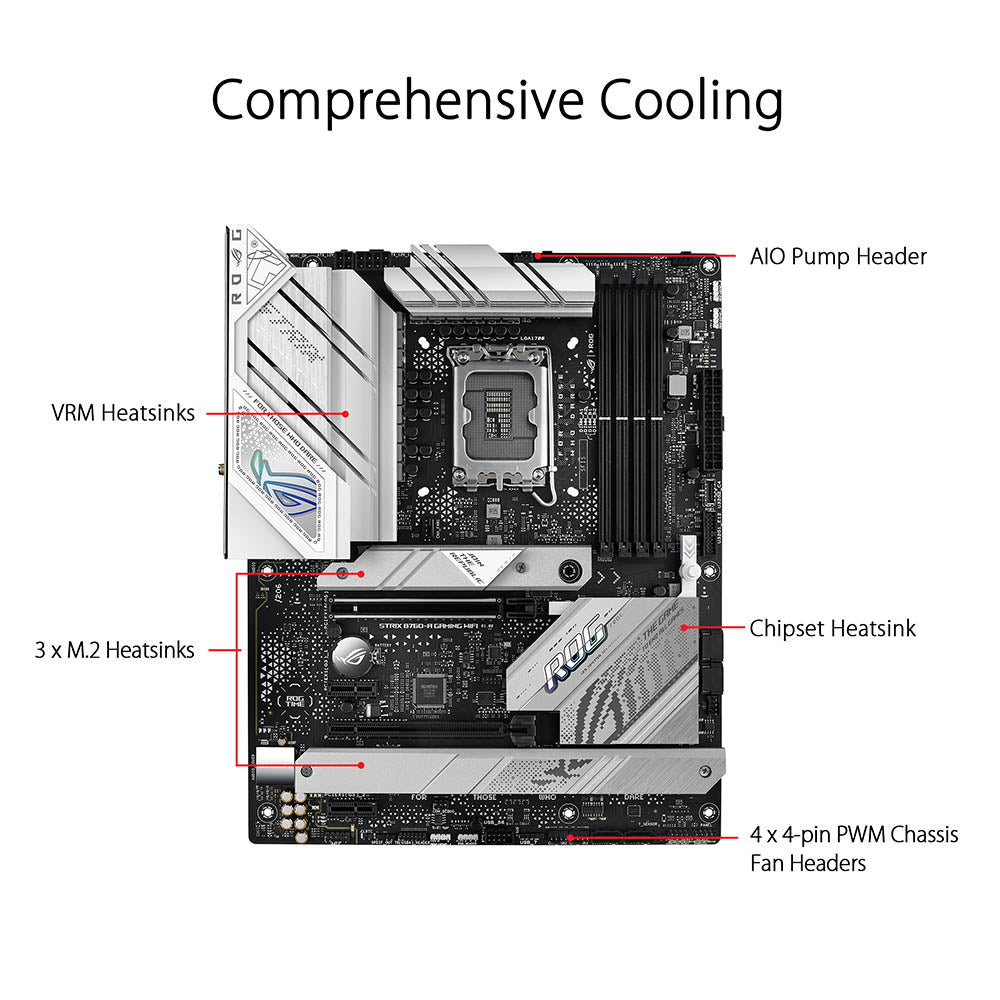

  • The B760 motherboard comes with comprehensive cooling options such as VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4.

~section~

Model ASUS ROG STRIX B760-A GAMING WIFI Gaming Motherboard
Part Number 90MB1EP0-M0IAY0
CPU Socket LGA 1700
CPU Support Intel 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset Intel B760
Memory 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/
6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
On-Board Graphics support 1 x DisplayPort
1 x HDMI

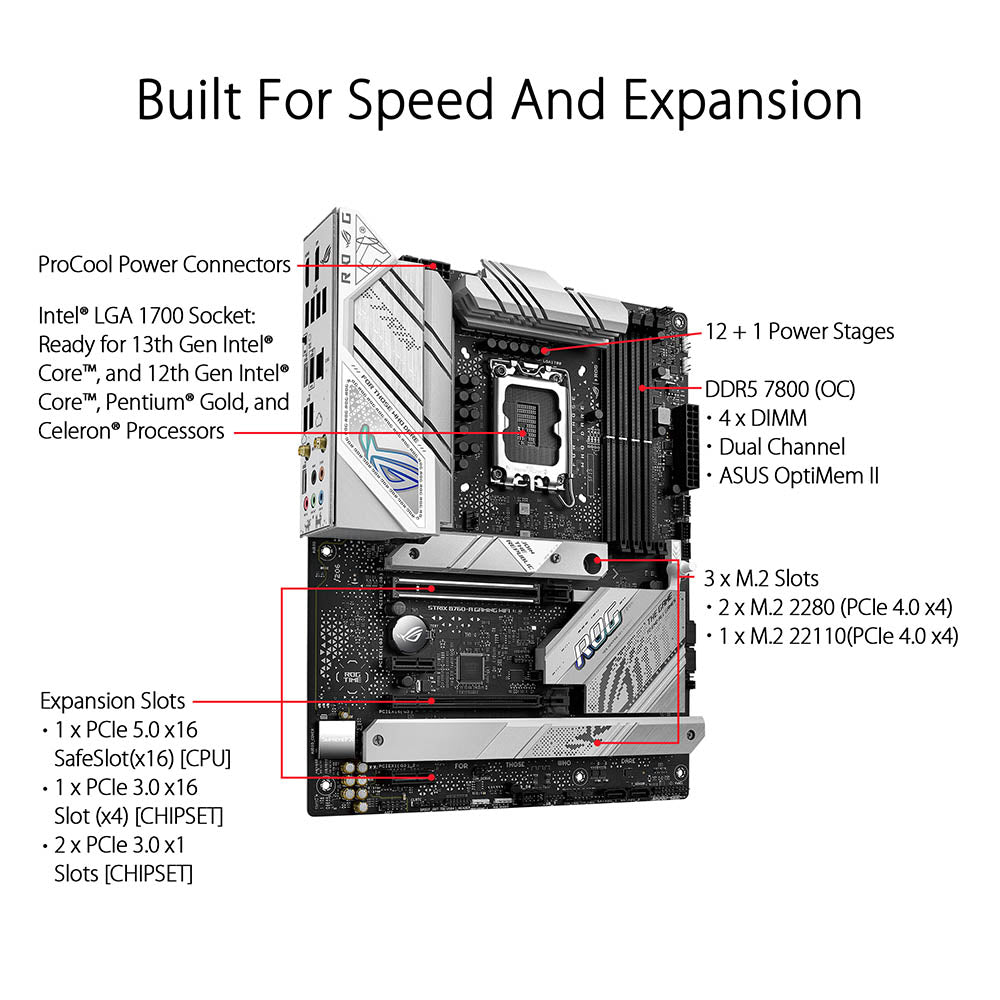

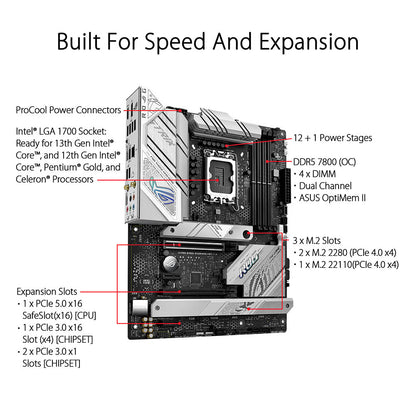

Expansion Slot Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Wireless & Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

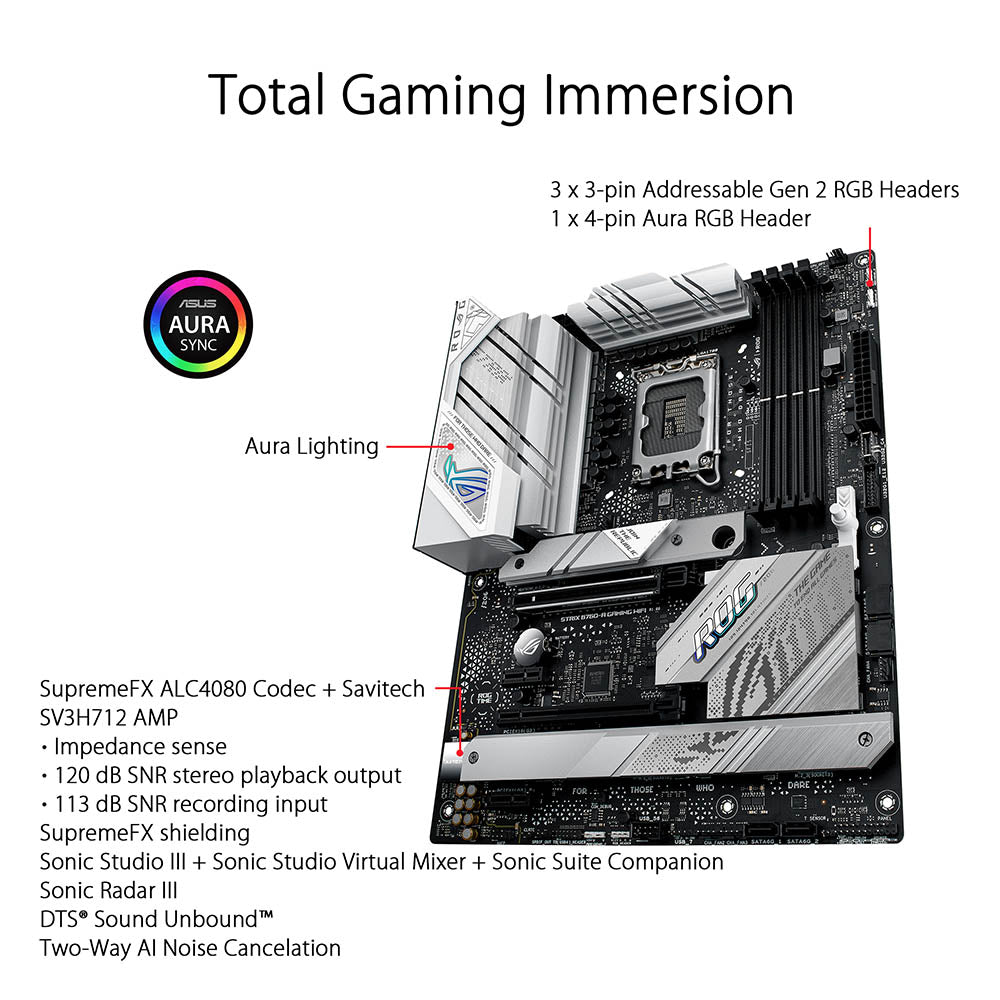

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 32-Bit/384 kHz playback
USB Ports Rear USB (Total 9 ports):
1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

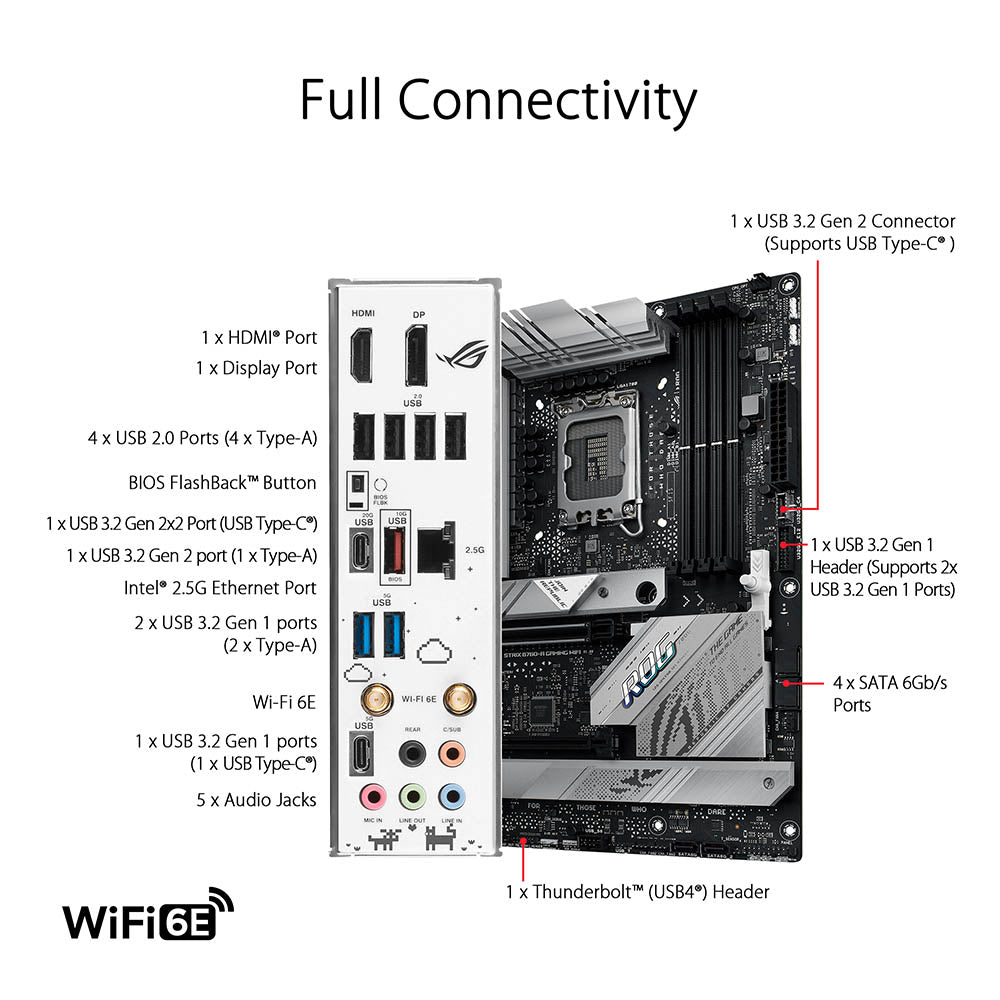

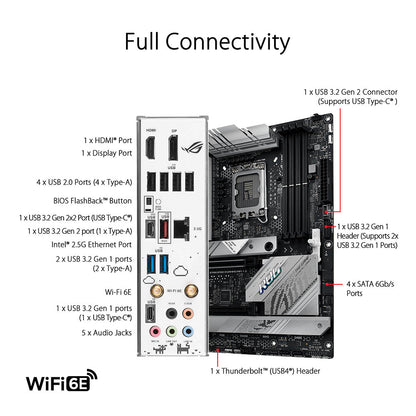

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C )
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

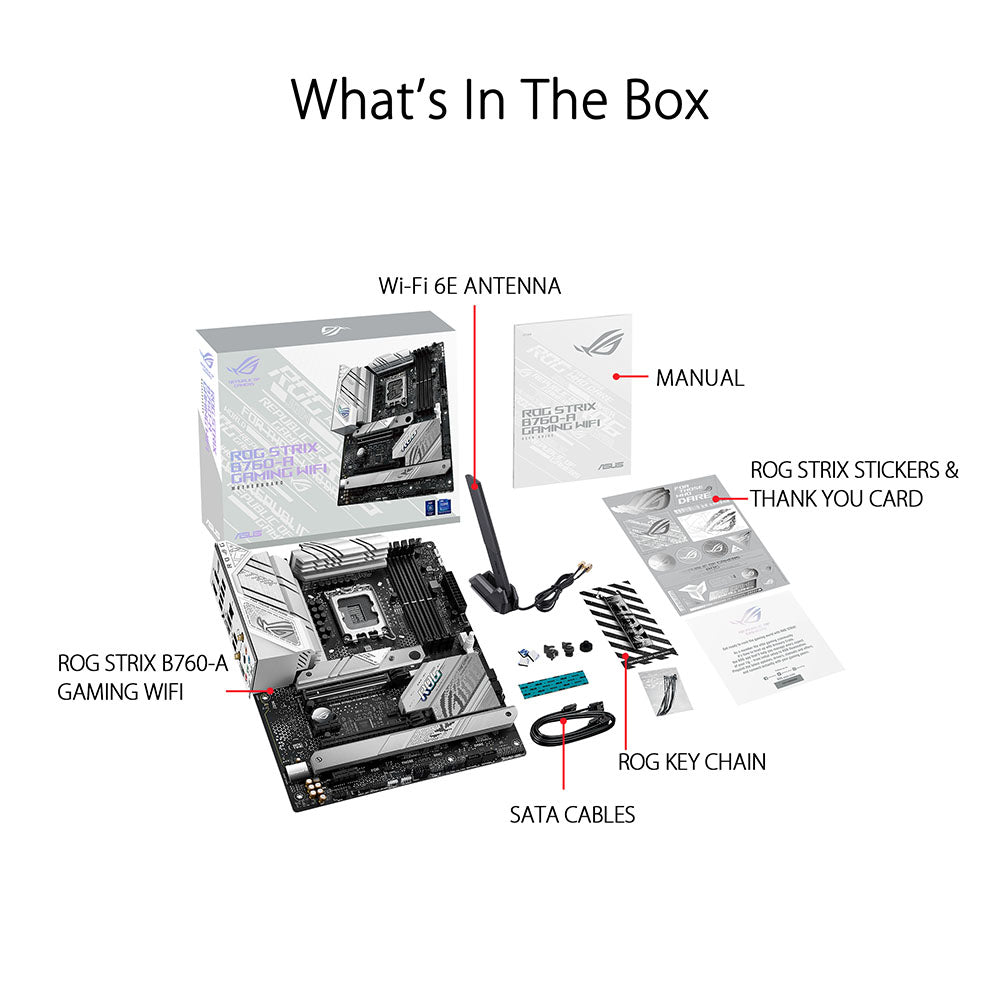

Accessories Cables:
2 x SATA 6Gb/s cables
Miscellaneous
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x M.2 Rubber Packages Documentation
1 x User guide
Operating System Windows 11 64-bit
Windows 10 64-bit
Dimensions ATX Form Factor
30.5cm x 24.4cm
Warranty 3 Years of Brand Warranty
