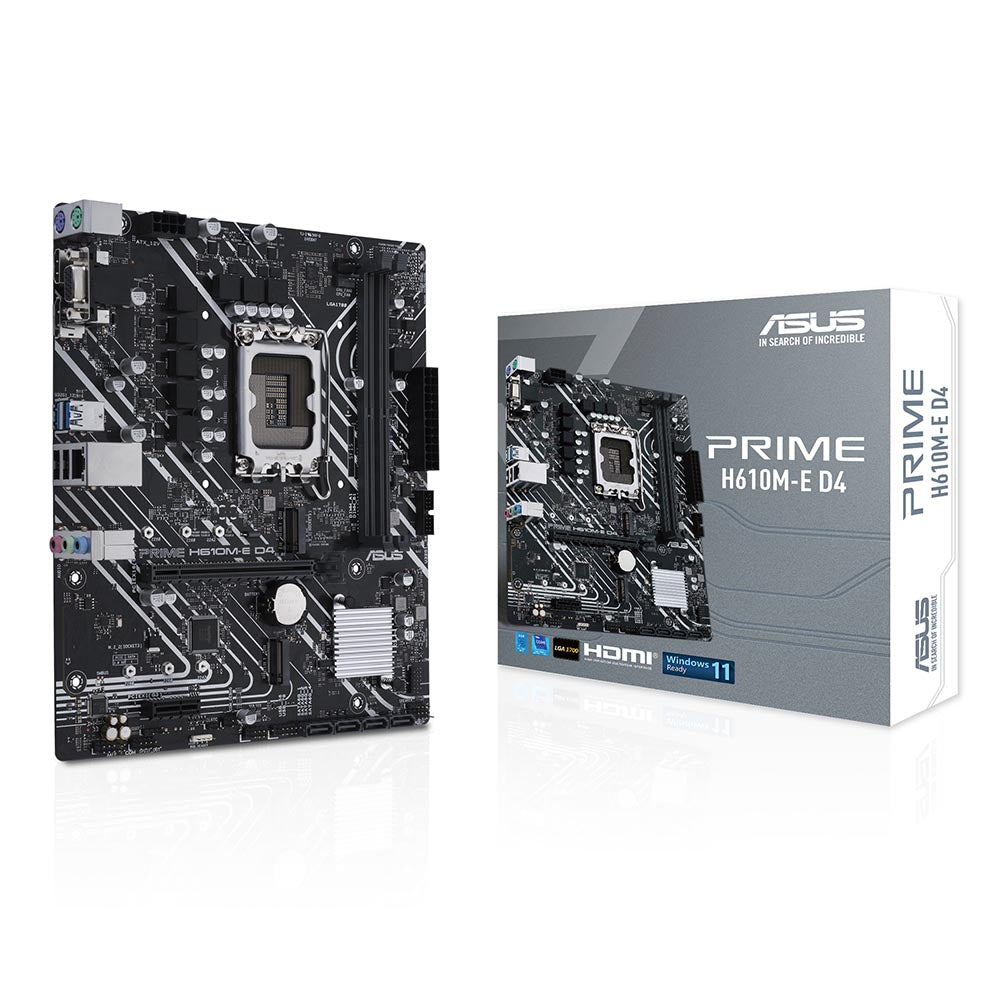

ASUS PRIME H610M-E D4 Intel H670 LGA 1700 ATX Motherboard with PCIe 4.0 and Dual M.2 Slots

ASUS PRIME H610M-E D4 Intel H670 LGA 1700 ATX Motherboard with PCIe 4.0 and Dual M.2 Slots

Brand: ASUS
Rs. 6,289.00
41% off Rs. 6,289.00 Sale Sold out Rs. 10,500.00
Taxes included. Free Shipping.

Product Description:

The ASUS PRIME H610M-E D4 ATX motherboard is designed to support latest 12th Gen Intel CPU's with LGA 1700 socket, Pentium Gold and Celeron Processors with H610 Intel Chipset.

The H610M-E based motherboard is PCIe 4.0 Ready supporting up to 2 slot 64GB DDR4 3200MHz of memory and Intel Turbo Boost Technology to push your experience to its peak.

Enjoy extended connectivity with the next-gen technology of PCIe 4.0, dual M.2 slots, Intel 1Gb Ethernet, Rear USB 3.2 Gen 1 and Q-LED.

Features the most comprehensive cooling options ever that are configurable via Fan Xpert 2+. It employs PCH heatsink.

The board comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection and DRAM Overcurrent Protection.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610M-E D4 provides users and PC DIY builders a range of performance tuning options

Dual M.2 Slots

Offers a total of two M.2 slots that support data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

PCIe 4.0 Slot

Offers PCIe 4.0 connectivity. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 1 Type-A

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.

All Around Energy

The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Fan Xpert 4

The software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. The same can be done via UEFI BIOS.

Digi+ VRM Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Model ASUS PRIME H610M-E D4 Micro-ATX Motherboard
Part Number 90MB19N0-M0IAY0
CPU Socket Intel Socket LGA 1700
Chipset Intel H610
CPU Support Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

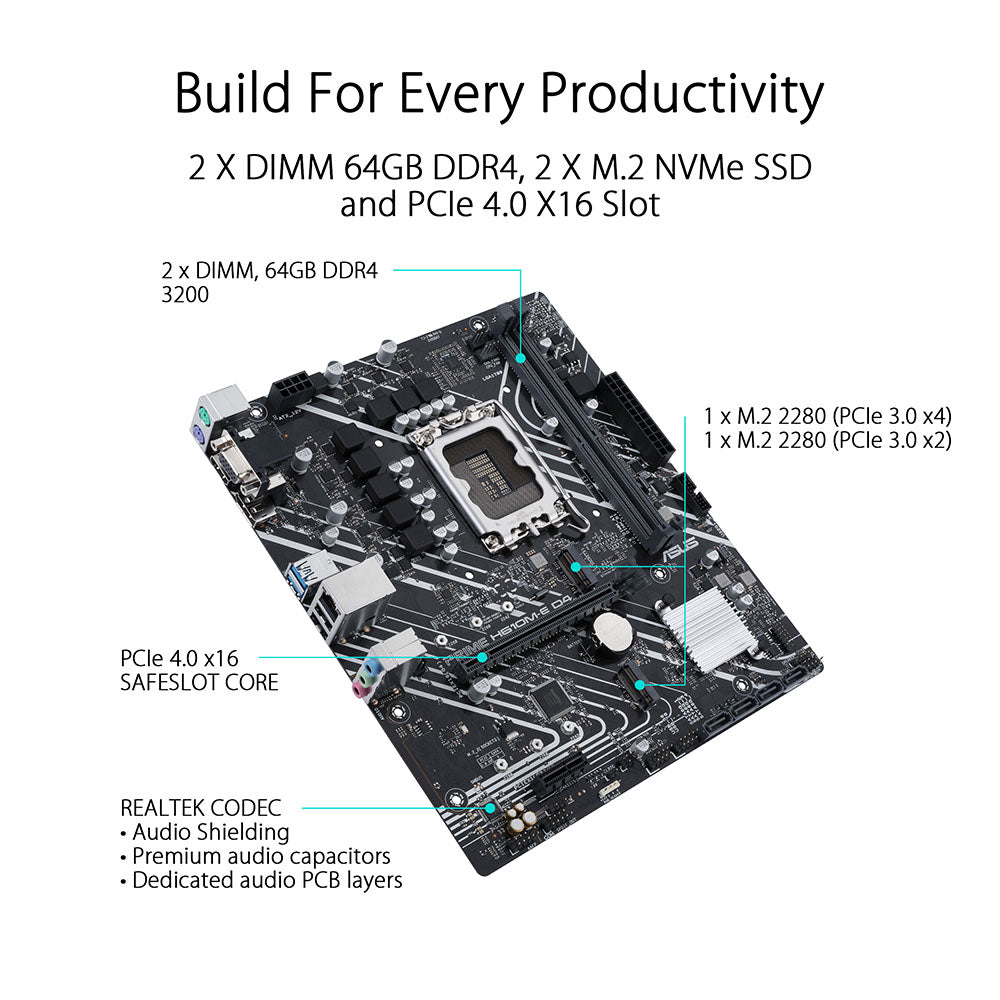

Memory 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
On-Board Graphics support 1 x DisplayPort
1 x D-Sub Port
1 x HDMI Port
Expansion Slot Intel 12th Gen Processors:
1 x PCIe 4.0 x16 slot
Intel H610 Chipset:
1 x PCIe 3.0 x1 slot
Ethernet 1 x Realtek 1Gb Ethernet
Storage Intel H610 Chipset:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

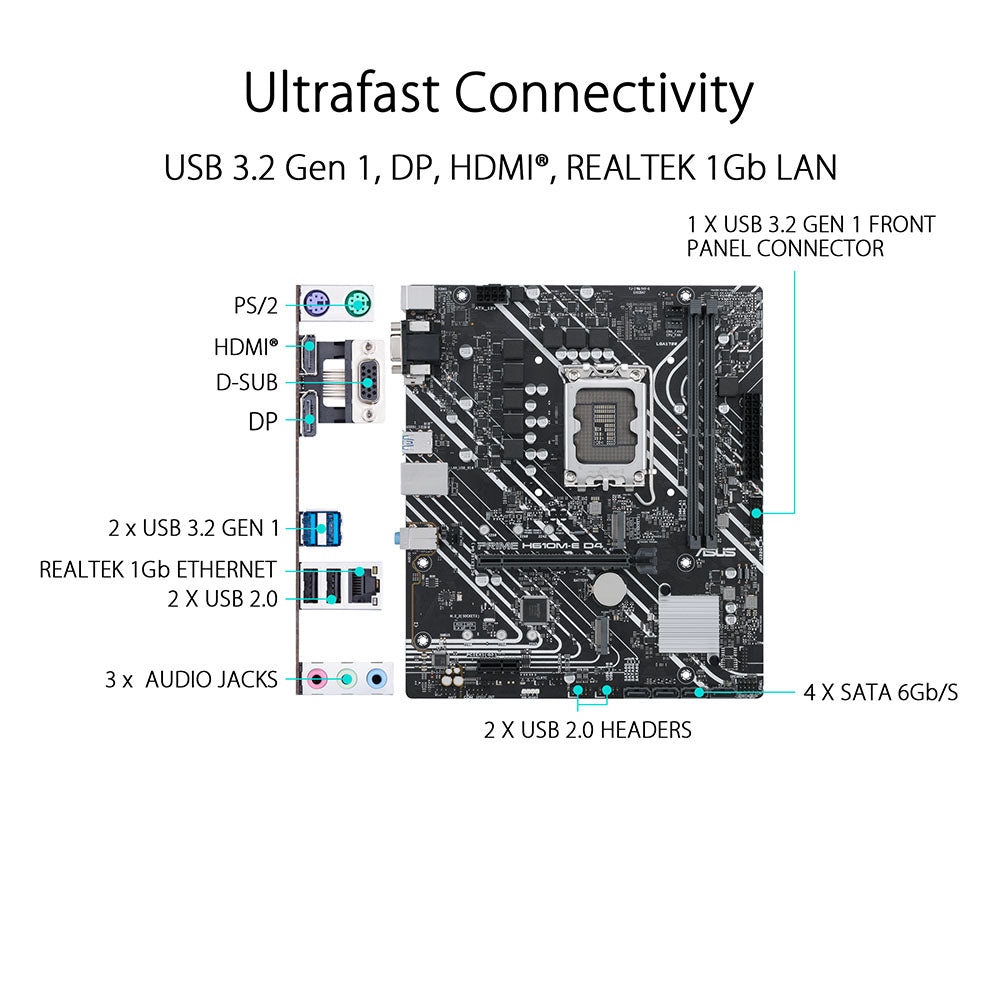

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

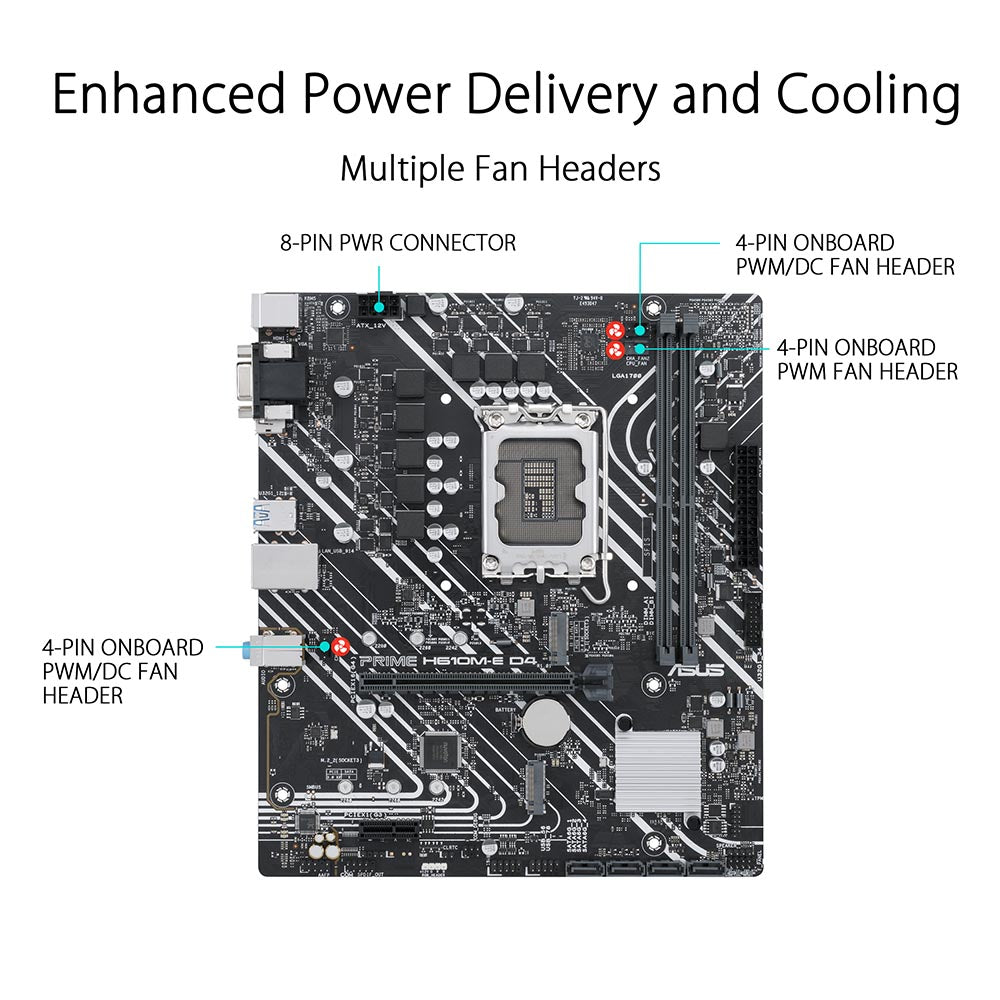

I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous

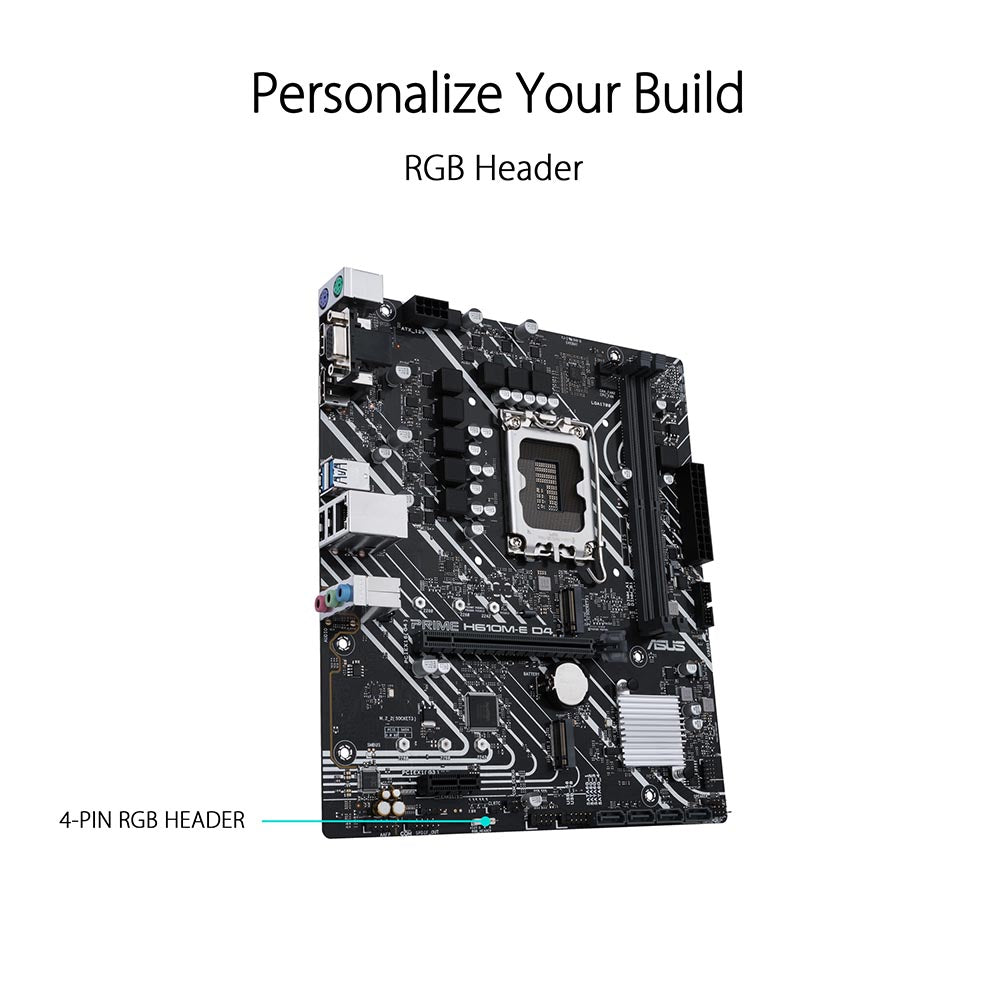

1 x RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

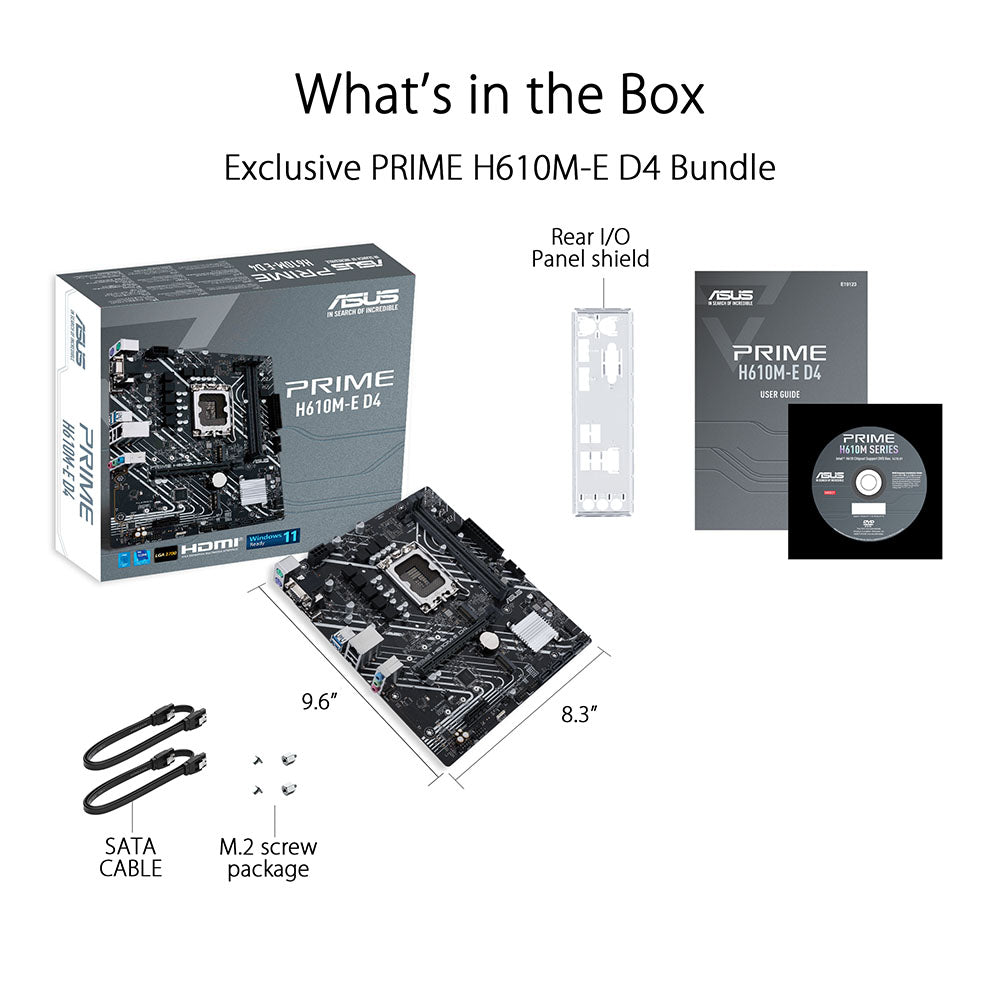

Accessories Cables
2x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
Dimensions 24.4 cm x 21.1 cm
ATX Form Factor
Warranty 3 Years of Brand Warranty
