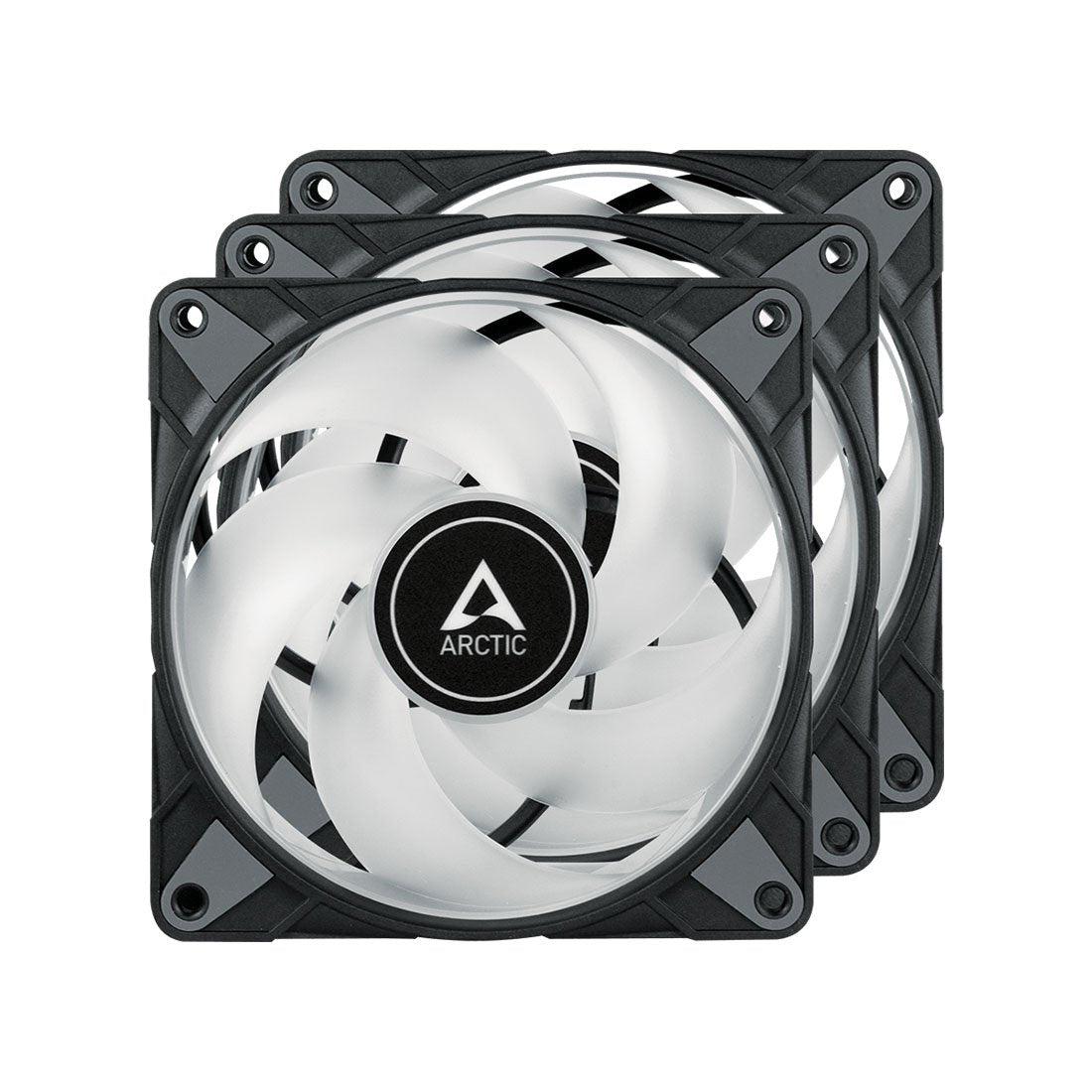

ARCTIC P12 PWM PST RGB 120mm CPU Case Cooling Fan Pack of 3 with 0dB Technology
ARCTIC P12 PWM PST RGB 120mm CPU Case Cooling Fan Pack of 3 with 0dB Technology
- Free Shipping
- 7-Days Return
- Original Warranty
Product Description:
- ARCTIC launches their new CPU RGB Case Fan with P12 PWM PST RGB 120mm Fan Pack of 3. The PWM controlled is designed with PST technology which allows that all of your fans listen to one control signal and to stand down at low load and spin up whenever necessary.
- The fan provides a rotational speed of up to 2000 rpm at a low noise level of 0.3 Sone. Developed with a motor which is a combination of alloy/lubricant gives reduced friction and noise. This makes the ideal solution for your silent working & gaming environment.
- The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
- Comes with 4-pin connector with 4-Pin socket. The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimizing the noise level.

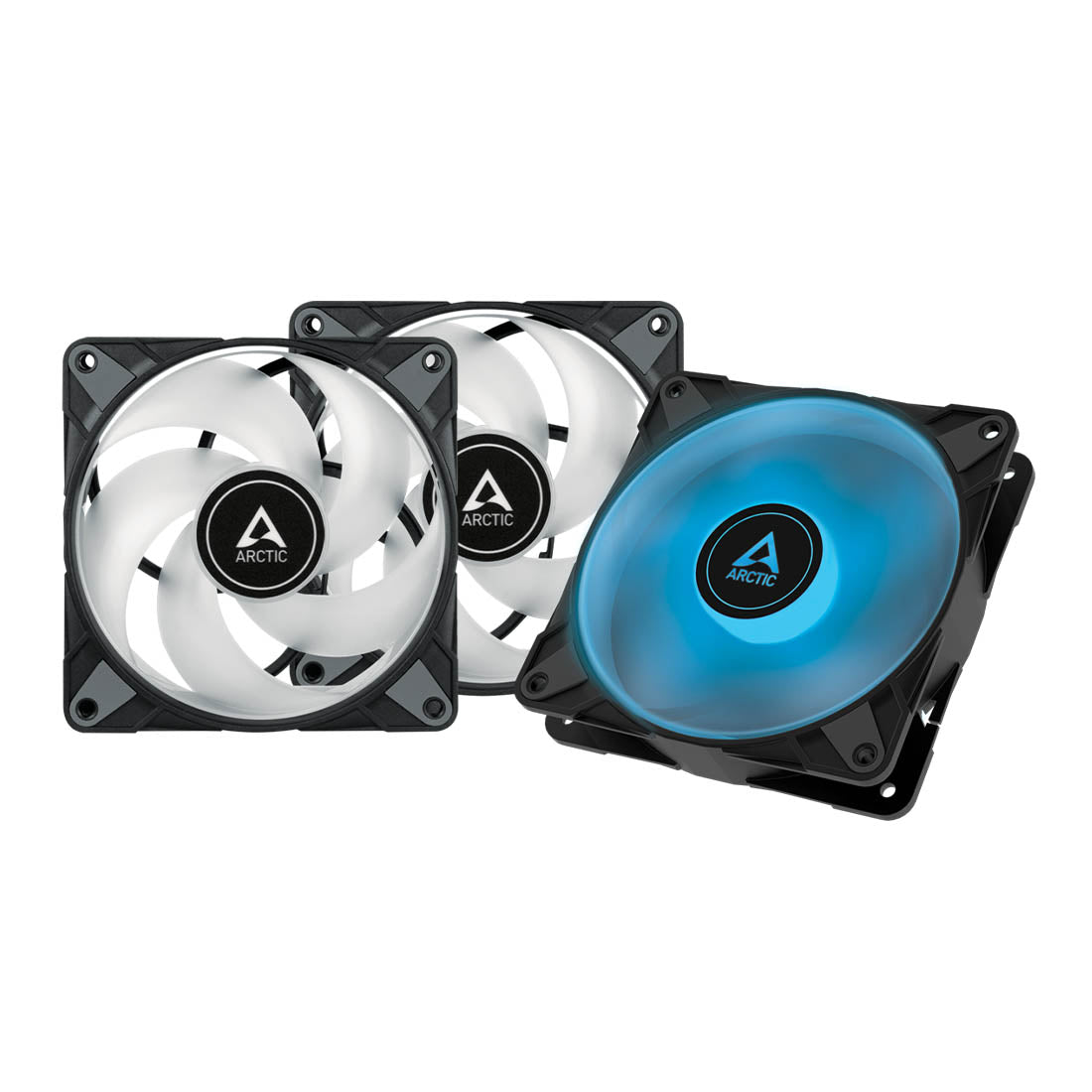

- The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronized with the illumination of other hardware.
~section~
0DB Mode - ZERO RPM
The speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required.
Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST A-RGB 0dB has rubberized contact surfaces and thus reduces audible vibrations to a minimum.
PWM Sharing Technology
With a wide speed range and the innovative PST, the fan speed of the P12 PWM PST A-RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
High Static Pressure
With a focused airflow and a high static pressure, the fan thus guarantees extremely efficient cooling even with increased air resistance and is therefore suitable for use on heat sinks, radiators and filters.
RGB for Full Color Control
With 12 analogue RGB LEDs in the fan barrel, these can be controlled independently of each other and are compatible with the common RGB standards of leading motherboard manufacturers.
High Quality Bearing
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
~section~
Model | P12 PWM PST RGB |
Part-Number | ACFAN00230A |
Fan |
|
Size | 3x 120mm RGB Fan |
Control Type | PWM PST (PWM Sharing Technology) |
Connector | 4-Pin-Connector + 4-Pin-Socket |
Fan Bearing | Fluid Dynamic Bearing |
Performance |
|
Fan Speed | 0 - 2000 rpm |
AirFlow | 48.8 CFM |
Static Pressure | 1.85 mm H₂O |
Noise Level | 0.3 Sone |
Operating Temperature | 0 - 40 °C |
Electric Characteristics |
|
Typical Voltage | 12V DC |
Starting Voltage | 5V |
Current / Voltage | 0.11 A / 12 V |
Cable Length | 400 mm |
Miscellaneous |
|

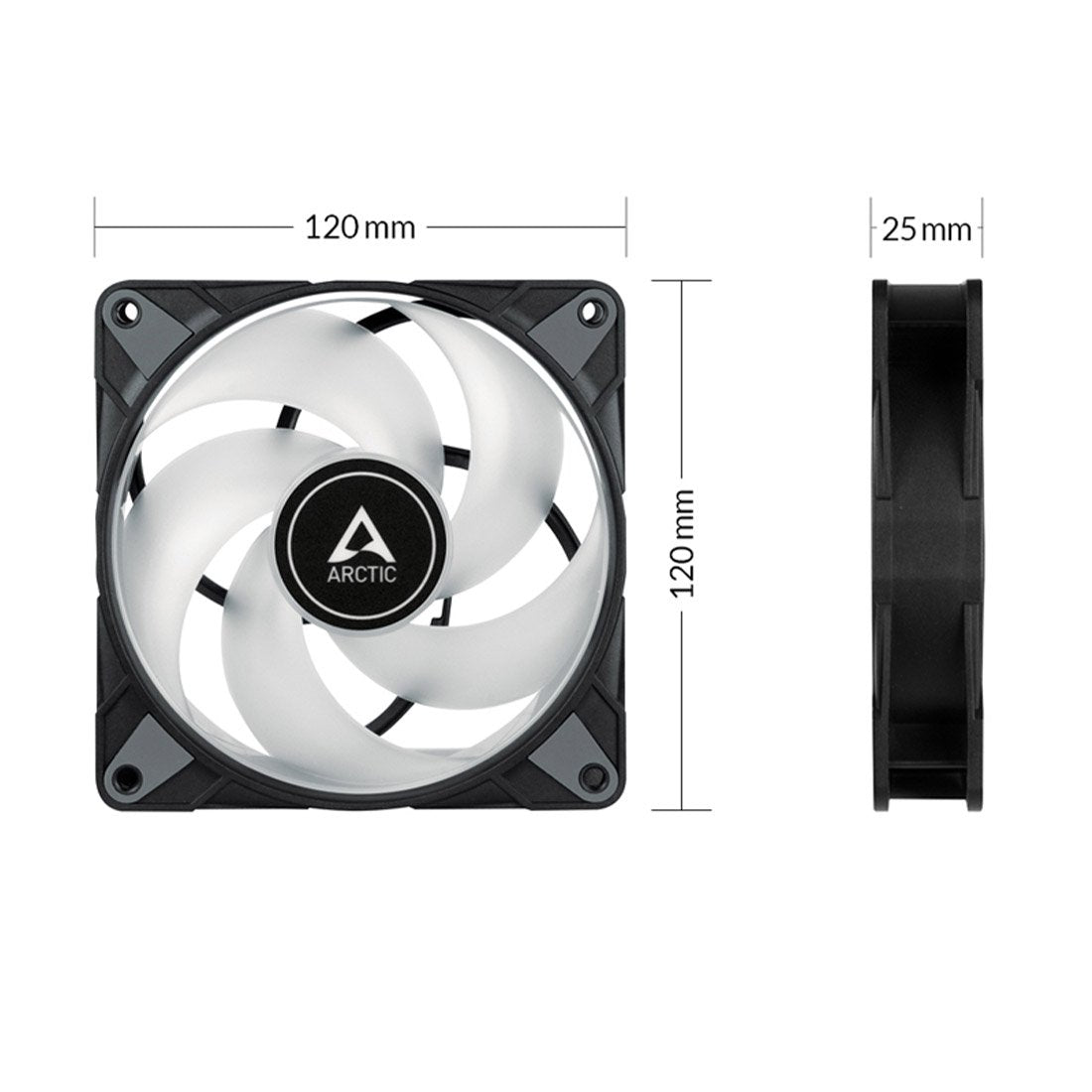

Dimensions | 120 x 120 x 25 mm |
Weight | 131g |
Warranty | 6 Years of Warranty from the Manufacturer |
